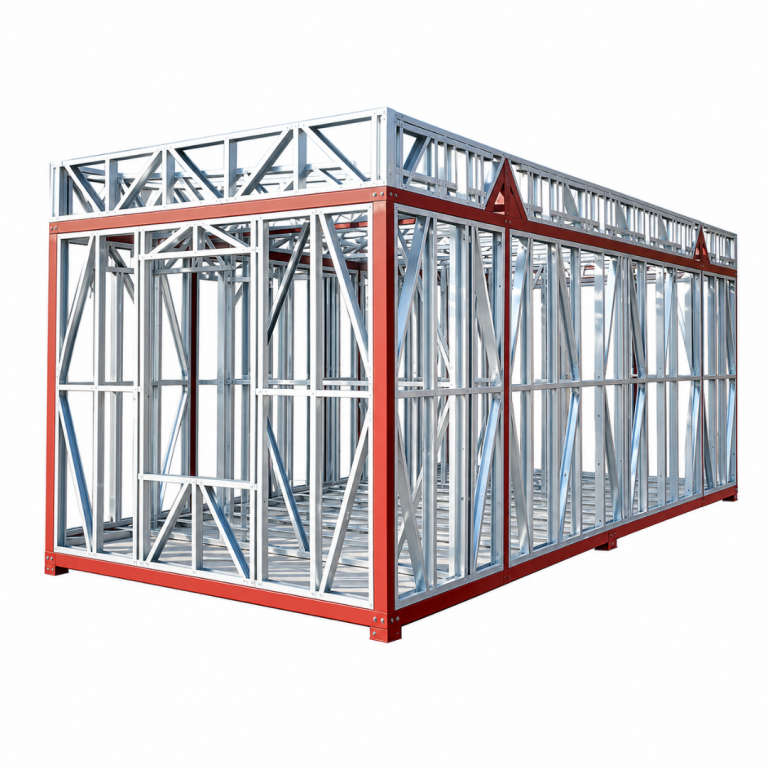

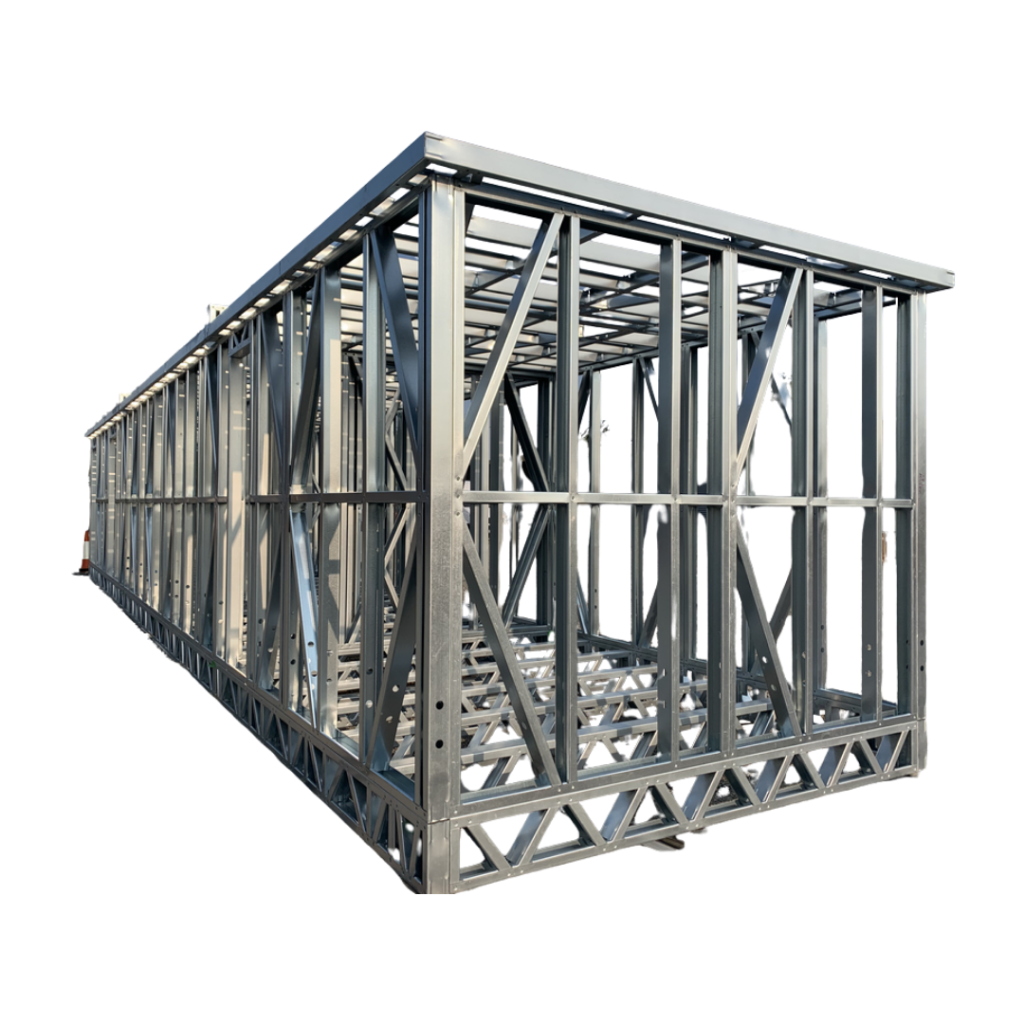

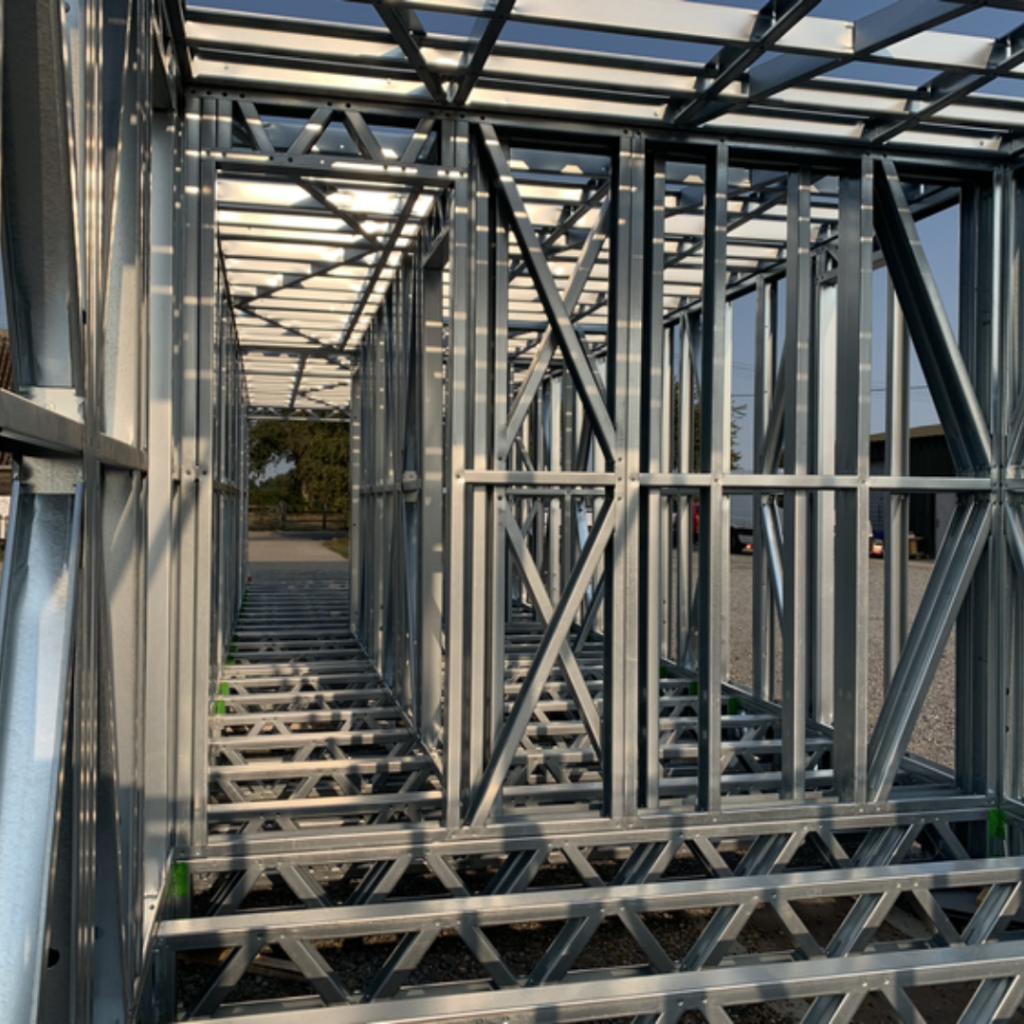

Modular Structural Sections

Building tomorrow’s infrastructure with precision-engineered, high-load modular structural sections designed for rapid assembly. Frigate delivers scalable, heavy-duty industrial framing solutions that cut down on-site welding and accelerate structural commissioning.

Material Grade

IS 2062 E250/E350, ASTM A36, ASTM A572 Grade 50

Yield Strength

Up to 350 MPa

Tensile Strength

410 to 490 MPa

Flange Style

Wide Flange (H-Beams), I-Beams, and Specialized Box Sections

Surface Treatment

Hot-Dip Galvanized (ISO 1461) or Epoxy Primer Coated

Order Type

Quantity Range

Lead Time*

Standard Profiles (Stock)

Up to 25 Metric Tons (MT)

2 – 3 Weeks

Batch Production

26 MT to 100 MT

4 – 6 Weeks

High-Volume Contract

101 MT to 500 MT

8 – 12 Weeks

Custom Tailored Engineering

> 500 MT / Bespoke Geometry

12 – 16 Weeks

*Listed timelines are indicative averages. Final schedules depend on material grade availability, current mill capacities, production queues, and custom drawing approvals.

Product Description

Frigate’s modular structural sections are engineered to provide high-strength, customizable load-bearing frameworks for demanding industrial environments. These versatile, pre-fabricated steel components seamlessly bolt together to streamline the construction of pipe racks, equipment platforms, and heavy infrastructure projects.

Zinc Coating Thickness

85 μm to 100 μm (standard customization available)

Dimensional Tolerances

EN 10034 / IS 1852 compliant

Connection Type

High-Strength Friction Grip (HSFG) Bolted / Prefab Welded

Section Depth Range

100 mm to 900 mm

Standard Section Lengths

6 meters and 12 meters (Custom cuts available)

Deflection Limit Standard

Designed to meet BS 5950 / IS 800 criteria

Corrosion Resistance Category

C4 to C5-I (Industrial/Marine Long-Term Durability)

Welding Certification

AWS D1.1 / EN ISO 3834 compliant

Load Bearing Capacity

Heavy Duty (Custom-engineered based on structural analysis)

NDT Testing Protocols

100% Visual, Ultrasonic (UT), and Magnetic Particle (MPI)

Technical Advantages

Our structural sections utilize advanced modular designs that eliminate extensive field fabrication, dropping on-site erection time by up to 40%. Engineered to strict global manufacturing tolerances, these high-tensile components optimize raw material usage, ensuring a lower total cost of ownership (TCO) and superior structural integrity under dynamic loads.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Pipe Racks & Cable Trays

Modular frameworks designed for seamless routing of heavy process piping and electrical conduits in chemical, petrochemical, and refining facilities.

Industrial Mezzanines

High-load structural platforms and walkways engineered to maximize vertical footprint expansion within heavy engineering warehouses and manufacturing plants.

Power & Energy Infrastructure

Robust structural skeletons optimized to support substations, solar tracking towers, wind turbine internal platforms, and heavy transmission lines.

Conveyor Support Systems

Heavy-duty, vibration-resistant structural galleries built to reliably carry material handling systems across mining, cement, and bulk cargo terminals.

Material Warehouses

Pre-engineered primary and secondary framing sections that simplify the rapid setup of large-span commercial logistic hubs and fulfillment centers.

Aviation & EV Hangars

Clean-span, modular framing assemblies that meet stringent architectural tolerances required for aerospace hangars and automotive assembly lines.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How do Frigate’s modular structural sections reduce total project lead times?

Because our structural sections are pre-engineered, cut, and drilled to precise tolerances at our manufacturing facilities, they arrive on-site ready for immediate assembly. This plug-and-play bolting method eliminates time-consuming field fabrication, on-site welding delays, and expensive inspection protocols, accelerating your structural commissioning phase.

Can these structural sections be customized to specific engineering design files?

Absolutely. We work directly with your engineering team to fabricate sections based on your custom structural drawings, specific connection details, or unique geometric requirements. Our manufacturing setup accommodates non-standard section depths, customized hole patterns, and specialized heavy-duty connection plates.

What corrosion protection options do you provide for harsh industrial environments?

To combat aggressive industrial or marine environments, we offer heavy-duty hot-dip galvanization conforming to ISO 1461, delivering zinc coatings from 85 μm to over 100 μm. Alternatively, we can provide multi-coat epoxy primer and polyurethane topcoat paint systems tailored to specific C4 or C5 corrosion categories.

What quality compliance certifications do you provide with each shipment?

Every batch of structural sections leaves our facility with a comprehensive quality assurance documentation pack. This includes Mill Test Certificates (MTC) tracking material traceability to IS or ASTM standards, Non-Destructive Testing (NDT) reports for welds, galvanizing thickness reports, and dimensional compliance certificates.

How do you handle shipping logistics and site delivery sequence for bulk orders?

We coordinate with your project planning team to stagger shipments based on your on-site erection sequence (e.g., foundation beams arriving before secondary bracing). All modular elements are clearly labeled and bundled according to structural sub-assemblies, minimizing sorting confusion and handling time upon delivery.
