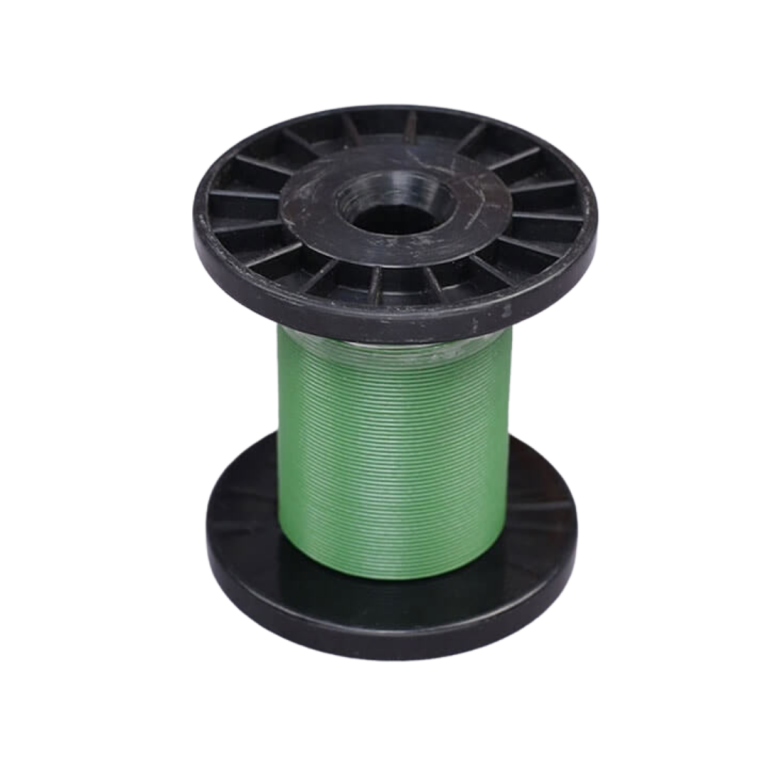

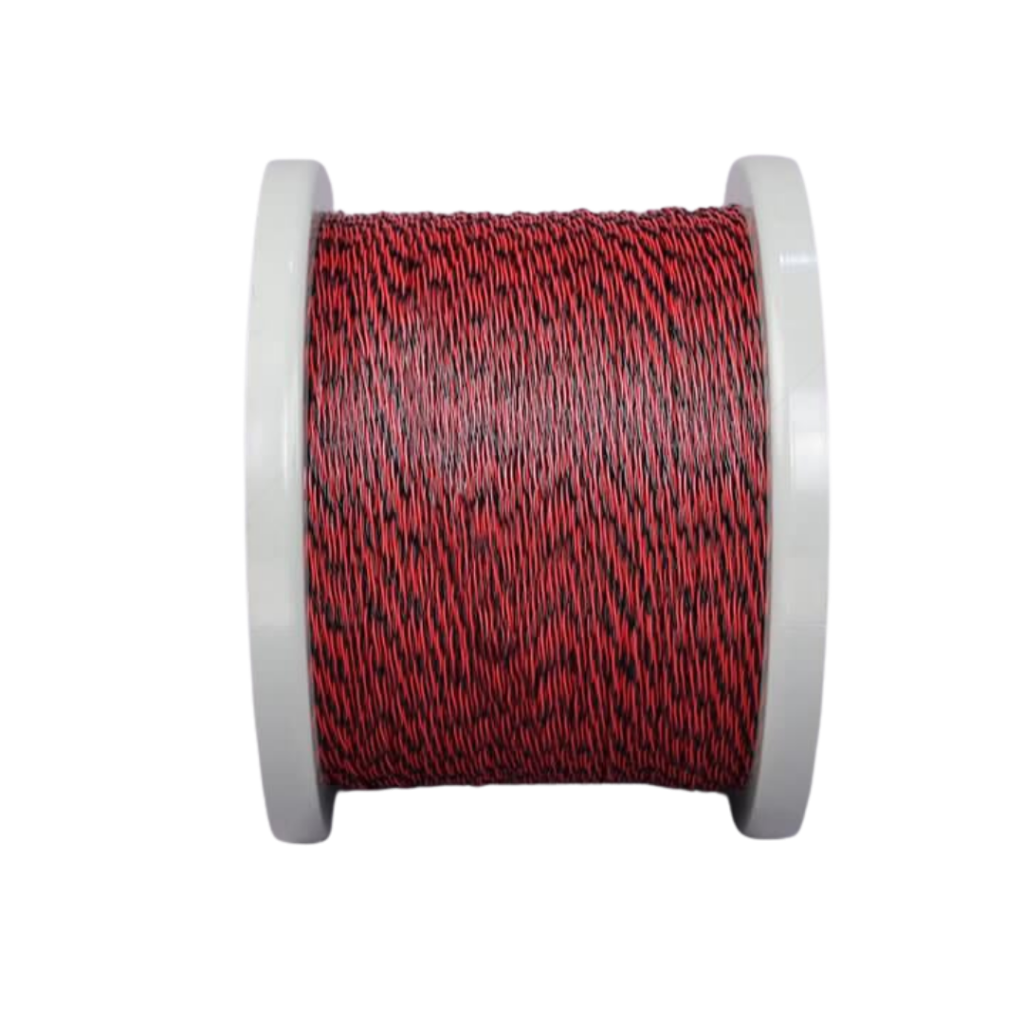

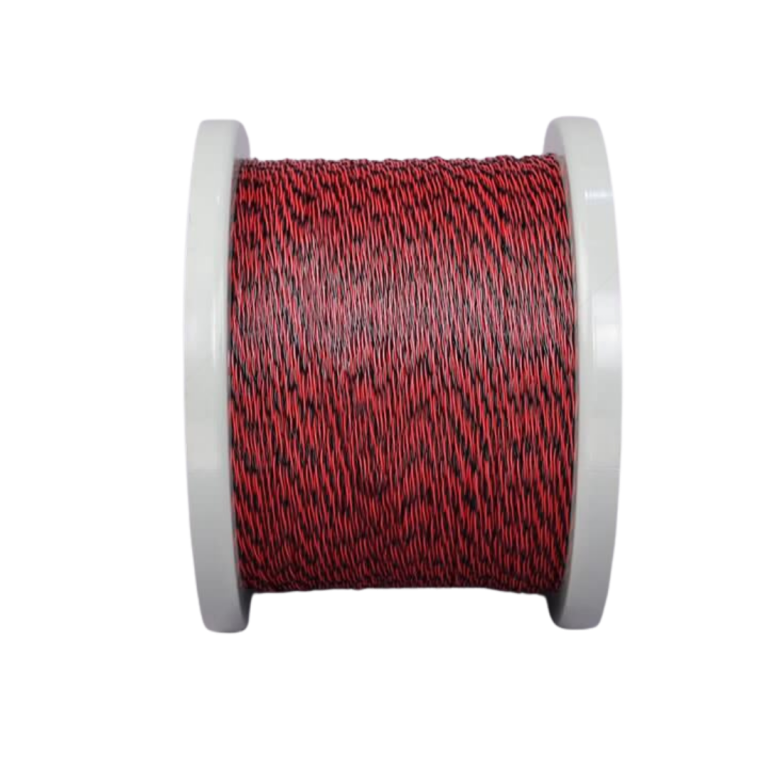

MIL-DTL-81381 Polyimide (Kapton) Insulated Wire

Engineered to withstand the most punishing aerospace and defense environments, Frigate’s MIL-DTL-81381 polyimide insulated wires deliver unmatched thermal stability and lightweight dielectric strength. This high-performance wiring ensures flawless signal and power transmission where weight savings and extreme temperature resistance are mission-critical.

Specification Compliance

MIL-DTL-81381 (Complete Series)

Insulation Material

Polyimide Film (Kapton®) / Fluorocarbon Composite

Conductor Options

Silver-Coated Copper, Nickel-Coated Copper, High-Strength Copper Alloy

Temperature Rating

-55° C to +200° C (Silver) / +260° C (Nickel)

Voltage Rating

600 Volts RMS

*Note: Timelines are indicative and depend on raw material availability, conductor coating requirements, and active factory capacity. Exact delivery schedules will be locked in upon formal RFQ evaluation.

Product Description

Frigate’s MIL-DTL-81381 series features a precision-wrapped polyimide film tape insulation that maximizes space savings without compromising electrical breakdown voltage. Designed specifically for complex wire harness architectures, it offers a tough, abrasion-resistant outer profile that minimizes jacket chafing in high-vibration systems.

Dielectric Strength

Spark test up to 2.5 kV AC / Impulse test up to 6.5 kV

Flammability Rating

Self-extinguishing, non-burning per military standards

Smoke Emission

Low smoke, zero halogen formulation options available

Chemical Resistance

Excellent resistance to aircraft fuels, hydraulic fluids, and aggressive solvents

Radiation Resistance

High tolerance to gamma and electron beam radiation exposure

Space Outgassing

Meets NASA SP-R-0022A vacuum outgassing requirements

Hydrolysis Resistance

Enhanced topcoat formulations to resist moisture-induced degradation

Weight Efficiency

Up to 40% lighter than standard extruded PVC or rubber insulated wires

Color Availability

Standard mil-spec colors with custom surface striping options

Identification Marking

Durable laser marking or ink-jet printing compatible

Technical Advantages

This composite tape insulation provides an exceptional strength-to-weight ratio, allowing engineers to strip down sub-system weight while maintaining superior cut-through and arc-tracking resistance. Additionally, its high thermal index guarantees long-term operational integrity during continuous exposure to elevated temperatures and harsh chemical environments.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Aerospace Airframes

Provides lightweight, space-saving power distribution and avionics bay routing that reduces overall aircraft weight while resisting high-altitude radiation zones.

Defense Electronics

Deploys reliable, low-outgassing interconnect instrumentation inside missile guidance mechanisms, tactical communication arrays, and military vehicle control boxes.

Satellite & Space Systems

Meets strict vacuum outgassing thresholds required for deep-space telemetry wiring, solar array articulation links, and orbital launch vehicle payloads.

Commercial UAVs & Drones

Optimizes payload capacity for long-endurance industrial drones by slashing wire harness weight while safely handling high-density battery discharge currents.

High-Temperature Downhole Tools

Shields critical sensor instrumentation lines from extreme thermal stress and aggressive chemical drilling fluids found in deep oil and gas exploration wells.

Medical Imaging Devices

Ensures biocompatible, autoclave-survivable, and high-dielectric internal cabling for advanced diagnostic imaging arrays, X-ray machinery, and MRI subsystems.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How does Frigate mitigate the hydrolysis and arc-tracking risks historically linked to old polyimide wire formulations?

We utilize modern, multi-layer composite tape configurations featuring fluoropolymer (PTFE/FEP) blending alongside enhanced polyimide films. This advanced hybrid insulation drastically improves moisture resistance and arc-propagation barriers, resolving the hydrolysis issues found in early-generation legacy military specifications.

Can we submit custom conductor alloy and plating requirements under this specification for our custom harness design?

Yes. While we stock standard silver and nickel-plated copper cores, Frigate specializes in custom manufacturing runs utilizing high-strength copper alloys or ultra-pure conductors to meet specific tensile, flexibility, or conductivity parameters dictated by your engineering footprint.

Are these wires fully compatible with automated laser marking and high-speed automated stripping equipment?

Absolutely. Our MIL-DTL-81381 wire finishes are formulated for clean UV or green laser marking contrast, ensuring indelible identification codes. The insulation cross-section also maintains high dimensional concentricity, preventing conductor scoring during automated precision mechanical stripping.

What quality assurance documentation does Frigate provide to meet military and aerospace procurement compliance?

Every production lot undergoes rigorous physical and electrical validation. We furnish comprehensive compliance packages upon request, including standard Certificates of Conformance (CoC), material traceability reports, raw insulation mill test reports, and formal outgassing data sheets.

We need custom bulk packaging for automated harness assembly lines. Can you accommodate specific spooling layouts?

Yes, we can tailor the spooling sizes, continuous run lengths, and flange dimensions to seamlessly integrate with your automated wiring harness assembly equipment. Please specify your desired minimum continuous length per reel when submitting your RFQ.
