Manifold Valves

Empower your instrumentation systems with Frigate’s precision-engineered manifold valves, designed for seamless isolation, venting, and equalization in demanding industrial environments. Manufactured from premium alloys and rated up to 9,000 psi, our 2-valve, 3-valve, and 5-valve configurations deliver leak-tight integrity and ultimate process control.

Material of Construction (M.O.C)

CS, AS, SS, DSS, SDSS, SASS, Monel, Hastelloy, Inconel, Titanium, Tantalum

Size Range

1/4″ to 1/2″

Pressure Ratings

3000 psi / 6000 psi / 9000 psi

End Connections

NPT / BSP / BSPT / SW (Socket Weld) / Metric

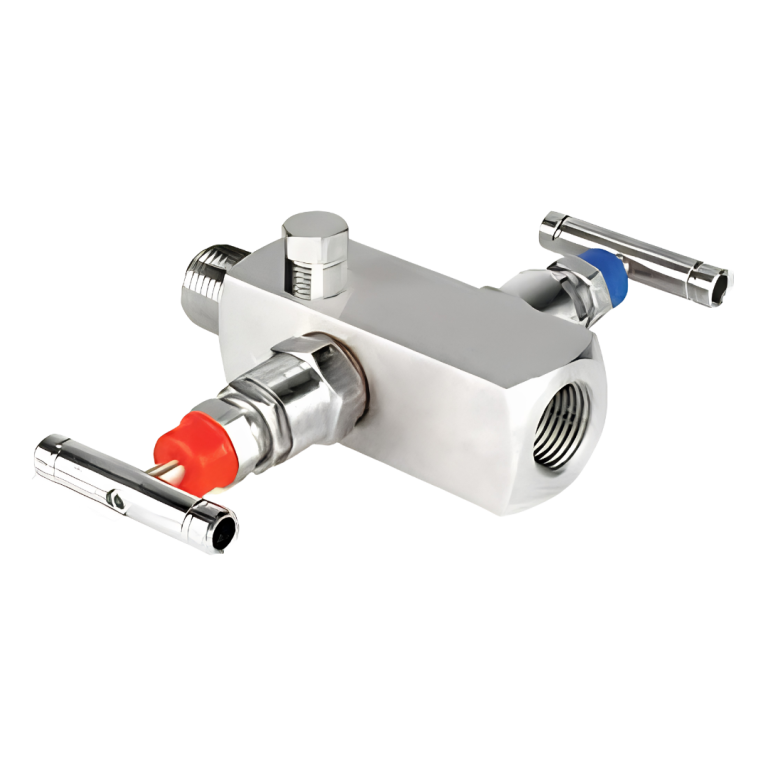

2-Valve Configurations

Block & Bleed (‘F’ Type), Integral Mounting (‘T’ Type), Angle Type, Gauge Type

Order Type

Quantity Range

Lead Time*

Standard Batch

1 – 50 Units

2 – 3 Weeks

Mid-Scale Procurement

51 – 250 Units

4 – 5 Weeks

Bulk Industrial Order

251 – 1000+ Units

6 – 8 Weeks

Custom M.O.C / Custom Spec

Varies by Scope

8 – 10 Weeks

*These lead times are indicative ranges. Actual delivery schedules depend heavily on the chosen Material of Construction (M.O.C), engineering design approvals, and current factory floor utilization.

Product Description

Frigate’s multi-valve manifold assemblies provide a highly reliable, compact interface between process piping lines and critical pressure measurement instruments like transmitters and gauges. By integrating isolation, calibration, and venting pathways into a single forged block, these systems eliminate potential leak paths while drastically simplifying field installation layouts.

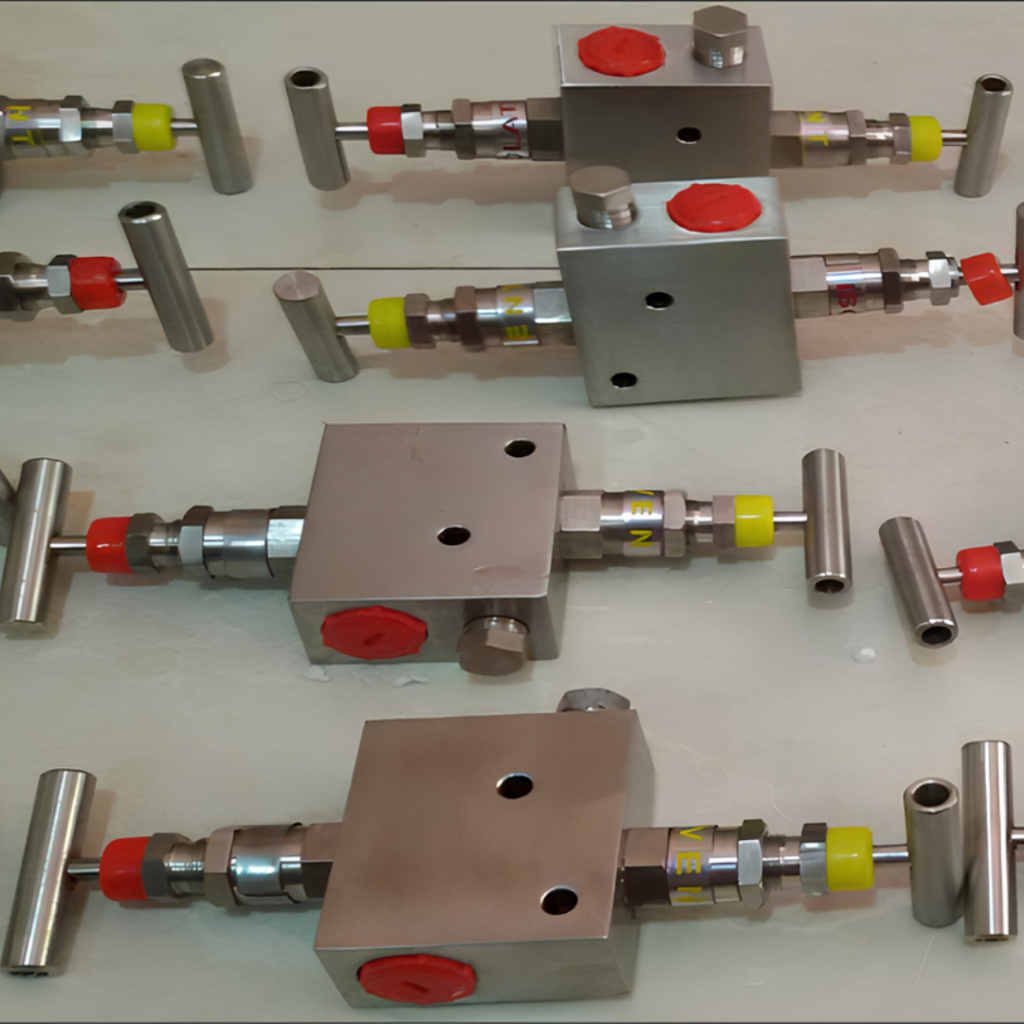

3-Valve Configurations

‘F’ Type (Separate Mounting), ‘T’ Type (Integral Mounting), ‘H’ Type, Coplanar Type

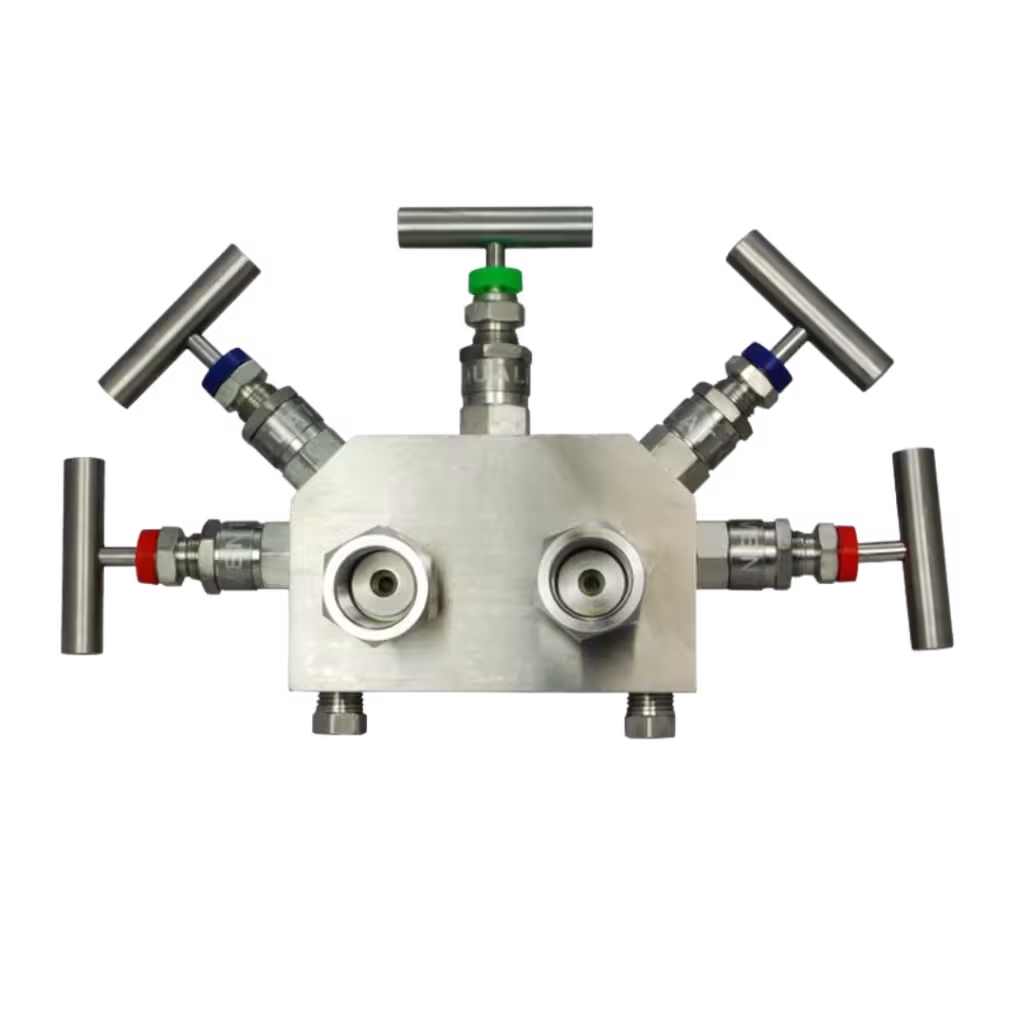

5-Valve Configurations

‘F’ Type, ‘T’ Type, ‘H’ Type, Coplanar Type, Slant Type, Bar Type

Drain Options

Available with Drain or Without Drain options across configurations

Mounting Styles

Separate Mounting, Integral Mounting, and Coplanar Coplanar / Slant structural variants

Gauge Port Interface

Female x Female (F x F), Female x Male (F x M), Male x Female (M x F)

Sealing Design

Bubble-tight shut-off with robust stem packaging for high-pressure isolation

Flow Media Compatibility

Corrosive chemicals, high-temperature steam, oil, gas, and technical slurries

Stem Design

Heavy-duty ergonomic T-bar handles with color-coded operational rings

Surface Finish

High-precision machined finish preventing galling and body score marks

Manufacturing Standards

Fully compliant with international high-pressure valve body and design rules

Nominal Valve Size (inches)

Stem Diameter (mm)

Body Height (mm)

Total Component Length (mm)

1/4″

6.5

110

3/8″

7.5

128

1/2″

145

Technical Advantages

Engineered for extreme resilience, our manifold valves feature premium alloy constructs that resist severe stress corrosion cracking in high-vibration applications. The specialized non-rotating stem tip design ensures a scuff-free, bubble-tight seal every time, substantially lowering maintenance costs and extending the operational lifespan of your downstream instruments.

Compliances

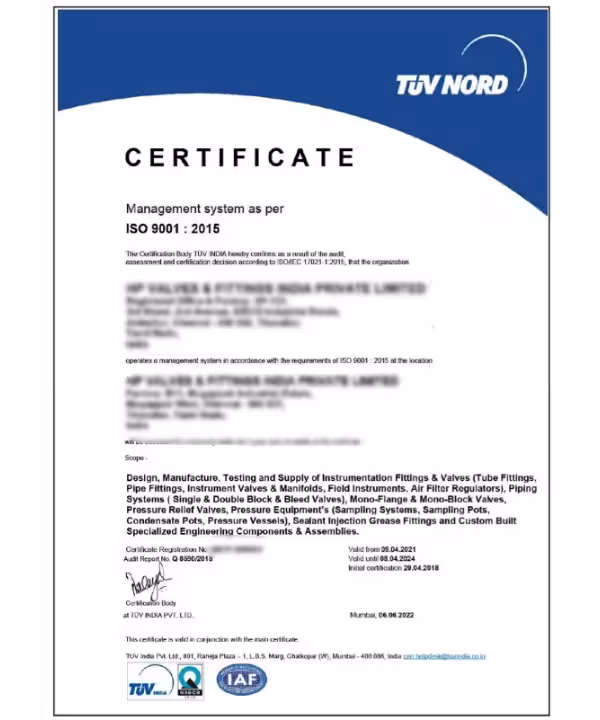

ISO 9001:2015

ISO 14001:2015

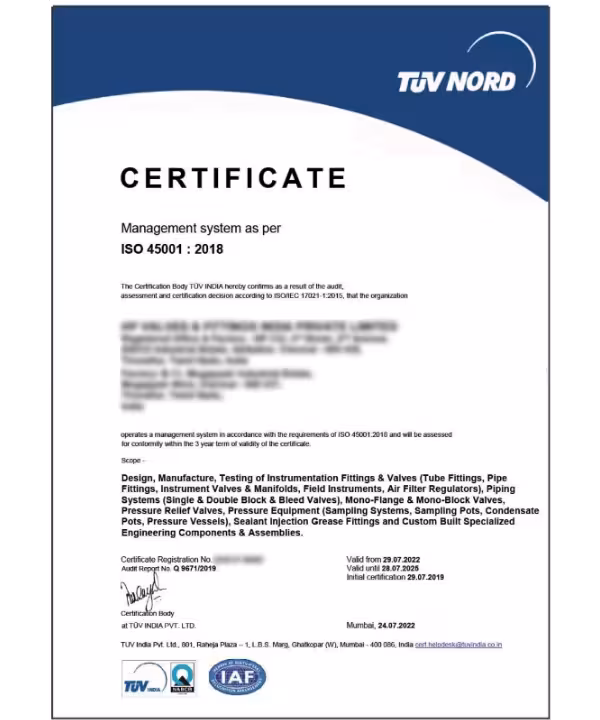

ISO 45001:2018

Let's Get Started

Need reliable valve for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Oil & Gas Processing

Provides reliable high-pressure isolation and critical bleeding paths within upstream production wells, downstream refining pipelines, and offshore oil platforms.

Chemical & Petrochemical

Ensures safe, leak-proof containment and precise instrument calibration layouts while continuously handling highly aggressive media, corrosive acids, and toxic chemical streams.

Power Generation

Manages high-temperature steam distribution lines and turbine pressure monitoring networks with maximum thermal stability and pressure hold integrity up to 9,000 psi.

Water & Wastewater Treatment

Optimizes flow measurement setups and differential pressure transmitter configurations in municipal water filtration plants and massive industrial effluent monitoring facilities.

Marine & Aerospace

Delivers ultra-compact, lightweight coplanar and slant-type manifold variations perfectly suited for onboard space-restricted control panels and demanding maritime engine rooms.

Pulp & Paper Mills

Supports robust slurry lines and processing loops, preventing instrument clogging via specialized 3-valve and 5-valve purging, venting, and isolation techniques.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What configurations are available for Frigate Manifold Valves?

We manufacture 2-valve, 3-valve, and 5-valve configurations across various structural profiles including Block & Bleed (‘F’ Type), Integral Mounting (‘T’ Type), ‘H’ Type, Coplanar, Slant, and Bar types to suit diverse instrument setups.

Which Materials of Construction (M.O.C) can I select for extreme environments?

Beyond standard Carbon Steel and Stainless Steel, we offer high-performance exotic alloys including Duplex (DSS), Super Duplex (SDSS), Monel, Hastelloy, Inconel, Titanium, and Tantalum for high-corrosion or high-temperature applications.

What is the maximum pressure rating supported by these manifolds?

Frigate manifold valves are fully rated and certified to withstand operational pressures of 3000 psi, 6000 psi, and up to 9000 psi, depending on the chosen series and sealing components.

What is the advantage of using a Coplanar Manifold Valve over a standard type?

Coplanar configurations offer a highly compact footprint by allowing direct process installation, reducing spatial requirements, reducing leak vectors, and simplifying direct mounting to pressure transmitters.

Are the gauge ports customizable regarding thread types and orientations?

Yes, we provide highly flexible end connection types including NPT, BSP, BSPT, Socket Weld (SW), and Metric threads in Female x Female, Female x Male, and Male x Female orientations.
