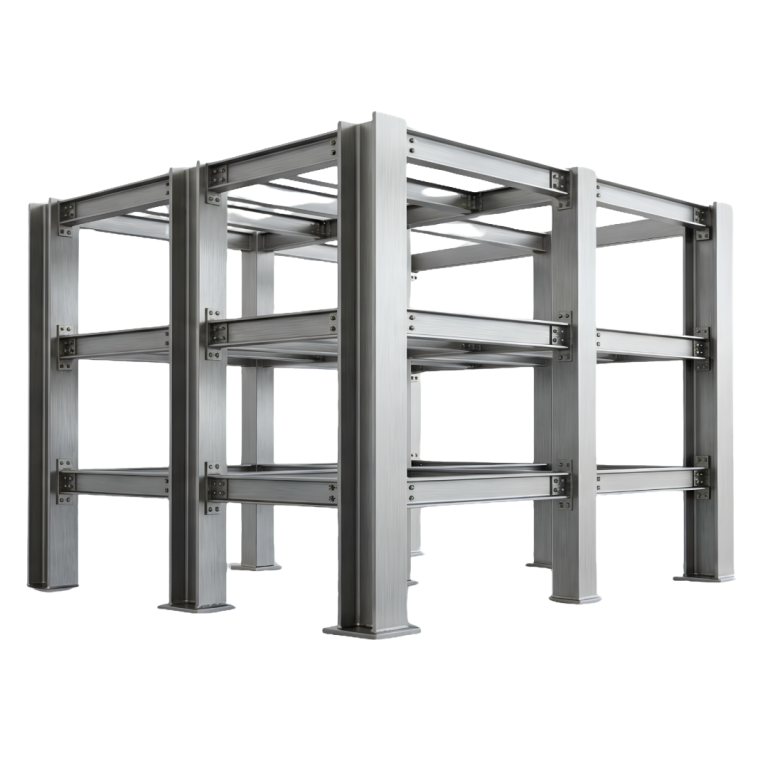

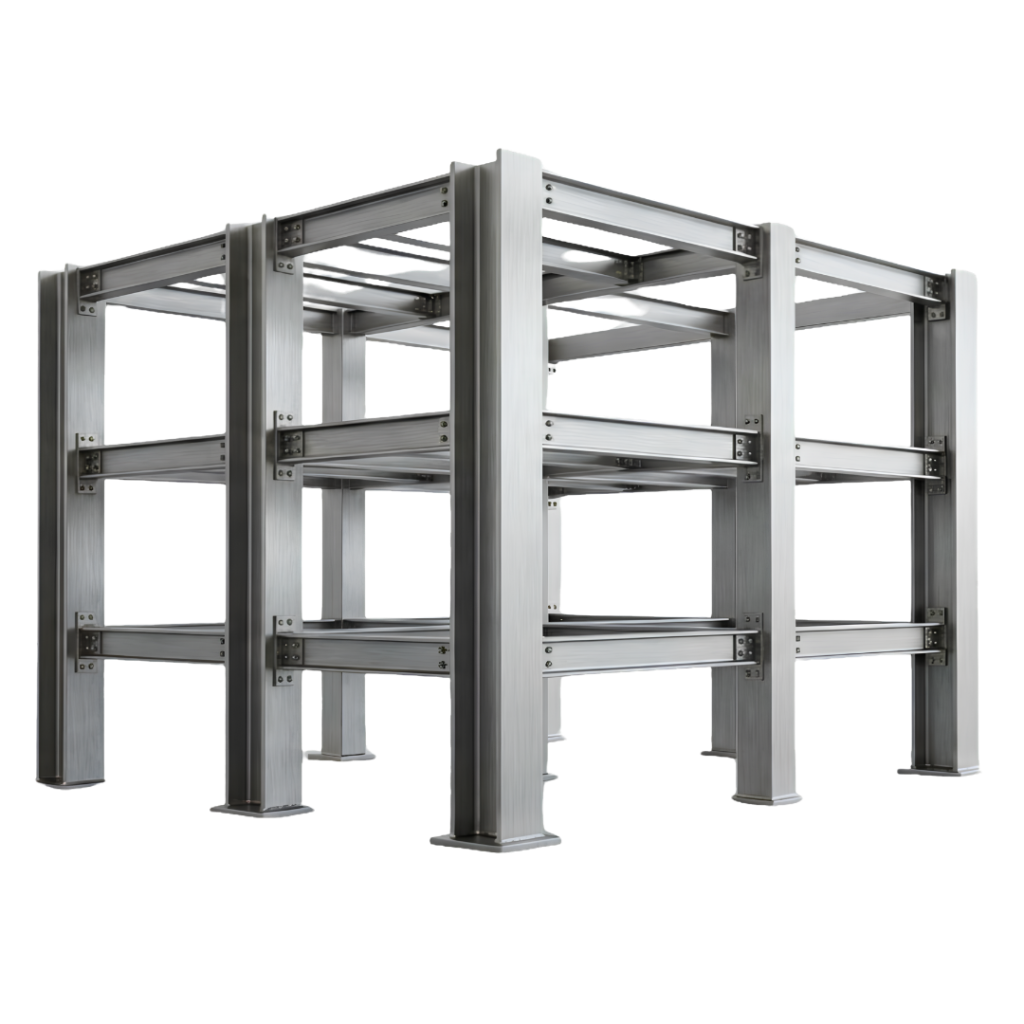

Load-Bearing Frames

Engineered to withstand extreme structural stresses, Frigate’s heavy-duty load-bearing frames deliver uncompromising stability for large-scale infrastructure projects. Discover custom-fabricated structural foundations designed to optimize total cost of ownership and accelerate your project timelines.

Material Grade

Structural Steel (IS 2062 Gr E250/E350, ASTM A36, ASTM A572 Grade 50)

Yield Strength

Up to 350 MPa (depending on material grade)

Ultimate Tensile Strength

410 – 540 MPa

Maximum Load Capacity

Up to 500 metric tons static load per node

Fabrication Standards

AWS D1.1 (Structural Welding Code – Steel), EN 1090-2

Order Type

Quantity Range

Lead Time*

Sample / First-Article Inspection

1 – 3 Units

3 – 4 Weeks

Low-Volume Batch Production

4 – 15 Units

5 – 6 Weeks

Medium-Volume Infrastructure Run

16 – 50 Units

7 – 9 Weeks

High-Volume / Enterprise Supply Agreement

50+ Units

10+ Weeks (Staggered Delivery)

*Listed timeframes are indicative and based on standard material availability; exact production schedules are finalized upon receipt of complete CAD files and design sign-off.

Product Description

Frigate’s load-bearing frames serve as the backbone for critical industrial infrastructure, absorbing severe dynamic and static stress profiles without deformation. Utilizing precision CNC cutting, rigorous welding controls, and advanced geometric verification, these frames guarantee drop-in alignment on-site to minimize installation lead times.

Welding Process

GMAW (MIG) / FCAW (Flux-Cored) by AWS-certified welders

Dimensional Tolerances

ISO 2768-m (Fine) or ± 1.5mm over total frame length

Surface Treatment

Hot-dip galvanizing (ISO 1461) or marine-grade epoxy coating

Coating Thickness

85 – 120 μm DFT (Dry Film Thickness)

Non-Destructive Testing (NDT)

100% Visual, 20% Ultrasonic (UT), Magnetic Particle Testing (MPT)

Deflection Limit

Optimized to L/400 or L/600 under peak design load

Section Profiles Available

H-Beams, I-Beams, Built-up Box Sections, Heavy Channels

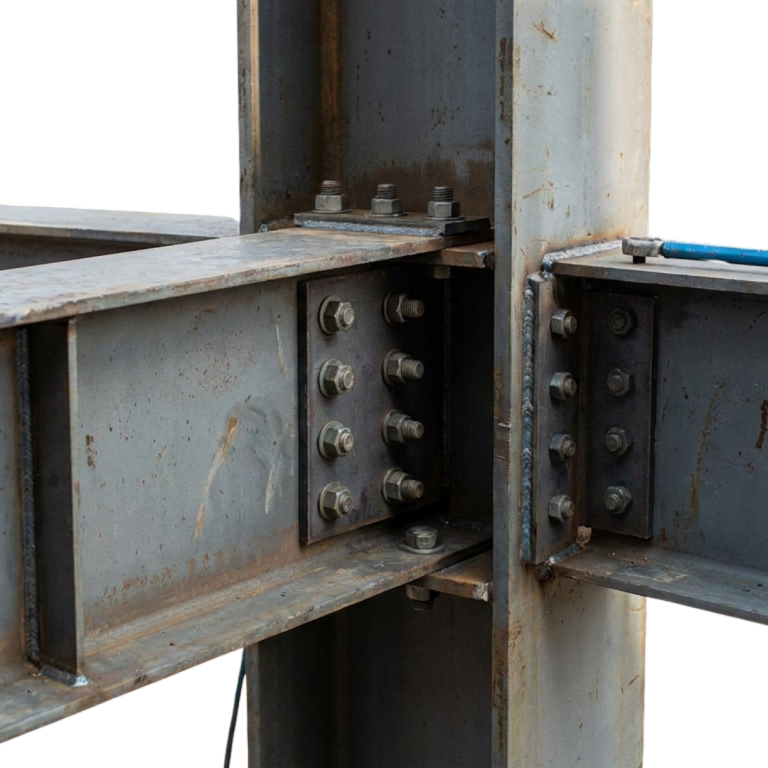

Connection Types

High-tensile bolted joints (Grade 8.8/10.9) or full-penetration groove welds

Operating Temperature Range

-20 ° C to +60 ° C structural integrity baseline

Design Compliance

AISC 360, IS 800:2007 structural steel design codes

Technical Advantages

By utilizing high-strength steel chemistry and optimized weld geometries, our frames provide an exceptional strength-to-weight ratio that reduces overall logistics and handling costs. Every assembly undergoes strict non-destructive testing (NDT) to eliminate the risk of latent structural fatigue, extending operational asset life in harsh environments.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Heavy Industrial Warehousing

Rigid structural grid networks engineered to support high-density automated storage retrieval systems (ASRS) and massive overhead crane tracking systems.

Power & Energy Substructures

Robust, vibration-resistant foundations built to support massive transformers, heavy turbines, and high-voltage switchgear installations safely.

Mining & Materials Handling

Heavy-duty structural gantries and chassis frames designed to withstand continuous impact loads from crushing equipment and conveyor discharge points.

Civil Infrastructure & Bridges

Modular, high-tensile support structures and cross-beams fabricated to meet stringent highway, pedestrian, and rail-bearing load requirements.

Oil & Gas Process Skids

Corrosion-resistant modular frame beds optimized for heavy piping manifolds, high-pressure vessels, and offshore pumping machinery modules.

Aerospace & Defense Test Fixtures

Ultra-precise, low-deflection reaction frames engineered specifically to handle high-tonnage static and fatigue validation testing setups.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can Frigate manufacture load-bearing frames based on our proprietary custom CAD designs?

Yes. We operate as a full-spec B2B manufacturing partner. Our engineering team conducts thorough Design for Manufacturability (DFM) reviews on your STEP, IGES, or DWG files to optimize weld paths, material utilization, and tolerances before production begins.

What quality documentation and certificates are provided with the delivery?

Every shipment includes a comprehensive manufacturing quality dossier. This package contains material test certificates (MTC Type 3.1), NDT inspection reports (Ultrasonic/Magnetic Particle), coating thickness validation logs, and final dimensional inspection reports.

How does Frigate mitigate structural distortion during the welding process?

We control weld distortion through specialized heavy-duty clamping fixtures, sequenced welding patterns, and strictly monitored heat-input parameters. For critical infrastructure components, post-weld heat treatment (PWHT) or stress-relieving options can be integrated.

What surface finish configurations do you offer for high-corrosion environments?

For aggressive environments (like coastal or chemical processing zones), we offer hot-dip galvanizing per ISO 1461, multi-coat polyurethane marine systems, or robust epoxy primers. These are designed to pass rigorous salt spray testing parameters based on your requirements.

How do you handle freight, logistics, and on-site delivery for oversized frames?

Frigate manages specialized logistics for heavy and over-dimensional cargo (ODC). We ensure all frames are structurally braced, securely padded, and tied down in dedicated flat-beds or low-bed trailers to preserve geometric tolerances during transit to your site.
