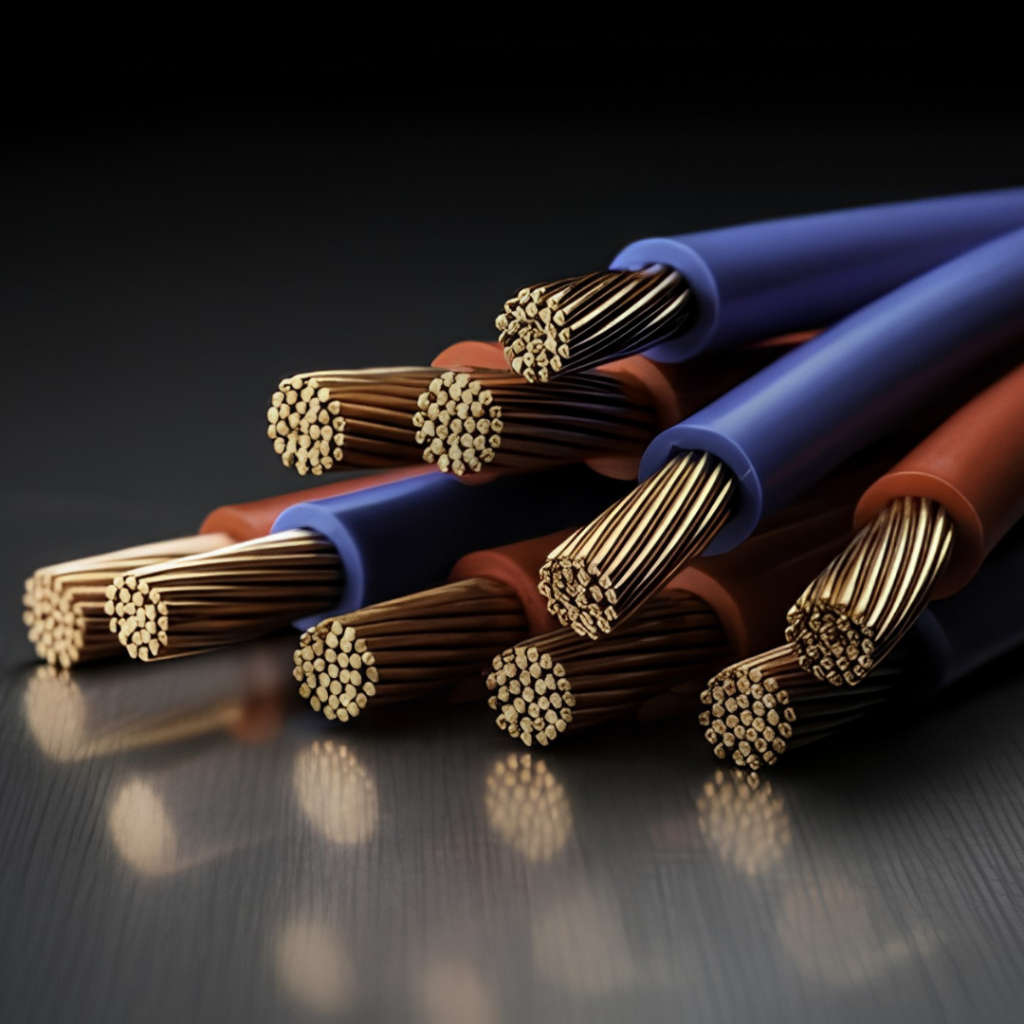

KP-260 Type Electrical Wire

Engineered for uncompromising reliability, Frigate’s KP-260 Type Electrical Wire delivers exceptional thermal stability and superior dielectric strength in demanding industrial environments. This high-performance wiring solution is precision-crafted to optimize power distribution and ensure operational continuity across your most critical infrastructure.

Model/Type

KP-260 High-Performance Electrical Wire

Conductor Material

High-conductivity annealed stranded tinned copper

Insulation Material

Cross-linked Fluoropolymer (XL-ETFE)

Rated Voltage

600V AC / 1000V DC

Continuous Operating Temperature

-65°C to +260°C

*Note: Listed timelines are indicative estimates based on current capacity. Actual delivery schedules depend on specific shielding requirements, custom color-coding, and raw material positioning at the time of order confirmation.

Product Description

Frigate’s KP-260 Type Electrical Wire is an industrial-grade wiring solution designed to maintain electrical integrity under extreme thermal and mechanical stress. Utilizing premium insulation and specialized conductor stranding, it provides a compact, flexible, and highly durable footprint for complex system integration.

Flame Retardancy

Self-extinguishing, VW-1 rated

Chemical Resistance

Excellent (acids, alkalis, organic solvents, and oils)

Dielectric Strength

≥ 2.5 kV/mm

Minimum Bend Radius

6 × Outer Diameter (Fixed Installation)

Tensile Strength

≥ 35 MPa

Elongation at Break

≥ 150%

Smoke Emission Profile

Low Smoke Zero Halogen (LSZH) compliant

Standard AWG Range

8 AWG to 28 AWG (Custom gauges available)

Compliance & Certifications

UL Listed, RoHS compliant, REACH certified

Color Options

Standard black, red, blue, green, yellow, and white

Technical Advantages

The cross-linked fluoropolymer insulation ensures robust resistance to abrasive wear, aggressive chemical exposure, and intense environmental weathering. This specialized construction significantly minimizes signal degradation and mitigates the risk of short circuits, extending the operational lifespan of your equipment.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Aerospace & Defense Avionics

Engineered to handle rapid thermal cycling and strict weight constraints, providing reliable power and telemetry distribution in flight-critical cockpit electronics.

Automotive & EV Powertrains

Ideal for high-voltage battery management systems and inverter links, offering the superior heat dissipation required near modern electric vehicle drivetrains.

Heavy Industrial Automation

Powers high-speed robotic assembly arms and CNC machinery, resisting continuous flexing, oil splashes, and mechanical friction on factory floors.

Marine & Offshore Infrastructure

Provides critical corrosion resistance against saltwater exposure and high humidity in shipboard power systems, drilling rigs, and subsea control units.

Renewable Energy Systems

Optimized for connection infrastructure within solar inverter arrays and wind turbine nacelles, enduring prolonged UV exposure and extreme outdoor climates.

Medical Equipment Manufacturing

Meets the stringent outgassing and bio-compatibility standards required for internal wiring in diagnostic imaging systems, surgical suites, and life-support units.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

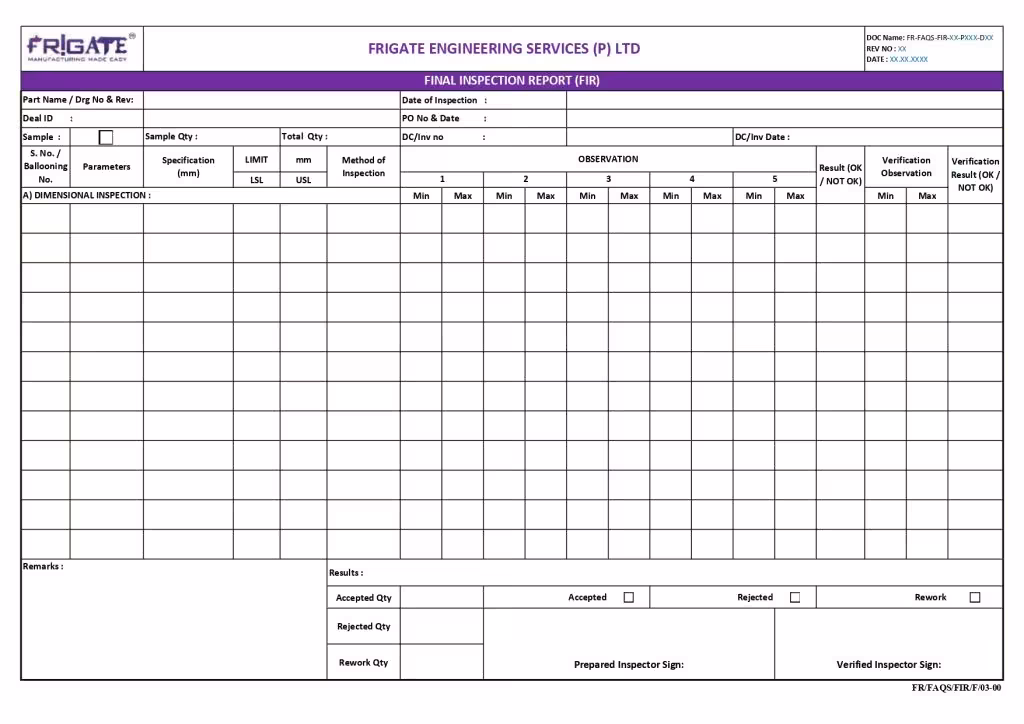

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can Frigate customize the insulation thickness or conductor stranding configuration for the KP-260 to meet specific defense or aerospace standards?

Yes. As a custom contract manufacturer, we routinely tailor strand counts, wall thickness, and outer shielding braid density. Please share your explicit military specification or aerospace print with our engineering desk during the RFQ stage so we can align our production tooling accordingly.

We run continuous high-temperature processes that peak right at 260°C. Will this wire degrade under sustained exposure at its maximum rating?

No, the KP-260 is specifically rated for continuous operation at 260°C without degradation to its dielectric or mechanical properties. For applications experiencing intermittent thermal spikes exceeding this threshold, please consult our engineering team to review specialized custom insulation compounds.

What standard testing and quality documentation do you provide with bulk manufacturing shipments of the KP-260?

Every production batch undergoes rigorous routine testing, including spark tests, insulation resistance verification, and dimensional compliance checks. We supply standard material test certificates (MTCs), UL compliance tags, and RoHS/REACH declarations with your delivery; first-article inspection (FAI) reports can also be requested for custom runs.

How does Frigate manage shipping and logistics for large-volume, multi-kilometer orders to minimize freight damage to the spools?

Large-volume orders are wound onto heavy-duty, moisture-sealed wooden or composite reels engineered to prevent wire pinching. Reels are securely palletized, banded, and shrink-wrapped to withstand international freight handling, ensuring the wire arrives free of kinking or insulation abrasions.

We want to place an annual blanket order but need split-shipment deliveries based on our monthly production scheduling. Do you support this?

Absolutely. We regularly partner with enterprise clients on blanket purchase orders. We can manufacture to aggregate volumes to lock in volume tiered pricing, stock the inventory in our logistics centers, and schedule precise, recurring releases according to your factory’s lean production timeline.
