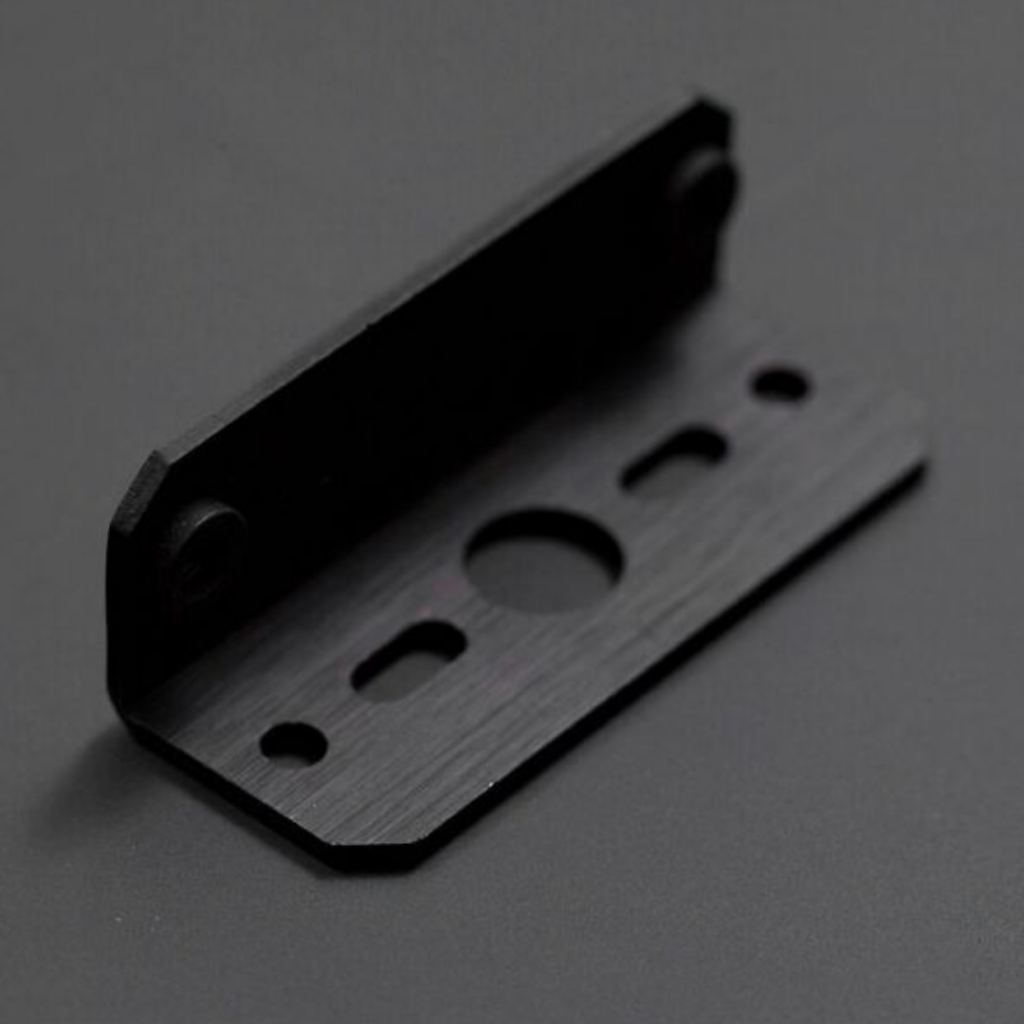

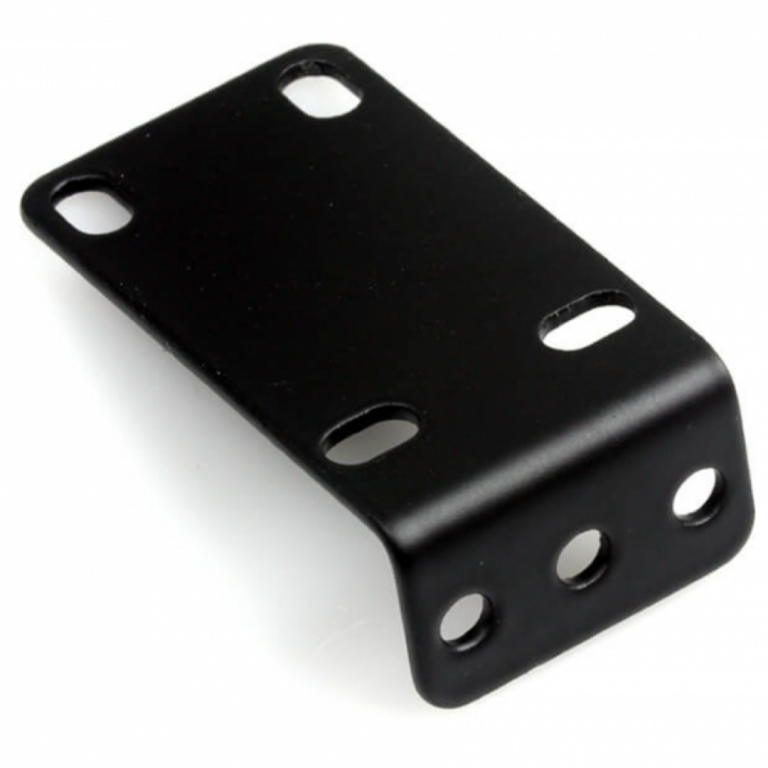

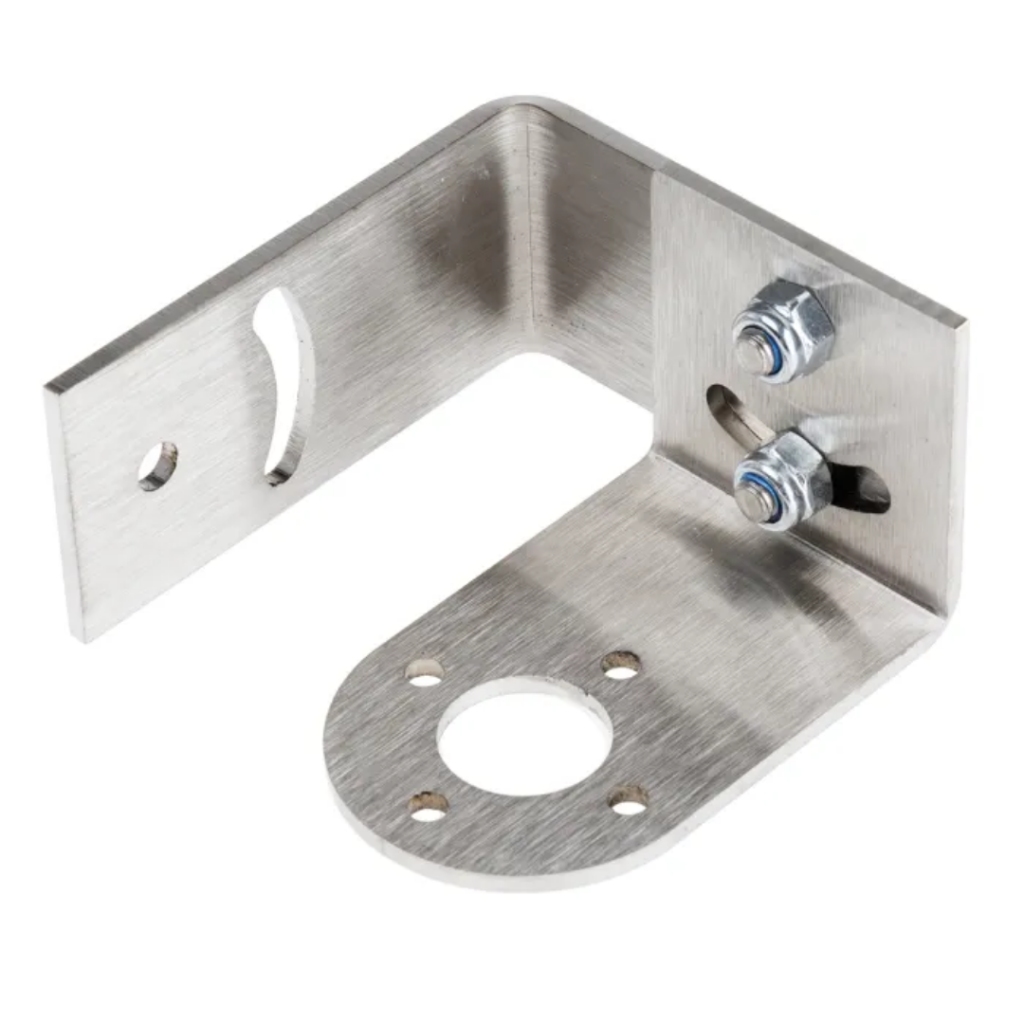

Infrared Sensor Brackets

Frigate delivers combat-ready, aerospace-grade Infrared (IR) Sensor Brackets engineered to withstand severe vibrational loads and extreme thermal fluctuations. Designed for flawless optoelectronic alignment, our precision-machined mounting solutions ensure uninterrupted threat detection and target acquisition in the harshest defense theaters.

Material Composition

Aluminum Lithium Alloy (Al-Li 2195/2099) or Titanium Grade 5 (Ti-6Al-4V)

Surface Treatment

MIL-A-8625 Type III Hardcoat Anodizing (with CARC Matte Black NIR-compliant paint)

Dimensional Tolerance

Up to ± 0.005 mm via high-precision 5-axis CNC machining

Boresight Alignment Accuracy

< 0.1 mrad (milliradian) post-structural integration

Operating Temperature Range

-65°C to +125°C continuous exposure

Order Type

Quantity Range

Lead Time*

First Article Inspection (FAI) / Sample

1 – 5 Units

3 – 4 Weeks

Low-Rate Initial Production (LRIP)

6 – 50 Units

6 – 8 Weeks

Full-Rate Production (FRP)

51 – 500 Units

10 – 12 Weeks

High-Volume Defense Contracts

501+ Units

Scheduled/Staggered Deployments

*These timelines are indicative ranges based on current raw material availability. Final lead times depend on complex geometric customizations, specific NDT testing mandates, and current AS9100 production queue capacities.

Product Description

Frigate’s Infrared Sensor Brackets act as the structural backbone for mission-critical night vision, surveillance, and missile guidance optoelectronics. Our components eliminate thermal-induced jitter and geometric distortion, ensuring absolute target tracking reliability across land, air, and sea military platforms.

Vibration & Shock Resistance

MIL-STD-810H Compliant (Method 514.8 for jet/tracked vehicle profiles)

EMI/RFI Shielding

Integrated conductive gasket tracks for optimal electromagnetic isolation

Weight Optimization

Generative, topology-optimized lightweight lattice internal structures

Salt Spray Resistance

ASTM B117 tested up to 1,000 hours for maritime and coastal deployment

Outgassing (CVCM)

< 0.1% Total Mass Loss (TML) adhering to NASA SP-R-0022A space standards

Sensor Interface Geometry

Custom tailored for short-wave (SWIR), mid-wave (MWIR), and long-wave (LWIR) cryocooler housings

Thread & Fastener Specifications

Helicoil-reinforced locking threads to prevent loosening under high-g maneuvers

Non-Destructive Testing (NDT)

ASTM E1417 Liquid Penetrant and ASTM E1742 X-ray radiography verified

Load Bearing Capacity

Engineered to sustain ultimate static structural loads up to 15g

Quality Management Standards

AS9100 Rev D and ISO 9001:2015 certified manufacturing workflow

Technical Advantages

By utilizing advanced topology optimization and defense-grade alloys, Frigate reduces bracket weight by up to 30% without compromising structural rigidity or resonance thresholds. Our rigorous compliance with MIL-STD-810H guarantees that your optical payloads remain perfectly calibrated, even during sustained supersonic flight or heavy off-road armored maneuvers.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Unmanned Aerial Vehicles (UAVs)

Provides ultra-stable, lightweight gimbal mounts for EO/IR surveillance payloads, ensuring crystal-clear reconnaissance imagery and prolonged loitering flight times.

Armored Fighting Vehicles (AFVs)

Secures driver’s thermal viewers and situational awareness sensors against heavy chassis vibration, mine-blast shocks, and harsh terrain dust.

Missile Guidance Systems

Delivers thermal-stable housing brackets for nose-cone seeker heads, maintaining tight boresight alignment during high-velocity, high-G maneuvers.

Naval Border Surveillance

Engineered with anti-corrosive hardcoats to protect coastal electro-optical tracking systems from continuous salt-spray, humidity, and maritime wind loads.

Helicopter Target Acquisition

Supplied as ruggedized structures for nose-mounted targeting pods, absorbing low-frequency rotor vibrations to keep laser designators completely locked.

Anti-Drone (C-UAS) Systems

Acts as the foundational alignment frame for rapid-pan thermal tracking cameras tasked with detecting and neutralizing micro-UAS threats instantly.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can Frigate customize the bracket designs to fit proprietary sensor footprints?

Yes. Every bracket we manufacture can be tailored via 5-axis CNC machining to match the exact mounting interfaces, weight constraints, and heat-sink requirements of your specific SWIR, MWIR, or LWIR sensor models.

What quality documentation do you provide with defense-grade shipments?

We provide full documentation packages including Material Test Reports (MTRs), AS9102 First Article Inspection Reports (FAIR), Certificate of Conformance (CoC), Anodizing/Coating compliance certificates, and NDT (X-ray/Dye Penetrant) test results.

How do your brackets maintain infrared sensor alignment under extreme temperature shifts?

We utilize specialized aerospace alloys like Aluminum-Lithium and Titanium that feature incredibly low coefficients of thermal expansion (CTE). This ensures minimal geometric deformation when transitioning rapidly from desert heat to high-altitude freezing environments.

Are Frigate’s manufacturing facilities compliant with defense regulatory frameworks?

Absolutely. Frigate operates under strict AS9100 Rev D and ISO 9001:2015 quality frameworks, ensuring full material traceability, secure data handling, and production workflows that meet international defense sourcing standards.

Do you support CARC paint finishes for military camouflage requirements?

Yes. Our finishing options include MIL-A-8625 Type III Hardcoating followed by Chemical Agent Resistant Coating (CARC) in matte black, olive drab, or desert tan, specifically formulated to meet non-reflective Near-Infrared (NIR) signature requirements.
