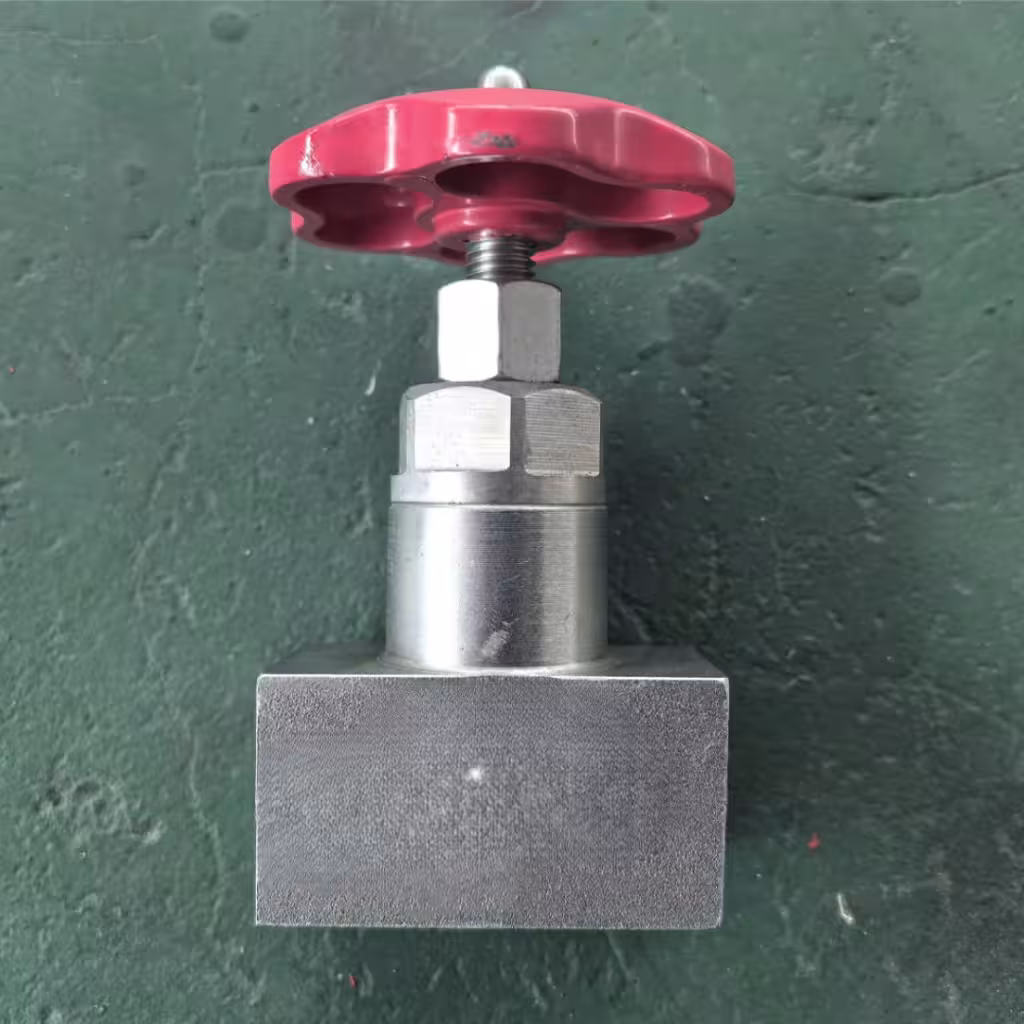

High Pressure Needle Valves

Master high-pressure fluid systems with Frigate’s precision-engineered needle valves, designed to deliver leak-tight isolation and exceptional throttling control up to 15,000 psi. Built from robust, corrosion-resistant alloys, these valves ensure ultimate safety and unyielding performance across the most demanding industrial environments.

Maximum Pressure Rating

Up to 15,000 psi

Material of Construction (M.O.C)

CS / AS / SS / DSS / SDSS / SASS / MONEL / HASTELLOY / INCONEL / TITANIUM / TANTALUM / BRASS

Thread/Size Range (Inches)

1/8″ to 2″

Tube OD Size Range (Fractional)

1/8″ to 1″ OD

Tube OD Size Range (Metric)

4mm to 25mm OD

Order Type

Quantity Range

Lead Time*

Standard Stock Order

1 – 50 Units

3 – 5 Days

Bulk Production

51 – 500 Units

2 – 3 Weeks

Custom / Exotic Alloy M.O.C

1 – 100 Units

4 – 6 Weeks

Enterprise Contract

500+ Units

6 – 8 Weeks

*Listed timeframes are indicative ranges based on standard engineering schedules. Actual delivery windows may fluctuate depending on custom material sourcing and factory capacity.

Product Description

Frigate’s High Pressure Needle Valves offer an exceptional solution for industries requiring meticulous flow regulation and absolute shut-off capabilities in severe-duty applications. Featuring an array of body configurations including inline, angle, and panel-mounted designs, these valves integrate seamlessly into complex piping systems to protect sensitive instrumentation.

End Connections (Threaded)

NPT / BSP / BSPT / UNF / METRIC

End Connections (Welded/Tubing)

Socket Weld (SW) / Tube OD

Body Configurations Available

F x F, M x F, M x M, OD x OD, OD x Female, Hex Body

Specialty Body Designs

Angle Type, Panel Mounting Type, F x F Type with Drain

Actuation & Handle Variants

T-Bar, Round Knob, Lever Handle, Integral Bonnet

Application Variants

Gauge Valve, Hose Connection (Angle Type)

Flow Patterns

Straight-through, 90-degree Angle

Sealing Capability

Bubble-tight bi-directional isolation

Orifice Sizes

0.156″ to 0.438″ (4.0mm to 11.1mm)

Packing Material / Stem Seals

PTFE / PEEK / Graphite (for high-temperature limits)

Nominal Valve Size (inches)

Stem Diameter (mm)

Body Height (mm)

Total Component Length (mm)

1/4″

78.5

1/2″

6.5

3/4″

115

1″

10.5

140

Technical Advantages

By utilizing premium material grades like Super Duplex and Inconel alongside precision-machined stems, our needle valves minimize mechanical wear and completely eliminate fugitive emissions under extreme thermal stresses. The ergonomic handle designs, including T-bars and heavy-duty levers, provide operators with smooth, low-torque calibration control even at maximum rated operational pressures.

Compliances

ISO 9001:2015

ISO 14001:2015

ISO 45001:2018

Let's Get Started

Need reliable valve for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Oil & Gas Refining

Provides ultra-reliable, high-pressure isolation for upstream wellheads, custody transfer skids, and downstream refining process loops.

Chemical & Petrochemical Processing

Ensures safe metering of aggressive chemical feeds and corrosive catalysts utilizing specialized alloys like Hastelloy and Monel.

Power Generation Systems

Manages high-pressure steam sampling lines, boiler feed-water monitoring systems, and critical turbine isolation networks safely.

Aerospace & Defense Testing

Delivers pinpoint accuracy for pneumatic control panels, hydraulic test benches, and high-pressure gas distribution infrastructure.

Marine & Subsea Engineering

Resists harsh marine environments via Super Duplex bodies, controlling deep-sea hydraulic lines and salt-water desalination loops.

Industrial Gas Manufacturing

Facilitates leak-free handling, blending, and bottling of high-pressure specialty gases, preventing hazardous fugitive emissions.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What is the maximum pressure rating for Frigate's needle valves, and how is it verified?

Our High Pressure Needle Valves are rated up to 15,000 psi. Every valve undergoes rigorous hydro-testing and pneumatic seat-leak tests to ensure compliance with international high-pressure safety standards.

Which materials are recommended for highly corrosive chemical applications?

For corrosive environments, we supply valves in premium alloys such as Monel, Hastelloy, Inconel, and Super Duplex Stainless Steel (SDSS). These materials provide superior resistance to pitting, crevice corrosion, and stress cracking.

Can these needle valves be mounted directly onto instrument panels?

Yes, we manufacture dedicated Panel Mounting configurations (such as HPNV106 and HPNV115) featuring integrated panel nuts that allow secure, clean installation on control panels and test benches.

What is the benefit of choosing an Angle Type needle valve configuration?

Angle Type valves (such as HPNV110 and HPNV121) feature a 90-degree turn, which reduces the need for extra piping elbows in tight spatial layouts while minimizing pressure drops across the valve seat.

Are custom end connection combinations available for bulk industrial orders?

Absolutely. Frigate can mix and match end connections such as a Male-to-Female configuration (M x F) or combining a Tube OD inlet with an NPT threaded outlet to perfectly match your legacy piping schematics.
