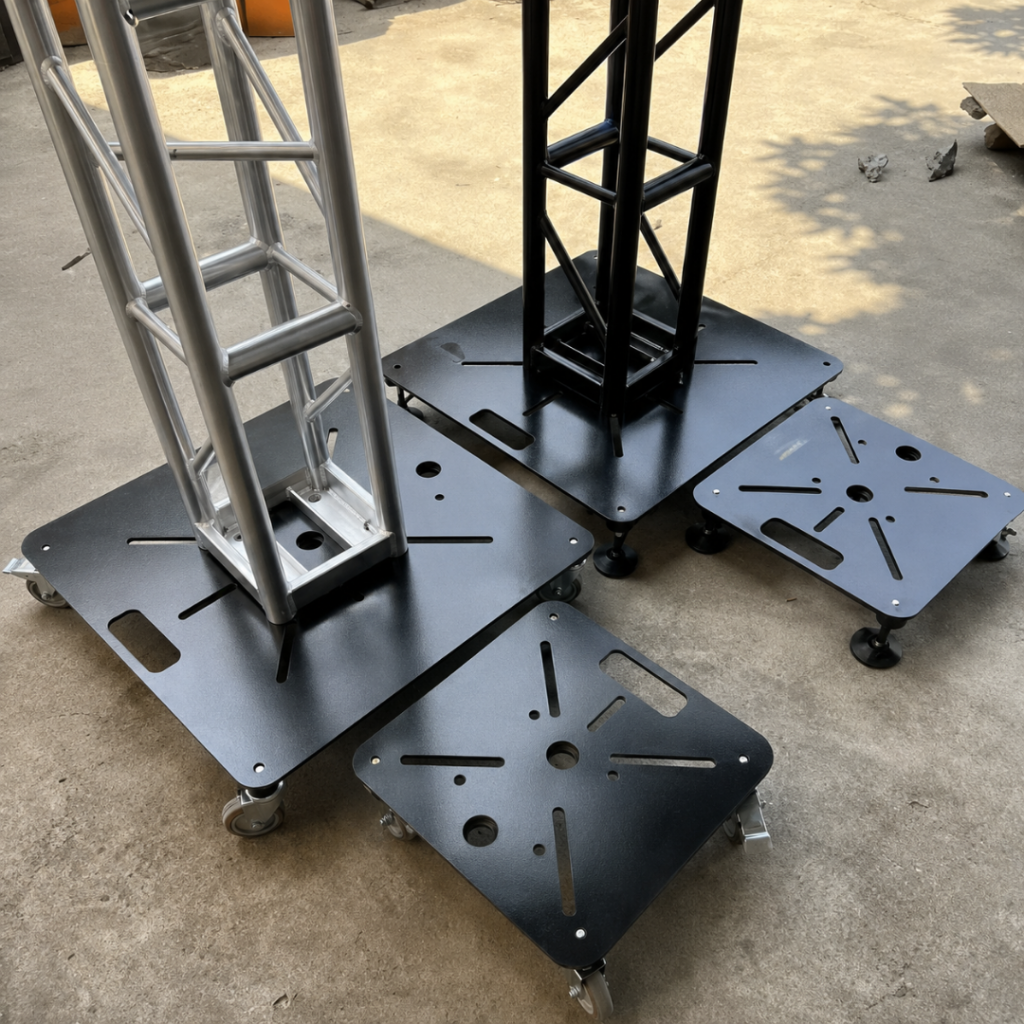

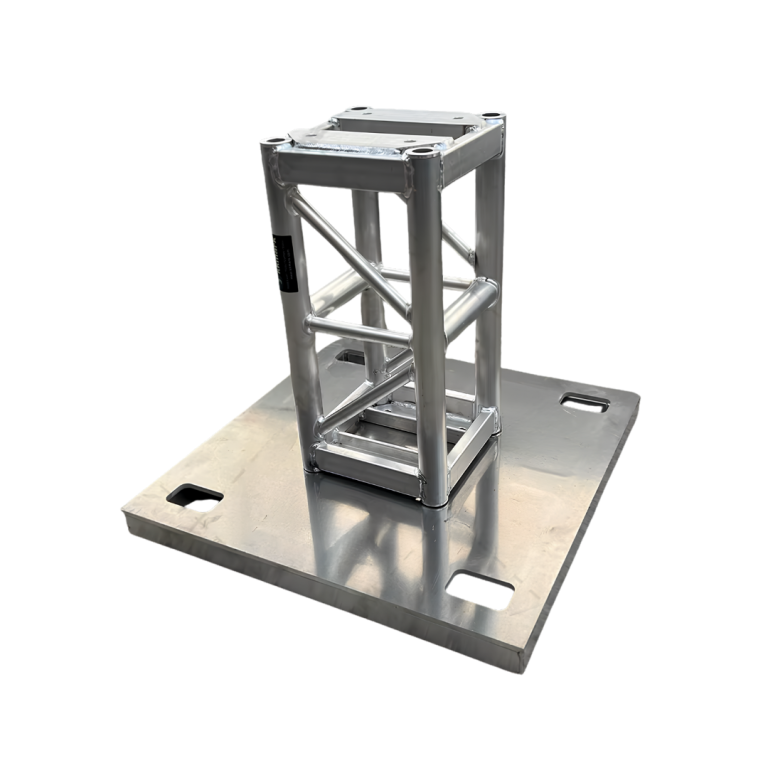

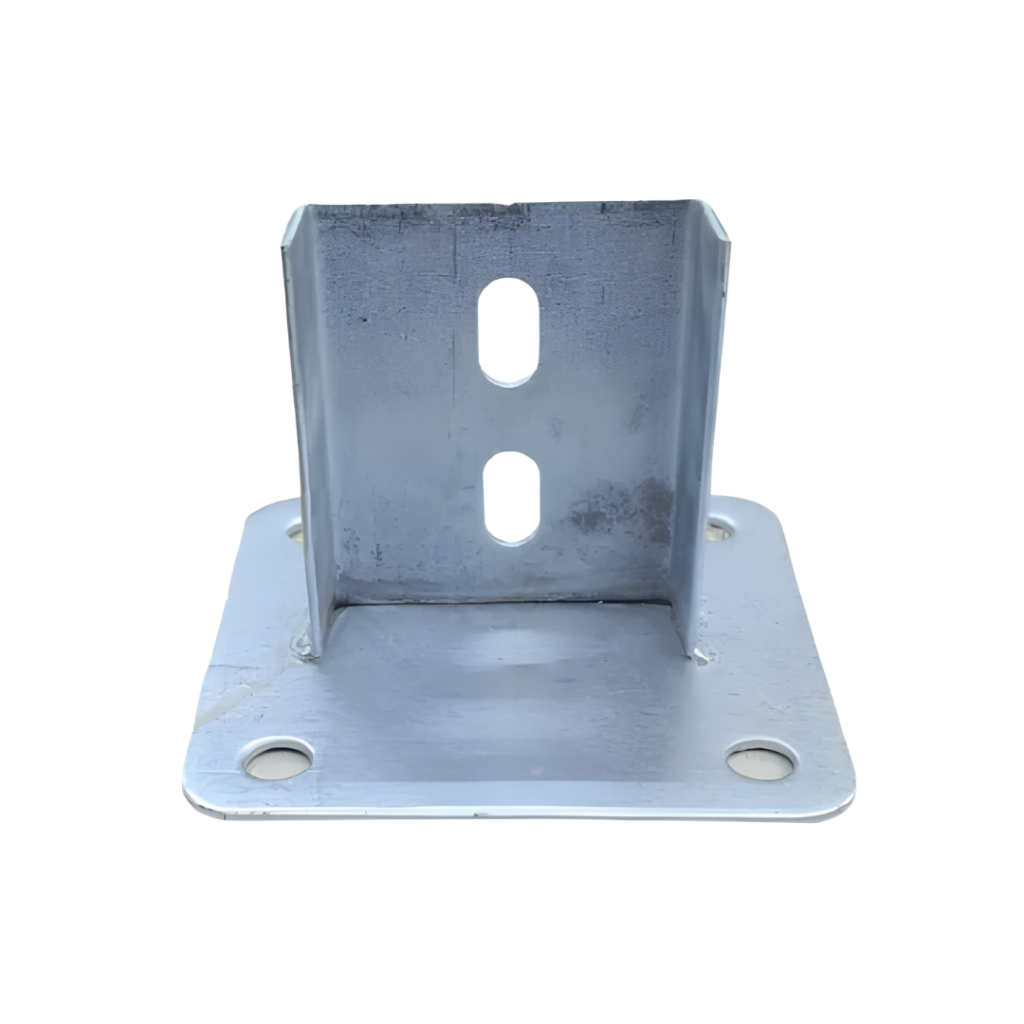

Heavy-Duty Base Plates

Engineered to withstand extreme structural loads, Frigate’s heavy-duty base plates provide the ultimate foundation stability for massive infrastructure and industrial applications. Custom-machined to precise geometric tolerances, these anchoring solutions ensure flawless load distribution and long-term structural integrity.

Material Grades

IS 2062 E250/E350, ASTM A36, ASTM A572 Grade 50/60, BIS certified steel

Thickness Range

25 mm to 150 mm (Custom scaling available upon request)

Surface Flatness Tolerance

Within 0.5 mm over 1000 mm (Precision ground)

Cutting Tolerance

± 1.0 mm via high-definition CNC Oxy-Fuel / Plasma cutting

Hole Diameter Precision

True-position tolerance within ± 0.5 mm for anchor bolt alignment

Order Type

Quantity Range

Lead Time*

Sample / First Article

1 to 5 Pieces

7 – 10 Business Days

Batch Production (Standard Specs)

6 to 50 Pieces

3 – 4 Weeks

High-Volume Industrial Project

50+ Pieces

5 – 7 Weeks

Custom Engineered / Heavy Thickness

Project-Based

To be aligned on design sign-off

*Timelines are indicative ranges based on standard material availability. Actual delivery schedules depend on exact plate thickness, custom machining specs, and raw material mill cycles.

Product Description

Frigate’s heavy-duty base plates serve as the critical interface between primary structural steel columns and concrete foundations, engineered to anchor high-stress industrial infrastructure safely. Fabricated from premium-grade structural steel and finished with advanced corrosion-resistant coatings, these plates are built to endure high seismic, dynamic, and static load demands.

Yield Strength (σ y)

Up to 350 MPa (Depending on selected material grade)

Tensile Strength (σ u)

410 MPa to 540 MPa

Finishing & Coatings

Sandblasted (SA 2.5), Zinc Primer, Hot-Dip Galvanized, or Epoxy Painted

Testing Standards

Ultrasonic Testing (UT) for laminations, Radiography, and Magnetic Particle Testing (MPT)

Edge Preparation

Beveled, chamfered, or deburred edges optimized for structural welding

Max Dimensions

Up to 3000 mm x 3000 mm monolithic plate size

Anchor Configuration

Pre-drilled, slotted, or counterbored holes for heavy-duty shear lugs

Welding Compatibility

Fully compatible with SMAW, GMAW, and SAW structural welding processes

Quality Compliance

ISO 9001:2015, EN 1090, and AISC structural steel fabrication standards

Traceability

100% Mill Test Certificate (MTC) tracking from ladle to finished plate

Technical Advantages

By utilizing advanced CNC high-definition plasma cutting and precision surface grinding, Frigate delivers base plates with exceptional flatness tolerances that eliminate field-grouting errors. Our rigorous non-destructive testing (NDT) and custom anchoring configurations guarantee seamless load transfer, drastically reducing structural wear and on-site installation bottlenecks.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

High-Rise Structural Framing

Provides the rigid anchor foundation required to transfer massive vertical and lateral wind loads from primary steel columns down to concrete substructures.

Heavy Industrial Warehouses

Ideal for manufacturing facilities operating heavy overhead cranes, where foundations must absorb constant dynamic loads and severe cyclic vibrations.

Bridge & Viaduct Girders

Acts as the high-strength load-bearing interface under main bridge piers and viaduct supports, accommodating thermal expansion and high structural stress.

Power & Petrochemical Plants

Engineered to support massive, dead-load equipment including cooling towers, heavy reactors, storage silos, and tall exhaust stacks safely.

Port & Marine Infrastructure

Heavy-duty, corrosion-resistant base anchorings designed to withstand harsh maritime environments on shipping berths, dry docks, and crane rails.

Mining & Conveyor Systems

Rugged foundation plates built to anchor high-torque conveyor drive stations and crushing equipment operating under brutal, continuous impact.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What material grades does Frigate use for heavy-duty base plates?

We primarily fabricate using high-strength structural steel grades such as IS 2062 E250/E350, ASTM A36, and ASTM A572 Grade 50/60. Custom alloying elements and specialized grades can be sourced depending on your project’s environmental and yield strength requirements.

How does Frigate ensure the surface flatness of thick base plates?

Thick steel plates often possess inherent mill waviness. Frigate utilizes advanced thermal stress-relieving processes followed by heavy-duty surface grinding to achieve a strict flatness tolerance of within 0.5 mm, eliminating the need for excessive on-site leveling shims.

Can you accommodate custom anchor bolt configurations and shear key slots?

Yes. Our CNC high-definition plasma and boring machines can execute complex geometry, including oversized slotted holes, counterbores, and centralized slots for heavy shear keys/lugs to handle high lateral shear forces.

Do your base plates come with full material traceability and documentation?

Absolutely. Every shipment from Frigate is accompanied by comprehensive documentation, including 100% traceable Mill Test Certificates (MTCs) conforming to EN 10204 Type 3.1, NDT/Ultrasonic inspection reports, and coating thickness compliance logs.

What corrosion protection options are available for coastal or industrial environments?

To combat aggressive environments, we offer multiple surface treatments including hot-dip galvanization (HDG), zinc-rich epoxy primers, and specialized multi-coat polyurethane paint systems specified to withstand high-salinity marine or chemical exposure.
