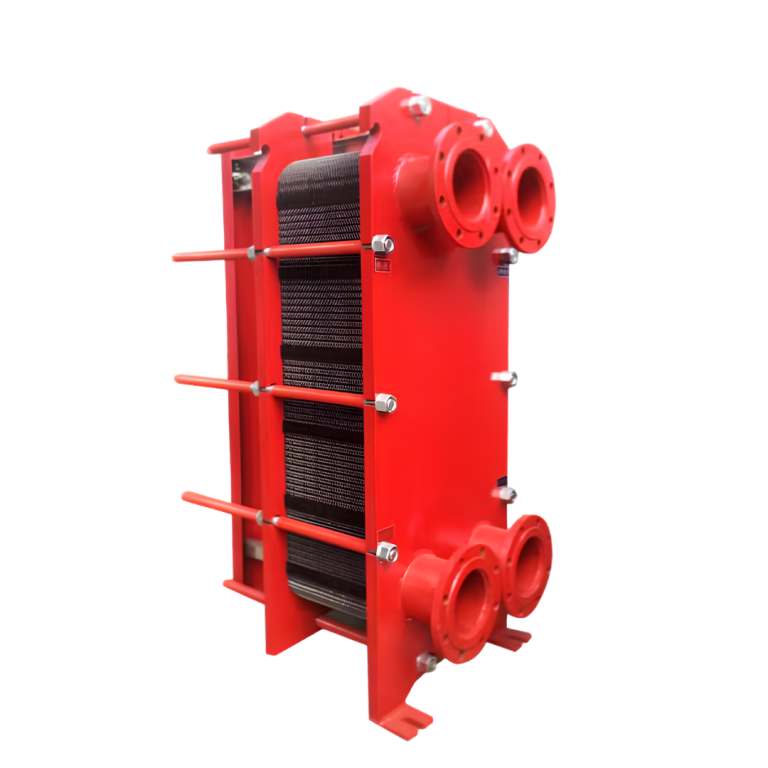

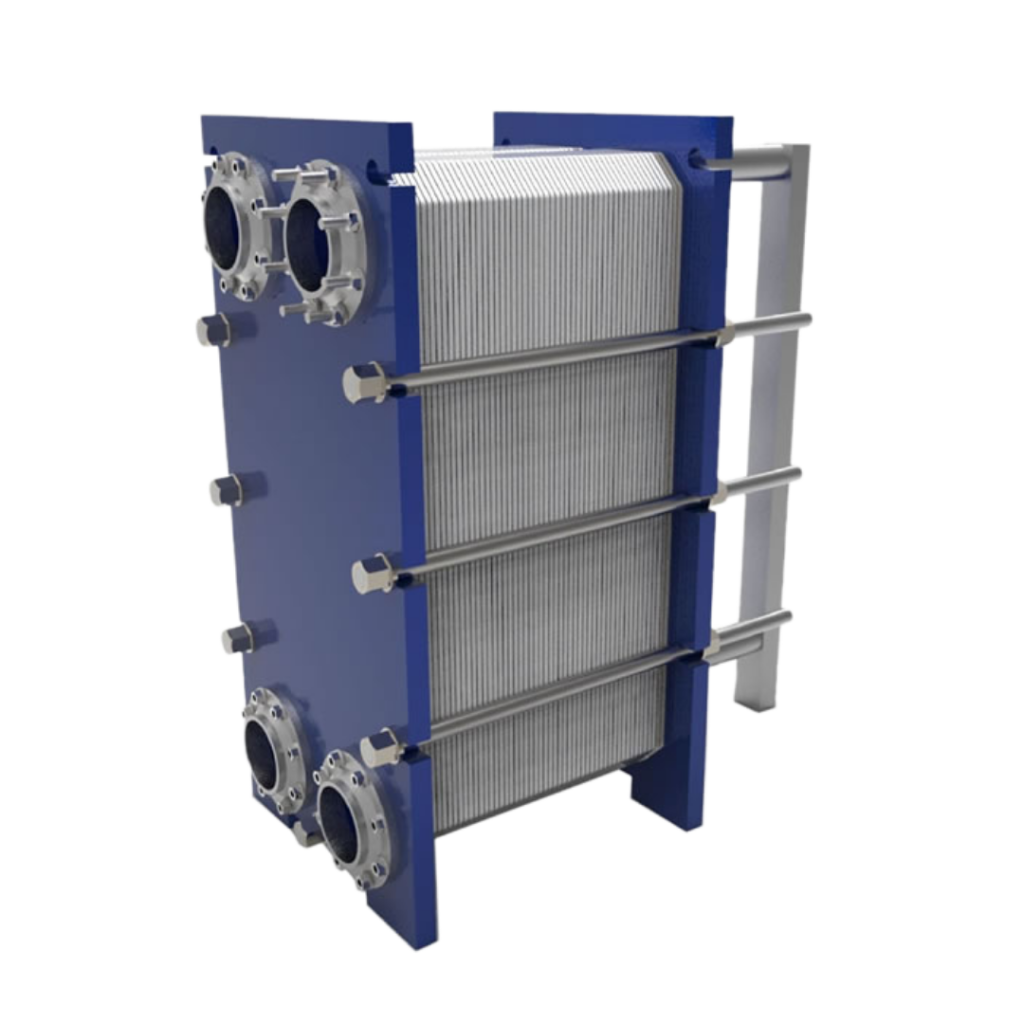

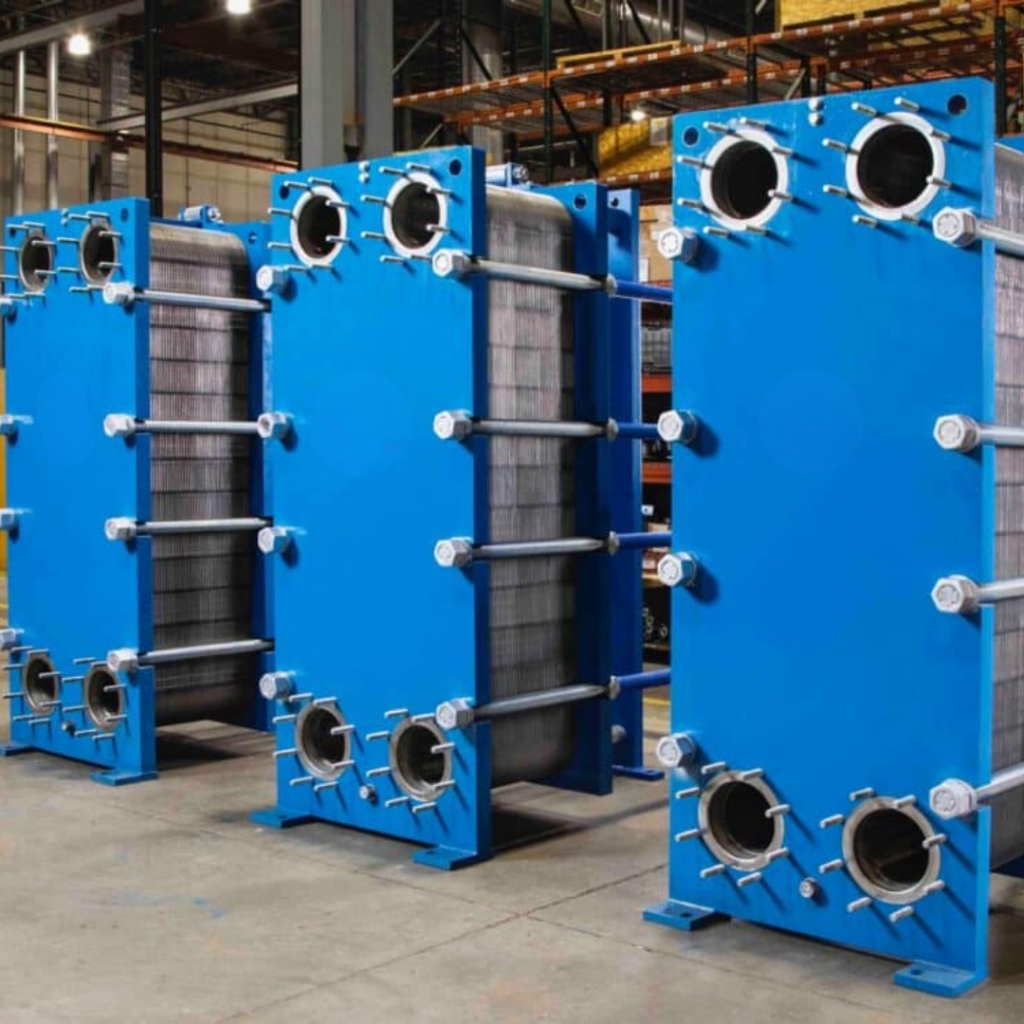

Heat Exchanger Frames

Partner with Frigate for high-integrity heat exchanger frames engineered to withstand the extreme pressures and corrosive environments of global oil and gas operations. Our heavy-duty structural frames ensure precise alignment, minimal thermal stress, and maximum operational uptime for your critical downstream and offshore thermal systems.

Design Standards

ASME Section VIII Div 1 & 2, API 660, TEMA Class R

Material Options

Carbon Steel (SA516 Gr. 70), Super Duplex, SS316L, Inconel Clad

Maximum Operating Pressure

Up to 350 bar (5000 PSI)

Design Temperature Range

-50°C to +450°C

Welding Certifications

AWS D1.1, ASME Section IX certified processes

Order Type

Quantity Range

Lead Time*

Standard Modular Frame

1 – 3 Units

6 – 8 Weeks

Custom Engineered / Clad Frame

1 – 2 Units

10 – 12 Weeks

Volume Batch Production

4 – 10 Units

12 – 16 Weeks

High-Volume Fleet Supply

10+ Units

Under Contract Agreement

*Timelines are indicative ranges based on standard material availability. Final lead times depend on material grades, engineering approval cycles, and specific third-party inspection requirements.

Product Description

Frigate’s industrial-grade heat exchanger frames provide robust structural containment and optimal clamping forces for high-stakes oil and gas thermal management applications. Built to strict API and ASME guidelines, these frames guarantee zero-deflection integrity under severe thermal cycling and harsh offshore environments.

NDT Testing Protocols

Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Pen (DP)

Corrosion Protection

NORSOK M-501 compliant 3-coat epoxy system / Hot-Dip Galvanizing

Structural Load Capacity

Static and dynamic structural analysis up to 50 Metric Tons

Footprint Configurations

Skidded, modular, vertical, and horizontal multi-pass frame designs

Wind & Seismic Design

UBC, IBC, and ASCE 7 compliant structural engineering

Clamping & Tie-Rod Type

High-tensile alloy steel bolts with corrosion-resistant coating

Nozzle Connections

Flanged RF/RTJ configurations from 2″ to 24″ nominal size

Lifting Provisions

Integrated heavy-duty lifting lugs with FEA-verified load paths

Dimensional Tolerance

ISO 2768-m strict tolerance control for perfect plate/tube alignment

Third-Party Inspection

Lloyd’s Register, Bureau Veritas, DNV, or TUV compatibility

Technical Advantages

Our frames utilize advanced finite element analysis (FEA) to eliminate stress concentration points, significantly reducing the Total Cost of Ownership (TCO) by preventing premature gasket and plate failures. Additionally, Frigate’s field-proven surface treatments ensure exceptional resistance to marine salinity, sour gas exposure, and severe chemical corrosion.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Offshore Drilling Platforms

Compact, corrosion-resistant space-saving frames engineered for crude oil cooling on offshore rigs, built to withstand continuous marine spray and high dynamic structural vibrations.

Refinery & Petrochemical Plants

Heavy-duty structural frames handling high-temperature fractional distillation cooling units, ensuring rigid plate containment and zero-bypass fluid integrity under fluctuating thermal loads.

FPSO Vessels

Specially designed skidded frames that absorb sea-state wave motions and structural flexing, maintaining constant compression for top-side process heat exchangers.

LNG Liquefaction & Regasification

Cryogenic-tested structural steel frames optimized for extreme temperature drops during natural gas sub-cooling and liquefaction processing, preventing material embrittlement.

Subsea Sub-Stations

Enclosed, hyperbaric-tested structural frames designed for subsea gas compression and cooling systems, featuring specialized cathodic protection compatibility.

Produced Water Treatment

High-alloy lined frames built to manage aggressive, high-salinity produced water and chemical injection cooling loops without risking structural degradation.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Does Frigate design heat exchanger frames to meet custom space constraints on existing offshore platforms?

Yes. Our engineering team specializes in brownfield retrofits, utilizing advanced finite element analysis (FEA) to design high-capacity frames that fit precisely into limited footprints without compromising structural load paths or ASME/API compliance.

What raw materials do you source for highly corrosive oil and gas environments?

We source premium, certified raw materials including heavy carbon steel (SA516 Gr 70), 316L Stainless Steel, Duplex, Super Duplex, and exotic alloys or claddings like Inconel, depending on your project’s sour gas (H2S) or marine salinity exposure levels.

Can these frames accommodate third-party inspections (TPI) before shipping?

Absolutely. We regularly coordinate with international inspection agencies such as Bureau Veritas, DNV, Lloyd’s Register, and TUV. All material test reports (MTRs), welding logs (WPS/PQR), and NDT reports are fully documented for seamless validation.

How does Frigate minimize structural deflection under high thermal cycling?

Our designs feature reinforced tie-rod support plates, thick end-plates, and precision-machined guide bars. This heavy-duty configuration ensures uniform clamping pressure across the entire plate pack, absorbing rapid thermal expansions without risking leaks.

What surface treatment options do you provide for offshore deployment?

We offer heavy-duty protective coating systems compliant with the NORSOK M-501 standard, typically involving a 3-coat zinc-rich epoxy paint regime. Hot-dip galvanizing and customized offshore marine-grade specifications are also available upon request.
