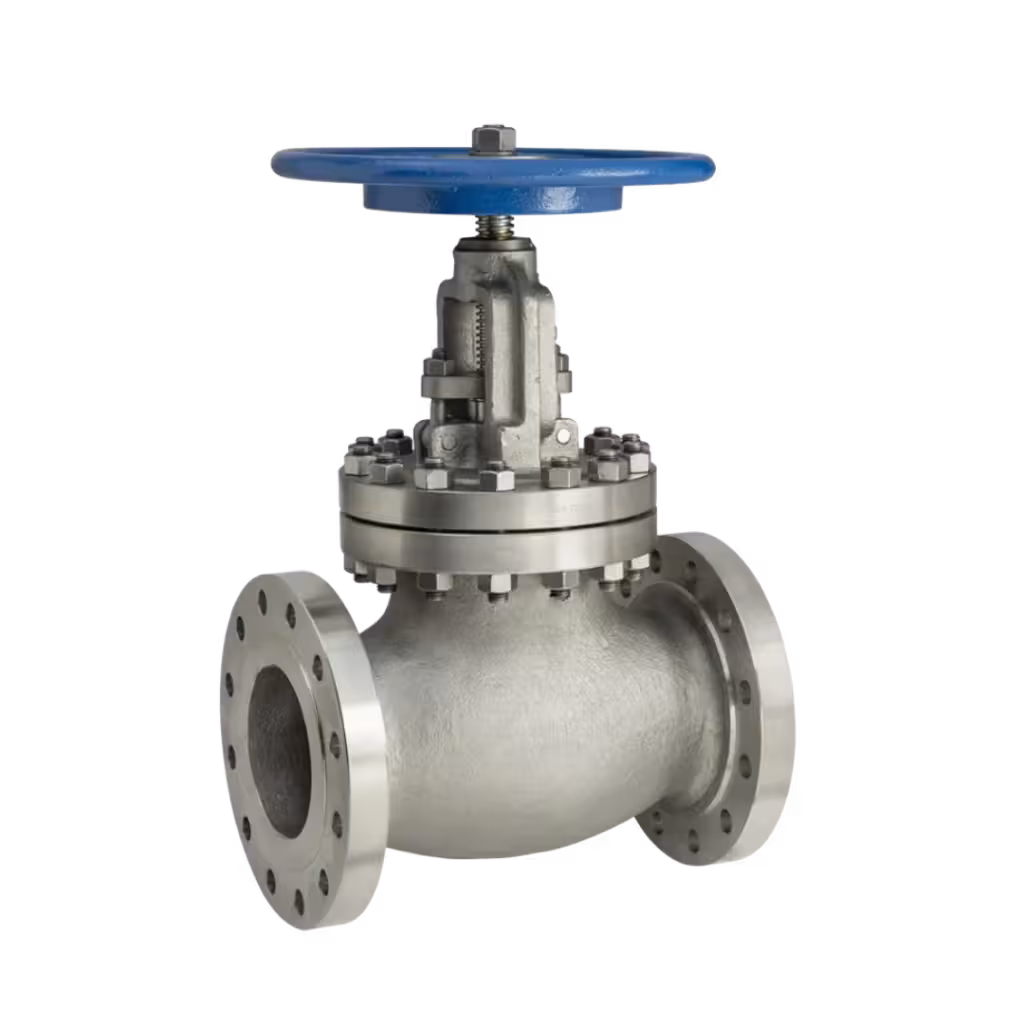

Globe Valves

Engineered for high-pressure instrumentation and critical gas applications, Frigate’s premium industrial Globe Valves deliver zero-leakage isolation and precise throttling performance. Built from robust forged steel and heavy-duty barstock materials, these valves ensure long-term operational safety across the most demanding industrial process environments.

Flow Coefficient

Optimized high-flow geometry with minimized pressure drop across the seat

Stem Packing Material

Die-formed flexible graphite with braided graphite end rings (PTFE optional)

Leakage Class Rating

Meets ASME B16.104 / FCI 70-2 Class V & VI (Zero-leakage criteria)

Materials of Construction (M.O.C)

CS, AS, SS, DSS, SDSS, SASS, Monel, Hastelloy, Inconel

Forged Steel Size Range

15 NB to 50 NB

Order Type

Quantity Range

Lead Time*

Standard Stock Order

1 – 50 units

3 – 5 business days

Batch Production Order

51 – 250 units

3 – 4 weeks

High-Volume Bulk Order

251 – 1000 units

6 – 8 weeks

Custom Engineered / Exotic Alloy Order

1+ units (Made to Order)

10 – 12 weeks

*These lead times are indicative ranges; actual delivery timelines may vary based on raw material availability, custom specifications, and current factory capacity.

Product Description

Frigate’s Globe Valves are meticulously manufactured to provide precise flow regulation and dependable shut-off capabilities in rigorous industrial piping networks. Available in both robust forged steel and barstock configurations, these high-performance valves are fully optimized to withstand extreme pressures and sharp thermal variations.

Barstock Size Range

25 NB to 150 NB

End Connections

Screwed, Socket Welded, Butt Welded, Flanged Ends, Threaded Ends

Forged Steel Pressure Rating

Class 800# to Class 4500#

Barstock Pressure Rating

280 psi to 850 psi

Forged Steel Max Temperature

Up to 1300°C

Barstock Temperature Range

110°C to 400°C

Bonnet Styles

Screwed Bonnet, Bolted Bonnet, OS&Y Type

Design Standards

API 602, ASME B16.34

Testing Compliance

API 598 (Zero Leakage Standard)

Flow Media Suitability

High-pressure gases, steam, hydrocarbons, and corrosive chemicals

Nominal Valve Size (inches)

Stem Diameter (mm)

Body Height (mm)

Total Component Length (mm)

1/2″ (15 NB)

165

1″ (25 NB)

210

140

2″ (50 NB)

290

230

4″ (100 NB)

420

350

6″ (150 NB)

550

480

Technical Advantages

Featuring advanced OS&Y (Outside Screw and Yoke) and bolted bonnet configurations, our globe valves minimize stem wear and eliminate fugitive emissions during high-frequency throttling operations. Furthermore, our extensive selection of exotic materials of construction ensures unparalleled corrosion resistance and structural integrity under severe chemical and high-temperature media conditions.

Compliances

ISO 9001:2015

ISO 14001:2015

ISO 45001:2018

Let's Get Started

Need reliable valve for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Oil and Gas Processing

Provides reliable flow throttling and absolute isolation in high-pressure gas distribution pipelines and upstream extraction manifolds.

Chemical and Petrochemical

Resists corrosive chemical attacks in processing loops thanks to premium alloy construction options like Monel and Hastelloy.

Power Generation

Manages extreme high-temperature steam distribution lines and boiler feed-water systems safely under Class 4500# ratings.

Instrumentation and Control

Ensures pinpoint calibration and safe isolation within complex hydraulic, pneumatic, and utility gauge monitoring loops.

Aerospace and Defense

Delivers uncompromising structural reliability and leak-proof performance for handling high-pressure liquid and gas supply lines.

Water and Waste Management

Controls high-velocity fluid flow in treatment facilities, preventing damaging water hammer effects via optimized throttling.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What materials of construction (M.O.C) are available?

We offer a comprehensive material portfolio including Carbon Steel (CS), Alloy Steel (AS), Stainless Steel (SS), Duplex (DSS), Super Duplex (SDSS), Monel, Hastelloy, and Inconel to suit diverse corrosive and high-pressure media conditions.

What is the maximum pressure and temperature rating for the forged steel range?

Our forged steel instrumentation globe valves are engineered to withstand extreme pressures ranging from Class 800# up to Class 4500# and can handle maximum structural temperatures up to 1300°C.

Can these globe valves be used for precise gas throttling applications?

Yes, our Barstock Globe Valve series is specifically engineered for gas applications, offering an operating pressure range of 280 to 850 psi and working temperatures from 110°C to 400°C.

Which end connections are supported across your product line?

To ensure seamless integration with your existing piping infrastructure, Frigate valves come with options for Screwed, Socket Welded, Butt Welded, Flanged, and Threaded end connections.

How do I select between a bolted bonnet and a screwed bonnet design?

Screwed bonnets offer a compact, economical choice for lower-pressure instrumentation lines, whereas bolted bonnets provide more robust high-pressure sealing and easier inline maintenance for industrial gas applications.
