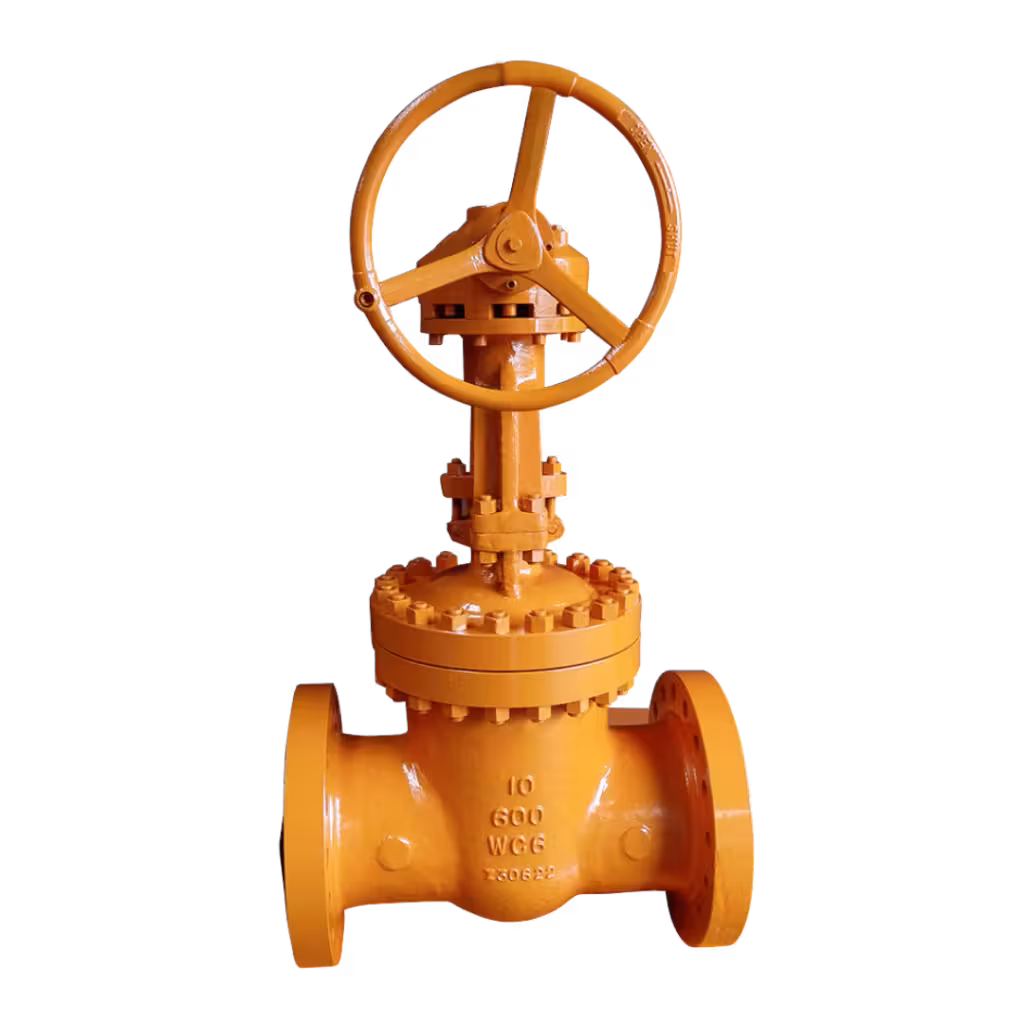

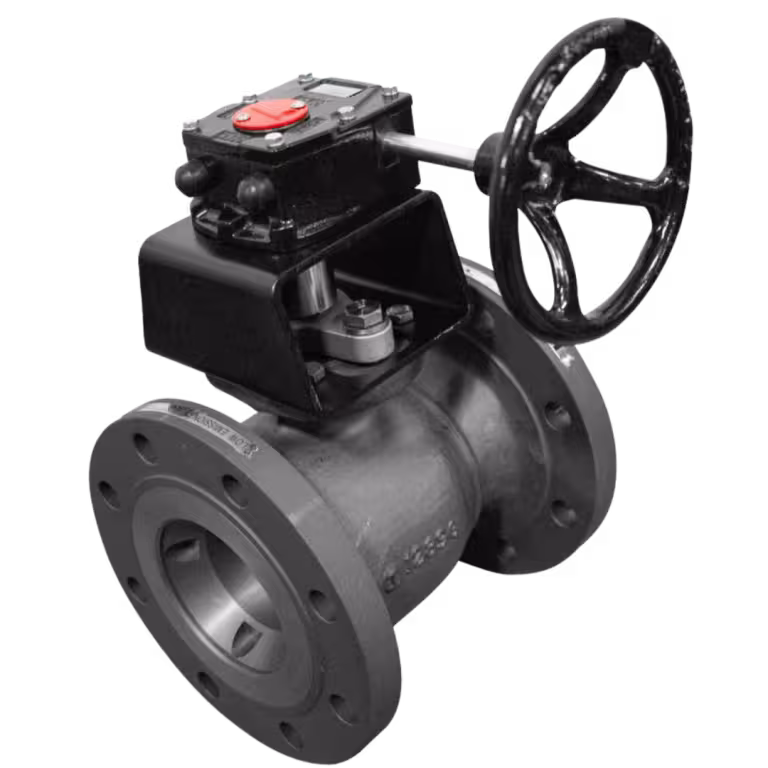

Gear-operated Valves

Frigate’s premium gear-operated valves combine robust mechanical advantage with precision engineering to ensure effortless operation of large-diameter and high-pressure fluid systems. Designed for industrial durability, these manual throttling and isolation solutions reduce operating torque while maintaining zero-leakage performance in the most demanding environments.

Valve Sizes

DN50 to DN3000 (2″ to 120″)

Pressure Ratings

ASME Class 150, 300, 600, 900, 1500 / PN10 to PN250

Body Materials

WCB, LCB, CF8, CF8M, CF3M, Duplex Stainless Steel, Cast Iron

Gearbox Type

Heavy-duty worm gear operator with weather-proof enclosure

Input Options

Handwheel, chainwheel, or square operating nut

*These lead times are indicative ranges for standard configurations. Actual delivery timelines depend on current foundry capacity, material availability, and specific project testing criteria.

Product Description

Frigate’s gear-operated valves utilize high-efficiency worm gearboxes to transform low-input handwheel torque into maximum operating force, allowing operators to easily open or close high-pressure lines. By eliminating fast closing speeds, these valves drastically reduce the risk of catastrophic water hammer while ensuring stable, multi-turn incremental flow adjustments.

Design Standards

API 600, API 6D, API 609, ASME B16.34

Face-to-Face Dimensions

ASME B16.10, EN 558

Flange Dimensions

ASME B16.5, ASME B16.47, EN 1092-1

Testing Standards

API 598, EN 12266-1 (Zero-leakage testing)

Temperature Range

-29°C to +425°C (Extended ranges available for cryogenic/high-temp)

Seating Options

Resilient (PTFE, EPDM, NBR) or Metal-to-Metal hard-faced

Stem Design

Blowout-proof stem with live-loaded packing

Enclosure Rating

IP67 standard (IP68 submersible option available)

Operation Indicators

Built-in visual mechanical position indicator

Surface Coating

Fusion Bonded Epoxy (FBE) or high-performance marine primer

Technical Advantages

By incorporating a self-locking gear mechanism, Frigate valves maintain their precise position under heavy line pressure without drifting, eliminating the need for constant operator manual adjustments. The fully enclosed, lubricated gear housing protects moving components from harsh atmospheric corrosion, ensuring maintenance-free operation and an extended field service life.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Oil & Gas Pipelines

Provides reliable, positive isolation for upstream production and downstream distribution networks handling crude oil and natural gas.

Water & Wastewater Management

Controls high-volume water flow in municipal treatment plants, pumping stations, and large-diameter distribution mains.

Chemical Processing Plants

Manages aggressive chemical media and corrosive fluid routing with specific high-alloy valve body materials.

Power Generation Facilities

Regulates cooling water systems, low-pressure steam lines, and auxiliary feed systems within thermal and nuclear plants.

Marine & Shipbuilding

Handles ballast water management, fuel oil transfer, and bilge systems where compact, reliable manual torque is mandatory.

Pulp & Paper Processing

Manages heavy stock flow, slurry lines, and process water loops without clogging or losing operational positioning.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How does Frigate handle compliance with custom corporate AML/MDS (Material Data Sheets) and proprietary project specifications?

Our engineering team reviews your project-specific pipeline datasheets, vendor-approved-manufacturers lists (AML), and specific MDS parameters during the bidding phase. We routinely adapt our manufacturing processes to meet stringent enterprise specifications that go beyond standard API or ASME baselines, providing comprehensive compliance matrices prior to production kickoff.

Can we specify non-standard alloy compositions, specific gearbox brands, or custom coating systems?

Yes. Frigate operates a highly flexible supply chain that accommodates custom component sourcing. Whether your project demands specific super duplex alloys, specialized Rotork or Mastergear operator assemblies, or a multi-coat NACE-compliant marine paint system, we integrate these requirements directly into our custom manufacturing routing.

What standard Quality Assurance (QA) data package and non-destructive testing (NDT) documentation do you provide?

Every custom order is backed by a comprehensive digital QA package. This includes EN 10204 3.1 material test certificates (MTRs), API 598 pressure test logs, and NDT reports (such as Radiographic, Magnetic Particle, or Dye Penetrant testing) based on your critical service requirements and inspection test plans (ITP).

Does Frigate support third-party inspection (TPI) services and witness testing at your manufacturing facilities?

Absolutely. We regularly host major international inspection agencies (such as Bureau Veritas, DNV, Lloyd’s Register, or SGS) appointed by our clients. We coordinate closely with your procurement team to establish mandatory hold points for raw material verification, hydrostatic shell testing, and final visual/dimensional inspections.

How do you manage logistics, heavy-lift packaging, and export compliance for large-scale enterprise project deliveries?

We offer flexible commercial terms (including FOB, CIF, and DDP) tailored to global enterprise logistics. For large-diameter or high-volume gear-operated valve orders, we design custom heavy-duty, seaworthy wooden crates with internal bracing, moisture barriers, and impact indicators to guarantee safe transit to your fabrication yard or project site.
