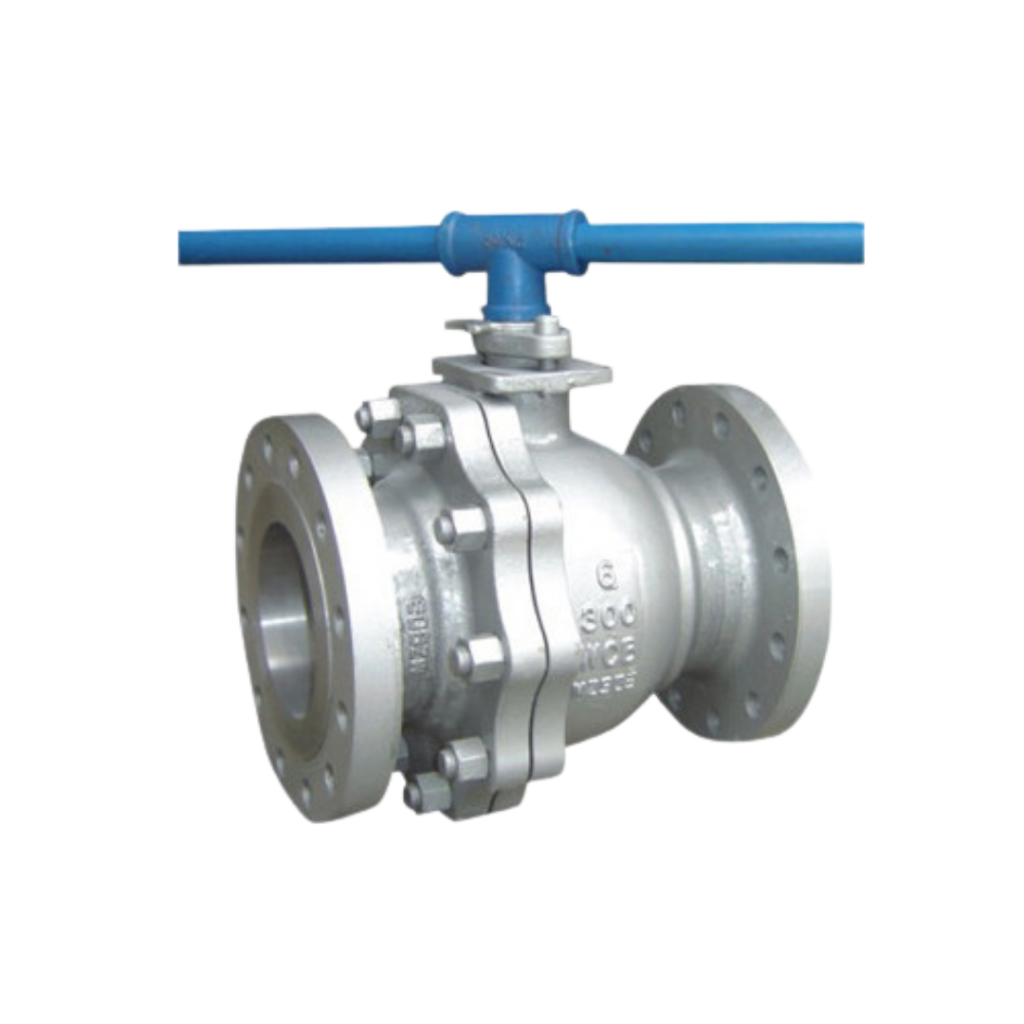

Floating Ball Valves

Engineered for precision and absolute shut-off, our industrial floating ball valves deliver exceptional flow control reliability in the most demanding high-pressure environments. Utilizing advanced seal technology, these valves leverage upstream line pressure to create a bubble-tight, leak-proof barrier across a wide range of process media.

Size Range

1/2″ to 12″ (DN15 to DN300)

Pressure Ratings

ASME Class 150, 300, 600 / PN16, PN25, PN40

Body Materials

WCB, CF8, CF8M, CF3, CF3M, Duplex SS, Super Duplex

Ball & Stem Materials

SS304, SS316, F51, Monel, Inconel (Harg-Faced options available)

Seat & Seal Materials

PTFE, RPTFE, PEEK, Devlon, Metal-to-Metal

*Listed timelines are indicative ranges based on current capacity and standard material availability; firm schedules are finalized upon formal quotation.

Product Description

Our floating ball valves feature an unconstrained ball design that shifts slightly downstream under pressure, pressing firmly against the seat to ensure optimal sealing efficacy during bidirectional flow. Built to minimize operating torque and maximize lifecycle durability, these valves serve as an ideal solution for critical isolation applications across your piping networks.

Design Standards

API 608, API 6D, ASME B16.34, ISO 17292

Face-to-Face Dimensions

ASME B16.10, API 6D

Flange Dimensions

ASME B16.5, EN 1092-1

Testing & Inspection

API 598, API 6D, EN 12266-1

Fire Safe Certifications

API 607, ISO 10497

Temperature Range

-196°C to 500°C (Cryogenic to High-Temperature limits)

End Connections

Flanged (RF, RTJ), Butt-Weld (BW), Socket Weld (SW), Threaded (NPT)

Operation Methods

Lever, Gear Operator, Pneumatic Actuator, Electric Actuator

Fugitive Emissions

ISO 15848-1 Class A / BH, API 641

Wall Thickness

ASME B16.34

Technical Advantages

The bidirectional floating ball architecture guarantees an inherently self-cleaning seating surface that actively wipes away pipeline debris with every single cycle. Additionally, standard integrations like an anti-blowout stem design and certified fire-safe secondary seals provide uncompromised plant safety and emission control.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

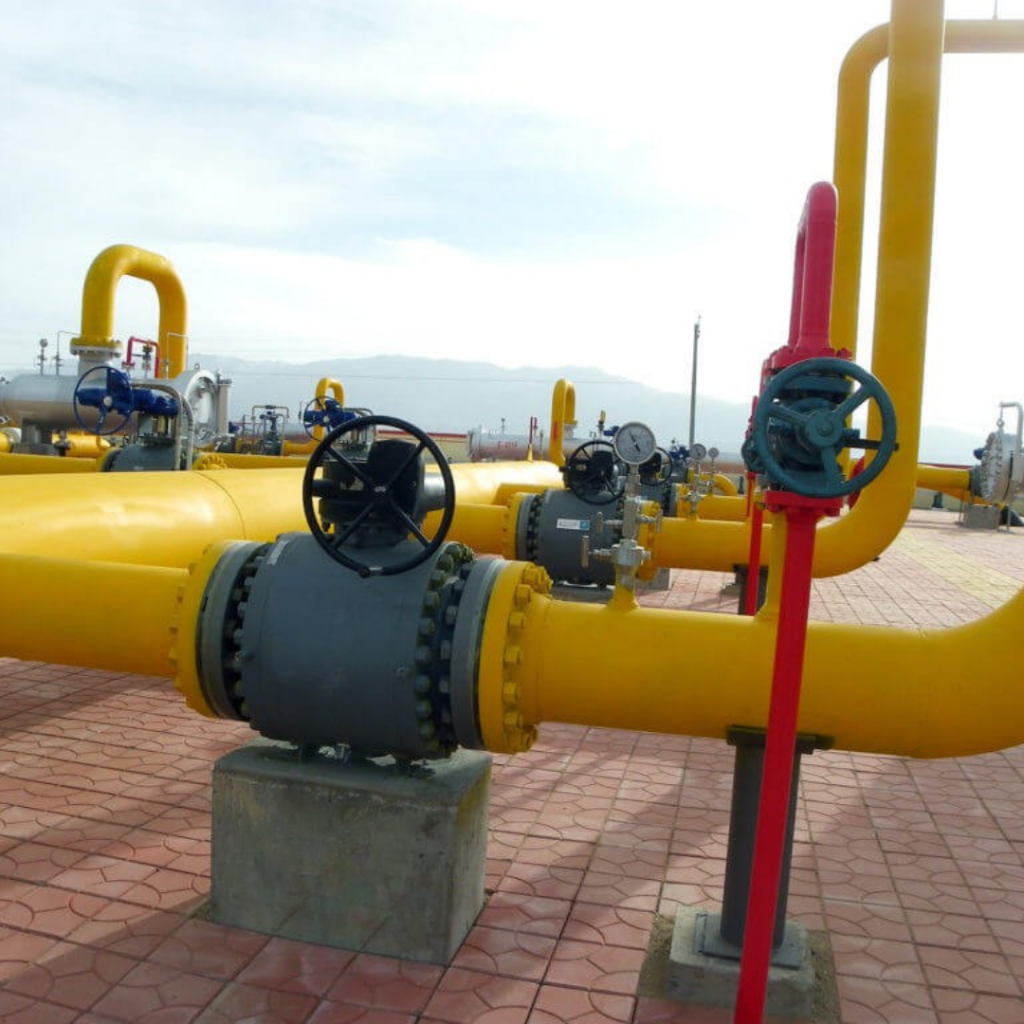

Oil & Gas Processing

Reliable downstream and midstream isolation handling crude oil, natural gas, and refined hydrocarbons safely under volatile thermal conditions.

Chemical Refining

Engineered with highly corrosion-resistant alloys to safely manage hazardous acids, volatile organic solvents, and aggressive chemical chemical process lines.

Water & Wastewater Treatment

Robust, low-maintenance flow regulation for water filtration plants, municipal distribution networks, and high-pressure industrial wastewater handling.

Power Generation

Dependable steam, condensate, and cooling water isolation within thermal, hydroelectric, and combined-cycle power generation facilities.

Pulp & Paper Manufacturing

Designed to easily manage the flow of abrasive chemical pulps, aggressive bleaching agents, and heavy process slurries without clogging.

Pharmaceutical & Food

Cavity-filled and high-purity material configurations engineered to meet stringent sanitary standards while handling clean utilities and batch ingredients.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How does the floating design handle low-pressure or vacuum sealing applications?

While floating ball valves rely on upstream line pressure to push the ball against the downstream seat, our designs incorporate pre-loaded seat inserts (using synthetic elastomeric or wave springs). This mechanical pre-compression ensures a tight, reliable seal at low differential pressures or vacuum conditions before line pressure takes over.

Are these floating ball valves fire-safe certified?

Yes, Frigate’s floating ball valves are standardly certified to API 607 and ISO 10497 fire safety standards. In the event of a fire that destroys the primary soft seats, the valve automatically utilizes a secondary metal-to-metal seat backup to prevent external leakage and contain the process media safely.

Can these valves be adapted for automated systems?

Absolutely. All of our floating ball valves are built with integral ISO 5211 mounting pads, allowing for seamless direct mounting of pneumatic actuators, electric actuators, or limit switch boxes without requiring specialized bracket modifications.

What media types are compatible with standard seat options like PTFE and PEEK?

PTFE and RPTFE seats provide excellent chemical resistance and low friction for standard utilities and chemicals up to 200°C. For high-pressure, high-temperature, or slightly abrasive media, harder materials like PEEK, Devlon, or dedicated metal-to-metal seating are utilized to prevent premature wear.

Does Frigate’s floating ball valves support bidirectional flow sealing?

Yes, our floating ball valves are inherently bidirectional. The floating ball mechanism utilizes upstream pipeline fluid pressure to push the ball securely against either the downstream or upstream seat, ensuring an equally tight, bubble-tight seal regardless of the media flow direction.
