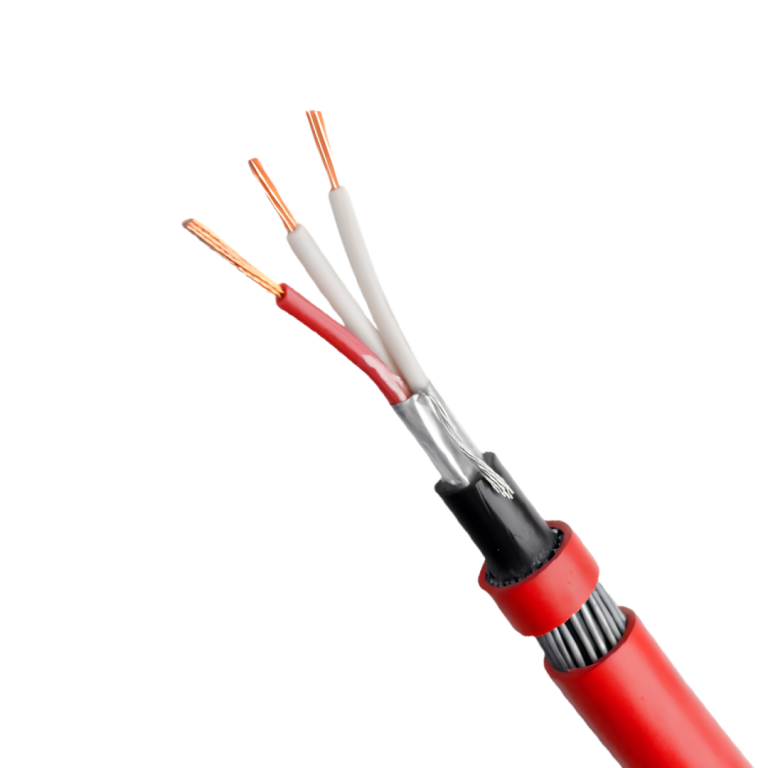

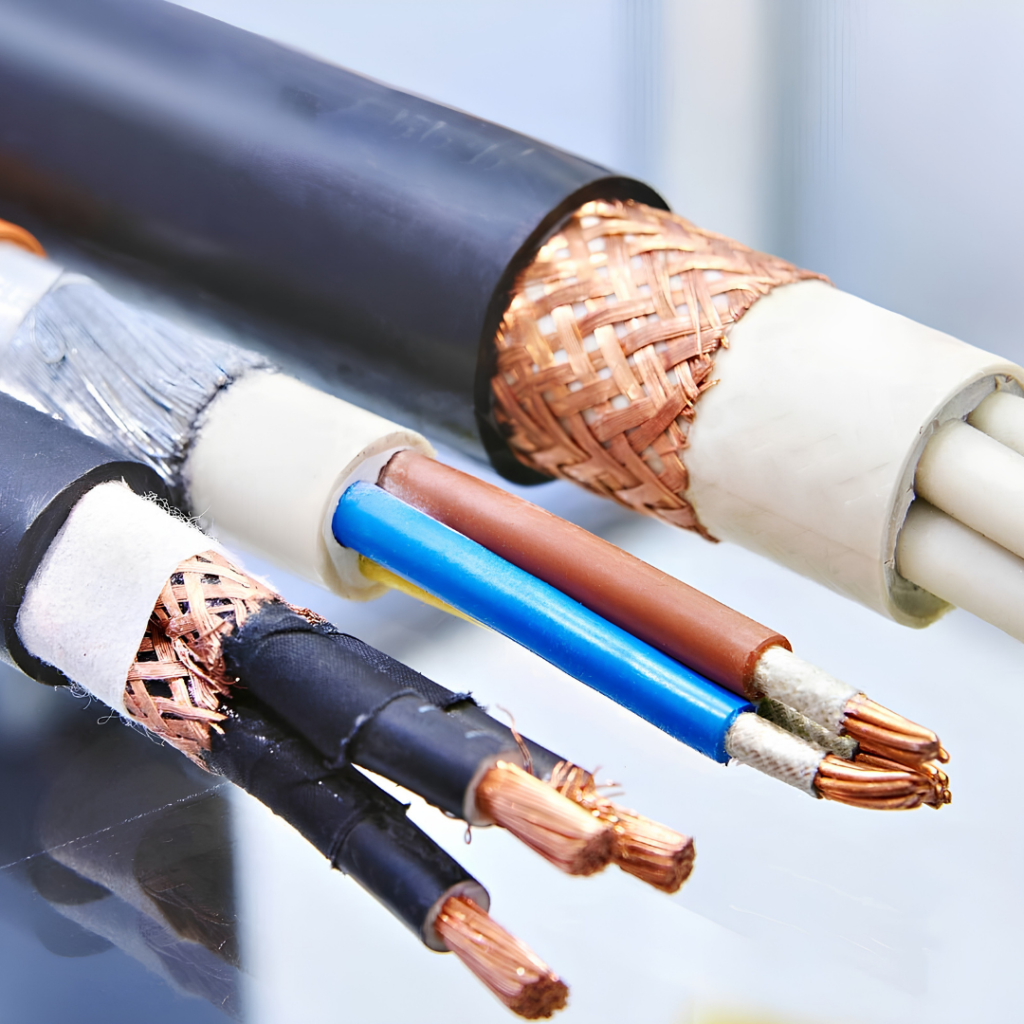

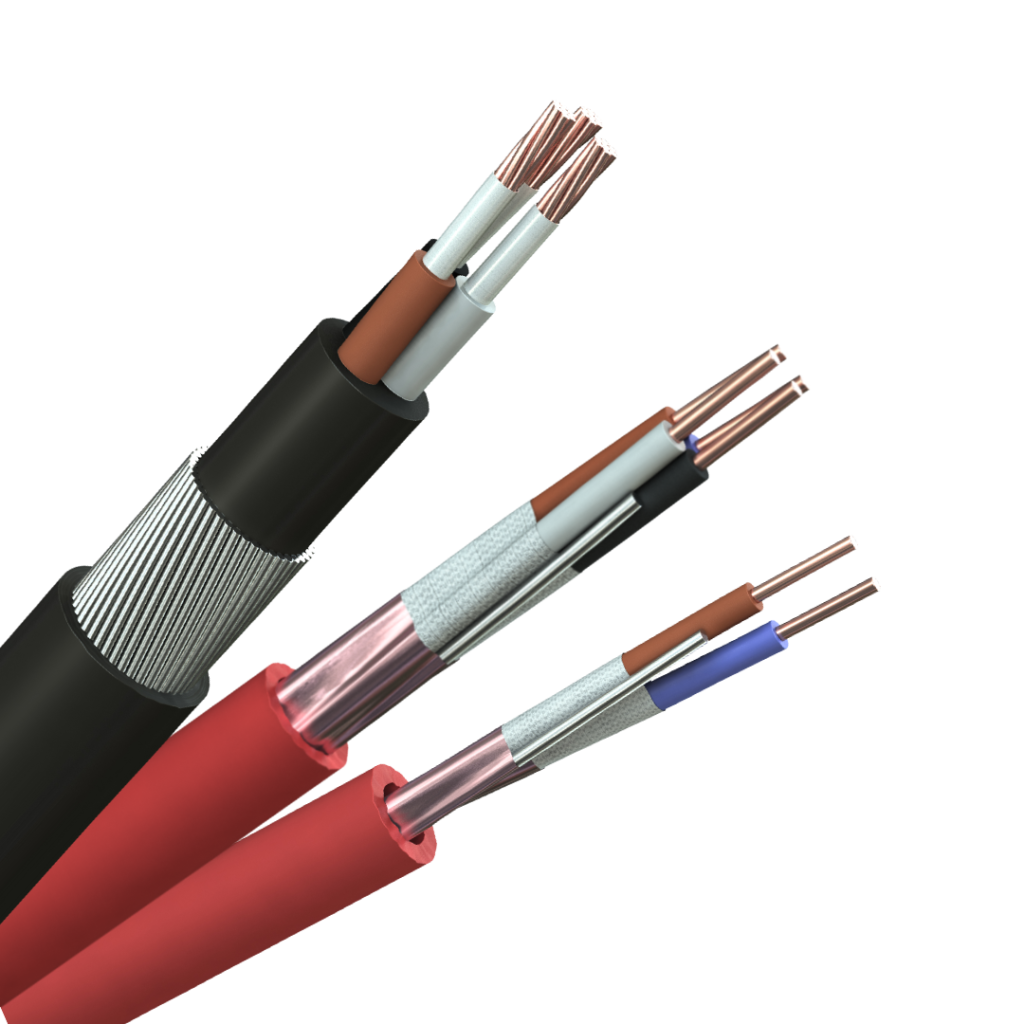

Fire Survival Cables

Frigate’s high-performance Fire Survival Cables are precision-engineered to maintain flawless circuit integrity across critical safety systems during catastrophic fire events. Combining advanced thermal-barrier technology with rigid mechanical durability, they deliver the uncompromised reliability required by heavy industry and high-risk commercial environments.

Voltage Rating ($U_0/U$)

600/1000 V

Conductor Material

High-conductivity electrolytic plain annealed stranded copper (Class 2)

Fire Barrier

Dual layer phlogopite/muscovite mica glass tape

Insulation Compound

Cross-linked, high-temperature resistant LSZH compound (XLPE alternative available)

Inner Sheath

Extruded, flame-retardant, low-smoke zero-halogen compound

*Note: All delivery timelines listed are indicative ranges based on current raw material availability. Exact schedules are finalized upon technical review and formal RFQ submission.

Product Description

Designed for demanding applications, these cables feature proprietary insulation compounds that resist intense flame, high-dose radiation, and severe mechanical impacts. They eliminate toxic gas emissions during a thermal excursion, preventing corrosive damage to control room electronics and ensuring maximum uptime for emergency power and communication networks.

Armor Type

Galvanized steel wire armor (SWA) or aluminum wire armor (AWA) for single-core

Outer Jacket

Heavy-duty, UV-resistant, anti-rodent/anti-termite LSZH compound

Operating Temperature Range

-30° C to +90° C (continuous operation)

Short Circuit Temperature

250° C (maximum duration 5 seconds)

Fire Resistance Standards

BS 6387 (Cat C, W, Z), IEC 60331-21, BS 8491

Smoke Density Emission

IEC 61034-2 (Light transmittance > 60%)

Acid Gas Evolution

IEC 60754-1 (Halogen acid gas output < 0.5%)

Flame Propagation

IEC 60332-1-2 and IEC 60332-3-24 Cat C

12 X D (where D is the overall cable diameter)

Tensile Strength

50 N/mm ² minimum for insulation and outer sheath

Technical Advantages

Our specialized mica tape and cross-linked insulation architecture guarantee uninterrupted data and power transmission for up to 3 hours at temperatures exceeding 180°C. Furthermore, the advanced Low Smoke Zero Halogen (LSZH) jacketing ensures minimal, non-toxic smoke emission, maintaining clear evacuation pathways and safeguarding personnel during critical events.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Oil & Gas Refineries

Critical for emergency shutdown systems, blowout preventers, and hazard monitoring networks operating under severe hydrocarbon fire threats.

Metro Rail & Subways

Deployed in tunnels and underground stations to power ventilation fans, emergency lighting, and public address systems during passenger evacuation.

Nuclear Power Plants

Engineered to withstand prolonged high-dose gamma and beta radiation exposure while maintaining circuit integrity during thermal excursions.

Marine & Offshore Platforms

Designed to resist salt spray, high humidity, and structural vibration while protecting life safety infrastructure on ships and drilling rigs.

High-Rise Commercial Complexes

Supplies uninterrupted power to sprinkler pumps, firefighter elevators, and smoke extraction systems in densely populated urban structures.

Data Centers & Control Rooms

Prevents secondary acid gas damage to sensitive server racks and control hardware due to non-corrosive, halogen-free outgassing properties.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What makes Frigate’s cables different from standard flame-retardant cables?

Standard flame-retardant cables are designed to limit the spread of a fire, but they eventually degrade and fail to conduct electricity. Frigate’s Fire Survival Cables utilize a dedicated mica glass tape barrier and proprietary insulation that allows the cable to continue transmitting critical power and data even while directly engulfed in a 950° C flame.

Can these cables be customized for unique chemical or environmental exposures?

Yes. Depending on your project requirements, we can configure the outer jacket with enhanced properties, including specialized anti-rodent, anti-termite, moisture-resistant, or hydrocarbon-resistant compounds to withstand harsh industrial environments.

How do your cables support project compliance regarding toxicity and smoke?

Our cables utilize zero-halogen materials compliance-tested to IEC 60754 and IEC 61034 standards. In a fire, they produce minimal smoke and virtually zero corrosive gases, keeping evacuation pathways visible and preventing expensive control room electronics from being destroyed by acid mist.

Do you provide localized testing certifications for large-scale enterprise procurement?

Frigate supplies comprehensive testing documentation and compliance certificates matching international standards like BS 6387 (CWZ) and IEC 60331 with every production batch. For enterprise clients requiring third-party validation, we can coordinate with independent inspection agencies during the QA phase.

How do custom cross-sections or higher core counts affect the stated lead times?

Standard core configurations (2-core to 4-core) typically align with our listed lead-time table. Highly specialized multi-core instrumentation setups or custom cross-sections require custom tooling adjustments, which may extend production timelines by 1 to 2 weeks; this will be detailed explicitly in your initial quotation.
