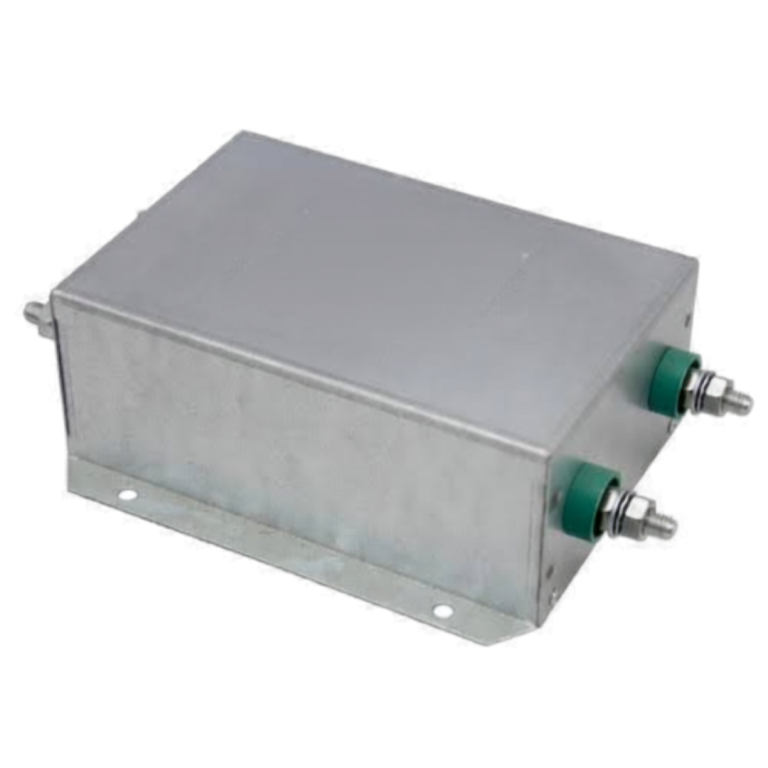

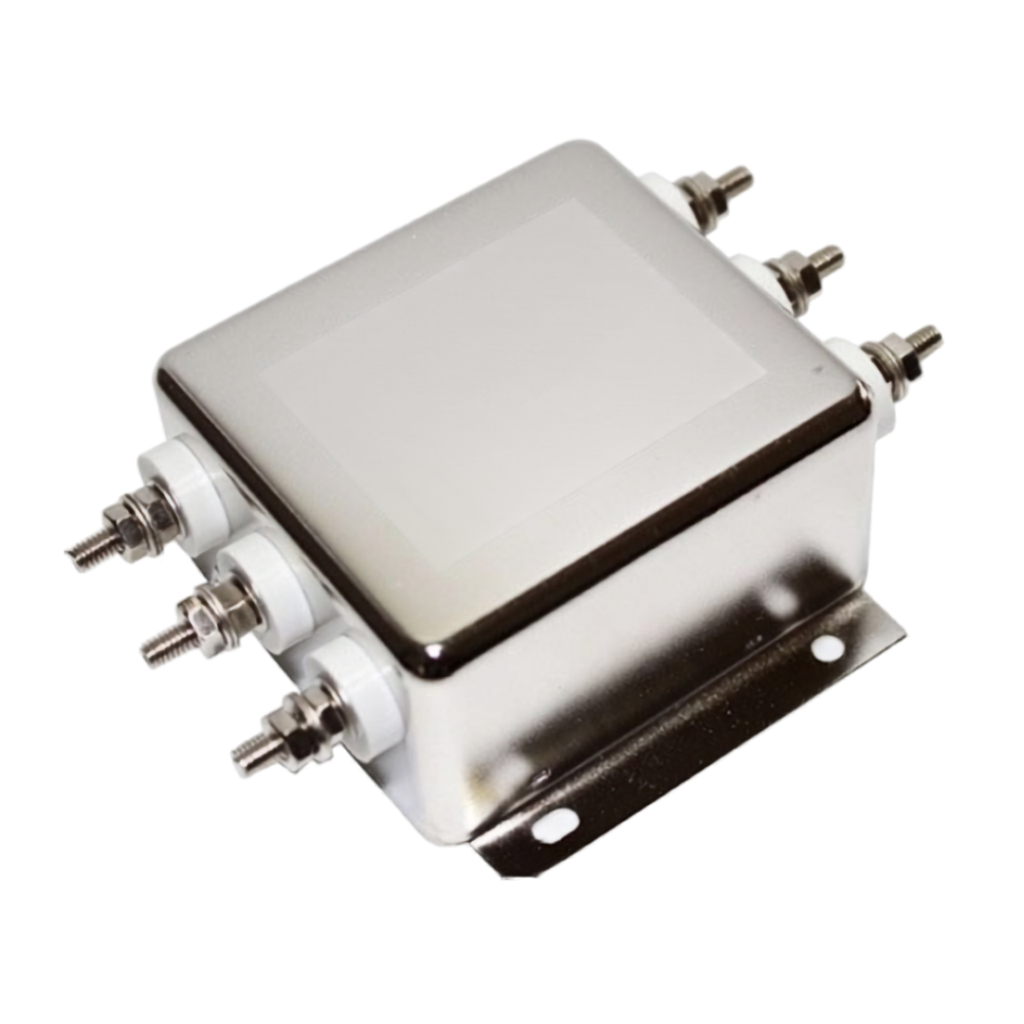

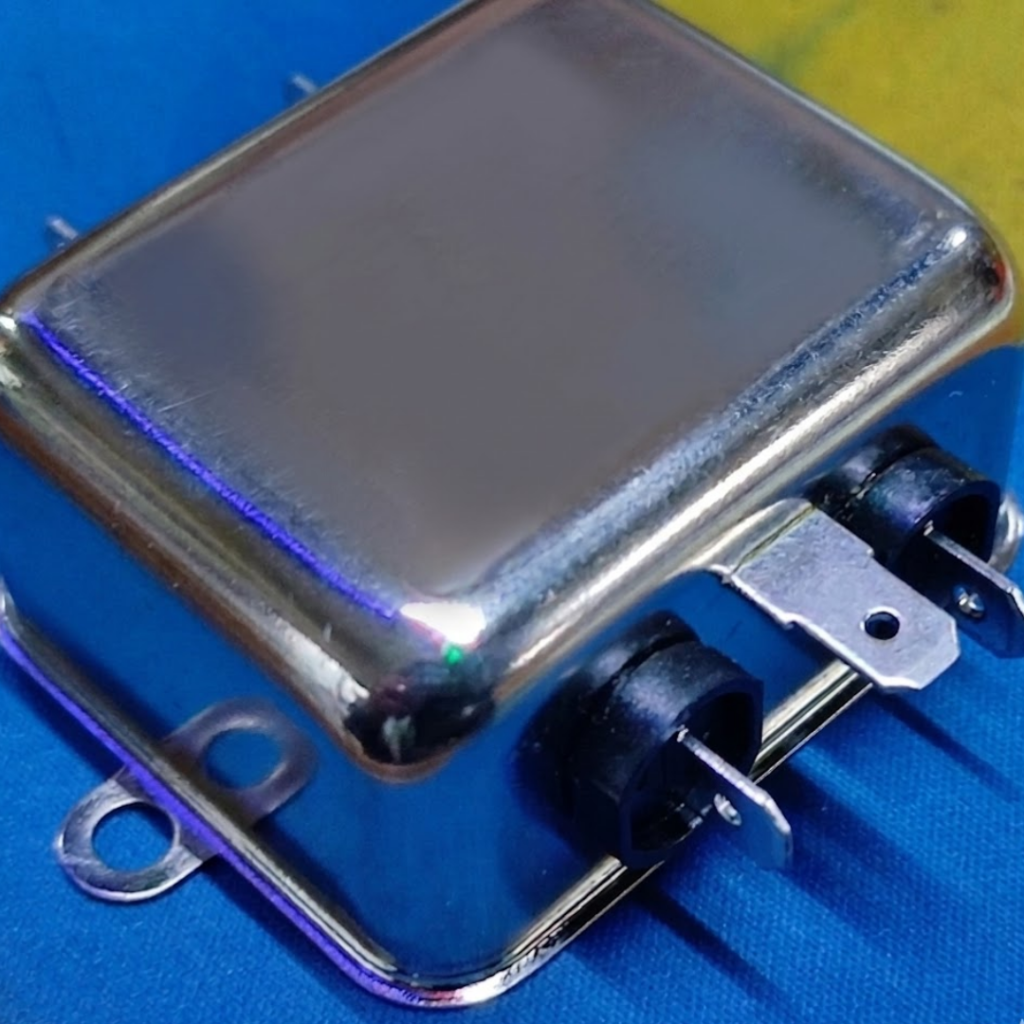

Filters (EMI / RFI)

Frigate delivers premium, industrial-grade EMI and RFI filters designed to suppress electromagnetic interference and ensure seamless compliance with global electromagnetic compatibility (EMC) standards. Engineered for maximum reliability in harsh environments, our filtering solutions safeguard your sensitive electronics, mitigate equipment downtime, and optimize overall system performance.

Rated Voltage

250 VAC / 520 VAC (50/60 Hz})$

Rated Current Range

1 A to 2500 A

Number of Stages

Single, Dual, and Multi-stage options

Operating Frequency Range

10 kHz to 30 MHz

Insertion Loss (Differential Mode)

Up to 80 dB (50 Ω system)

*Note: Listed timeframes are indicative ranges based on standard material availability; exact delivery schedules will be finalized upon official quotation based on your specific customization requirements.

Product Description

Designed to solve complex electromagnetic compatibility challenges, Frigate’s EMI / RFI filters feature a robust, compact architecture that efficiently dampens conducted emissions. These sophisticated multi-stage configurations isolate harmful radio frequency noise, ensuring your industrial machinery receives clean, uninterrupted power.

Insertion Loss (Common Mode)

Up to 85 dB (50 Ω system)

Leakage Current

< 0.5 mA (Standard) / < 5 μA (Medical grade)

Dielectric Strength (Line-to-Ground)

2250 VDC for 2 seconds

Dielectric Strength (Line-to-Line)

1450 VDC for 2 seconds

Insulation Resistance

> 500 M Ω @ 500 VDC

Climatic Category

25/085/21 (per IEC 60068-1)

Operating Temperature Range

-25° C to +85° C (with derating above +40° C)

Termination Style

Screw Terminals, Busbars, Studs, or Faston tabs

Housing Material

High-grade Nickel-plated Steel or Stainless Steel

Compliance & Certifications

CE, UL, RoHS, and REACH compliant

Technical Advantages

Our filters boast exceptionally high insertion loss across both differential and common-mode noise spectrums, ensuring absolute signal integrity for vulnerable downstream microelectronics. Furthermore, they are manufactured with premium, low-loss magnetic cores and high-stability capacitors to maintain optimal thermal stability and prolonged operational life under continuous maximum load.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Industrial Automation & Robotics

Prevents high-frequency switching noise from variable frequency drives (VFDs) and servo motors from disrupting PLC control networks and sensors.

Renewable Energy Systems

Suppresses heavy grid-side electromagnetic interference generated by large-scale solar inverters, wind turbine converters, and energy storage units.

Medical Equipment

Ensures ultra-low leakage current and extreme noise isolation in sensitive diagnostic devices, patient monitors, and imaging machinery.

EV Charging Infrastructure

Mitigates rapid-switching harmonic distortions within fast DC charging stations, safeguarding localized grids and vehicle communication links.

Telecommunications

Protects sensitive RF transceivers, data centers, and base stations from power line ripples to maintain clean, uninterrupted data transmission.

Aerospace & Defense

Meets stringent MIL-STD specifications to protect mission-critical avionics, radar systems, and communication equipment from harsh tactical environments.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Do Frigate filters cover both EMI and RFI spectrums in a single footprint?

Yes. Our entire standard catalog features dual-action attenuation topologies engineered to suppress both low-frequency conducted emissions (EMI) and high-frequency radiated interference (RFI) simultaneously, eliminating the need to cascade multiple filtering components.

Can Frigate customize EMI / RFI filters for unique physical or electrical constraints?

Yes, we offer comprehensive engineering customization, including tailored termination styles, specific footprint configurations, multi-stage topologies for extreme noise environments, and ultra-low leakage designs for medical compliance.

How do I select the right filter current rating for my system?

You should choose a filter with a rated current equal to or greater than the maximum continuous operating current of your equipment. It is safe to use a higher-rated filter, but overloading a lower-rated one will cause overheating and potential failure.

We are failing EMC testing due to unexpected common-mode noise. How do your filters address this?

We optimize our multi-stage networks with high-permeability nanocrystalline or manganese-zinc ferrite cores that provide exceptional common-mode inductance. If standard off-the-shelf options aren’t arresting your specific noise spikes during compliance testing, our engineering team can rapidly adjust the internal Y-capacitor configuration to target the problem frequencies without exceeding your leakage current limits.

Are Frigate EMI / RFI filters compliant with global regulatory standards?

Absolutely. Our standard filter lineups are designed, manufactured, and tested to meet international standards including CE, UL, RoHS, and REACH, allowing your end-product to smoothly pass regional EMC audits.
