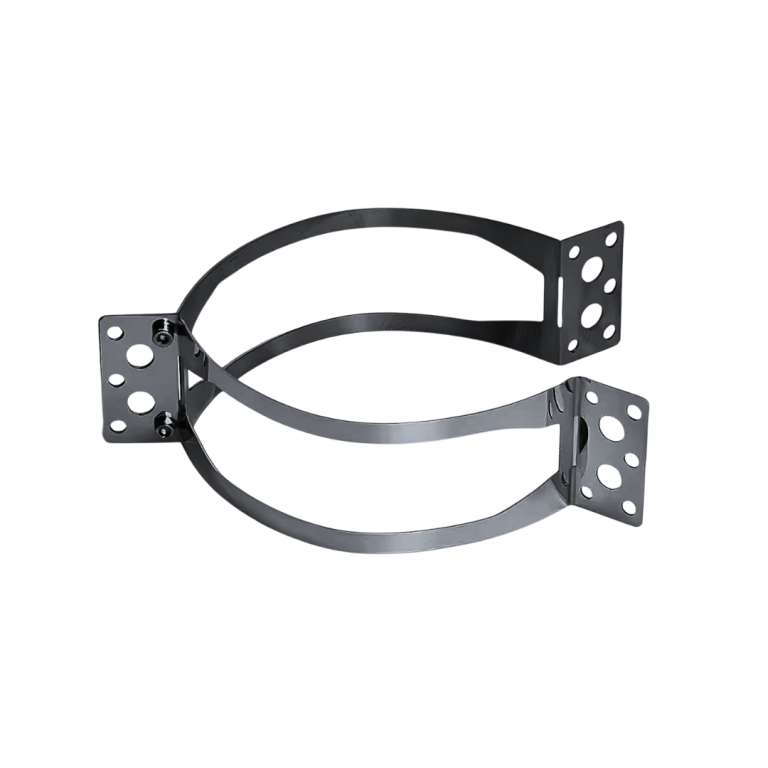

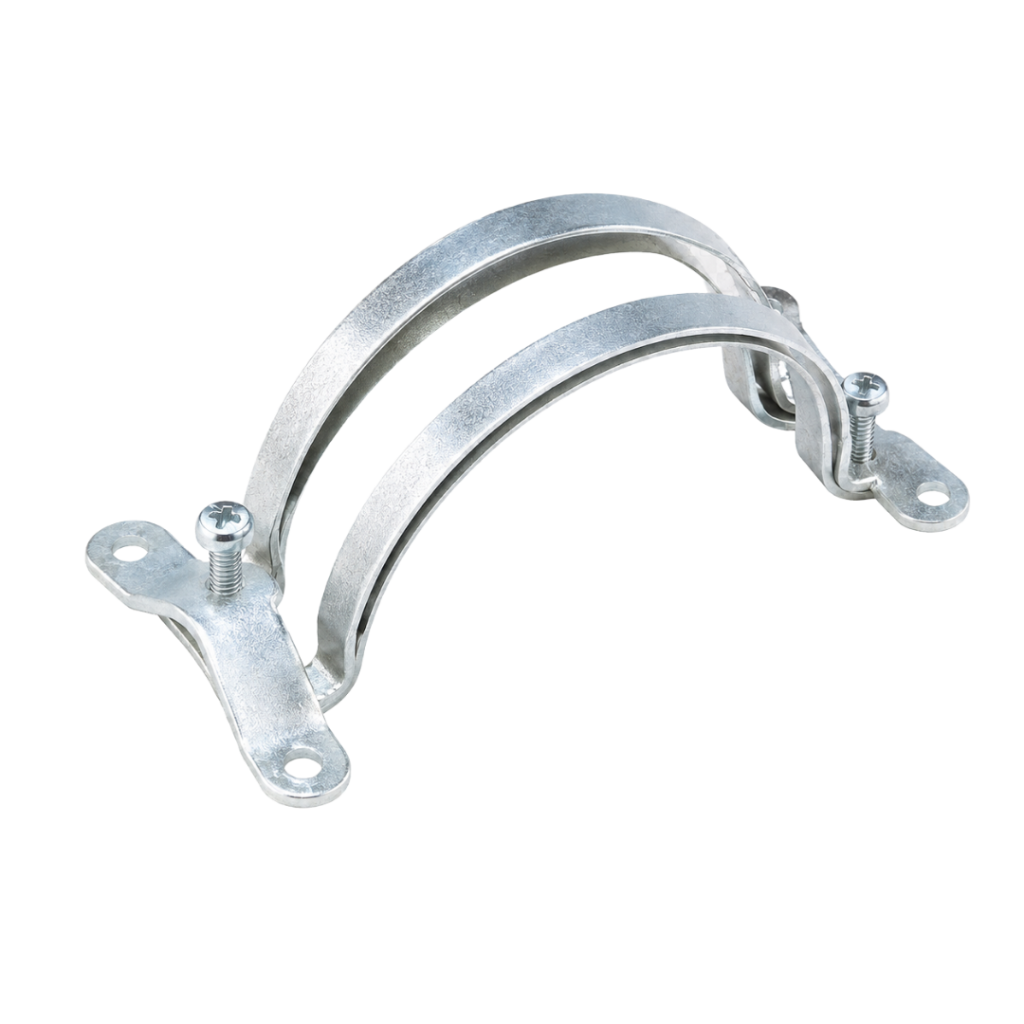

Engine & Turbine Mounts

Discover precision-engineered structural mounts designed to withstand extreme dynamic loads, isolate high-frequency vibrations, and maintain critical engine alignment in commercial and defense aircraft. Frigate delivers flight-ready, space-grade mounting solutions optimized for maximum thermal resilience and structural integrity.

Primary Material Options

Inconel 718, Titanium Ti-6Al-4V, AMS 6414/6415 Steel Alloys

Manufacturing Process

Multi-axis CNC Machining, Precision Forging, Electron Beam Welding

Surface Treatment

Shot Peening, Anodizing, Cadmium/Zinc-Nickel Plating, Thermal Spray

Vibration Isolation Efficiency

Up to 95% attenuation of engine-generated frequencies

Operating Temperature Range

-65°C to +750°C (continuous high-temp exposure)

Order Type

Quantity Range

Lead Time*

First Article / Samples

1 – 5 Units

4 – 6 Weeks

Low-Rate Initial Production (LRIP)

6 – 25 Units

8 – 10 Weeks

Full-Rate Series Production

26 – 100+ Units

12 – 14 Weeks

Blanket / Just-In-Time (JIT)

Scheduled Releases

3 – 5 Days (from bonded buffer stock)

*Listed schedules are indicative and vary based on raw material availability, geometry complexity, and NDT requirements. Contact Frigate for a firm project timeline.

Product Description

Frigate’s aerospace engine and turbine mounts are engineered to provide a robust mechanical interface between the aircraft superstructure and the propulsion system. Leveraging advanced material science and high-precision manufacturing, these mounts secure critical engine components while mitigating structural stress across the entire flight envelope.

Ultimate Tensile Strength

Up to 1300 MPa (dependent on material selection)

Fatigue Life Cycle Rating

More than or equal to 50,000 Flight Hours (LCF/HCF optimized geometries)

Dimensional Tolerance

True position to ± 0.0127 mm (± 0.0005 inches)

Non-Destructive Testing (NDT)

MPI, FPI (Liquid Penetrant), X-Ray Radiography per ASTM standards

Certifications & Compliance

AS9100 Rev D, ISO 9001:2015, NADCAP certified special processes

Load Capacity (Static)

Up to 150 kN axial / 90 kN radial dynamic capacity

Corrosion Resistance

Salt spray tested up to 500 hours per ASTM B117

Traceability

Full raw material mill certification and heat-treatment logs provided

CAD/DFM Compatibility

CATIA, SolidWorks, STEP, IGES with full DFM optimization

Weight Reduction

Topology-optimized lightweight configurations available

Technical Advantages

By integrating fail-safe design architectures with topology-optimized geometries, our mounts drastically reduce structural weight without sacrificing load-bearing capacity. This results in superior fatigue resistance and long-term dimensional stability under severe thermal cycles and high g-force maneuvers.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Commercial Airliners

Engineered pylon and fuselage mounts for next-gen narrow-body and wide-body commercial aircraft, ensuring zero-fail performance over long flight cycles.

Defense & Military Aircraft

Heavy-duty turbine mounts built for fighter jets and military transport carriers to survive extreme tactical maneuvers and high-stress landings.

Business & Regional Jets

Custom-tailored acoustic and vibration-damping engine mounts designed to maximize cabin comfort and reduce interior cabin noise indexes.

Unmanned Aerial Vehicles (UAVs)

Ultra-lightweight, high-strength mounting structures optimized to reduce overall payload weight and maximize long-endurance flight missions.

Helicopter Turboshaft Systems

Robust rotor and turboshaft mounts designed to handle complex, multi-axial dynamic loads and high-amplitude low-frequency vibrations.

Aerospace Test Cells & Rigs

Heavy-duty, highly instrumented ground test mounts built to support rig testing, engine certification, and static simulation cycles.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What materials are primarily used for Frigate’s engine mounts, and how are they selected?

We utilize high-strength superalloys such as Inconel 718 for extreme thermal environments, Ti-6Al-4V titanium for optimal strength-to-weight ratios, and specialized aerospace-grade steels. Material selection is dictated by your specific thermal exposure, structural load profiles, and weight constraints.

Can Frigate manufacture custom engine mount geometries based on existing proprietary CAD files?

Yes. We regularly manufacture custom mounts based on client-provided CATIA, SolidWorks, or STEP files, executing full Design for Manufacturing (DFM) reviews to optimize tool paths, reduce cycle times, and lower total cost of ownership.

What quality documentation and quality control certifications accompany each shipment?

Every delivery includes a comprehensive First Article Inspection Report (FAIR) compliant with AS9102, material mill test certificates, heat treatment logs, and NADCAP-accredited NDT report records (FPI/X-ray) for complete traceability.

How does Frigate manage raw material lead times for critical alloys like Inconel or Titanium?

We maintain strategic buffer stocks of aerospace-grade billets through an audited network of tier-1 raw material suppliers, allowing us to mitigate global supply chain fluctuations and stabilize production timelines.

Does Frigate support concurrent engineering to optimize mounts for weight reduction?

Absolutely. Our engineering team collaborates with your design group to perform topology optimization and finite element analysis (FEA), stripping away unneeded mass while preserving critical load paths and safety margins.
