What surface finishes do you recommend for outdoor or highly corrosive environments?

For maximum corrosion resistance in outdoor or marine settings, we highly recommend utilizing Marine-Grade Stainless Steel (316) or Aluminum with a Type III Hardcoat Anodizing finish or applying a specialized UV-resistant outdoor architectural powder coating.

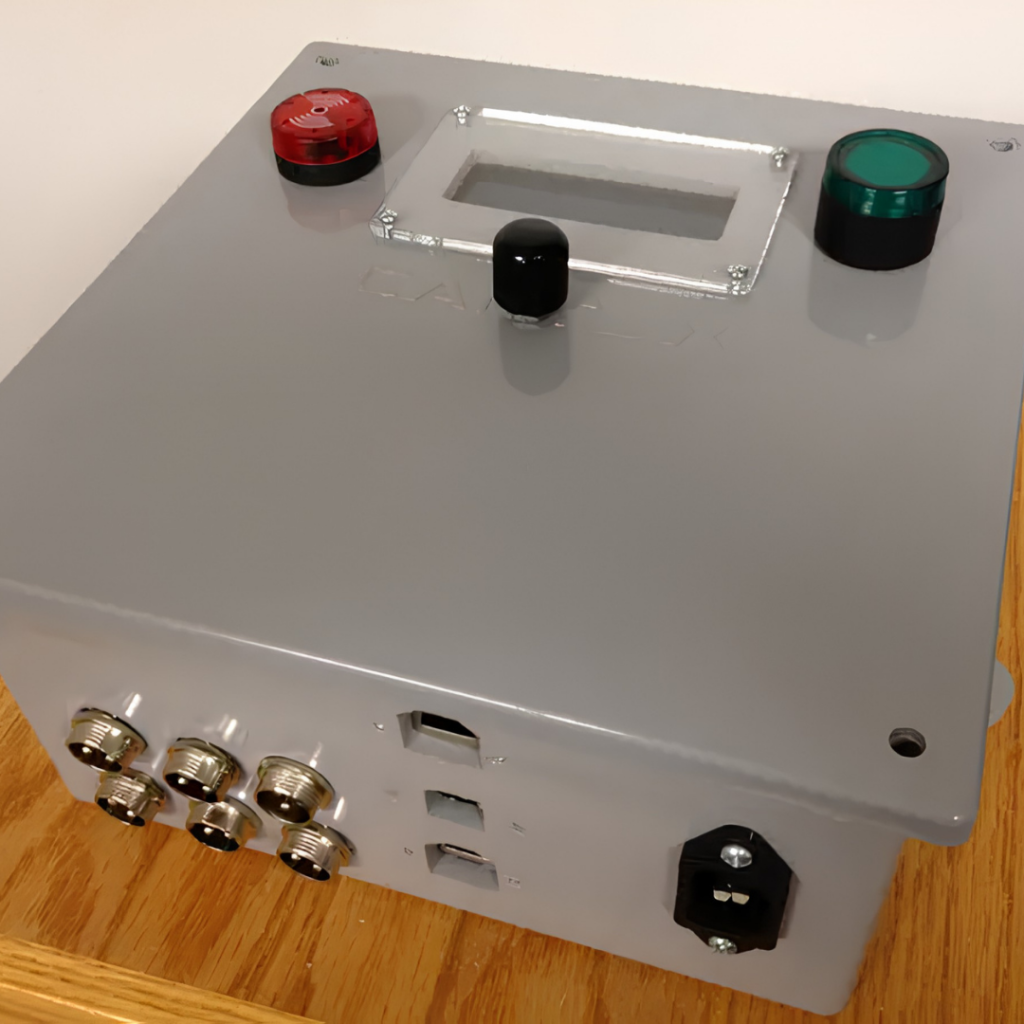

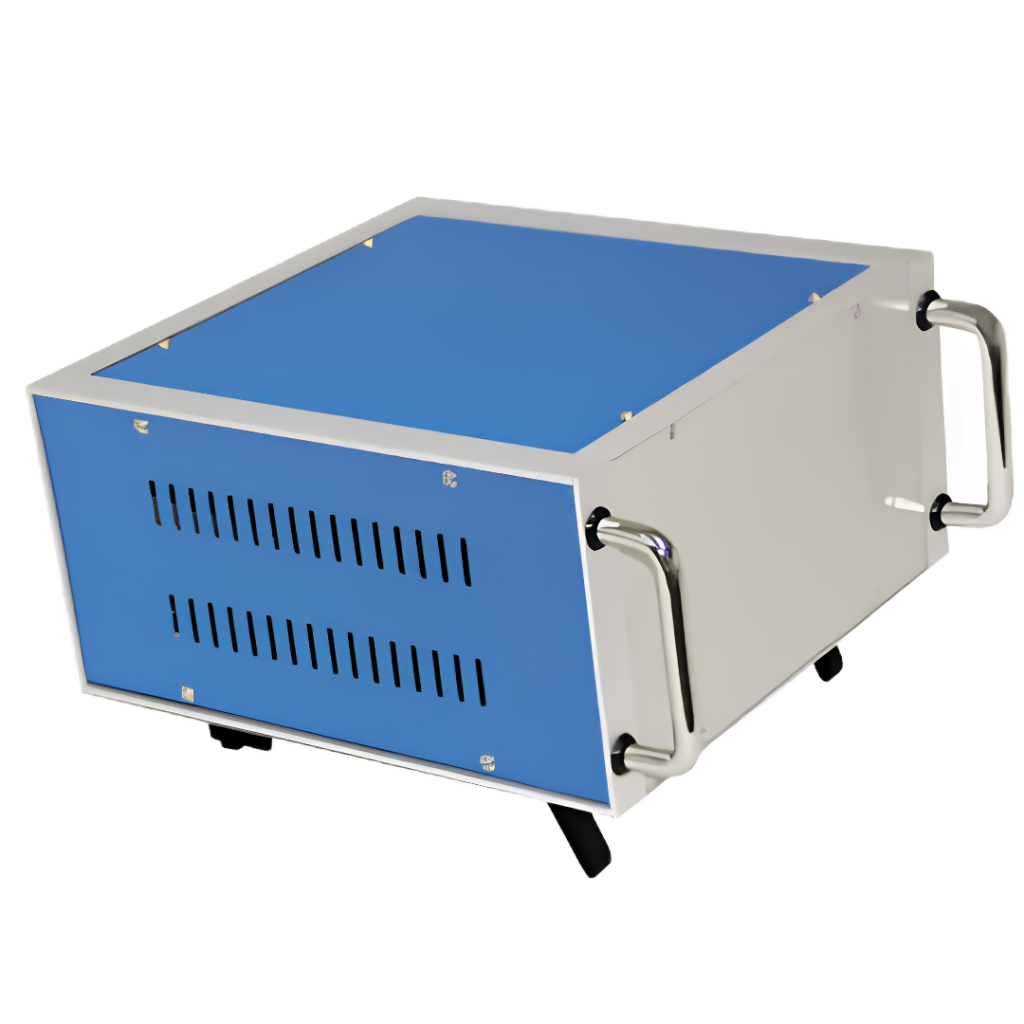

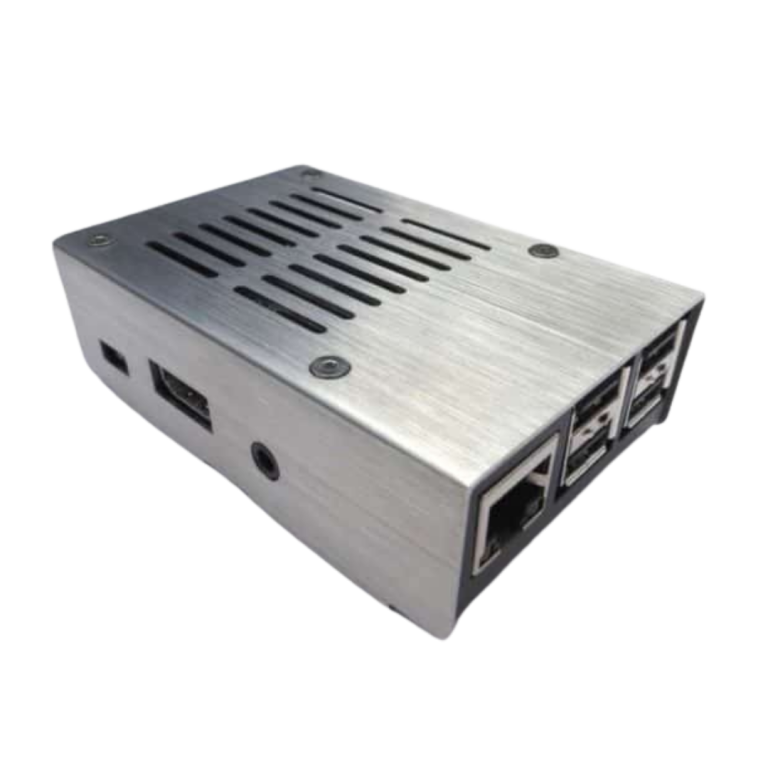

Electronics Enclosure

Protect your critical electronics with our precision-engineered, high-durability enclosures designed for the most demanding industrial environments. Built to strict technical standards, our enclosures ensure seamless integration, robust thermal management, and long-term component reliability.

Material Options

Aluminum (6061-T6/5052), Stainless Steel (304/316), Carbon Steel

Manufacturing Processes

CNC Machining, Sheet Metal Fabrication, Laser Cutting

Ingress Protection (IP) Rating

IP65, IP66, IP67, IP68 certified configurations

NEMA Standards

Compliant with NEMA 4, 4X, 12, and 13 requirements

Wall Thickness Range

1.5 mm to 6.0 mm (dependent on material and design)

Order Type

Quantity Range

Lead Time*

Sample

1 – 5 Units

5 – 7 Business Days

Low-Volume Production

6 – 50 Units

2 – 3 Weeks

Medium-Volume Production

51 – 500 Units

4 – 5 Weeks

Mass Production

501+ Units

6+ Weeks / Scheduled Blanket Shipments

*Timelines are indicative and depend on design complexity, material availability, and finishing requirements. Contact our engineering team for a firm quote.

Product Description

Our premium electronics enclosures provide robust mechanical protection and optimal internal environmental control for sensitive PCB assemblies and control systems. Engineered using advanced manufacturing techniques, they deliver tailored structural integrity to safeguard your hardware against harsh industrial wear.

Surface Finishes

Powder Coating, Anodizing (Type II/III), Chromate Conversion, Bead Blasting

EMI/RFI Shielding

Conductive gaskets and selective masking for superior attenuation

Thermal Management

Integrated heat sinks, louvers, fan cutouts, and forced-air ventilation slots

Mounting Options

Wall-mount brackets, pole-mount kits, DIN rail clips, free-standing

Locking Mechanisms

Quarter-turn latches, key-locking systems, pad-lockable handles

Gasket Materials

EPDM, Silicone, Neoprene, and conductive fluorosilicone

Environmental Tolerance

Operating range from -40°C to +120°C

Certifications

RoHS compliant, REACH compliant, UL 508A (upon request)

Dimensional Tolerances

ISO 2768-m (Fine) for sheet metal; up to ±0.05 mm for machined zones

Customization Formats

Full CAD support accepting .STEP, .IGS, and .DXF file formats

Technical Advantages

Featuring superior EMI/RFI shielding configurations and optimized thermal dissipation channels, these enclosures prevent critical component overheating and signal interference. The precise dimensional tolerances and high-grade sealing options ensure a flawless fit, extending the operational lifespan of your deployed electronics.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Industrial Automation

Rugged control boxes built to house PLCs, drives, and power supplies on highly volatile factory floors, completely shielding them from airborne dust and moisture.

Renewable Energy

Heavy-duty, weather-resistant enclosures that protect solar inverters, wind turbine control nodes, and outdoor battery storage banks from extreme climate exposure.

Telecommunications

High-shielding node boxes optimized for outdoor routing gear, 5G small cells, and remote telemetry units, ensuring uninterrupted data transmission network-wide.

Medical Devices

Biocompatible, easy-to-sanitize enclosures designed specifically for diagnostic equipment, laboratory analyzers, and sensitive bedside monitoring hardware.

Electric Vehicle (EV) Infrastructure

Impact-resistant, thermal-regulated housings built for high-voltage EV charging stations, power distribution blocks, and grid-tied fast-charging systems.

Aerospace & Defense

Ultra-lightweight, high-strength aluminum housings engineered to protect critical avionics, radar processing units, and telemetry systems under high vibration.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can these electronics enclosures be fully customized to our specific PCB layouts?

Yes. Frigate offers comprehensive customization options, including custom cutouts for connectors, displays, and switches, as well as integrated bosses, custom mounting brackets, and specialized internal standoffs tailored directly to your engineering drawings.

Does Frigate provide turn-key assembly services, including gaskets and thermal interfaces?

Absolutely. Beyond fabricating the metal or plastic structural housing, we can fully install environmental gaskets, EMI shielding strips, thermal interface pads, ventilation fans, cable glands, and secondary latching hardware, so units arrive assembly ready.

How do you ensure the IP or NEMA ratings are maintained during production?

Frigate manufactures strictly tight geometric tolerances and utilizes high-grade, continuous-pour or precision-molded gaskets. For certified project needs, we conduct rigorous in-house pressure and water-ingress testing to verify seal integrity before shipment.

What is Frigate’s minimum order quantity (MOQ) for custom manufactured enclosures?

We do not enforce a strict minimum order quantity; we support projects starting from a single prototype unit. However, manufacturing setups scale efficiently, meaning your per-unit cost drops significantly as production volumes increase.
