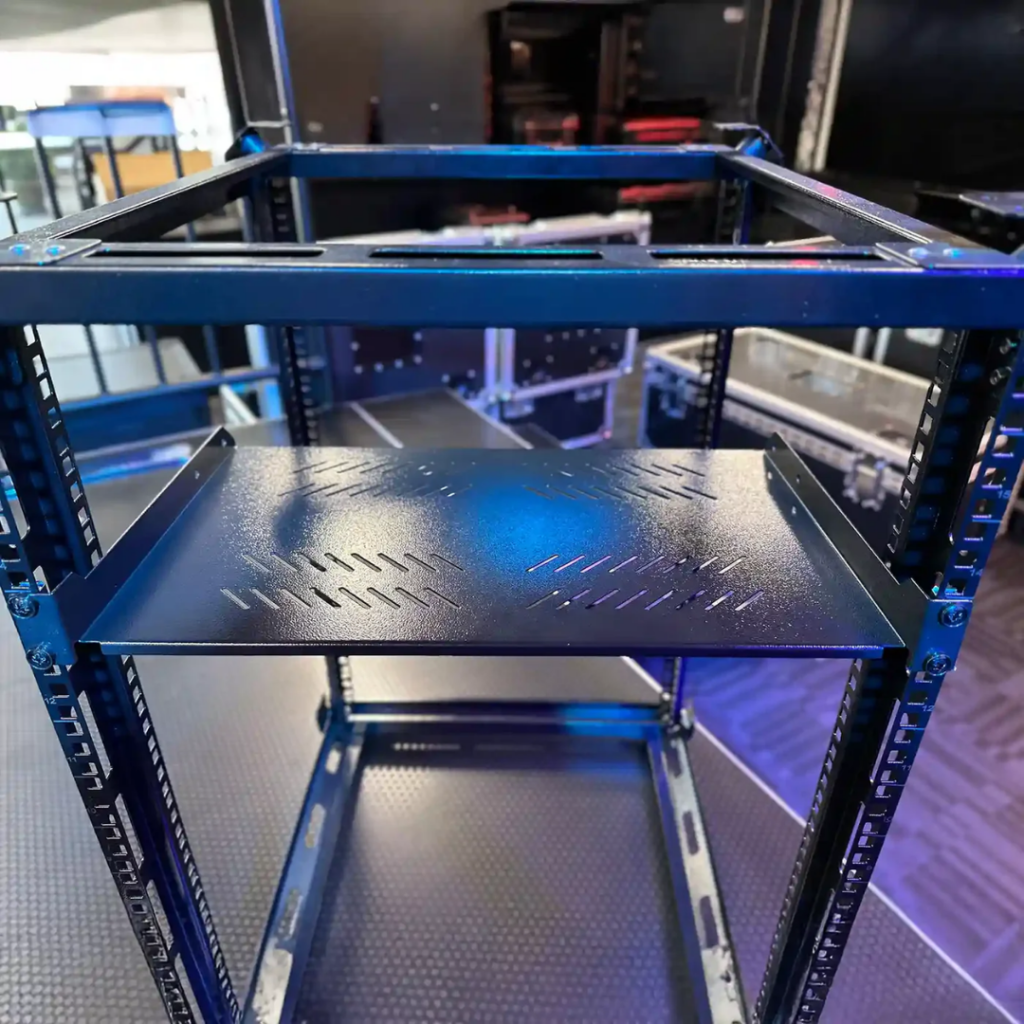

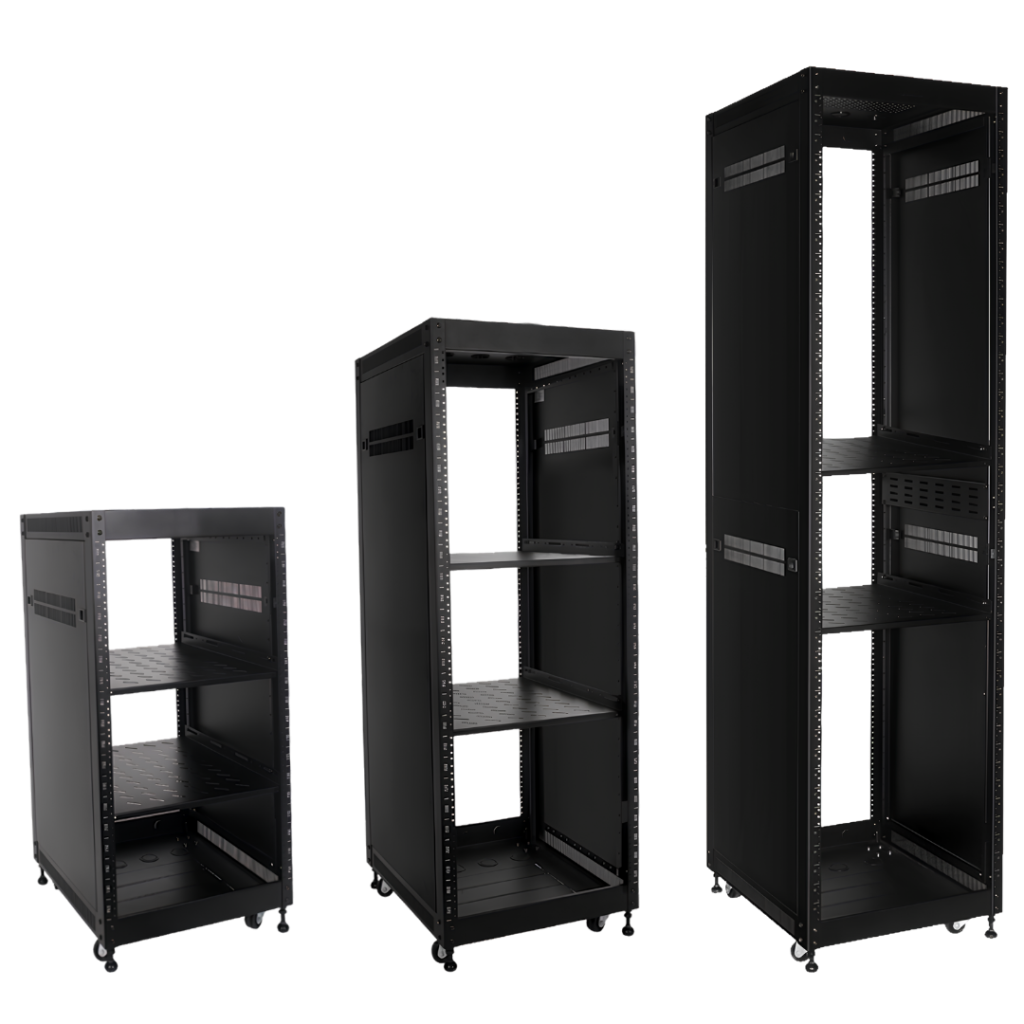

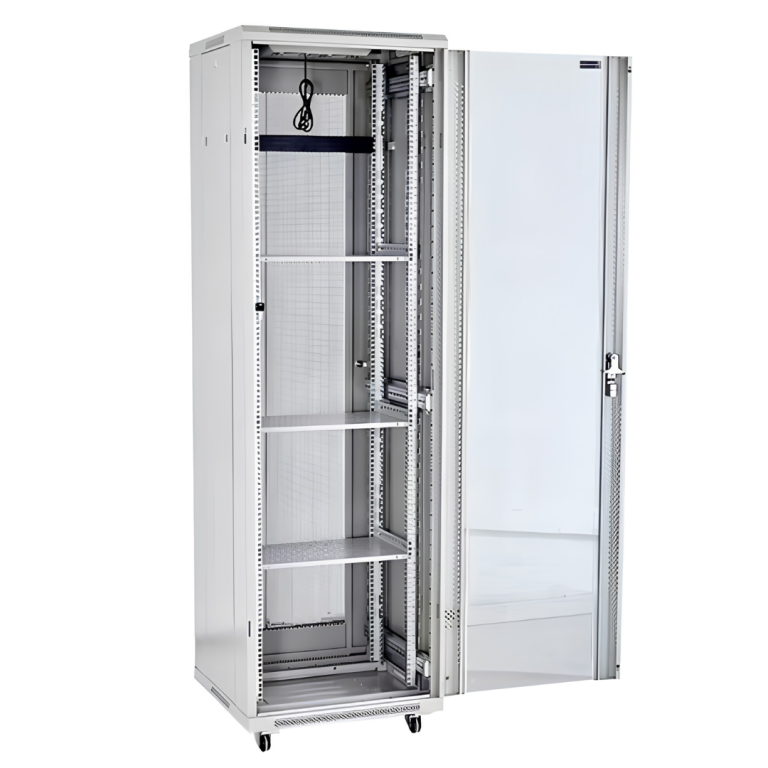

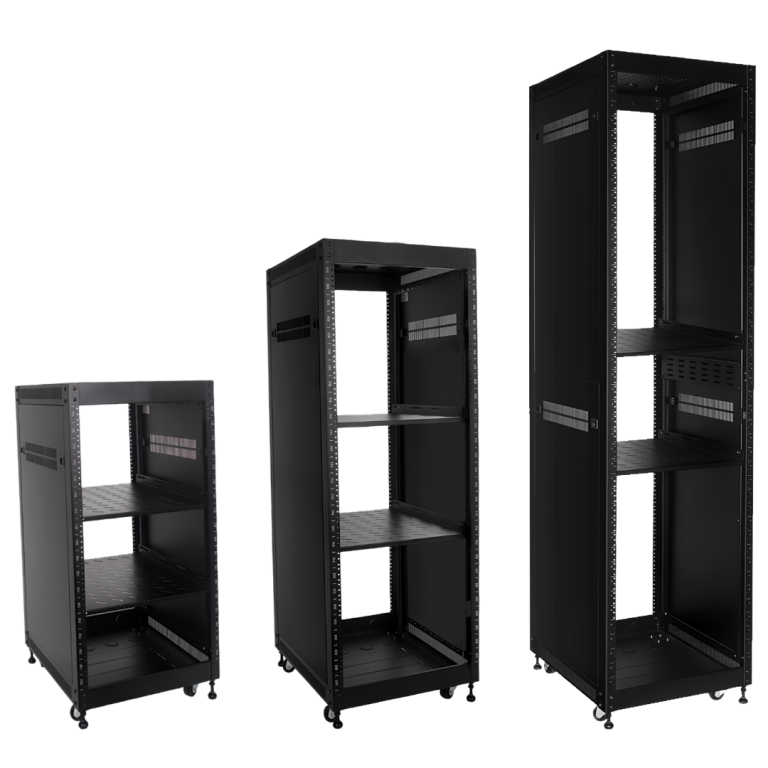

Electronic Equipment Racks

Engineered for ultimate structural integrity, Frigate’s aerospace-grade electronic equipment racks provide ruggedized protection for mission-critical avionics in high-vibration environments. Custom-fabricated to meet stringent military and commercial aviation standards, these enclosures ensure seamless thermal management and maximum spatial efficiency.

Primary Material

Aluminum-Lithium Alloy (Al-Li 2195/2099) or Aerospace-grade 6061-T6 / 7075 Aluminum

Manufacturing Process

5-axis CNC Machining, Precision Sheet Metal Fabrication, and Robotic TIG/Laser Welding

Compliance Standards

ARINC 404A, ARINC 600, MIL-STD-810H, and RTCA DO-160G

EMI/RFI Shielding

Co-extruded conductive silicone gaskets providing >60 dB attenuation from 10 MHz to 18 GHz

Vibration & Shock Isolation

Integrated wire rope isolators and elastomeric dampers compliant with MIL-STD-810H

Order Type

Quantity Range

Lead Time*

Sample & DFM Sample

1 – 3 Units

3 – 4 Weeks

Low-Volume Initial Production

4 – 15 Units

6 – 8 Weeks

Medium-Volume Batch Production

16 – 50 Units

High-Volume / Blanket Order

51+ Units

12+ Weeks (Scheduled Releases)

*Listed timeframes are indicative ranges based on current raw material availability. Actual dispatch timelines depend on engineering drawing sign-offs, custom tooling requirements, and non-destructive testing (NDT) protocols.

Product Description

Frigate’s Aerospace Electronic Equipment Racks are high-precision, lightweight enclosures designed to house and safeguard sensitive navigation, communication, and flight control systems. Built using advanced aerospace alloys and specialized surface treatments, they deliver exceptional electromagnetic interference (EMI) shielding and structural durability under extreme flight conditions.

Surface Treatment

Chromate Conversion Coating (MIL-DTL-5541 Typ II) and Chemical-Resistant Epoxy Powder Coat

Cooling Profile

Forced-air convection via integrated plenum chambers or liquid-cooled cold plates

Structural Payload Capacity

Up to 120 kg (265 lbs) static load / 80 kg (176 lbs) dynamic shock load

Dimensional Tolerances

Precision tolerances within ±0.05mm for critical alignment rails and mounting holes

Hardware & Fasteners

Captive stainless steel screws, helicoil inserts, and self-locking aerospace fastners

IP Rating

IP65 equivalent for environmental sealing against dust, moisture, and cockpit spills

Weight Efficiency

Lightweight design optimized to reduce Total Cost of Ownership (TCO) and fuel consumption

Grounding & Bonding

Multi-point low-resistance bonding studs meeting MIL-B-5087B requirements

Non-Destructive Testing (NDT)

Visual inspection, Dye Penetrant Testing (PT), and X-Ray weld verification

Customization Options

Modular height variants (1U to 42U), custom cable raceways, and DFM-optimized layouts

Technical Advantages

Utilizing advanced aluminum-lithium alloys and precision CNC machining, Frigate’s racks minimize aircraft payload while maintaining high load-bearing structural integrity under demanding flight conditions. Additionally, integrated high-efficiency cooling channels and specialized conductive gaskets ensure optimal heat dissipation alongside complete electromagnetic isolation for sensitive avionics systems.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Commercial Airliners

Engineered for main avionics bays in narrow-body and wide-body aircraft, securing critical flight management, in-flight entertainment, and communication systems.

Defense & Military Aviation

Ruggedized cabinets deployed in fighter jets and military transport aircraft, built to withstand extreme g-forces and tactical electronic warfare environments.

Unmanned Aerial Vehicles (UAVs)

Ultra-lightweight, compact electronic enclosures optimized for surveillance, reconnaissance, and autonomous cargo drones where every gram impacts flight range.

Aerospace Ground Support

Durable rack enclosures built for ground control stations, telemetry rooms, and airport radar signaling facilities, prioritizing ease of maintenance.

Space & Satellite Systems

High-vacuum compatible rack assemblies designed for launch vehicle instrumentation bays, managing high-vibration thresholds during liftoff stages.

Electric Vertical Takeoff (eVTOL)

Next-generation urban air mobility enclosures focusing on tight spatial limits, thermal heat dissipation for high-density batteries, and lightweighting.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Are Frigate’s electronic equipment racks fully compliant with ARINC and MIL-STD standards?

Yes, our aerospace racks are explicitly manufactured and tested to meet ARINC 404A, ARINC 600, and MIL-STD-810H standards. We provide complete compliance documentation, material mill certificates, and testing reports during shipping to ensure smooth qualification testing for your system integration.

Can you customize the internal layout and cable routing for unique avionics setups?

Absolutely. Through our Design for Manufacturing (DFM) review, we customize internal mounting rails, custom cutouts, integrated plenum cooling chambers, and dedicated wire raceways. We work directly with your CAD files to map out connector orientations and eliminate interference during installation.

What surface treatments do you apply to guarantee corrosion resistance and EMI shielding?

We offer dual-layer surface protection, beginning with a MIL-DTL-5541 Type II chromate conversion coating for electrical conductivity and corrosion resistance. This is followed by a durable epoxy powder coating on external surfaces, leaving mask-off areas at ground points to maintain a low-resistance EMI shield.

How does Frigate handle structural testing for high-vibration flight profiles?

We integrate structural analysis directly into the design phase and support physical validation, including shake table testing, resonant frequency sweeps, and shock testing. Our designs incorporate specialized isolators and high-strength welding to protect sensitive electronics against multi-axis flight vibrations.

What are the typical raw material choices available for weight reduction?

While aerospace-grade 6061-T6 and 7075 aluminum are standard, we also manufacture using advanced Aluminum-Lithium alloys. These alloys provide a significant reduction in overall mass alongside higher strength and stiffness, directly addressing critical aerospace payload and fuel-efficiency goals.
