Cable Trays

Partnering with global energy enterprises, Frigate delivers engineered-to-order cable management systems built to withstand extreme industrial environments. Our high-performance cable trays ensure maximum structural integrity, optimized thermal dissipation, and long-term reliability for critical power infrastructure.

Material Options

Pre-galvanized, Hot-Dip Galvanized (HDG), Stainless Steel (SS304/SS316), Aluminum

Tray Types

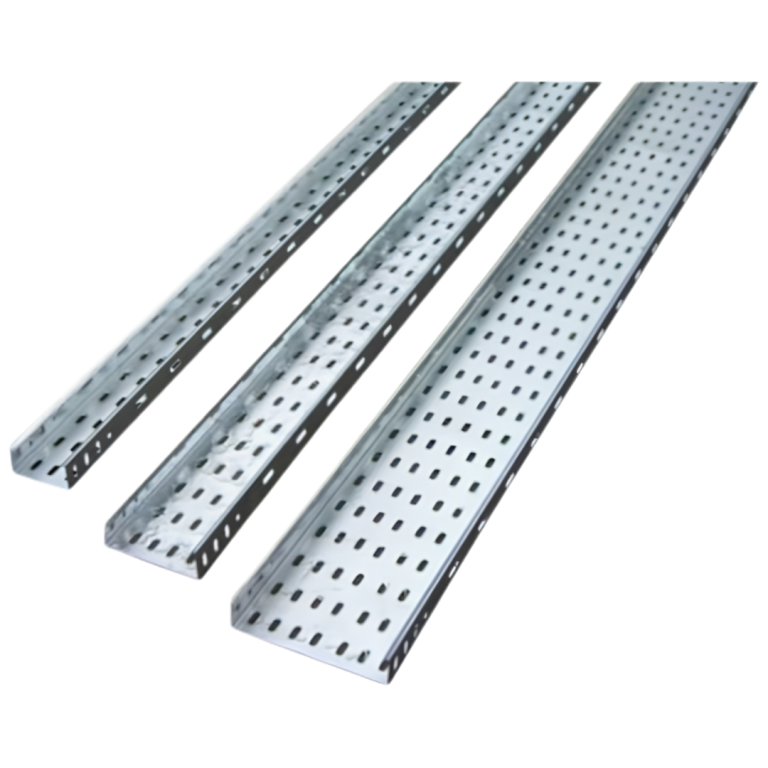

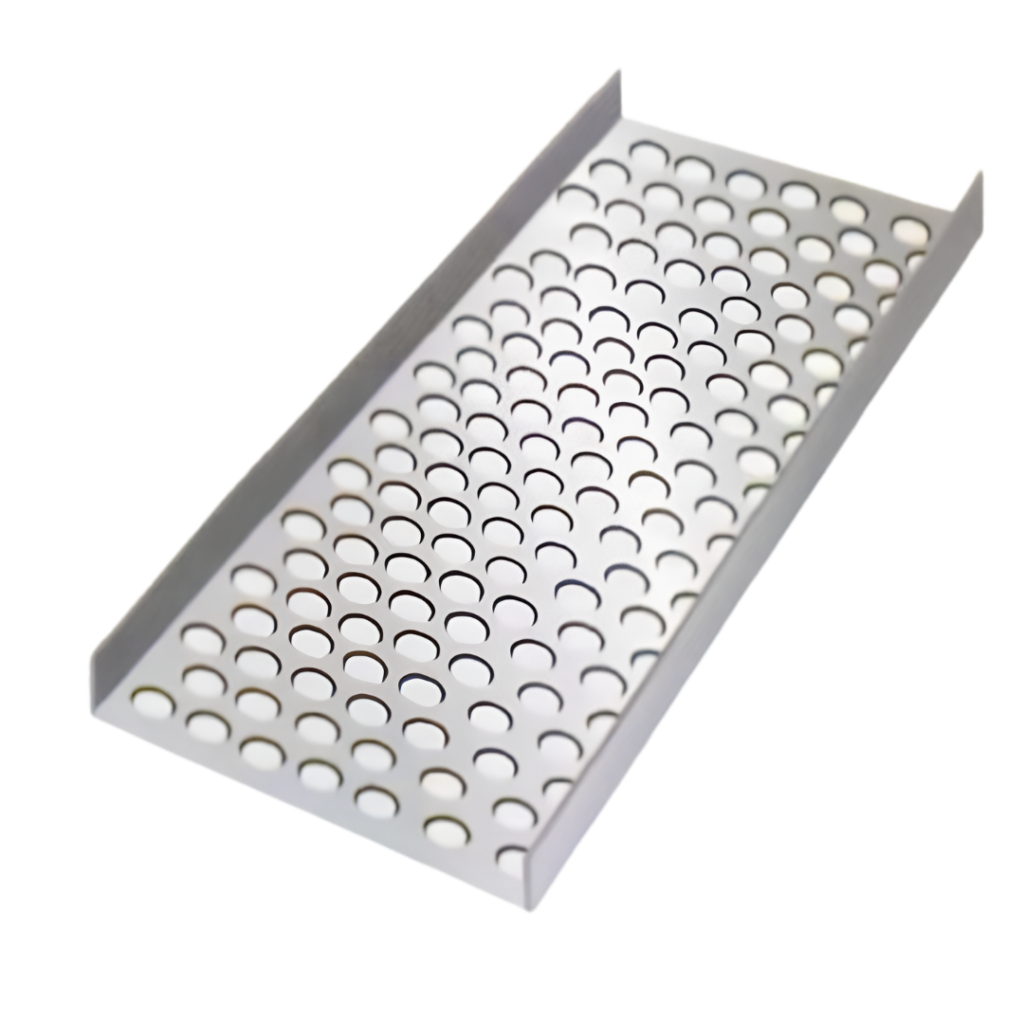

Ladder Type, Perforated Type, Solid Bottom Wire Mesh, Channel Cable Tray

Standard Lengths

2.5 Meters, 3.0 Meters (Custom lengths available upon request)

Width Range

50 mm to 1000 mm

Side Rail Height

50 mm, 75 mm, 100 mm, 150 mm

Order Type

Quantity Range

Lead Time*

Standard Run

Up to 500 Meters

2 – 3 Weeks

Volume Procurement

501 to 2,500 Meters

4 – 5 Weeks

Enterprise / Mega Project

Above 2,500 Meters

6 – 8 Weeks

Custom Engineered Configuration

Variable (Based on custom tooling)

5 – 7 Weeks

*Listed timeframes are indicative ranges based on current raw material availability. Actual dispatch timelines will be finalized upon engineering sign-off and order placement.

Product Description

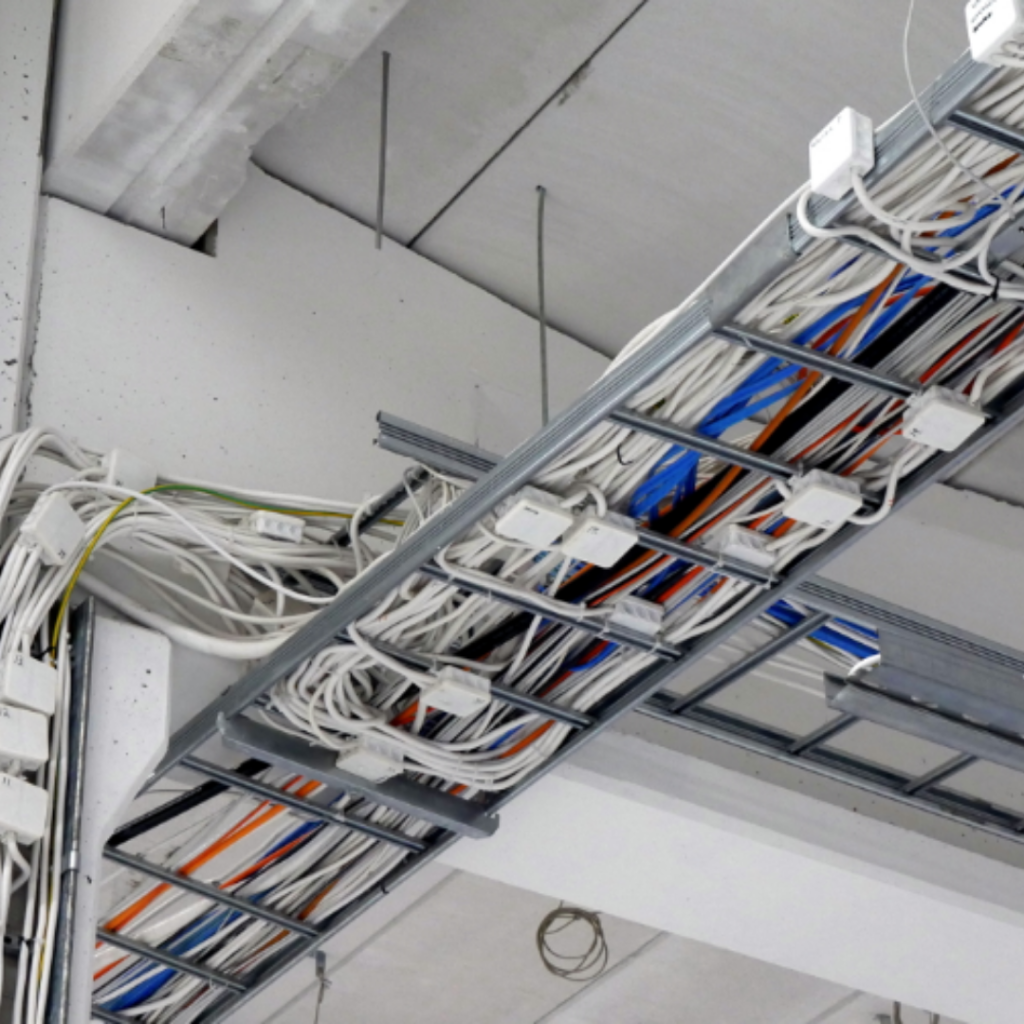

Frigate’s heavy-duty cable trays are precision-engineered to route, support, and protect critical electrical cabling across complex power infrastructure networks. Built to combat high structural loads and corrosive environments, these systems minimize field installation time while maximizing lifetime operational safety.

Material Thickness

1.2 mm to 3.0 mm

Load Rating/Class

NEMA 12A, 12C, 20A, 20B, 20C (As per NEMA VE 1 standards)

Coating Thickness

65 to 85 microns for Hot-Dip Galvanized variants

Ventilation Openings

Optimized open area (>40%) for high-voltage thermal dissipation

Corrosion Resistance

Salt spray tested up to 1000 hours for harsh offshore environments

Grounding Continuity

Integrated bonding design; compliant with IEC 61537 electrical continuity

Impact Resistance

High mechanical impact resistance up to 20 Joules (IK10 rating)

Working Temperature

Continuous performance from -40°C to +120°C

Fasteners & Accessories

High-tensile SS316 or HDG splice plates, couplers, expansion guides

Certifications

UL Listed, CE Certified, Compliant with IEC 61537 & NEMA VE 1

Technical Advantages

Our cable trays feature an optimized strength-to-weight ratio that slashes structural loading requirements without sacrificing load-bearing capacity. Additionally, the integrated grounding architecture and advanced anti-corrosion surface treatments significantly reduce maintenance cycles and prevent catastrophic thermal buildup.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Solar Power Plants

Engineered to endure prolonged UV exposure and extreme thermal cycling, providing reliable, high-capacity cable routing across expansive utility-scale solar arrays.

Wind Energy Infrastructure

Designed with high vibration resistance and torsional flexibility to secure high-voltage drop cables safely within wind turbine towers and nacelles.

Oil & Gas Refineries

Featuring heavy-duty hot-dip galvanized and SS316 finishes that offer superior corrosion resistance against aggressive chemical vapors and marine environments.

Thermal & Hydro Power Plants

Built to sustain dense, heavy-duty power cable bundles while delivering the high thermal dissipation required in continuous high-heat generation zones.

Electrical Substation Networks

Providing modular, easily expandable grid routing solutions that simplify complex control and distribution cabling while ensuring strict safety grounding.

Green Hydrogen & Energy Storage

Custom-configured containment systems optimized for tight footprint integration in modular battery storage facilities and hydrogen electrolyzer plants.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Which standards and compliance certifications do Frigate cable trays meet?

Our cable trays are fully compliant with international manufacturing and safety standards, including IEC 61537 (cable tray systems for cable management) and NEMA VE 1 (metal cable tray systems). We routinely provide material test certificates (MTCs), load test reports, and UL-listing verifications depending on specific project mandates.

How does Frigate ensure the structural integrity of custom load runs?

Every custom cable tray layout undergoes rigorous structural and loading calculations to match your specified NEMA class or working load capacity. We simulate maximum cable weight loads along with regional environmental factors like wind, seismic activity, and ice accumulation to determine the optimal gauge thickness and support spans.

Can Frigate manufacture custom widths, side heights, or bespoke fittings?

Yes, as an agile B2B engineering partner, we offer extensive custom manufacturing. Whether your routing project demands non-standard side rail heights, specific bend radiuses for horizontal elbows, or unique cross-overs, our design team provides full DFM (Design for Manufacturing) support to match your layout blueprints.

What surface treatments are recommended for offshore or highly corrosive energy installations?

For harsh coastal, offshore, or chemical environments, we highly recommend our Hot-Dip Galvanized (HDG) steel (batch galvanized post-fabrication to ensure seamless coverage) or Stainless Steel 316. These options provide self-healing zinc-oxide barriers or superior alloy resistance to eliminate pitting and rust propagation.

How do you handle freight, packaging, and site-ready nesting to minimize total cost of ownership?

To protect long lengths and complex fittings during transport, we utilize heavy-duty, seaworthy palletized bundling with specialized edge protectors. Our shipping configurations are strategically engineered for maximum nesting efficiency, reducing freight volume and allowing for systematic, zone-by-zone unloading directly at your construction site.
