Cable Management Trays

Engineered to withstand heavy-duty industrial loads, Frigate’s high-performance cable management trays ensure optimal routing, structural integrity, and long-term corrosion resistance for complex infrastructure projects. From ladder to perforated configurations, our precision-manufactured systems are built to streamline installation and maximize lifecycle efficiency in the most demanding environments.

Material Grades

Carbon Steel (IS 1079/IS 2062), Stainless Steel (SS304/SS316), Pre-Galvanized Steel

Surface Finish Options

Hot-Dip Galvanized (IS 2629 / ASTM A123), Powder Coated, Epoxy Painted

Tray Types Available

Perforated, Ladder, Wire Mesh, and Solid Bottom

Standard Lengths

2500 mm and 3000 mm (Custom lengths up to 6000 mm on request)

Width Range

50 mm to 1000 mm

Order Type

Quantity Range

Lead Time*

Standard / Trial Orders

Up to 500 Meters

7 to 10 Working Days

Mid-Scale Infrastructure

501 to 2,500 Meters

15 to 21 Working Days

Mega Project Sourcing

2,501 to 10,000+ Meters

30 to 45 Working Days (Phased delivery available)

Custom / Bespoke Profiling

Any Volume

Variable (Typically +7 days to base volume tier)

*Listed timelines are indicative and subject to material availability, factory floor scheduling, and engineering approvals; exact delivery schedules will be locked in upon formal PO.

Product Description

Frigate’s heavy-duty cable management trays provide a highly reliable, modular solution for safeguarding critical power, control, and instrumentation cabling networks. Designed with high structural rigidity and optimized load-bearing profiles, these systems eliminate sag while ensuring rapid deployment and effortless maintenance access across heavy engineering sites.

Side Rail Height (Flange)

25 mm, 50 mm, 75 mm, 100 mm, and 150 mm

Material Thickness

1.2 mm, 1.6 mm, 2.0 mm, 2.5 mm, and 3.0 mm

Load Bearing Capacity

Up to 300 kg/m based on span support distances

Compliant Standards

IEC 61537, NEMA VE 1, BS EN 61537

Coupler Plate Thickness

Matches tray thickness (2.0 mm to 3.0 mm) with 4/8 bolt configurations

Perforation Ratio

Minimum 40% air circulation area for thermal dissipation

Rung Spacing (Ladder Trays)

250 mm or 300 mm center-to-center

Ventilation & Drainage

Slot patterns optimized for moisture escape and air cooling

Accessories Available

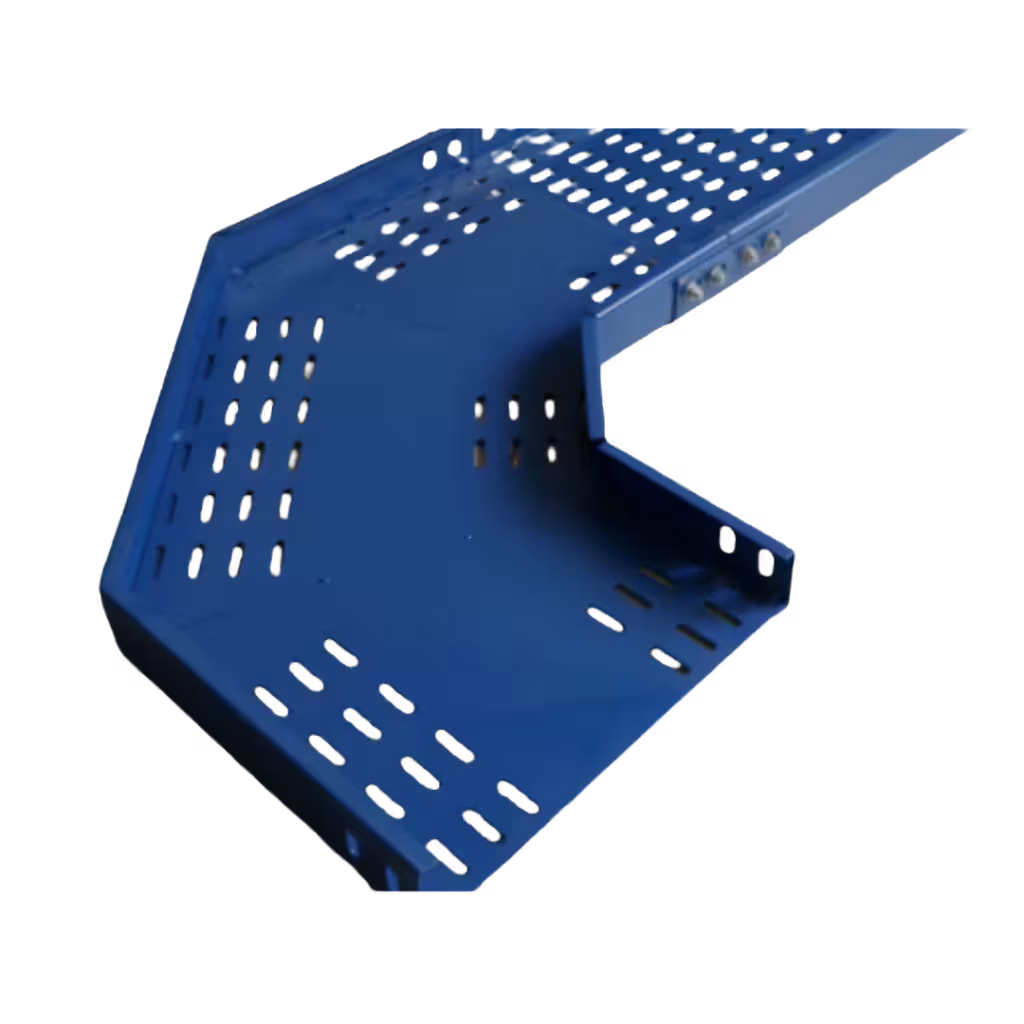

Bends (90°, 45°), Tees, Crosses, Reducers, Cover Plates, and Hold-down Clamps

Salt Spray Resistance

Up to 1000 hours for Hot-Dip Galvanized coatings under ASTM B117

Technical Advantages

Our advanced automated roll-forming line ensures absolute dimensional consistency, reducing on-site alignment issues and drastically lowering Total Cost of Ownership (TCO). Furthermore, the continuous ventilation design optimizes heat dissipation for high-voltage cables, mitigating thermal degradation risks and preventing costly industrial downtime.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Power Generation & Distribution Plants

Engineered to handle high-mass thermal and nuclear cabling networks, offering unmatched load-bearing stability and structural endurance.

Oil & Gas Refineries & Petrochemicals

Equipped with premium Hot-Dip Galvanized or SS316 finishes to resist corrosive chemical vapors, aggressive marine salt air, and harsh ambient environments.

Metro Rail & Mass Transit Infrastructure

Designed to meet stringent low-smoke zero-halogen (LSZH) environments, providing rigid structural support in highly confined underground tunnel systems.

Hyperscale Data Centers

Optimized for high-density fiber-optic routing and data cable overhead structures, ensuring clean cable separation and maximizing cooling airflow.

Heavy Manufacturing & Automotive Units

Built to survive heavy vibration, mechanical impact, and weld-splatter zones on dynamic assembly lines and intensive factory floors.

Renewable Energy Projects (Solar & Wind)

UV-resistant, weather-hardened exterior cable trays designed to endure vast thermal cycling and wind loads across expansive, remote utility installations.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Which international standards do Frigate Cable Management Trays comply with?

Frigate trays are manufactured, tested, and rated strictly in compliance with IEC 61537 (Cable management – Cable tray systems) and NEMA VE 1 standards, ensuring verified safe working loads (SWL) and electrical continuity.

How do I choose between a Perforated Tray and a Ladder Tray for my project?

Ladder trays are highly recommended for heavy-duty power cables that require maximum heat dissipation and long support spans. Perforated trays are ideal for instrumentation, control, and data cables where continuous bottom support, shielding, and moderate ventilation are required.

What corrosion protection finish is recommended for outdoor infrastructure?

For outdoor, high-humidity, or industrial atmospheres, we recommend our Hot-Dip Galvanized (HDG) finish complying with IS 2629 / ASTM A123. This provides a sacrificial zinc layer protecting the base steel from oxidation for decades.

Can Frigate manufacture custom radius bends and non-standard tray widths?

Yes. Our in-house engineering and tooling setup allows us to fabricate custom horizontal bends, vertical risers, tees, and reducers tailored to your specific plant layout blueprint and space constraints.

Do you provide structural calculation and load-bearing test reports?

Absolutely. We provide comprehensive technical data sheets, safe working load (SWL) curves, deflection graphs, and material test certificates (MTC) with every batch to simplify your internal QA and project audit clearances.
