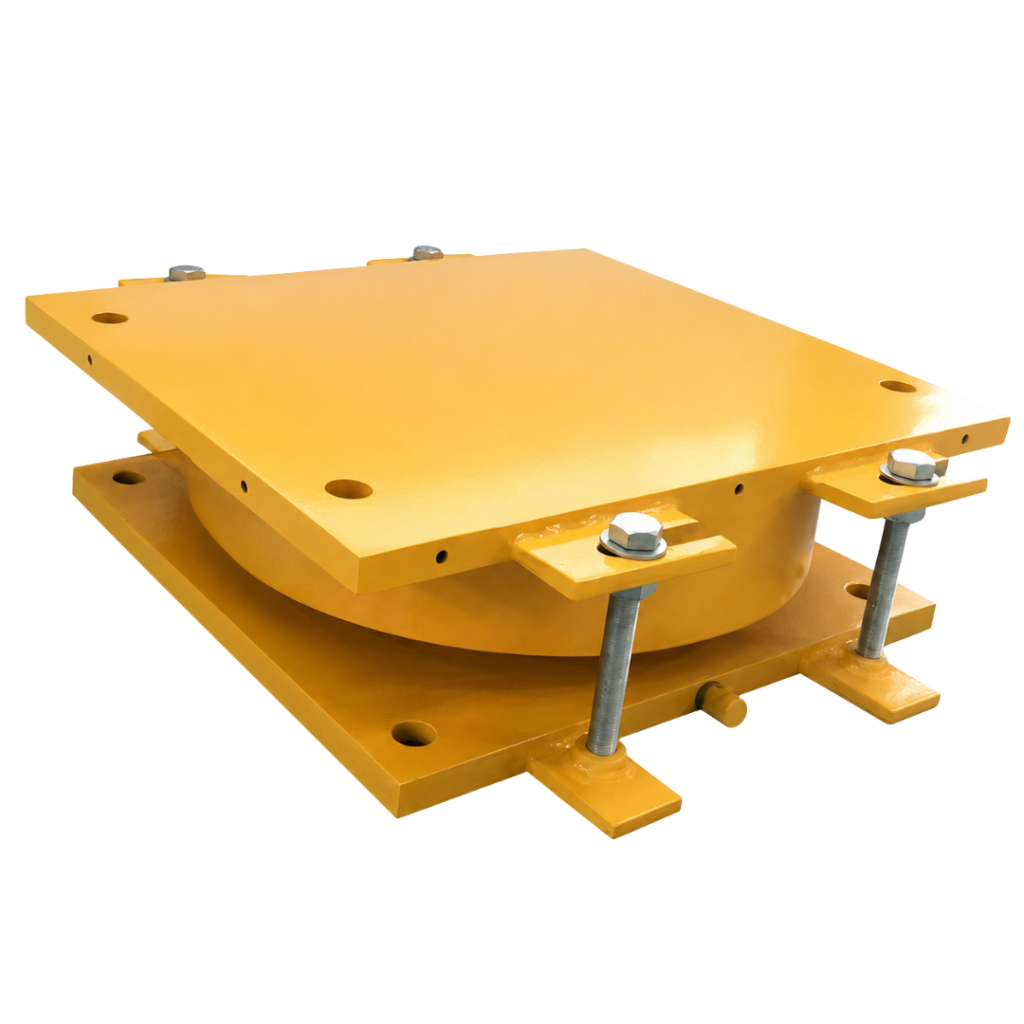

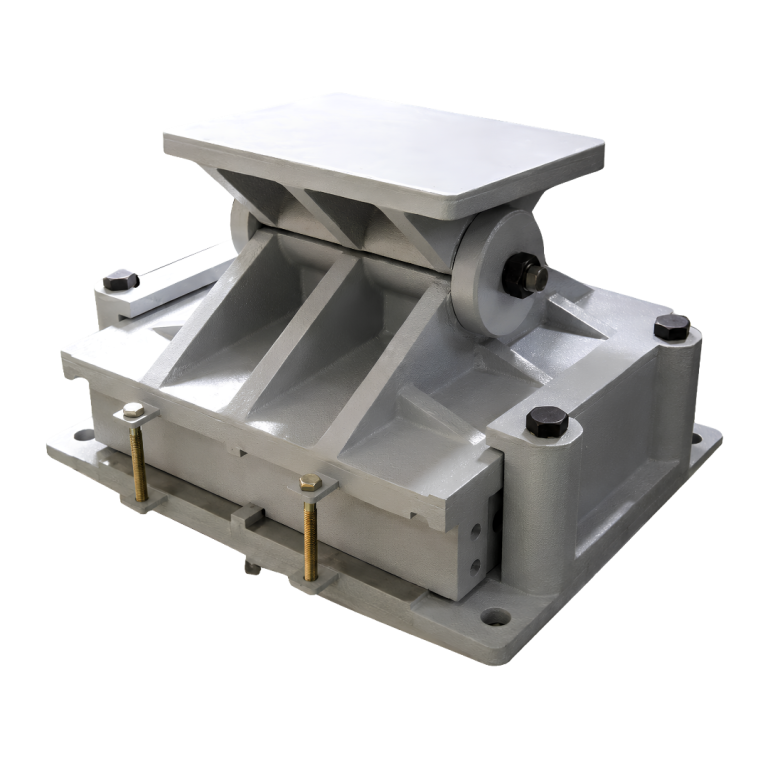

Bridge Bearings

Engineered to absorb severe dynamic loads and structural displacements, Frigate’s high-performance bridge bearings ensure long-term structural integrity for critical infrastructure worldwide. Our precision-manufactured solutions offer maintenance-free longevity, seamlessly mitigating thermal expansion and seismic forces in demanding civil engineering applications.

Bearing Types Available

Elastomeric, Pot, Spherical, and Disc Bearings

Design Standards

EN 1337, AASHTO LRFD, IRC:83

Vertical Load Capacity (Nmax)

Up to 120,000 kN (Custom scale available)

Horizontal Load Resistance

Up to 30% of vertical capacity

Rotational Capacity

Up to ± 0.05 rad (Spherical types)

Order Type

Quantity Range

Lead Time*

Standard Batch

1 – 10 Units

4 – 6 Weeks

Mid-Scale Infrastructure

11 – 50 Units

8 – 10 Weeks

Mega-Project Consignment

50+ Units

12 – 16 Weeks (Staggered delivery available)

*These timeframes are indicative. Actual schedules depend on technical design approvals, raw material casting cycles, and custom testing protocols.

Product Description

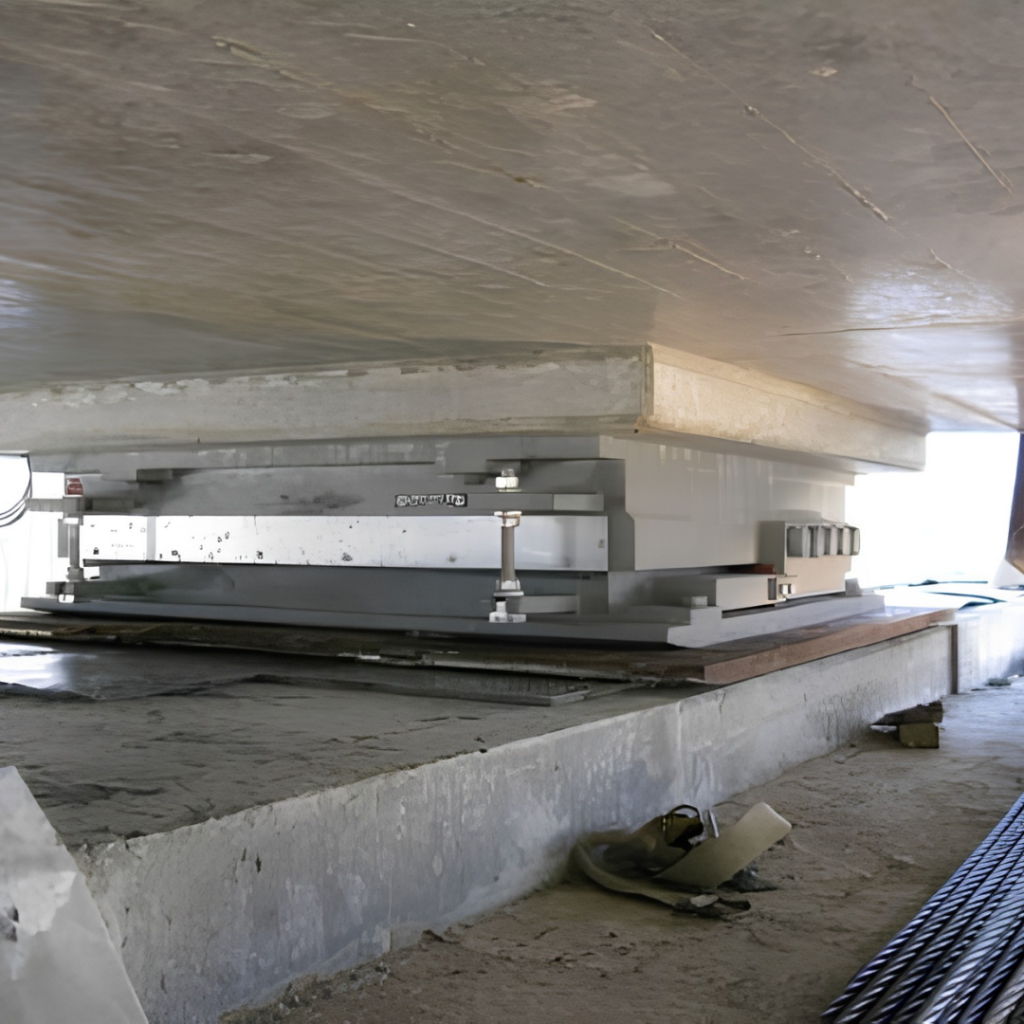

Frigate’s bridge bearings are highly specialized structural components designed to transfer heavy vertical loads from the superstructure to the substructure while safely accommodating rotation and translation. Utilizing premium-grade steel, advanced PTFE sliding surfaces, and high-modulus elastomers, these units provide predictable structural behavior under extreme environmental conditions.

Movement Displacement Range

Longitudinal: ± 250 mm | Transverse: ± 50 mm

Elastomer Hardness

60 ± 5 Shore A (IRHD)

Friction Coefficient (µ)

≤ 0.03 (Dimpled PTFE with silicone grease at max load)

Steel Grade

S355J2+N / ASTM A572 Grade 50

Anchor Stud Tensile Strength

Grade 8.8 high-tensile steel

Corrosion Protection

ISO 12944 C5-M (Very High Marine) standard coating

Operating Temperature Range

-40°C to +60°C

Shear Modulus (G)

0.9 MPa to 1.15 MPa

Testing Protocols

Prototype and production batch testing (Compression, Shear, Rotation)

Service Life Estimation

50+ Years under standard structural maintenance schedules

Technical Advantages

By utilizing advanced CNC machining and strict adherence to international metallurgical standards, our bearings deliver a near-zero friction coefficient that drastically reduces internal stress on concrete piers. Additionally, our rigorous multi-axis load testing ensures zero delamination risks and an extended service life, reducing overall total cost of ownership (TCO).

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

High-Speed Rail Viaducts

Engineered to handle severe, repetitive dynamic braking forces and rapid vibration dissipation required for continuous concrete rail decks.

Highway Flyovers & Interchanges

Accommodates complex multi-directional thermal expansion and multi-axis rotations in curved, skewed, or post-tensioned box girder systems.

Long-Span Suspension Bridges

Heavy-duty spherical bearings designed for massive vertical load distribution and significant longitudinal displacement at expansion joints.

Seismic-Zone Infrastructure

Elastomeric and lead-rubber bearing variations configured to absorb lateral seismic kinetic energy and protect the main support piers.

Metro Rail Corridors

Compact, high-capacity pot bearings optimized for urban elevated tracks where space constraints demand minimal structural footprints.

Industrial Heavy-Haul Bridges

Reinforced structural supports built to withstand extreme axle loads from heavy freight corridors, mining transport routes, and marine ports.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Which design codes do Frigate bridge bearings comply with?

Our engineering and manufacturing teams strictly adhere to global standards, including EN 1337, AASHTO LRFD, and IRC:83. We provide full documentation, material mill certificates, and compliance layouts during the technical submittal phase.

Can Frigate customize bearings for existing retrofitting projects?

Yes. We specialize in engineering drop-in replacements for brownfield infrastructure rehabilitation. Our team works from your existing structural drawings to match original footprint, height, and load parameters exactly.

What corrosion protection systems are applied to the steel components?

All exposed structural steel elements undergo grit blasting to Sa 2 1/2 and are coated with a high-durability system matching ISO 12944 C5-M industrial guidelines, typically utilizing zinc-rich epoxy primers and polyurethane topcoats for aggressive marine environments.

How are the bearings tested before dispatch?

Every batch undergoes strict factory production control testing. This includes visual inspections, dimensional validation, and physical load testing (vertical compression and shear stiffness evaluation) on our calibrated in-house hydraulic presses.

What are the typical maintenance requirements for these units?

Frigate bearings are designed to be virtually maintenance-free. However, we recommend routine visual inspections every 12 to 24 months to check for debris accumulation, clear drainage, unusual elastomeric bulging, or unexpected structural shifting.
