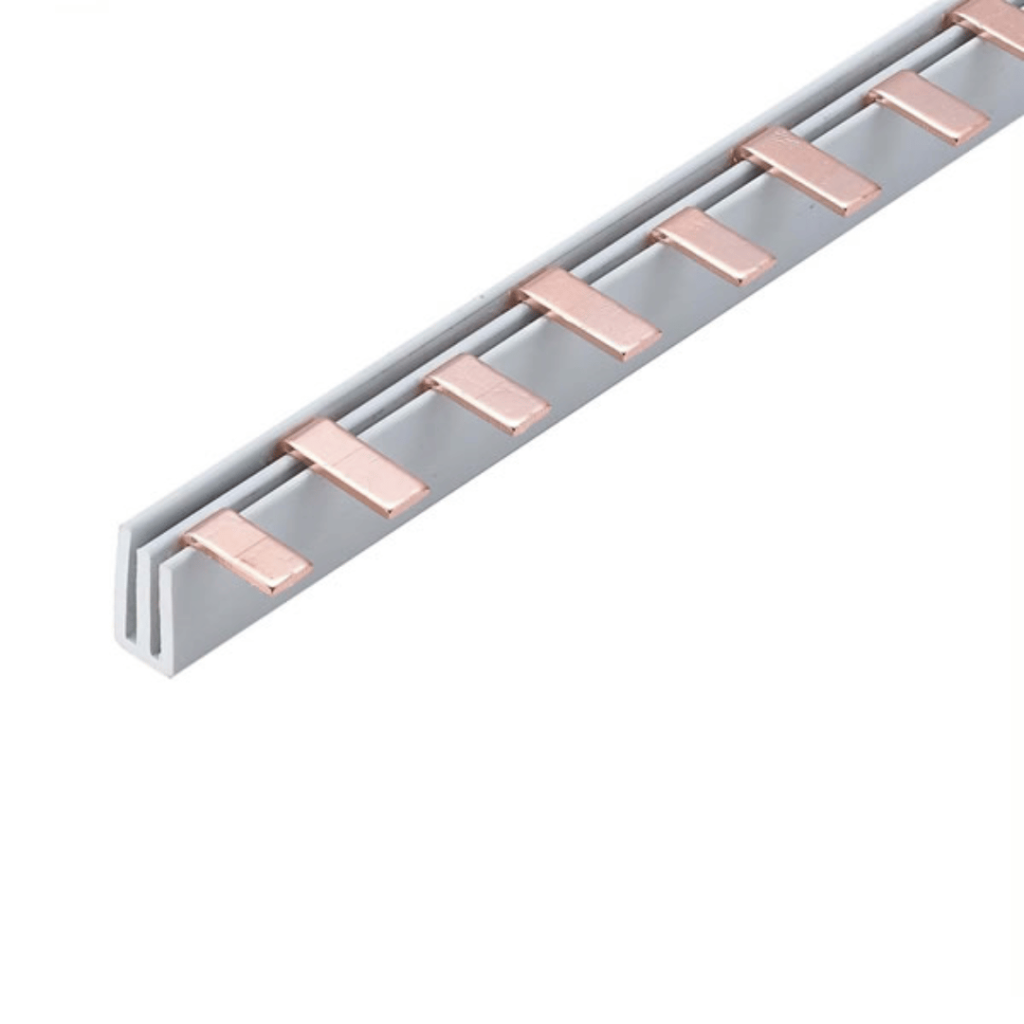

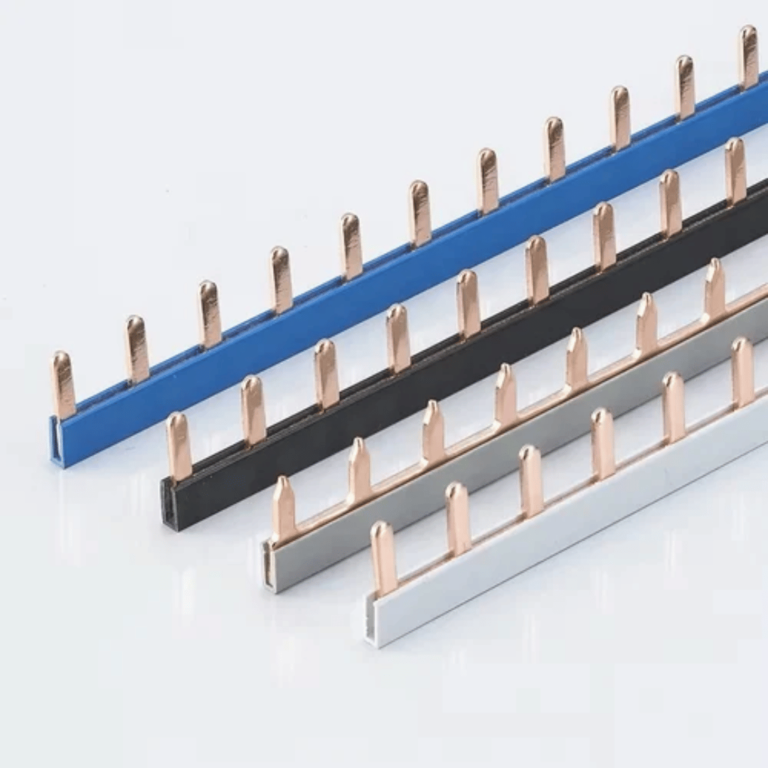

Pin Type Busbars

When ensuring seamless electrical connectivity and power distribution, Pin Type Busbars provide the ideal solution for industries requiring high-performance, safe, and efficient systems. As a buyer, you need a product that can handle complex electrical demands while reducing maintenance costs and minimizing system downtime. Pin Type Busbars are engineered to address these challenges with precision and reliability.

Material Core

Copper, Aluminum, or Copper-Alloy

Tin Coating Thickness

5-25 microns (depending on application)

Bus Bar Thickness

2mm to 10mm (customizable)

Bus Bar Width

10mm to 100mm (customizable)

Electrical Conductivity

58-60% IACS (Copper), 55-57% IACS (Aluminum)

Get Latest Price
Get quote

Product Description

Pin Type Busbars are designed for optimal current distribution. They reduce energy losses, ensuring that electrical power is distributed efficiently, directly impacting overall system performance. The precision manufacturing of these busbars ensures minimal resistance, helping to achieve a more energy-efficient system.

Thermal Conductivity

380 W/m·K (Copper), 220 W/m·K (Aluminum)

Voltage Rating

Up to 36kV (depending on insulation)

Current Rating

Up to 100,000 Amps (depending on size)

Operating Temperature

-40°C to +150°C (depending on insulation)

Corrosion Resistance

High resistance, with tin or silver plating

Mechanical Strength

High tensile strength (up to 250 MPa)

Plating Adhesion

Strong adhesion, no delamination after 96 hrs under humidity test

Surface Finish

Smooth, high-quality finish for minimal contact resistance

Customization Options

Length, width, thickness, coating, insulation material

Standards Compliance

IEC 61238-1, UL 467, RoHS, ISO 9001 certified

Technical Advantages

Traditional wiring solutions often lead to frequent failures and increased maintenance. Pin Type Busbars are known for their long-lasting durability, requiring significantly less maintenance. Their robust construction helps prevent wear and tear from frequent load cycles, which can lead to costly repairs and downtime in critical operations.

For industries operating in space-constrained environments, Pin Type Busbars offer a compact solution without compromising performance. Their design allows for the efficient use of space in switchgear and electrical panels, maximizing the available area for other critical components.

Let's Get Started

Need reliable Bus Bars for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Marine Power Distribution

Ensure reliable power flow in ship electrical systems, handling high currents with minimal heat generation.

Mining Equipment

Provide robust power connections in heavy-duty mining machinery, supporting high-current and harsh environmental conditions.

Oil and Gas Platforms

Used in power distribution panels for offshore platforms, ensuring stable electrical supply under extreme conditions.

Telecommunications

Facilitate power delivery to critical telecom infrastructure, maintaining data transmission and backup systems reliability.

Heavy Machinery

Used in power distribution for large-scale industrial machines, ensuring consistent operation under high load demands.

Electric Substations

Support high-current connections between transformers and circuit breakers, ensuring stable power transfer in energy grids.

pin type busbars

High Current Capacity and Customizable Solutions for Every Application

When working with high-load systems, handling large currents without overheating or damage is essential. Pin Type Busbars are built to carry high current loads, allowing you to manage larger electrical systems confidently. Their exceptional current-carrying capacity ensures you can operate demanding applications without degradation.

Pin Type Busbars are versatile and customizable to meet the specific needs of your project. Whether you need them for low-voltage distribution or high-voltage applications, they can be tailored to fit exact specifications, ensuring compatibility with your existing systems and equipment.

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do Pin Type Bus Bars ensure low electrical resistance during high current flow?

Pin Type Busbars are made from high-conductivity materials such as copper or aluminum, which minimize electrical resistance. Their design includes precision-machined contacts and smooth surfaces, ensuring optimal current flow and reducing energy losses, even under high-load conditions.

What is the temperature tolerance of Pin Type Busbars in high-load applications?

Pin Type Busbars are engineered to withstand extreme temperatures. The materials used in their construction and design allow them to handle temperature fluctuations without risk of deformation or damage, maintaining performance in environments with high heat generated by large electrical currents.

How do Pin Type Busbars prevent corrosion in harsh industrial environments?

Pin Type Busbars are coated with corrosion-resistant materials such as tin or silver plating, or they are made from alloys resistant to oxidation. This protective layer ensures the busbars remain functional even in environments with high humidity, exposure to chemicals, or extreme temperatures, thus prolonging their lifespan.

Can Type Busbars be used in both AC and DC electrical systems?

Yes, Pin Type Busbars are versatile and can be used in alternating (AC) and direct (DC) systems. Their design ensures stable and efficient operation in both types of electrical circuits, providing consistent performance without risk of overheating or damage.

What customization options are available for Pin Type Busbars to fit specific system requirements?

Pin Type Busbars can be customized in terms of size, shape, and material, ensuring compatibility with specific voltage ratings, current capacities, and system configurations. Manufacturers can adjust the pin sizes, busbar lengths, and the type of insulation to meet the exact needs of your electrical system, whether it’s for low-voltage or high-voltage applications.

How does Frigate ensure consistent quality in Pin Type Bus Bars during manufacturing?
  • Precision CNC machining and controlled stamping for accuracy.
  • 100% dimensional and conductivity inspection before dispatch.
  • Compliance with IEC, UL, and RoHS standards.
  • ISO-certified quality management processes.
  • Corrosion and plating adhesion tests for durability.
What industries typically source Pin Type Bus Bars directly from Frigate?
  • Power generation and utility infrastructure.
  • Marine and offshore electrical systems.
  • Mining and heavy equipment manufacturers.
  • Telecommunications infrastructure providers.
  • Switchgear and electrical panel OEMs.
What customization support does Frigate provide for OEM electrical system manufacturers?
  • Custom sizes for length, width, thickness, and pin layout.
  • Material options including copper, aluminum, and alloys.
  • Tin or silver plating for conductivity and protection.
  • Insulation solutions for high-voltage applications.
  • Engineering guidance for system integration.
How does Frigate support bulk procurement and project-based supply requirements?
  • High-volume OEM manufacturing capability.
  • Reliable raw material sourcing.
  • Flexible batch production for projects.
  • Custom packaging and labeling for assembly lines.
  • Consistent lead times with global shipping.
Why should buyers choose Frigate as their Pin Type Bus Bar manufacturing partner?
  • Expertise in high-current electrical component manufacturing.
  • Advanced fabrication and plating capabilities.
  • Compliance with global electrical standards.
  • Design-to-production engineering support.
  • Scalable manufacturing for prototypes and mass production.
