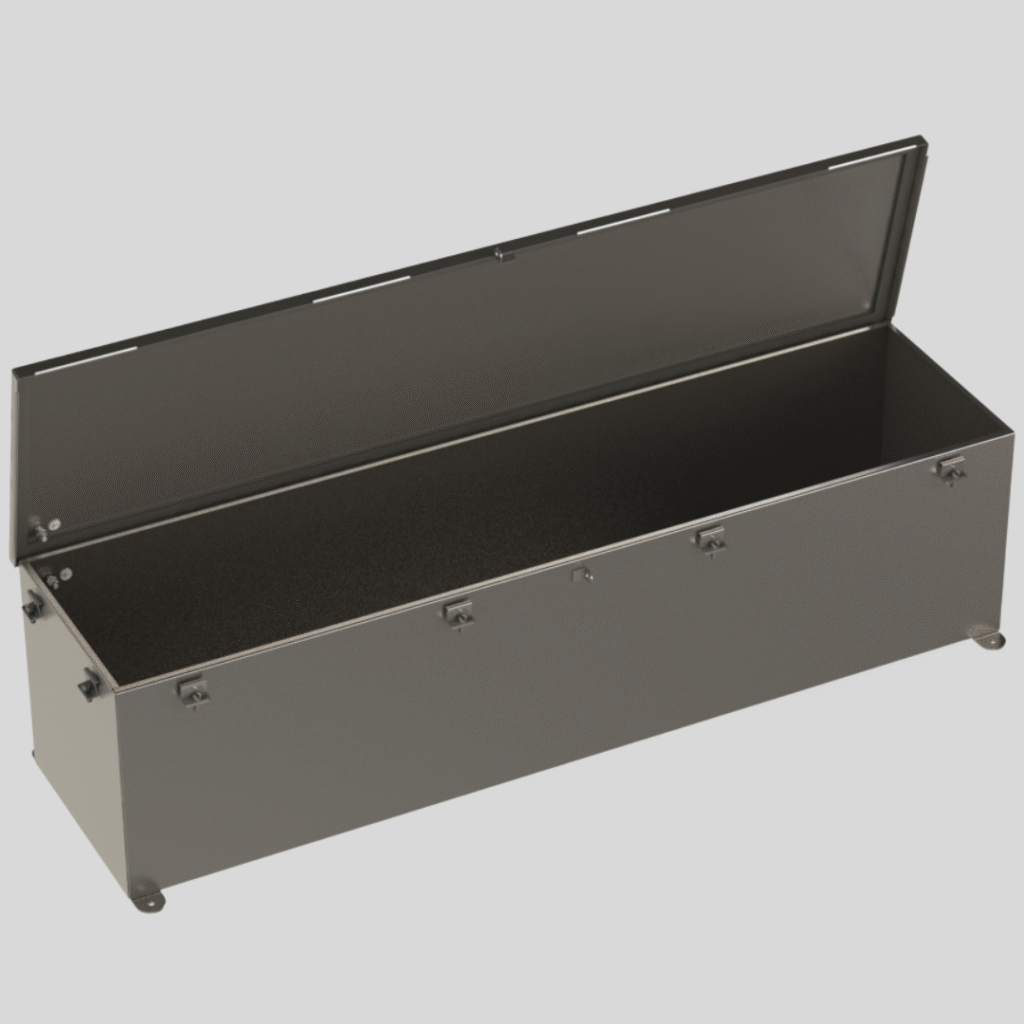

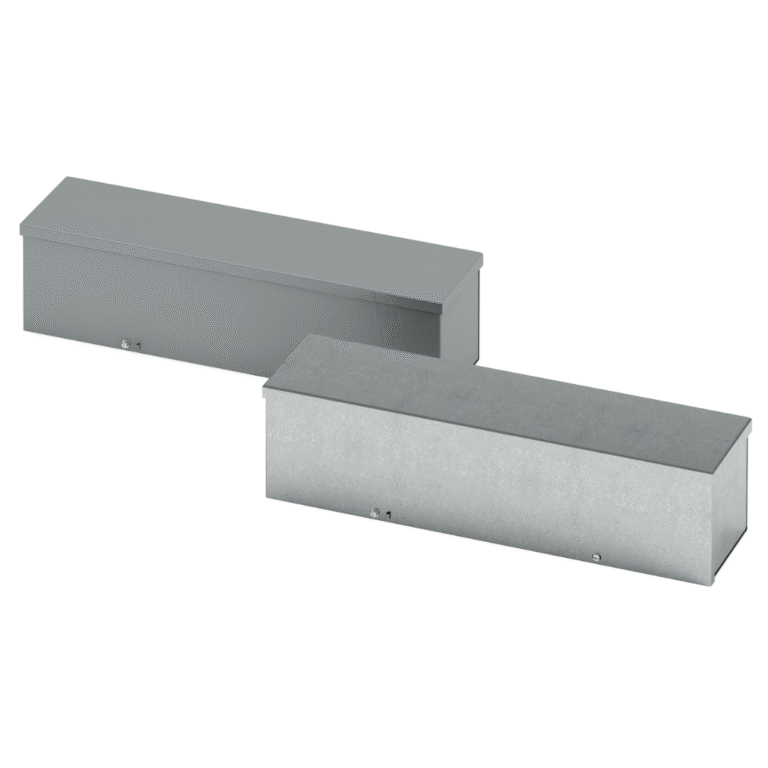

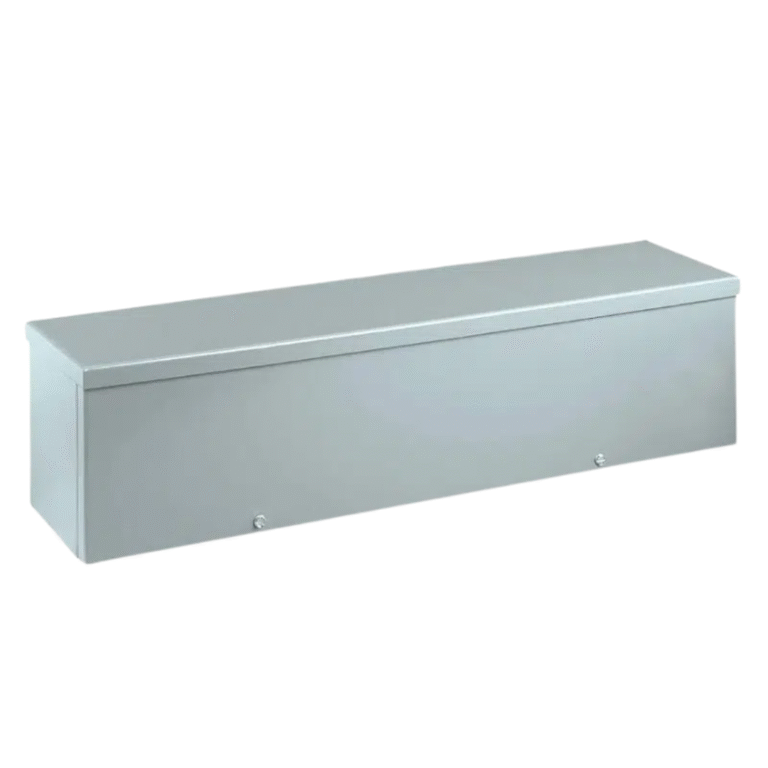

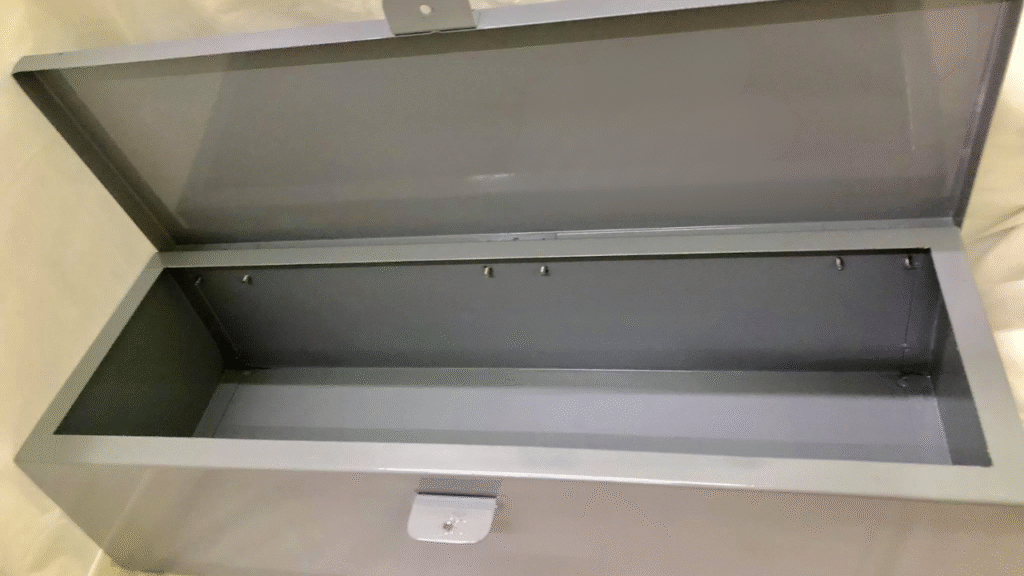

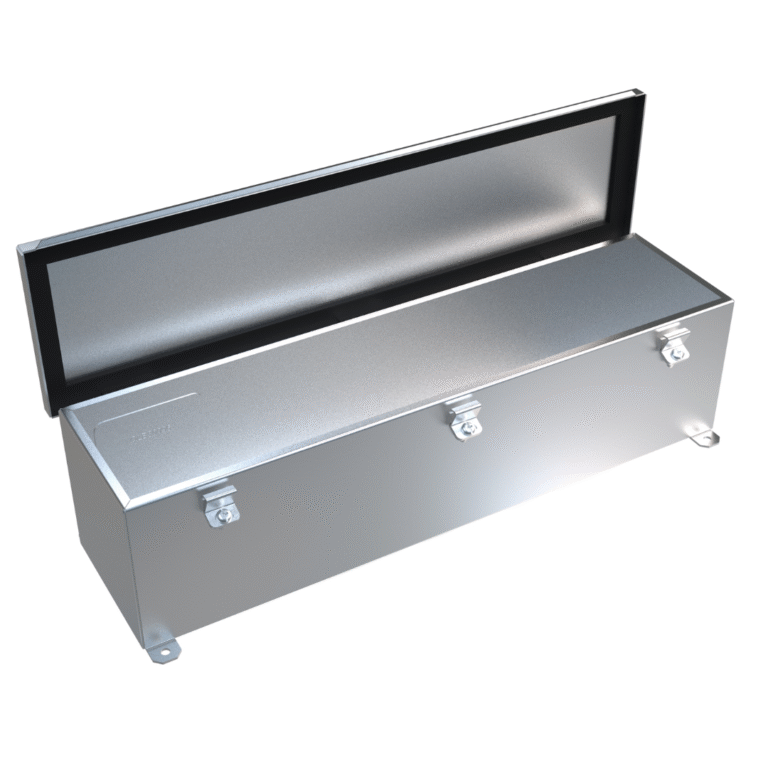

Wire – Through Enclosures

Wire-through enclosures employ multi-layer electromagnetic shielding, conductive gaskets, and precision grounding architectures to maintain low-impedance pathways and prevent signal distortion. Dielectric isolation barriers between high-frequency and power lines mitigate crosstalk and harmonic distortions, ensuring compliance with stringent IEC 61000-4-3 and MIL-STD-461 EMI standards.
HY D R O L Y SIS RESIS T ANCE

Material Type & Grade

CRCA steel (1.6–2.0 mm), SS 304/316, or Aluminum 5052-H32 for corrosion resistance

Surface Finish

Powder-coated with epoxy-polyester finish; optional anodizing or brushed stainless

IP Rating

IP54 to IP66 as per IEC 60529, based on gasket and design configuration

NEMA Rating

NEMA 12 or NEMA 4X, depending on application and sealing

Impact Resistance (IK)

IK08–IK10 per IEC 62262, suited for industrial and utility-grade impact conditions
Get Latest Price
Get quote

Product Description

Wire-through enclosures are engineered with hermetic seals, conformal coatings, and nano-ceramic passivation layers to prevent oxidation and corrosion in highly reactive environments. Ingress protection ratings up to IP69K allow deployment in high-pressure washdown and submersion scenarios. Shock and vibration-resistant mounting systems, tested per MIL-STD-810G, ensure long-term stability in high-impact and high-mobility applications.

EMI/RFI Shielding

Optional shielding with conductive path continuity; up to 50–60 dB attenuation

Thermal Management

Passive ventilation slots; optional forced air or filtered fan trays

Grounding & Bonding Points

Welded or bolted M6/M8 studs, compliant with IEC 60364 and UL grounding norms

Sealing System

High-compression EPDM or polyurethane gasket with continuous sealing profile

Fire Resistance Rating

UL 94 V-0 rated plastics; entire system tested to IEC 60695-2-10

Environmental Compliance

RoHS, REACH, and WEEE compliant materials and coatings

Load Bearing Capacity

Panel support structure rated up to 800–1000 kg static load

Operating Temperature Range

-25°C to +70°C standard; -40°C to +85°C for stainless steel variants

UV Stability

UV-resistant finishes tested to ISO 11341; outdoor-ready variants available

Salt Spray Resistance

720–1000 hours per ASTM B117 for coated or stainless steel enclosures

Seismic Rating

Seismic Zone 4 rated when installed with compliant anchoring provisions

Mounting Provisions

Pre-punched entries for wire-through routing; wall, pole, or floor mount options

Dimensions

Available in custom and standard sizes; 300x300x150 mm up to 1200x1000x400 mm

Weight Capacity

Up to 800 kg distributed load depending on model and mounting

Lock Type

Tool-operated quarter-turn latch; optional padlock, cam lock, or tamper-resistant options

Technical Advantages

To maintain temperature stability, wire-through enclosures incorporate integrated heat sinks, phase-change thermal interface materials (TIMs), and forced convection pathways. Advanced copper and aluminium busbar configurations with optimized skin effect compensation enable efficient power distribution while minimizing resistive losses. These designs support high-power applications exceeding 1000A RMS at 600V or higher, conforming to IEC 61439-1 and UL 508A standards for industrial control panels and power distribution networks.

Wire-through enclosures utilize floating pin technology, self-aligning connectors, and tool-free locking mechanisms for streamlined installation and maintenance. Multi-gauge terminal blocks, mixed-material strain reliefs, and adaptive cable management systems accommodate diverse conductor types, including shielded twisted pairs (STP), coaxial cables, fibre-optic bundles, and high-flex robotic cables.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Power Distribution

Enclosures for high-voltage busbars, switchgear, and grounding systems with arc-fault and thermal overload protection.

Automotive & EVs

High-current enclosures for battery packs, inverters, and motor control units with thermal management and EMI shielding.

Telecommunications

Fiber-optic and RF signal enclosures with low-loss dielectric barriers and moisture-resistant cable pass-throughs.

Medical Equipment

Shielded enclosures for imaging, diagnostic, and life-support systems to prevent hospital electromagnetic interference.

Railway & Transportation

Vibration-resistant enclosures for traction systems, signalling equipment, and onboard power distribution networks.

Oil & Gas

Explosion-proof enclosures for sensor and power cables in high-pressure, high-temperature, and corrosive environments.

Wire-through enclosures

Optimizing Electrical Infrastructure for Performance and Longevity

Selecting an appropriate wire-through enclosure is critical for ensuring long-term electrical performance, system reliability, and compliance with regulatory requirements. Advanced enclosure solutions provide superior EMC protection, mechanical resilience, thermal regulation, and modular adaptability while meeting the rigorous demands of modern industrial and mission-critical applications.

Wire-through enclosures must withstand mechanical stress, chemical exposure, and electrical loads. High-performance materials like fibre-reinforced polymers, anodized aluminium, and 316L stainless steel ensure strength and corrosion resistance. These materials prevent degradation in high-salinity, chemically aggressive, and extreme-temperature environments. Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) optimize structural reinforcements and airflow, reducing mechanical fatigue and thermal buildup.

Wire-through enclosures

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate ensure minimal impedance in wire-through enclosures for high-frequency circuits?

Frigate uses low-inductance grounding planes, silver-plated contacts, and controlled impedance pathways. These minimize signal distortion, propagation delay, and resistive losses. Microstrip and stripline routing techniques further optimize transmission. Advanced shielding prevents crosstalk and RF leakage, ensuring stable operation in high-speed data, RF, and microwave systems.

What advanced sealing techniques does Frigate use for enclosures in high-pressure environments?

Frigate applies multi-stage hermetic seals, fluoropolymer gaskets, and precision-machined interfaces. These prevent gas permeation, liquid ingress, and pressure-induced failures. Differential pressure compensation membranes balance internal-external forces. High-durometer elastomeric coatings enhance resilience in deep-sea, aerospace, and industrial vacuum applications, ensuring long-term structural and electrical integrity.

How does Frigate optimize wire-through enclosures for electromagnetic pulse (EMP) protection?

Frigate integrates Faraday cage shielding, conductive mesh layers, and transient voltage suppression (TVS) diodes. These block high-energy surges, ESD, and lightning strikes. Low-resistance grounding networks safely dissipate transient currents. Compliance with MIL-STD-188-125 and IEC 61000-4-5 ensures reliable operation in military, aerospace, and power grid applications.

What structural reinforcements does Frigate use in enclosures for high-G impact applications?

Frigate designs enclosures with honeycomb-core aluminium, elastomer-damped pass-throughs, and reinforced chassis mounts. These absorb shock loads up to 100G. Multi-axis vibration isolation systems prevent mechanical fatigue. Finite Element Analysis (FEA) simulations optimize stress distribution, ensuring durability in aerospace, defence, and automotive crash-resistant electronics enclosures.

How does Frigate prevent electrochemical corrosion in mixed-metal wire-through enclosures?

Frigate uses bimetallic isolation coatings, anodic protection layers, and controlled cathodic shielding. These prevent galvanic coupling, oxidation, and electrolytic degradation. Sealed passivation treatments enhance longevity in marine, offshore, and chemical processing environments. Selective metal pairing strategies further reduce corrosion risks, ensuring long-term electrical and mechanical reliability.

How does Frigate customize wire-through enclosures for specific industrial power and signal requirements?
  • Frigate engineers enclosures based on customer voltage, current, and cable routing specifications.
  • Designs support mixed power and signal environments, including RF, fiber-optic, and high-current conductors.
  • Custom options include busbar integration, layered shielding, and specialized cable pass-through modules.
  • DFM optimization ensures manufacturability and cost efficiency.
  • Prototype validation confirms electrical and environmental performance before production.
What manufacturing capabilities allow Frigate to produce high-reliability wire-through enclosures?
  • Frigate uses precision CNC machining, laser cutting, and robotic welding for tight tolerances.
  • Automated powder coating, anodizing, and passivation enhance corrosion resistance.
  • Integrated EMI shielding and grounding verification ensure electrical performance.
  • Manufacturing follows ISO-aligned quality control standards.
  • Material traceability and certification ensure consistency across production.
How does Frigate support OEMs with scalable production of wire-through enclosures?
  • Frigate supports low-volume prototypes to high-volume manufacturing.
  • Modular enclosure platforms allow fast configuration adjustments.
  • Integrated supply chains ensure stable material and component sourcing.
  • Engineering teams assist with prototype-to-production transitions.
  • Optimized manufacturing enables shorter lead times.
What testing and validation procedures does Frigate perform before shipment?
  • Dimensional inspection and assembly verification ensure manufacturing accuracy.
  • Grounding continuity and EMI shielding tests validate electrical performance.
  • Environmental checks include IP sealing, thermal cycling, and vibration testing when required.
  • Surface finishes undergo adhesion and corrosion resistance verification.
  • Final assemblies pass quality documentation and traceability review before dispatch.
How does Frigate help customers integrate wire-through enclosures into complex systems?
  • Frigate provides engineering support for cable routing, grounding, and shielding design.
  • Enclosures integrate with control panels, switchgear, battery systems, and communication modules.
  • Units include pre-configured mounting points, cable entries, and connector interfaces.
  • Detailed drawings, installation guidance, and BOM documentation support integration.
  • Collaboration with OEM teams ensures compatibility with existing infrastructure.
