When it comes to manufacturing precision parts, the choice of a CNC machining center can profoundly impact efficiency, quality, and cost. Horizontal and vertical CNC machining centers are two of the most commonly used machines in modern manufacturing. Both have specific advantages depending on the type of parts being produced, production volume, and the level of complexity required.
In the manufacturing industry, especially for aerospace, automotive, medical, and industrial machinery industries, selecting the right CNC machining center is critical. The need for high precision, cost efficiency, and fast production timelines makes the right choice even more important. This blog aims to comprehensively compare horizontal and vertical CNC machining centers, explaining their technical differences, advantages, and key considerations for manufacturers.
By understanding how each type of machining center operates and what specific tasks they excel at, you’ll be better equipped to select the best solution for your manufacturing needs.
What are Horizontal and Vertical CNC Machining Centers?
CNC machining centers are essential for producing high-precision parts, but the type of machine you choose can greatly impact efficiency and quality. Horizontal and vertical CNC machining centers are the two most common types, each designed for specific tasks.
While both types perform operations like milling and drilling, their design and functionality vary, making them more suitable for different parts and production needs; understanding these differences is key to selecting the right machine for your project. Let’s break down the key features of each.

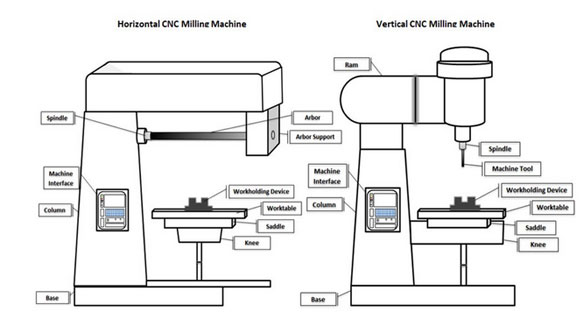

Horizontal CNC Machining Centers (HMC)
In a horizontal CNC machining center, the spindle is oriented horizontally, which provides several advantages when dealing with complex parts. The horizontal configuration allows for better stability when machining large or heavy workpieces. Horizontal machining centers are also equipped with a rotary table that allows the workpiece to be rotated, offering multi-face machining in a single cycle. This reduces handling times, enhances productivity, and leads to more accurate parts. Horizontal CNC machining is especially advantageous for parts with multiple sides, deep cavities, and complex geometries, typically found in the aerospace and automotive industries.
Vertical CNC Machining Centers (VMC)
Vertical CNC machining centers have the spindle mounted vertically, which makes them ideal for tasks that require precise, single-face cutting or drilling. The compact design is well-suited for smaller parts, offering fast and efficient processing. Vertical machining centers are typically easier to load and unload, which improves their versatility in low to medium-volume production. They are commonly used for various parts in industries like electronics, medical devices, and general manufacturing.
Difference Between Horizontal and Vertical CNC Machining Centers
Horizontal CNC machining centers (HMC) are ideal for high-volume, complex operations, offering multi-face machining in a single setup, which improves efficiency and precision for large, intricate parts.
Vertical CNC machining centers (VMC) excel in smaller, simpler parts, offering high precision but requiring more setups for multi-face machining. VMCs are compact and cost-effective for lower-volume, less complex tasks.
Choosing between Horizontal and Vertical CNC machining depends on part complexity, production volume, and required precision.
Operational Efficiency and Productivity Comparison
Horizontal CNC machining centers (HMC) excel in high-volume, complex operations. Their ability to machine multiple faces of a part without reloading or repositioning greatly reduces cycle time, resulting in higher overall productivity. For example, tasks requiring multiple setups on a vertical CNC machining center (VMC) can often be completed in a single setup on a horizontal machine. This speeds up production and reduces the risk of misalignment, leading to fewer opportunities for errors.
In contrast, vertical CNC machining centers are better suited for simpler, lower-volume operations. Their compact design makes them ideal for small spaces and offers a cost-effective solution for projects with less complexity. VMCs are typically used for tasks that require precision on a single surface, such as cutting or surface finishing. They shine in smaller batch production and are often preferred for basic machining tasks.
Studies show that horizontal CNC machining centers can provide up to a 30% increase in operational efficiency for large-scale production runs compared to vertical machines, especially when performing multi-part runs. The ability to perform multiple operations on multiple sides in one setup significantly reduces production time and improves part quality.
Precision and Tolerances Across Both Systems
Both horizontal and vertical CNC machining centers offer exceptional precision that is critical for aerospace, defense, and medical device manufacturing. However, their performance differs when it comes to part complexity and size.
Horizontal CNC machining centers are particularly effective when machining large parts or complex geometries that require multiple sides to be worked on simultaneously. The increased rigidity of horizontal machines allows for finer tolerance control, especially in parts with intricate designs that demand high precision. Additionally, the multi-axis capabilities of horizontal machines, combined with their ability to use rotary tables, make them the preferred choice for aerospace and automotive components where precision is non-negotiable.
On the other hand, vertical CNC machining centers excel at achieving high-precision results on smaller, simpler parts, particularly when the components require fine surface finishes or precise cuts. Their vertical orientation allows the cutting tools to work directly on the material, making them ideal for operations that require direct access to the part for detailed machining. While vertical machines may not handle the same level of complexity as horizontal machines, they can still achieve very tight tolerances on smaller parts.
Complexity of Parts and Processing Requirements
The choice between horizontal and vertical CNC machining centers largely depends on the complexity of the part and the type of processing required. Horizontal machines are designed for multi-sided machining, making them ideal for complex parts that require intricate detailing on multiple surfaces. These machines are particularly advantageous for industries such as aerospace and automotive, where components often feature complex geometries and must be machined from several sides without repositioning the part.
Vertical CNC machining centers, while still capable of handling multi-axis operations, are typically better suited for less complex parts and require machining on fewer faces. These machines are often used in industries like electronics, medical devices, and smaller-scale manufacturing, where precision on smaller parts is essential, but the overall complexity is lower.
When selecting between the Horizontal and Vertical CNC machining, assessing the part’s design and processing needs is essential. Horizontal CNC machines are often necessary for parts with multiple features or complex shapes that must be completed in one setup. In contrast, vertical machines can deliver the precision required for simpler, smaller components.
Maintenance and Longevity Considerations
Horizontal CNC machining centers are built to handle heavy-duty operations and maintain high performance over long periods, even under demanding production schedules. However, their larger and more complex mechanical systems often require more maintenance, especially when performing complex tasks at scale. This can lead to higher operational costs, especially if the machine experiences frequent wear and tear due to constant high-volume usage.
In contrast, vertical CNC machining centers are generally simpler in design and require less maintenance. Their straightforward design makes them easier to service, repair, and maintain, reducing downtime and associated costs. While their operational lifespan is typically just as long as horizontal machines, they are more suitable for businesses with lower-volume production or less intensive manufacturing needs.
However, vertical machines can experience wear over time, particularly in high-volume production environments where parts are repeatedly loaded and unloaded. While offering ease of maintenance, their design can also result in increased wear if the machine is not adequately maintained, especially when dealing with complex operations.
Capital Investment and Operational Costs
A key factor in deciding between horizontal and vertical CNC machining centers is the initial investment and the expected operational costs over time. Horizontal CNC machining centers are more expensive upfront due to their advanced features, larger work envelopes, and greater multi-axis capabilities. These machines are ideal for high-volume, complex manufacturing runs, where the investment in equipment is justified by efficiency gains and increased production rates. The cost per part is typically lower in high-volume environments, as the horizontal machine can complete multiple processes in a single setup, minimizing handling and setup times.
On the other hand, vertical CNC machining centers are generally more affordable upfront, making them a suitable option for small- to medium-sized manufacturers or businesses with lower-volume production needs. While the capital investment is lower, the operational costs may be higher when used for larger runs due to the increased setup time and the need for more frequent reloading. Additionally, the cycle times in vertical machines are generally longer, which can affect the overall cost-effectiveness in larger production runs.
How to Choose Horizontal or Vertical CNC Machining?
Selecting the right CNC machining center is a strategic decision based on part complexity, production volume, precision needs, and material handling. Each machine type—horizontal and vertical CNC machining—offers distinct advantages depending on the specific project requirements. Below, we break down the key considerations to help determine the best fit.
Determining the Right Fit for Part Complexity
Horizontal CNC machining centers (HMC) are optimal for parts requiring multi-surface machining or intricate geometries. Their ability to perform machining on multiple faces simultaneously without repositioning reduces setup time and ensures higher efficiency, especially for complex aerospace or automotive components. Horizontal machines also maintain rigidity and stability during heavy-duty operations, making them ideal for larger, high-tolerance parts.
Vertical CNC machining centers (VMC), on the other hand, are better suited for simpler, smaller parts that require machining on fewer surfaces. The vertical orientation allows for straightforward loading and processing, making them cost-effective and faster for less complex tasks. VMCs offer a more efficient, budget-friendly solution for projects that don’t require multi-axis capabilities.
At Frigate, we assess part complexity to recommend the most suitable CNC machining solution. Whether handling multi-face operations or simpler, single-face machining, we ensure that your project matches the ideal equipment for precision and efficiency.
Balancing Production Volume with Efficiency
For high-volume production, horizontal CNC machining centers are the preferred choice due to their ability to perform multi-face machining in a single setup. This reduces cycle time and minimizes the risk of errors associated with part reloading, increasing overall throughput. Horizontal machines are well-suited for industries like automotive and aerospace, where large quantities of complex components must be produced with consistent quality and high precision.
Vertical CNC machining centers provide an efficient solution with a lower upfront investment for smaller production runs. While vertical machines may not match the cycle time efficiency of horizontal machines for multi-face operations, they remain highly capable of handling smaller batches and quick-turnaround projects. Their design also allows for more flexibility in part configurations, making them suitable for various industries, including electronics and medical devices.
At Frigate, we optimize production volume and efficiency by selecting the right CNC machining center for your needs. Whether you’re running high-volume, large-scale operations or smaller, more specialized jobs, we have the expertise to deliver the ideal solution tailored to your production goals.
Understanding Precision and Tolerance Demands
Horizontal CNC machining centers are particularly effective for parts that require tight tolerances and precision across multiple surfaces. Their robust construction and ability to machine multiple sides in one setup provide greater stability, especially for large, complex parts. Horizontal machines are built to handle multi-axis operations with high precision, ensuring that even the most intricate designs meet stringent aerospace, medical, or defense requirements.
Vertical CNC machining centers also deliver excellent precision, especially for smaller parts that require fine surface finishes and minimal runout. However, they are generally less rigid than horizontal machines when dealing with larger components, which can impact tolerance control for high-complexity geometries. Vertical machines may need additional setups or repositioning for multi-axis operations, which could affect overall precision when working on large or complex parts.
At Frigate, we ensure that your precision and tolerance requirements are met by leveraging horizontal and vertical CNC machining capabilities. Whether for high-tolerance aerospace components or precision medical devices, we employ advanced calibration techniques to guarantee accuracy throughout production pro
Cost vs. Performance Optimization
Horizontal CNC machining centers tend to come with higher upfront costs due to their advanced features, such as multi-axis capabilities, larger work envelopes, and greater rigidity. However, these machines offer superior cost-efficiency in the long run by reducing setup time and enhancing productivity for high-complexity parts and high-volume production. The combination of higher productivity and reduced error rates makes horizontal machines ideal for large-scale, high-precision projects where performance justifies the capital investment.
Vertical CNC machining centers offer lower initial costs and are more suitable for less complex parts or smaller production runs. Vertical machines offer cost-effective solutions for companies seeking precision but with a smaller financial commitment. However, vertical machines may not achieve the same efficiency or performance as their horizontal counterparts for large-scale, multi-face machining operations.
At Frigate, we provide a cost-benefit analysis for your specific needs, ensuring that the CNC machining center selected delivers optimal performance while staying within budget. Whether prioritizing long-term cost savings or upfront investment, we work with you to find the best balance for your project.
Timeline and Lead Time Considerations
For projects with tight deadlines, horizontal CNC machining offers significant advantages. The ability to machine multiple surfaces in a single setup streamlines production reduces lead times, and accelerates delivery. This is particularly beneficial for industries where quick turnaround and high-volume production are critical, such as automotive or aerospace.
Vertical CNC machining centers, while efficient, may require additional setups for multi-surface parts, extending production times. For simpler parts that require fewer operations, however, vertical machines are quick to set up and provide faster lead times.
At Frigate, we understand the importance of meeting tight timelines. We evaluate the timeline demands of your project and recommend the most efficient machining solution to meet your deadlines without compromising quality.
Material Compatibility and Usage
Both horizontal and vertical CNC machining centers can process a wide range of materials, but there are specific considerations based on material weight, size, and machining requirements. Horizontal CNC machining centers excel at handling heavy-duty materials, such as steel, titanium, or large castings, due to their greater rigidity and multi-face machining capabilities. Their design is ideal for large, complex parts that need precise material removal.
Vertical CNC machining centers, while versatile, are generally better suited for lighter materials like aluminum, plastics, or small to medium-sized components. Vertical machines are well-suited for parts that don’t require multiple surface machining or that can be handled easily within the confines of a single setup.
At Frigate, we tailor material selection and machining strategies to the requirements of your project. Whether you’re machining titanium aerospace components or aluminum automotive parts, we choose the best machining center to ensure optimal material handling and part quality.
Conclusion
Choosing between horizontal and vertical CNC machining centers is crucial for manufacturers, depending on production needs, part complexity, volume, and budget. Both offer distinct advantages for different projects.
At Frigate, we specialize in both types, providing tailored solutions to enhance productivity, reduce costs, and ensure precision. Get Instant Quote today to optimize your manufacturing processes and achieve superior results quickly.
