Are you facing challenges in meeting the high-precision demands of your industry? Do production inefficiencies and inconsistent quality prevent your business from achieving optimal performance?
These are common pain points for automotive, aerospace, and electronics industries, where every component must meet tight tolerances and rigorous quality standards. The HDPC casting process (High-Density Precision Casting) is a revolutionary technology that directly addresses these issues, offering enhanced accuracy, material efficiency, and production scalability.
This blog will guide you through the technical aspects of HDPC casting and explain why it’s a strategic solution for industries seeking precision and consistency in their parts production.
What is HDPC Casting?
The HDPC casting process is a state-of-the-art method designed to create highly precise components by injecting molten metal into molds under high pressure. This process is ideal for manufacturing parts with intricate designs and complex geometries, ensuring dimensional accuracy while maintaining excellent mechanical properties.
In contrast to traditional casting methods like sand casting or investment casting, HDPC offers superior density in the final product, leading to stronger, more durable components. Leveraging advanced mold-making techniques and high-pressure injection, HDPC ensures that every design detail is faithfully replicated in the cast part.
How Does the HDPC Casting Process Work?

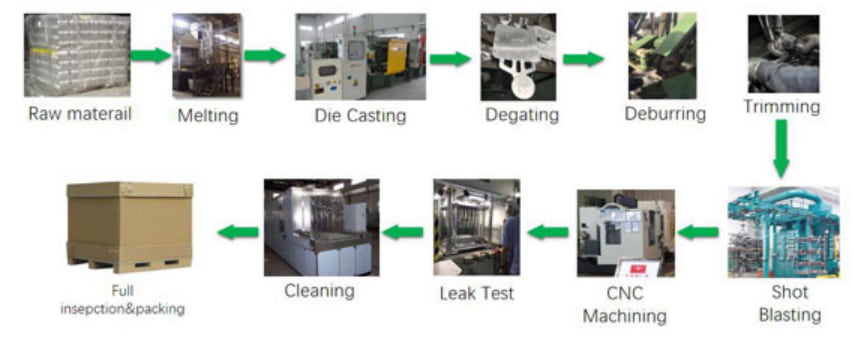

The HDPC casting process involves a series of precise steps:
Mold Creation
Highly accurate molds are made using CAD (Computer-Aided Design) software on the precise specifications of the part. These molds are usually constructed from hardened steel or other study materials to ensure they can survive the tremendous pressures involved in the casting process.
Molten Metal Injection
Once the mold is prepared, molten metal (such as aluminum, zinc, or steel) is injected at extremely high pressures, ranging from 10,000 to 50,000 psi. This pressure ensures that the metal fills every mold detail, even in the most intricate geometries.
Solidification and Cooling
After filling, The molten metal can cool and solidify in the mold. This process happens quickly, especially in high-pressure casting, leading to shorter cycles than traditional methods.
Finishing and Inspection
Once the part has solidified, it is removed from the mold. It may undergo additional machining or finishing processes, such as trimming excess material, polishing, or heat treatments to improve the material’s properties.
Key Benefits of the HDPC Casting Process for Precision Parts
As industries move toward higher levels of automation and precision, the HDPC casting process offers several critical advantages that make it ideal for producing high-quality, precision-engineered components.
Enhanced Dimensional Accuracy
Parts with exceptionally fine tolerances can be produced using the HDPC casting technique. This degree of precision is essential in sectors like aircraft and medical device manufacture, where even the slightest error can impair operation. Using high-pressure injection, HDPC ensures that every mold corner is filled uniformly, reducing the likelihood of dimensional variations.
Research shows that the HDPC process can achieve tolerances as low as ±0.005 inches, which is far superior to traditional methods like sand casting, which typically only achieve ±0.03 inches. This makes HDPC a go-to method for manufacturers that require parts with precise dimensions.
Material Efficiency and Waste Reduction
Material efficiency is one of the most significant advantages of the HDPC casting process. Traditional casting methods often result in excess material waste due to improper mold filling or excessive trimming during the finishing stages. In contrast, HDPC minimizes waste by ensuring the exact amount of metal used during each cycle.
Studies indicate that companies using HDPC casting report up to a 20% reduction in material waste compared to older casting techniques. This reduces production costs and contributes to more sustainable manufacturing practices, as less raw material is discarded.
Production Scalability
The HDPC casting process is highly scalable and ideal for small-batch production and mass manufacturing. Once a mold is created, it can be reused repeatedly, allowing manufacturers to produce thousands of parts with consistent quality. The high-pressure nature of the process ensures that each part, whether the first or the thousandth, maintains the same precision.
This scalability is particularly valuable for industries that experience fluctuations in demand. For instance, an automotive manufacturer may initially require small prototype runs, followed by large-scale production once designs are finalized. HDPC seamlessly accommodates this shift without significant retooling or process changes.
Superior Mechanical Properties
Parts produced using the HDPC casting process exhibit excellent mechanical properties due to their high density. The high-pressure injection method ensures the metal structure is tightly packed, reducing the risk of internal voids or weak spots that can compromise the part’s strength.
This results in parts that are not only dimensionally accurate but also highly durable and capable of withstanding extreme operating conditions. This is particularly important for industries like aerospace and automotive, where parts are exposed to high temperatures, stress, and corrosive environments.
Industries Benefiting from the HDPC Casting Process
The HDPC casting process has wide-ranging applications across various industries, particularly those requiring precision-engineered components. Let’s explore how different sectors leverage HDPC for their specific needs.
Automotive Industry
The automotive industry requires precision parts that are both lightweight and strong. Engine blocks, gearbox housings, and suspension elements are components that must adhere to stringent performance and safety requirements. The HDPC casting process allows automakers to create complex parts with intricate geometries while maintaining tight tolerances and reducing weight.
A significant advantage for the automobile industry is the capacity to manufacture lightweight parts without sacrificing robustness. Better fuel economy and reduced emissions follow, a big plus as the automotive industry transitions to greener cars.
Automotive manufacturers using HDPC have reported up to a 15% reduction in component weight, directly contributing to better fuel efficiency.
Aerospace Industry
In the aerospace sector, precision is paramount. Turbine blades, engine housings, and structural supports are aircraft components that must be manufactured to exact specifications because even the smallest flaw might result in catastrophic failure. The HDPC casting process ensures that these components are manufactured with the highest level of precision and durability.
Aerospace parts often operate under extreme conditions, including high temperatures, intense pressure, and rapid thermal cycling. HDPC parts are known for their superior mechanical properties, making them ideal for critical aerospace applications.
A recent study showed that HDPC-cast turbine blades exhibit 30% higher fatigue resistance compared to parts made through traditional casting methods.
Medical Devices and Electronics
The requirement for precision and miniaturization coexist in the electronics and medical device industries. Medical devices often contain tiny, complex components that must meet stringent regulatory standards. Similarly, electronic components like microchips and connectors require precision to ensure functionality.
The HDPC casting process excels in producing these small, intricate parts. With its ability to cast parts with high-density metal structures, HDPC ensures that components are both accurate and durable, meeting the strict requirements of these high-tech industries.
The HDPC process is a preferred option for producers of microelectronics and medical devices since it can create parts with feature sizes as small as 0.2 mm.
Challenges and Considerations for Implementing HDPC
While the HDPC casting process offers numerous advantages, there are a few challenges that businesses should be aware of when adopting this technology.
Initial Capital Investment
The machinery and equipment required for the HDPC casting process are more advanced and, therefore, more expensive than traditional casting methods. However, the long-term savings in material costs, labor, and time often outweigh the initial capital expenditure. For businesses looking to scale, the investment in HDPC can pay off quickly through increased efficiency and higher-quality parts.
Training and Expertise
Operating HDPC equipment requires specialized skills. To properly manage and maintain these systems, businesses must train their personnel. This upfront training cost can be offset by the significant improvements in production quality and speed that HDPC provides.
Supply Chain and Material Sourcing
Using the HDPC casting process requires access to high-quality raw materials suitable for high-pressure casting. A dependable supply network for these materials must be established if consistent production quality is to be maintained.
Conclusion
The HDPC casting process offers a transformative solution for industries that require highly precise, durable components. From automotive to aerospace, medical devices, and electronics, HDPC provides the accuracy, scalability, and material efficiency that modern manufacturers need to stay competitive in today’s high-tech world.
By leveraging the HDPC casting process, businesses can significantly reduce material waste, enhance product quality, and streamline production, ensuring that every part meets the highest standards. If you want to improve your components’ precision and durability, the HDPC casting process is an investment worth considering. To get a quote, contact Frigate Now!
