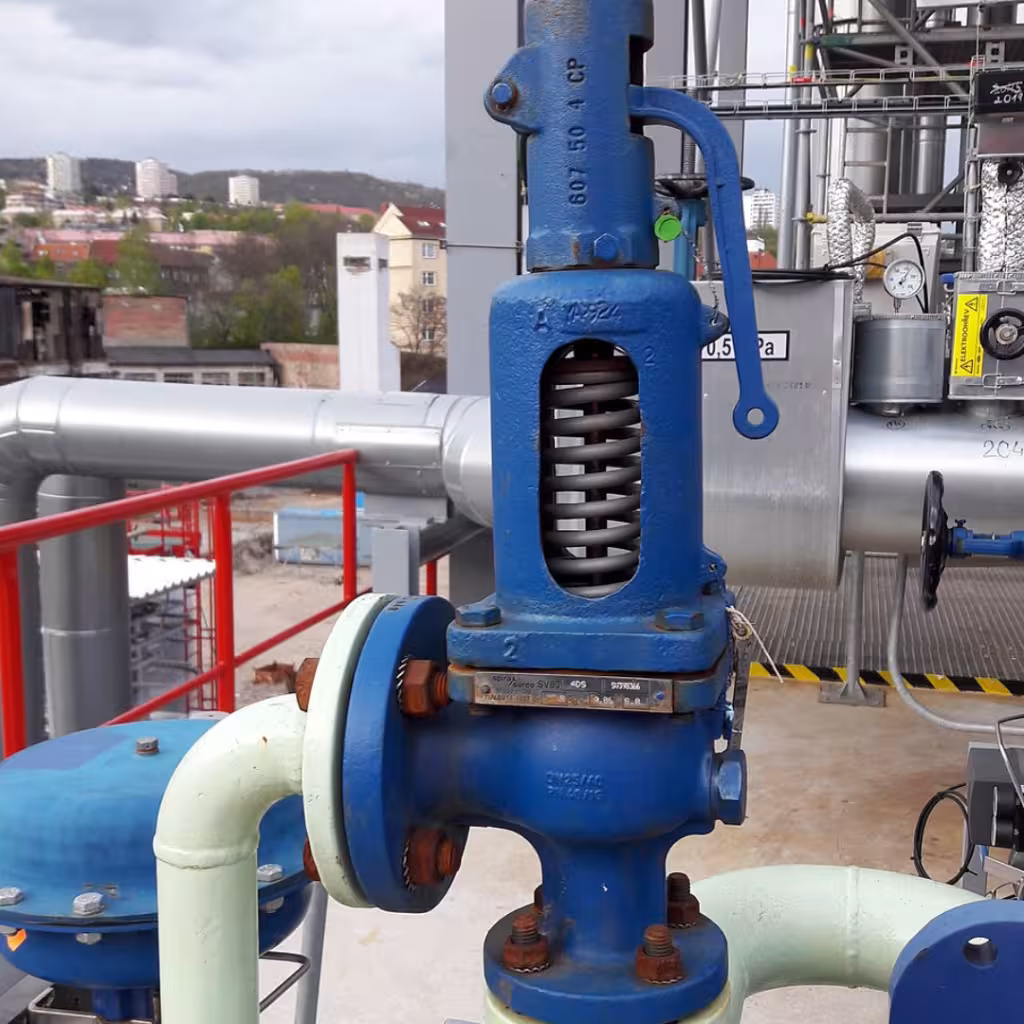

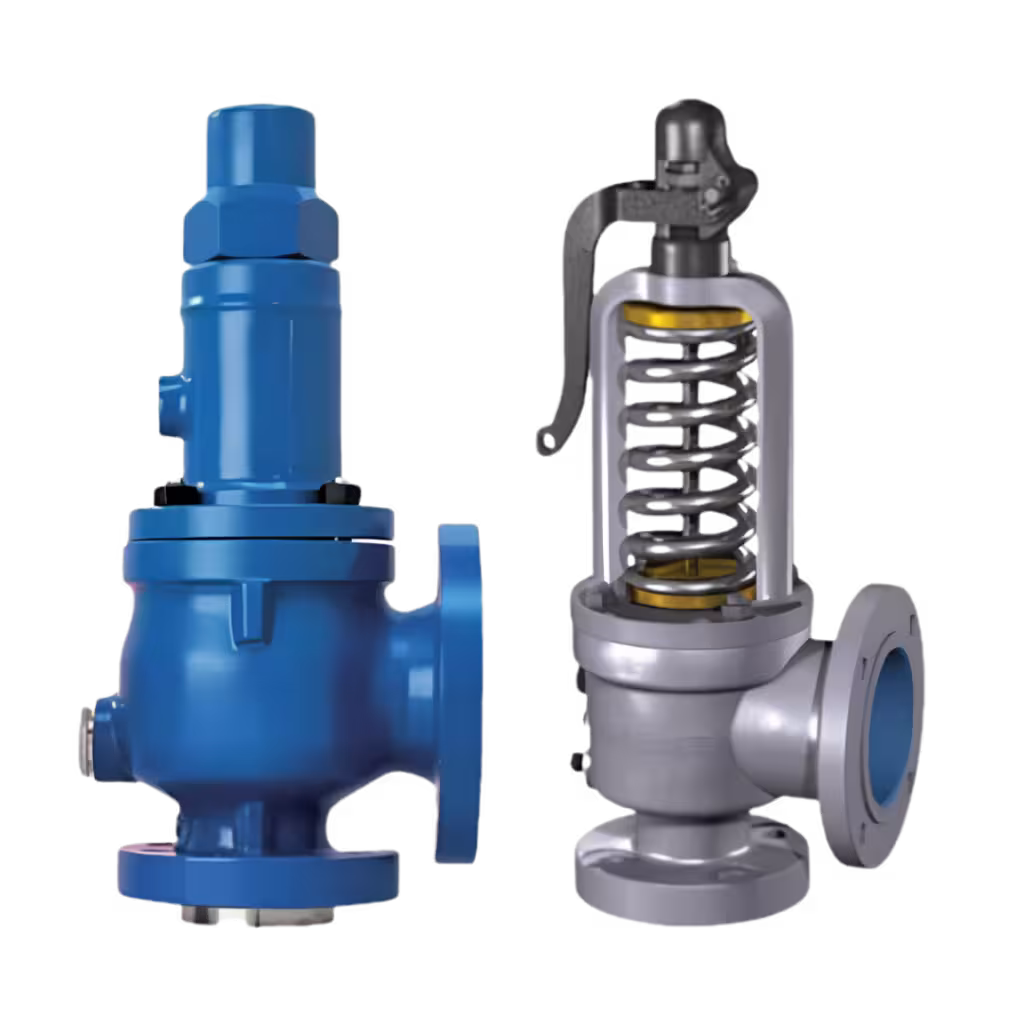

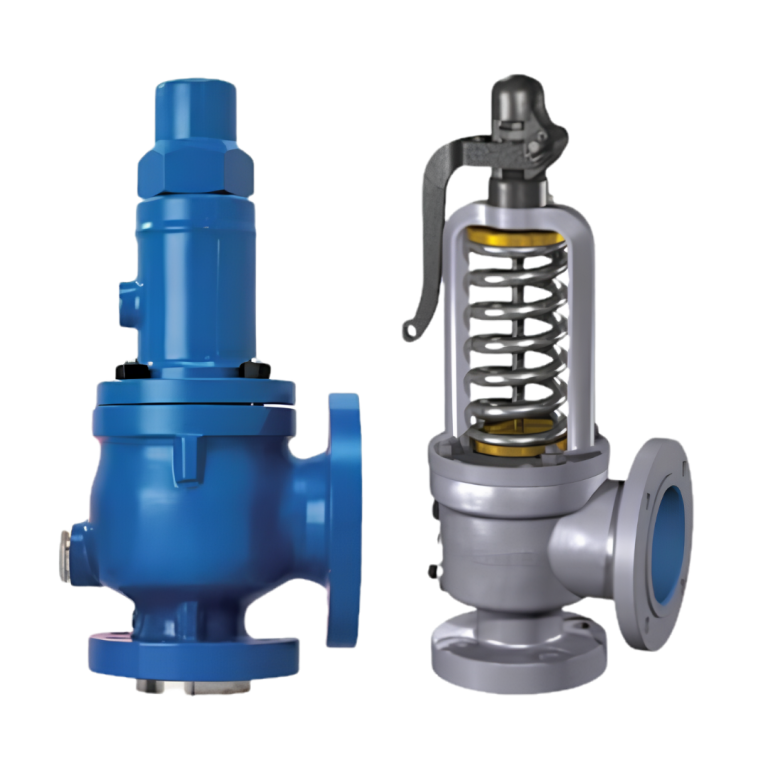

Pressure Relief valves

Pressure relief valves activate when system pressure exceeds a set threshold, releasing excess pressure to prevent damage. The valves are calibrated to respond only when necessary, ensuring precision in pressure control. This helps avoid overpressure or underpressure situations that could harm critical components like pumps or heat exchangers. By maintaining a steady pressure, the valve ensures system reliability. The response time is fast, preventing potential downtime or equipment failure.

Valve Type

Direct-acting or pilot-operated valve designed to relieve excess pressure.

Flow Regulation Method

Modulates flow based on pressure differential to maintain safe system pressure.

Differential Pressure Range

Operates effectively within a specific pressure difference to ensure precise relief.

Hydraulic Authority Recommendation

Requires minimum authority to ensure accurate valve performance and system stability.

Valve Characteristic Curve

Displays pressure versus flow rate; typically linear or equal percentage characteristics.

Product Description

Pressure relief valves must comply with industry standards such as ASME, ANSI, and API, ensuring that they meet safety and regulatory requirements. These standards guarantee that valves are structurally sound, capable of handling specific flow capacities and pressures. Compliance with these regulations is vital for sectors like oil & gas, chemical processing, and pharmaceuticals. Each valve undergoes rigorous testing to ensure it meets the necessary safety criteria. This adherence ensures both safety and operational efficiency.

Test Point Configuration

Equipped with standardized ports for pressure testing and maintenance accessibility.

Maximum Allowable Flow Velocity

Designed for safe flow velocities to prevent erosion and noise generation.

Leakage Class (per EN 12266-1)

Meets leakage standards to ensure minimal fluid loss during closed valve conditions.

Body Material Options

Available in stainless steel, brass, or cast iron for durability and corrosion resistance.

Design Pressure Class

Rated to withstand specific maximum system pressures safely without failure.

Thermal Expansion Compatibility

Accommodates thermal expansion without compromising valve integrity or operation.

Installation Sensitivity

Minimal sensitivity to mounting orientation for flexible installation options.

Control Accuracy

Maintains precise pressure control within narrow tolerances for system protection.

Position Repeatability

Repeats valve position accurately under similar conditions for consistent performance.

Technical Advantages

PRVs are made from high-strength, corrosion-resistant materials like stainless steel to withstand harsh environments. These materials resist wear from chemicals, high temperatures, and mechanical stress, ensuring long-term performance. By using advanced alloys and coatings, these valves maintain functionality even under extreme conditions. Durable construction minimizes the need for frequent maintenance or replacements. The robust design extends the lifespan of the valve and ensures continued protection over time.

Pressure relief valves must accommodate high flow rates to respond quickly to pressure surges. Large ports and optimized internal designs ensure efficient flow handling with minimal resistance. This high flow capacity allows the valve to manage rapid pressure spikes without affecting overall system performance. In systems like steam boilers or hydraulic circuits, this feature is essential for maintaining system stability. The valve’s ability to quickly release pressure prevents equipment damage and operational delays.

Let's Get Started

Need reliable Flanges for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Cryogenic Systems

Maintains safe pressures in liquefied gas storage and transfer systems by relieving pressure build-up due to temperature fluctuations.

Pulp and Paper Industry

Prevents overpressure in digesters, pressure vessels, and steam systems, ensuring safe operation in high-temperature processes.

Marine Systems

Protects fuel, hydraulic, and ballast systems from overpressure during vessel operations, safeguarding equipment in varying environmental conditions.

Nuclear Power Plants

Safeguards pressurized reactor systems, steam generators, and cooling circuits by controlling pressure fluctuations that could impact system integrity.

Compressor Systems

Relieves excess pressure in air compressors, refrigeration, and gas compression units, ensuring safe pressure levels and preventing equipment damage.

Mining Operations

Protects pipelines, tanks, and slurry handling systems from overpressure in high-flow environments, ensuring safety and operational continuity.

Adaptability to Diverse Industrial Applications

Pressure relief valves are highly adaptable, meeting the needs of various industries such as chemical, oil & gas, and manufacturing. Each industry requires specific materials and performance characteristics based on environmental conditions and pressures. Valves can be customized with different alloys, coatings, and pressure settings for unique applications.

In some cases, standard PRVs may not meet the specific needs of complex systems. Customization allows for precise adjustments to pressure setpoints, materials, and sizes, ensuring optimal performance. Engineering teams work closely to develop solutions for specialized industries such as aerospace, pharmaceuticals, and nuclear power.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do the spring tension and setpoint affect the performance of a pressure relief valve?

The spring tension determines the force required for the valve to open at a specific pressure. The higher the tension, the higher the setpoint. Accurate calibration of spring tension is critical for ensuring that the valve activates precisely when needed, preventing both overpressure and underpressure conditions. Inaccurate spring tension can lead to premature valve opening or failure to open at the correct pressure, which could result in system damage.

What role do the valve seat and disc materials play in preventing leakage in pressure relief valves?

The materials used for the valve seat and disc directly influence the valve’s sealing performance. Common materials like stainless steel, hardened alloys, or ceramic coatings are chosen for their ability to resist corrosion, wear, and thermal expansion. Properly matched materials ensure a tight seal when the valve closes, preventing leakage and ensuring the system remains safely pressurized. Wear and tear on these components can lead to gradual leakage, which compromises system safety.

How does the valve's orifice size impact the relief capacity of a pressure relief valve?

The orifice size determines the flow rate capacity of a pressure relief valve. A larger orifice allows for quicker pressure relief, which is crucial in systems with rapid pressure increases. Smaller orifices may be appropriate for lower-flow applications where precision is more critical than volume. The size is selected based on the system’s pressure rating, flow dynamics, and response time requirements. An improperly sized orifice can result in inadequate pressure relief, leading to system failure.

What is the effect of backpressure on the performance of a pressure relief valve?

Backpressure, which is the pressure exerted on the valve’s outlet, affects the opening pressure and flow characteristics of the valve. High backpressure can cause the valve to open at a higher pressure than the setpoint, reducing its effectiveness in relieving pressure. Valves are designed to account for specific backpressure conditions, with some valves featuring internal components to compensate for backpressure effects. Without proper consideration of backpressure, the valve may not provide adequate protection.

How do pressure relief valves handle rapid pressure transients in dynamic systems?

Pressure relief valves must be designed to handle sudden, short-duration pressure spikes, known as pressure transients, in dynamic systems. These transients can occur due to system startup, shutdown, or rapid changes in flow rates. A properly designed PRV incorporates fast-acting components like spring-loaded mechanisms or pilot-assisted designs that open and close quickly to mitigate these transient spikes. Delayed or insufficient response to pressure transients can cause system instability, damage to equipment, or excessive wear on valve components.
