Material wastage is a critical issue in manufacturing that silently drains profitability. With rising raw material costs, every gram of wasted HDPE adds financial strain. Manufacturers face challenges balancing production efficiency, quality, and environmental compliance. Are there ways to simultaneously reduce material wastage, maintain quality, and lower costs? HDPE injection molding emerges as a powerful solution to these challenges. It combines precision manufacturing, efficient material usage, and cost-effectiveness, offering industries a way to meet high production demands without compromising sustainability or profitability.
Strategic Overview of HDPE Injection Molding
HDPE injection molding is one of the most efficient and reliable processes for producing high-quality parts with minimal material waste. This section outlines the essential elements of HDPE injection molding, focusing on its core benefits, such as precision material injection, optimized design, and rapid cycle times. These advantages contribute to reduced material wastage, higher efficiency, and, ultimately, significant cost savings for manufacturers.
Precision Material Injection
HDPE injection molding ensures that the exact amount of material is injected into the mold. Modern systems use servo-driven controls to maintain consistent pressure and volume, eliminating the risk of overfilling or underfilling. This precision minimizes excess material use, ensuring consistent part quality and reducing waste by up to 30%.
Integrated Process Monitoring
Real-time sensors embedded in the molding machines track temperature, flow rate, and pressure. These systems detect irregularities instantaneously, allowing adjustments to be made mid-cycle. This technology significantly reduces defects caused by uneven material distribution or incorrect processing parameters, ensuring that fewer parts are discarded.
Design-to-Manufacture Automation
Advanced computer-aided design (CAD) software ensures mold designs are optimized for HDPE flow. Simulation tools test the mold design virtually, identifying areas where material might pool or cool unevenly. This pre-production analysis ensures fewer design iterations, saving material and reducing production downtime.
High-Speed Production Capabilities
Modern HDPE injection molding machines operate at rapid cycle times, producing parts in seconds. For example, small HDPE components such as bottle caps can have cycle times as short as 8–12 seconds. Faster cycles mean less energy per part and reduced machine wear, contributing to cost savings.
Post-Process Versatility
HDPE components can be easily modified post-molding for specific applications. Features such as ribs, threads, or holes can be added with minimal material loss. HDPE’s adaptability makes it suitable for various industries, from automotive to consumer goods.
Critical Challenges in Manufacturing Ecosystems
In any manufacturing environment, efficiency, cost reduction, and quality consistency are top priorities. However, overcoming challenges such as material wastage, energy inefficiency, and long production cycles is critical to maintaining a competitive edge. This section will address the key issues manufacturers face today and how HDPE injection molding solves them by optimizing material usage and ensuring sustainable practices.

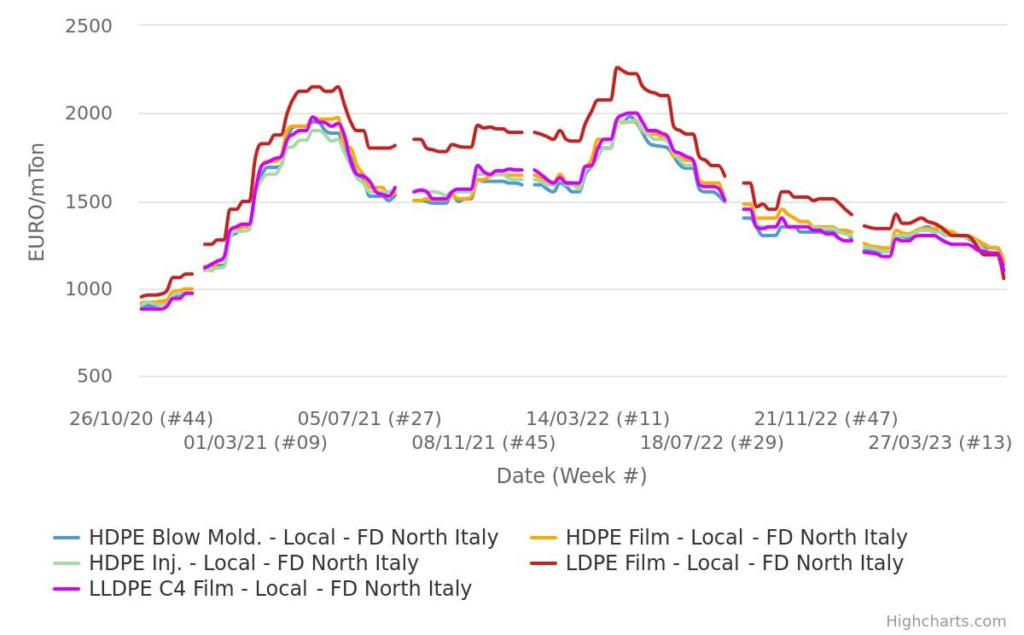

Escalating Raw Material Costs
High-grade HDPE prices have risen nearly 25% in the last decade due to fluctuating oil prices and supply chain disruptions. Excessive material wastage in traditional manufacturing processes exacerbates these costs, pushing manufacturers to seek more efficient alternatives.
Inconsistent Component Quality
Dimensional inaccuracies and material defects often lead to high rejection rates. For example, a 5% defect rate in a production run of 10,000 parts can result in significant material and labor costs. HDPE injection molding ensures repeatability, minimizing these inconsistencies.
Energy Inefficiencies
Heating, melting, and molding HDPE consume significant energy. Conventional methods often waste energy due to poorly optimized processes. Modern HDPE injection molding machines use energy-efficient heating systems and hybrid drive technologies, reducing energy consumption by up to 40%.
Regulatory Compliance and Sustainability
Industries face increasing pressure to meet environmental standards. The manufacturing sector contributes approximately 20% of global carbon emissions. HDPE injection molding aligns with sustainability goals by minimizing waste and enabling recycling of leftover material.
Extended Production Lead Times
Frequent mold changes and machine downtimes disrupt production schedules, delaying deliveries. HDPE injection molding addresses this with quick-change mold systems and automated production lines that maintain continuous operations, reducing lead times by up to 50%.
Engineering Solutions – Technical Highlights of HDPE Injection Molding
The success of HDPE injection molding lies in the engineering principles that drive its efficiency. In this section, we will dive into the technical aspects that make HDPE injection molding a solution for reducing material waste and improving cost-effectiveness. These innovations, from advanced mold designs to optimized cooling systems, contribute to a highly efficient process that minimizes material loss.
Material Flow Control
The viscosity of molten HDPE can vary based on temperature and pressure. Injection molding machines use precision flow meters to maintain uniform material flow. This reduces weak points in the part, enhancing mechanical strength while minimizing scrap.
Advanced Cooling Techniques
Cooling accounts for 50–60% of the total cycle time in injection molding. HDPE molding systems use conformal cooling channels to match the mold geometry. This shortens cooling time without affecting the polymer’s crystallinity, improving part performance and reducing energy costs.
High-Performance Molds
Molds are constructed from durable materials like H13 steel or beryllium-copper alloys to withstand millions of cycles without wear. Their precision engineering ensures that each part meets dimensional tolerances, reducing rework and material waste.
Optimized Sprue and Runner Design
Sprues and runners are pathways that guide molten HDPE into the mold cavities. By designing these pathways with minimal volume, waste is reduced significantly. Scrap material from sprues and runners can also be reground and reused without compromising quality.
Shrinkage Compensation
HDPE shrinks during cooling, affecting the final part dimensions. Engineers use predictive shrinkage models to design molds that account for these changes. This eliminates the need for post-molding corrections, reducing time and material waste.
Advanced Technologies Driving Efficiency
The latest technological advancements in HDPE injection molding have dramatically improved manufacturing efficiency, reducing material waste and boosting cost-effectiveness. In this section, we will explore cutting-edge technologies that enhance production speeds, reduce energy consumption, and optimize the overall molding process.

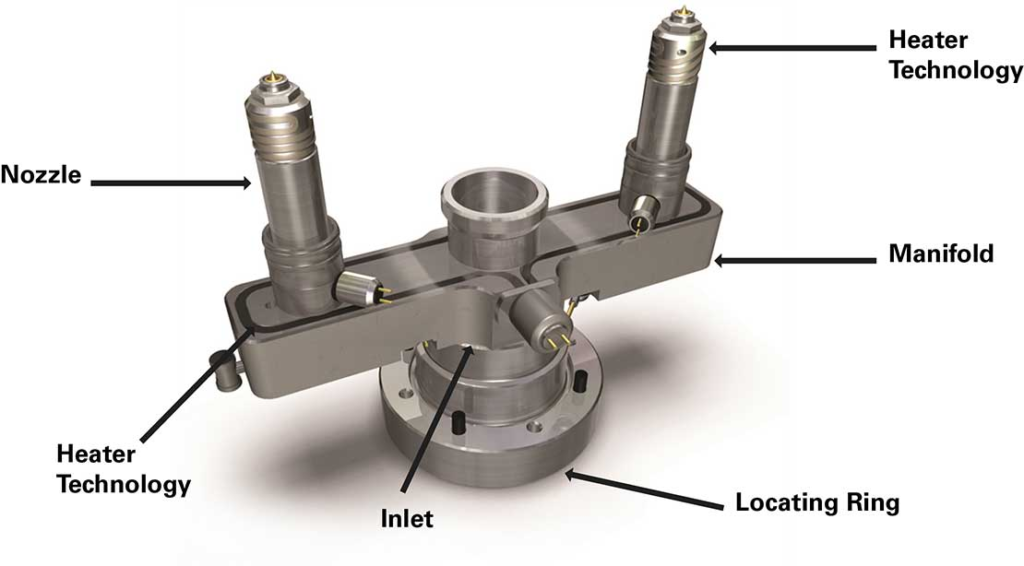

Hot Runner Systems
Unlike cold runner systems that leave excess material after each cycle, hot runner systems maintain molten HDPE throughout the process. This eliminates runner waste and improves cycle times, particularly for high-volume production.
Integrated AI Process Control
Artificial intelligence (AI) analyzes process parameters in real time. For example, if a temperature deviation is detected, the system automatically adjusts settings to maintain optimal conditions. This reduces defects and ensures consistent part quality.
Hybrid Hydraulic-Electric Machines
Traditional hydraulic systems are powerful but inefficient. Hybrid machines combine the strength of hydraulics with the precision of electric drives. These machines achieve higher accuracy and use up to 60% less energy than older models.
Robotic Automation
Robots integrated with HDPE molding systems perform parts removal, trimming, and assembly tasks. Automation reduces manual errors, enhances productivity, and ensures efficient and waste-free material handling.
Digital Twin Technology
Digital twins simulate the entire injection molding process virtually. This enables manufacturers to identify inefficiencies, optimize mold designs, and predict outcomes before production begins. The result is reduced trial-and-error and minimal material wastage.
Quantifiable Gains from HDPE Injection Molding
When manufacturers shift to HDPE injection molding, the tangible benefits become immediately apparent. This section shows how switching to this highly efficient process translates into measurable gains such as material savings, energy reduction, and faster production speeds. These quantifiable benefits directly impact the bottom line, offering manufacturers significant cost savings.
Material Efficiency
Optimized molds and advanced flow control reduce material waste by 20–40%, translating to substantial cost savings. For instance, a production run using 10 tons of HDPE could save 2–4 tons of material.
Energy Savings
Energy-efficient machines and faster cycles can cut energy costs by up to 50%. With upgraded systems, a factory consuming 1,000 MWh annually could save 500 MWh.
Improved Production Throughput
Faster cycle times enable manufacturers to produce more parts per hour. A typical injection molding machine can produce over 1,200 small parts per hour, enhancing scalability.
Defect Rate Reduction
Automation and precision controls reduce defect rates to less than 1%, significantly lowering the costs associated with scrap and rework.
Recycling Integration
Reground HDPE waste can be reintegrated into the process, achieving recycling rates of over 85%. This aligns with sustainability goals and reduces raw material costs.

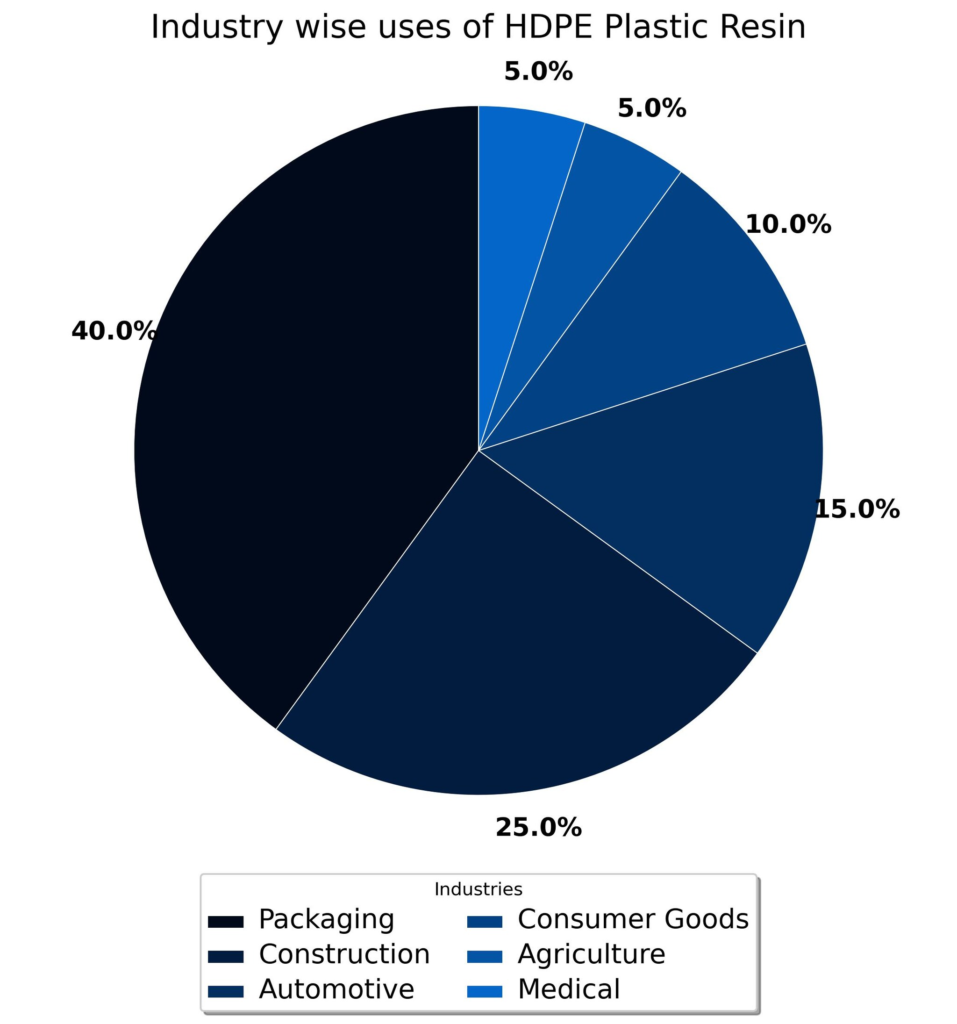

Applications and Industry Success Stories
HDPE injection molding has many applications across industries, from automotive to medical devices. This section will highlight the industries that most benefit from HDPE molding’s efficiency, showcasing how its versatility is being leveraged to drive success.
Automotive
HDPE injection molding plays a crucial role in the automotive industry by manufacturing parts that require high precision and durability. Key components include fuel tanks, dashboards, and under-hood parts, all of which are integral to vehicle safety and performance.
Fuel Tanks
Fuel tanks made with HDPE injection molding are lightweight yet extremely strong. The injection molding process ensures uniform wall thickness and precise dimensional control, critical for meeting stringent safety standards. HDPE’s chemical resistance ensures that the tank is impervious to the effects of gasoline and other liquids, preventing degradation over time. The molding process also enables the production of complex geometries, such as integrated brackets or mounting points, often required for fuel tank assemblies.
Dashboards and Interior Components
In dashboards, HDPE’s impact resistance and dimensional stability make it ideal for parts that must withstand daily wear and tear, temperature fluctuations, and exposure to sunlight. Injection molding technology allows for intricate designs, such as integrated fasteners, cable channels, and vents, with highly precise dimensions to ensure that these parts fit together perfectly without the need for post-processing. This minimizes scrap and optimizes material usage.
Under-Hood Components
HDPE injection molding is used for under-the-hood parts like engine covers, fan blades, and air intake manifolds. These parts require excellent heat resistance and mechanical strength to withstand the high-temperature conditions and stress typical in engine bays. HDPE’s low friction properties also help improve the efficiency of moving components like ducts and hoses. Injection molding ensures these components’ exact shape and tolerance, reducing waste and enhancing overall performance.
Medical Devices
HDPE injection molding is a key technology in the medical devices sector, especially for products that require biocompatibility, sterility, and precision.
Biocompatibility
HDPE is highly biocompatible, making it suitable for medical devices that come into direct contact with the human body, such as syringes, catheters, and IV connectors. The material resists biological degradation and does not release harmful substances when exposed to bodily fluids. Injection molding processes are tightly controlled to ensure that the HDPE material meets the standards for sterility and biocompatibility, ensuring the safety of the patients using these devices.
Precision for Medical Components
The ability to mold HDPE with extreme precision is crucial for medical devices. For instance, IV connectors must be manufactured with exact tolerances to ensure leak-proof and reliable connections. The injection molding process can create complex, multi-part assemblies with exact dimensions, eliminating the need for post-molding adjustments or secondary processes that could introduce contamination.
Sterility
Manufacturers use techniques like clean room molding for medical applications, which ensures that parts are produced in a contamination-free environment. HDPE’s ability to withstand autoclaving (a sterilization process involving high-pressure steam) makes it ideal for reusable medical instruments. The molding process can also ensure that parts are produced in sealed environments, maintaining sterility throughout the manufacturing cycle.
Packaging
HDPE injection molding is commonly used in the packaging industry to produce a wide range of containers, such as bottles, jugs, and food packaging.
Consistent Wall Thickness
One critical advantage of HDPE injection molding in packaging is its ability to control wall thickness during the molding process. This ensures uniform strength and durability across all parts, preventing weak spots in the container that could lead to breakage or leaks. HDPE’s ability to mold with thin walls without sacrificing strength is particularly beneficial for creating lightweight but durable containers, such as bottles for food or chemicals.
Material Efficiency
With injection molding, manufacturers can use precise material control to avoid overuse and reduce waste. The optimized use of HDPE ensures that excess plastic is minimized, and recycled materials can be reintegrated into the process without compromising product quality. This is particularly valuable in industries like food packaging, where cost reduction and sustainability are important considerations.
Aesthetic and Functional Design
Injection molding also allows for the creation complex shapes and details, enhancing the container’s functionality and appearance. For example, custom-shaped bottles with ergonomic grips or packaging with embossed logos or patterns can be easily produced. The process can also incorporate tamper-evident seals and easy-pour spouts without additional tooling, reducing the need for post-molding processes.
Infrastructure
In the infrastructure sector, HDPE’s chemical resistance, durability, and lightweight properties make it the material of choice for long-lasting and low-maintenance components like pipes and fittings.
Durability and Chemical Resistance
HDPE is known for its high resistance to chemicals and corrosion, making it ideal for underground applications such as water and sewage pipes. Unlike metal pipes that can rust or corrode over time, HDPE maintains its integrity even when exposed to aggressive chemicals. It is ideal for transporting water, sewage, and other fluids without contamination or leaks.
Lightweight and Easy to Handle
HDPE pipes are much lighter than traditional metal pipes, which makes them easier to transport and install. The lightweight nature of HDPE also reduces labor costs during installation, as fewer people and less machinery are required to handle the materials. Moreover, HDPE pipes can be jointed without welding, using heat fusion, which offers faster installation times.
Long-Term Performance
HDPE pipes can withstand extreme environmental conditions, including freezing temperatures and UV radiation, making them ideal for long-term outdoor use. The injection molding process ensures uniform pipe thickness and smooth internal surfaces, which prevent friction losses and contribute to a longer service life.
Consumer Goods
HDPE injection molding is widely used in the production of consumer goods. It offers benefits such as durability, lightweight properties, and the ability to create complex shapes.
Toys
HDPE is often used to mold toys because it is non-toxic, durable, and impact resistant. For instance, play structures, plastic figures, or toy wheels benefit from HDPE’s strength, ensuring they withstand rough play without breaking. The injection molding process enables the production of intricate designs while maintaining smooth surfaces and uniform textures.
Household Items
Products like buckets, bins, and storage containers are made from HDPE because the material offers excellent rigidity and impact resistance while being easy to clean. These household items are often used in various temperatures and environments, from hot water to outdoor conditions, where HDPE’s thermal stability and weather resistance are handy.
Containers
From small plastic containers to large storage bins, HDPE injection molding provides a cost-effective solution for producing containers with consistent strength and durability. The process enables manufacturers to create customized container shapes, whether they need to be stackable, leak-proof, or capable of holding heavy loads.
Frigate’s Capabilities in HDPE Injection Molding
Frigate is a leader in HDPE injection molding, offering precision engineering and high-efficiency production capabilities. This section outlines Frigate’s technical expertise and how its services cater to diverse industry needs, ensuring minimal waste, high-quality parts, and cost-effective solutions.
Precision Mold Design and Optimization
Frigate employs advanced Computer-Aided Design (CAD) and Computer-Aided Engineering (CAE) software to meticulously design and simulate injection molds. These tools ensure the mold geometry is optimized to accommodate HDPE’s flow characteristics, including the material’s viscosity and temperature-sensitive behavior. This reduces material waste, as mold cavities are precisely engineered to minimize flash, overflows, and other imperfections. Finite Element Analysis (FEA) is also used to analyze and predict the stress and temperature distribution across the mold, ensuring its durability and performance. This approach maximizes efficiency and minimizes the cycle time, contributing to cost and material savings.
Injection Molding Simulation and Flow Analysis
Frigate uses advanced injection molding simulation tools like Moldflow or Autodesk Simulation to model the material flow before production begins. The simulation predicts fill patterns, potential defects (like short shots or warping), and stress concentration areas. This ensures that the mold design is optimized for HDPE’s specific characteristics, which can vary depending on its grade. The simulation also helps select the correct gate design, injection pressure, and cooling time, significantly improving the efficiency of each cycle. With this predictive approach, Frigate minimizes costly design revisions and accelerates the time to market.
Advanced Injection Molding Machines and Automation
Frigate utilizes high-precision electric injection molding machines paired with state-of-the-art robotic automation systems. These machines offer greater repeatability and precision compared to traditional hydraulic systems. The closed-loop control systems ensure consistent injection pressure and temperature, which is crucial for maintaining high-quality parts while minimizing scrap. Automated material handling systems streamline production by automatically feeding the injection molding machines with HDPE resin, reducing human error and operational downtime. In addition, multi-cavity molds allow for the simultaneous production of multiple parts in a single cycle, optimizing throughput and reducing unit costs.
Real-Time Quality Control and Monitoring
Frigate employs an AI-driven monitoring system that utilizes machine learning algorithms to continuously track and analyze the production process in real time. This system collects injection pressure, temperature, cycle times, and mold wear data to identify deviations from the optimal process parameters. If any anomaly is detected, the system triggers an automatic correction, preventing defects from occurring and minimizing downtime. Frigate’s system also enables predictive maintenance by analyzing patterns and predicting when a machine or mold requires maintenance, thereby preventing unexpected breakdowns and reducing operational costs.
Material Science and Custom Formulation Expertise
Frigate works closely with suppliers and customers to tailor the properties of HDPE resin to suit the unique needs of each product. Frigate customizes HDPE’s performance attributes by integrating additives, such as reinforcements (fiberglass, carbon fiber), impact modifiers, and UV stabilizers. These customized formulations are especially beneficial for applications requiring enhanced durability, chemical resistance, or specific mechanical properties. For example, HDPE products used in automotive under-the-hood components may need enhanced heat resistance, while products for the medical industry require stricter biocompatibility standards. By fine-tuning the material, Frigate ensures the final product meets industry standards and achieves superior performance.
Conclusion
HDPE injection molding addresses the most pressing manufacturing challenges—material wastage, cost inefficiencies, and production delays. It provides a pathway to sustainable and scalable production, aligning with modern business goals.
