CNC machining is essential in aerospace, automotive, and electronics industries, where precision is key. However, part inspection failures remain a common issue that can cause delays, rework, and product defects.
CNC part inspection ensures that components meet precise tolerances. When failures occur, they risk quality, increase costs, and damage customer trust. With the demand for high-quality products rising, addressing these inspection failures is crucial.
This blog explores the main causes of CNC part inspection failures and offers practical solutions to reduce them, helping businesses improve efficiency and product quality.
What Are Common Inspection Failures in CNC Machining?
Understanding the root causes of CNC part inspection failures is the first step in tackling these challenges. Failures can arise from various issues, often caused by machine calibration, tool wear, human error, or material inconsistencies. Below, we highlight the most prevalent types of failures seen in CNC part inspections:

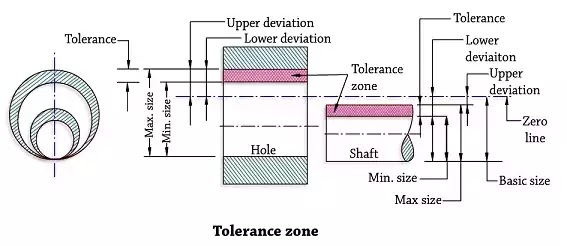

Deviation from Critical Tolerances and Specifications
One of the most frequent CNC part inspection failures occurs when a part deviates from its critical tolerances and specifications. CNC machines are designed to produce parts with extreme precision, but even slight deviations from the specified dimensions can result in unusable parts. For example, a part with a dimensional tolerance of ±0.05 mm may end up being out of specification by a fraction of that amount, rendering it ineffective or incompatible with other parts.
Such failures are especially detrimental in industries where tight tolerances are essential, such as aerospace, automotive, and medical devices. A minor deviation can impact the part’s function, leading to costly rework or scrapping.

Inconsistent Surface Finish or Texture
Surface finish plays a vital role in the overall quality and functionality of CNC machined parts. Inconsistent surface textures, such as rough spots or grooves, are common CNC part inspection failures that compromise the part’s performance and appearance. Tool wear, incorrect feed rates, or improper cutting speeds typically cause these defects. These inconsistencies can be particularly problematic in industries like electronics and automotive, where smooth surfaces are essential for part interaction or aesthetic appeal.
Surface finish issues can also lead to poor part fitment, higher friction during use, and premature wear, significantly affecting the part’s longevity.
Failure to Achieve Complex Geometrical Requirements
Many CNC machining applications require complex geometries that must meet exact specifications. Common CNC part inspection failures in this area include flatness, roundness, and angularity issues. Although often subtle, these deviations can prevent parts from functioning as intended. For instance, if a part designed with a curved surface doesn’t conform to the required radius, it may not fit properly into its intended assembly, leading to poor product performance or failure.
These failures often arise from a misalignment of the CNC machine or improper tooling, which requires immediate attention.
Tool Wear and Deterioration
As CNC tools are used continuously, they experience wear that can affect cuts’ precision, leading to failure of CNC part inspection. When tools lose their sharpness or become damaged, they no longer produce parts within the required tolerances, causing parts to be undersized, oversized, or with rougher surfaces. Tool wear is a natural part of the CNC machining process, but if it is not monitored regularly, it can result in defective parts that are out of spec.
Detecting tool wear early can prevent larger issues and reduce the risk of producing defective parts. It can be difficult to identify when the tool’s condition has deteriorated enough to cause issues without proactive monitoring.

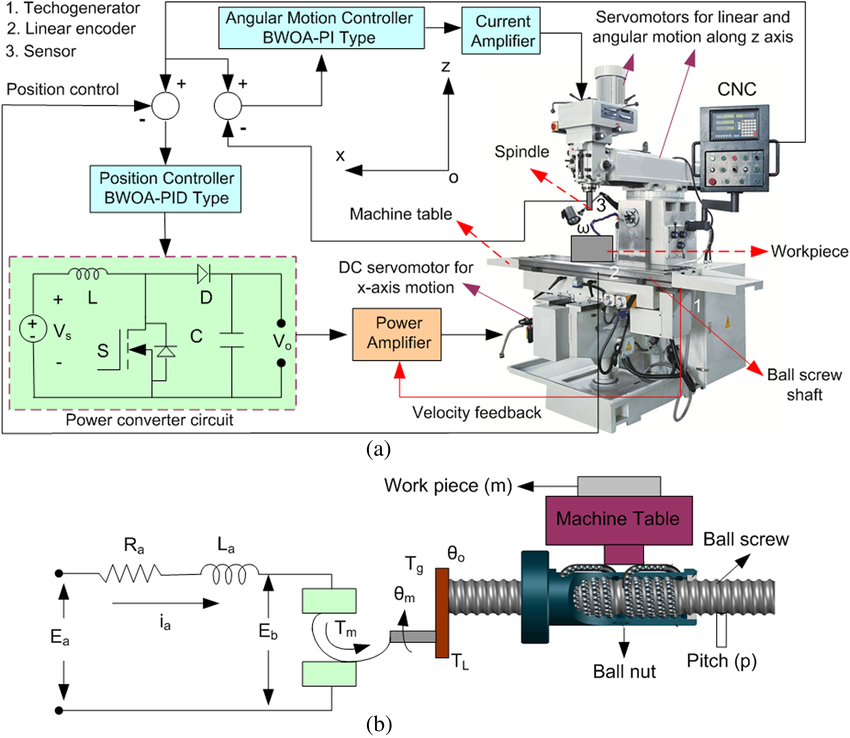

Alignment and Setup Issues
CNC machine alignment and setup are critical for achieving accurate results. Even slight misalignment of the machine or fixtures can lead to CNC part inspection failures, causing parts to be out of tolerance. This issue often results from poor calibration, machine wear, or incorrect setup before beginning the machining process.
Alignment issues can affect the dimensions and surface quality of parts, leading to unnecessary rework and delays in production. Properly calibrating machines and ensuring accurate fixture setups are key to preventing such failures.

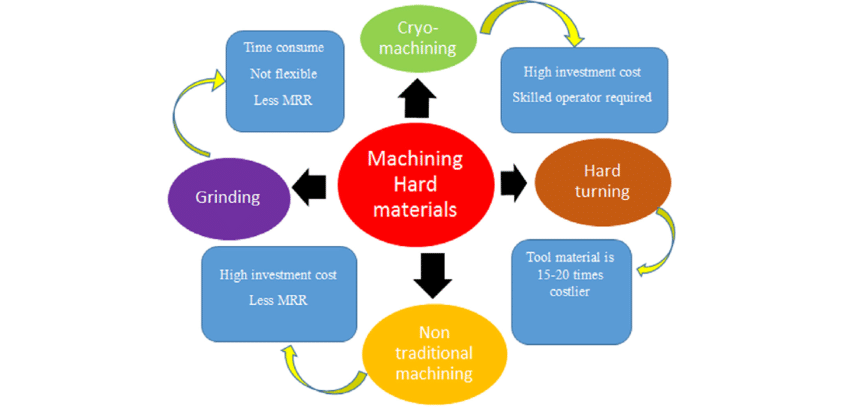

Material Variability
Inconsistent material properties can cause CNC part inspection failures that are difficult to detect until after machining. Variations in material hardness, grain structure, or alloy composition can lead to dimensional inconsistencies, incorrect surface finishes, or issues with mechanical performance. These failures are particularly problematic in industries like aerospace and automotive, where materials need to meet exacting standards for strength, durability, and performance.
Materials that don’t meet the specified requirements can lead to poor part quality, resulting in parts that fail to meet customer expectations or malfunction in real-world applications.

Calibration Drift in CNC Machines
Over time, CNC machines can experience calibration drift, which means the machine’s accuracy gradually decreases due to wear, temperature changes, or mechanical issues. If not regularly calibrated, these machines can produce parts that fall outside of the required specifications, leading to CNC part inspection failures. The drift is often subtle, and without frequent checks, the cumulative effect can cause production issues, requiring costly adjustments or part scrapping.
Regular calibration checks ensure that CNC machines maintain accuracy and produce parts that meet stringent quality standards.
How to Fix CNC Part Inspection Failures?
Minimizing CNC part inspection failures requires a multifaceted approach focusing on maintaining precision, optimizing workflows, and using advanced technologies. Manufacturers can significantly reduce the likelihood of failures by focusing on critical areas such as machine calibration, tool maintenance, and quality control. Below are 10 essential strategies for addressing and fixing common CNC part inspection failures:
Implementing a Robust Quality Assurance Program
A comprehensive Quality Assurance (QA) program is the backbone of any effective quality control strategy. This program involves multiple inspection stages throughout the manufacturing process, ensuring that critical parameters such as dimensional accuracy, surface finish, and tolerances are consistently monitored. Early detection of discrepancies allows for prompt corrections, reducing the need for rework and minimizing waste.
At Frigate, the QA program includes regular inspections at each critical phase of the machining process, from initial setup to final product delivery. This multi-tiered approach ensures any deviation from required specifications is identified and corrected swiftly, reducing the risk of defective parts and enhancing overall product quality.
Advanced Metrology Tools for Precision Inspection
The accuracy of CNC part inspections heavily relies on the tools used to measure components. Advanced metrology equipment such as Coordinate Measuring Machines (CMM), laser scanners, and optical inspection systems provide precise, non-destructive measurements of complex part geometries. These tools allow for detailed analysis and quick detection of defects like dimensional deviations or surface inconsistencies.
Frigate employs cutting-edge metrology tools, including high-precision CMMs and laser-based inspection systems. These instruments provide real-time data to ensure that every part produced adheres to stringent tolerances and is defect-free. With automation integrated into the inspection process, these tools significantly reduce human error and provide repeatable results.
Optimizing CNC Programming
The programming phase of CNC machining directly impacts the final part’s quality. Optimizing cutting paths, tool speeds, and feed rates ensures the machine operates at its peak efficiency and precision. Programming errors, such as incorrect tool offsets or inefficient cutting strategies, can lead to excess tool wear, dimensional inaccuracies, or surface defects, all contributing to inspection failures.
Frigate’s engineering team meticulously programs each CNC machine to account for part complexity and material type. By employing advanced software and simulations, Frigate ensures that all cutting paths are optimized and tool movements are fine-tuned for precision, preventing issues like tool overloading or underperformance that can lead to inspection failures.
Regular Tool Monitoring and Maintenance
CNC tools undergo significant wear during production, which can result in inaccuracies in the final part. If not monitored and addressed, tool wear can lead to dimensional variations, surface roughness issues, and overall quality degradation. Regular tool condition monitoring and timely maintenance or replacement are essential to ensure consistent performance.
Frigate utilizes advanced real-time tool monitoring systems that track the condition and performance of tools throughout the production run. By analyzing data such as tool wear and vibration, Frigate can predict when tools need maintenance or replacement, preventing defects and ensuring consistent part quality across large production volumes.
Routine Calibration of CNC Machines
Machine calibration is essential to maintaining the accuracy of CNC equipment. Over time, mechanical components may experience slight misalignments, causing deviations in part dimensions. Regular calibration of CNC machines ensures they continue operating within the specified tolerances, reducing the risk of inspection failures due to misalignment or drift.
Frigate adheres to a strict schedule of machine calibration and alignment checks. Using precision instruments to recalibrate machines periodically, Frigate ensures that all CNC equipment consistently meets industry standards, delivering parts with the highest dimensional accuracy and reducing the likelihood of inspection failures.
Implementing Automated Inspection Systems
Automated inspection systems significantly enhance the speed and accuracy of part inspections. These systems reduce the reliance on manual inspections, which are more prone to human error. By using automated systems like CMMs and vision-based inspection technology, manufacturers can inspect large volumes of parts quickly and consistently, identifying defects early in the process.
Frigate employs automated CMMs and optical inspection systems, which allow rapid, precise, and repeatable inspections. These systems conduct high-throughput assessments of all produced parts, ensuring they meet stringent specifications. The use of automation also helps in reducing inspection bottlenecks, enabling faster production cycles without compromising quality.
Material Verification and Testing
The material used in CNC machining is crucial in ensuring part quality. Subpar or inconsistent material properties can lead to dimensional inaccuracies, surface defects, or even part failure under stress. Implementing a thorough material verification process before production begins ensures that only the best materials are used, preventing defects related to material inconsistencies.
Frigate implements a stringent material verification process, including hardness, composition, and grain structure checks. Only materials that meet or exceed the required specifications are used in production, ensuring that all parts are manufactured from high-quality materials that support precise machining and high performance.
Enhanced Machine Setup Procedures
Proper machine setup is critical for maintaining production accuracy. Misaligned fixtures, improper part clamping, and poor tool setup can lead to initial part defects that can affect the entire production run. Standardizing machine setup procedures and ensuring that operators follow them consistently helps mitigate setup errors and reduces the chance of CNC part inspection failures.
Frigate standardizes machine setup protocols to ensure proper alignment and fixture placement before machining begins. The team conducts thorough checks of tool setups and fixture positioning to guarantee that the first part produced meets all required specifications. This approach ensures that production runs are free from setup errors, reducing the risk of defects.

Utilizing Statistical Process Control (SPC)
Statistical Process Control (SPC) uses data-driven techniques to monitor and control manufacturing processes. By collecting and analyzing data on various production parameters, SPC helps identify process variations before they lead to defects. This proactive approach allows manufacturers to adjust processes quickly, ensuring parts are consistently within specification.
Frigate integrates SPC methods into its production process to monitor key variables such as tool wear, temperature, and feed rates. By analyzing real-time data, Frigate can quickly identify any deviations from the desired process and make necessary adjustments, maintaining tight control over part quality and reducing the risk of inspection failures.
Continuous Staff Training and Development
The skills and knowledge of CNC operators, engineers, and quality control staff directly influence the accuracy and quality of the final product. Ensuring employees receive continuous training on the latest manufacturing techniques, inspection methods, and troubleshooting skills is crucial to minimizing inspection failures.
Frigate invests in ongoing training programs for all staff involved in production, from CNC operators to quality control inspectors. Regular workshops and training sessions ensure that the team is proficient with the latest technologies and best practices in CNC machining. This enables them to quickly identify and address potential inspection issues before they impact production.
Conclusion
CNC part inspection failures are a challenge, but manufacturers can minimize their impact with the right strategies. Companies can ensure high precision and reduce defects by enhancing quality assurance, using advanced technologies like automated inspection systems and SPC, and adopting a proactive approach. Frigate’s commitment to quality ensures every part meets the highest standards, improving manufacturing efficiency.
Companies can optimize processes, reduce waste, and deliver superior products by implementing these practices. Get Instant Quote today for top-tier CNC machining services to ensure every part meets your specifications.
