The global CNC machining market is projected to reach $128 billion by 2030, driven by rising demand for precision-engineered components. As industries scale production, ensuring flawless machined parts transportation becomes increasingly critical.

Modern machined parts are far more complex, with tolerance levels tightening to within ±2 microns across many sectors. A single handling or transport error can lead to costly failures, delays, and compromised safety during final assembly.

Properly managed machined parts transportation preserves structural integrity, surface finish, and dimensional accuracy from the machine shop to the assembly line. This blog explores the key challenges, best practices, and how Frigate’s engineered systems ensure precision parts arrive ready for seamless integration.

Machined parts transportation

Challenges in Handling and Transporting CNC Machined Parts for Final Assembly

Machined parts are highly sensitive and require specialized handling and transport. With industries pushing the envelope on precision, the stakes are higher than ever. This section will examine the key challenges in CNC machined parts transportation that can jeopardize part integrity and quality.

Micro-Tolerance Sensitivities

Today’s CNC machined components—such as aerospace brackets, turbine blades, and medical implants—often demand tolerance levels tighter than ±2 microns. This is thinner than a human hair. Even a slight mechanical impact during machined parts transportation can cause microscopic shifts in alignment. Stress risers can also develop. These tiny defects are invisible without specialized metrology tools. However, they can cause major failures under operational load. Parts perfect at inspection can become non-compliant when they reach final assembly if not handled with extreme care.

Surface Finish Integrity

Many precision parts require surfaces with roughness values as fine as Ra 0.05 to 0.2 µm. Applications like hydraulic sealing surfaces, aerodynamic panels, optical housings, and medical implants need perfect finishes. Even minor abrasions from bad packaging materials, uncontrolled vibrations, or contaminant exposure during machined parts transportation can cause permanent damage. Surface damage reduces product performance and life. It also creates points where corrosion can start. Protecting surface finishes is critical.

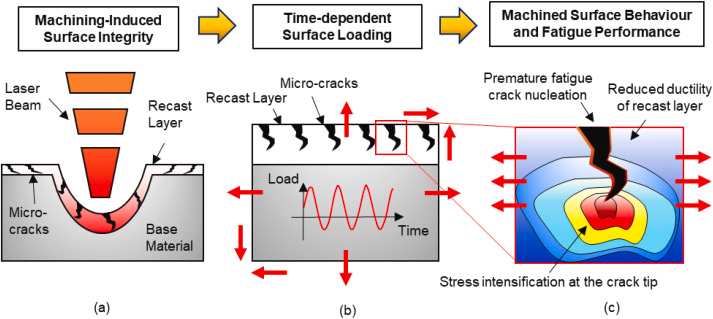

surface finish integrity

Material Behavior During Transport

Different metals react differently to environmental conditions during machined parts transportation

  • Aluminum alloys oxidize quickly in humid or salty air.
  • Stainless steels resist corrosion but can still suffer from surface contamination.
  • Titanium expands with heat but conducts heat poorly, making it sensitive to temperature changes.

Bad climate control can cause surface degradation, warping, and even dimensional instability. Even if mechanical damage is avoided, environmental exposure can silently destroy parts. Protective measures must include environmental monitoring and inert packaging.

Complex Shapes and Asymmetry

Modern machined parts often have thin-walled structures, overhangs, cantilevers, and internal cavities. These designs optimize weight and function. However, they create mechanical weaknesses. For example, a thin aerospace panel may handle loads well in one direction but buckle easily if side-loaded during transport. Poor orientation on pallets or lack of custom supports can cause stress concentrations. These can create hidden fractures. Such failures are often invisible until the final assembly or later during operation. Proper support and handling during machined parts transportation is essential.

Strict Compliance Standards

Critical industries like aerospace, automotive, defense, and medical require adherence to standards like AS9100, ISO 13485, and IATF 16949. These standards demand more than just accurate dimensions. They require proof that part integrity was maintained across the supply chain. Mishandling during machined parts transportation can lead to:

  • Rejected lots
  • Rework or scrapping costs
  • Certification loss
  • Damaged reputation and financial losses

Even cosmetic defects can trigger expensive audits and liability claims in these industries. Proper handling is not optional—it is essential.

Chain of Custody Problems

In modern supply chains, parts change hands many times. They move between internal teams, logistics providers, and customers. Without a clear chain of custody, damage responsibility becomes unclear. Hand-offs without inspection and documentation create risk. Defective parts can pass unnoticed into final assemblies. This can cause assembly failures, recalls, and warranty problems. Every stage of transportation for machined parts must have validated handoffs. Inspection and documentation are critical to protect part quality and maintain traceability.

Tips to Safely Handle and Transport CNC Machined Parts for Final Assembly

Now that we’ve covered the challenges let’s consider how to overcome them. This section will walk through 10 essential methods for ensuring the safe transportation of CNC machined parts. We’ll discuss Frigate’s engineered logistics systems and how they’re designed to minimize risk and maximize part safety during transport, keeping them in top condition for final assembly.

Design Handling Protocols Based on Critical Dimensions

Before packaging, Frigate engineers perform Handling Risk Assessments for each part. Using advanced CAD stress analysis and Finite Element Method (FEM) simulations, critical load paths are identified. These simulations ensure that parts are lifted only at structurally strong zones, preventing deformation during movement. Custom lifting fixtures, such as adjustable jigs and soft-surface grips, are used when necessary to avoid concentrated stresses. This engineered handling approach protects dimensionally sensitive areas and ensures CNC parts retain precision during machined parts transportation

Engineer Application-Specific Packaging

At Frigate, generic packaging is never used for precision components. Instead, Frigate designs packaging based on dynamic load simulations that calculate g-forces, vibration profiles, and environmental conditions the part may encounter. The packaging is customized with shock mounts, rigid structural frames, and multi-layered foams tailored to each part’s weight distribution. This scientific, application-specific packaging approach ensures that parts are shielded from kinetic shocks and vibrations during machined parts transportation, reducing the risk of damage.

Control Electrostatic Discharge (ESD) and Surface Contamination

Frigate uses conductive foams, grounded shipping crates, anti-static polybags, and ESD-safe workstations to prevent ESD, which can damage electronics and fine-machined surfaces. Each part is packed within cleanroom environments maintained to ISO Class 7 cleanliness standards. This eliminates even the smallest particle contamination. With parts like aerospace brackets or medical implants being highly sensitive to surface contaminants, Frigate’s ESD and contamination control measures ensure that the integrity of the parts is maintained during machined parts transportation

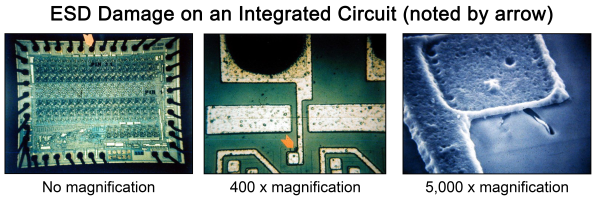

Electrostatic discharge

Use Smart Environmental Monitoring

Frigate incorporates smart, IoT-based environmental sensors in every shipment of critical CNC parts. These sensors monitor real-time parameters such as temperature, humidity, vibration, and tilt. If conditions deviate from the optimal range, alerts are automatically sent to Frigate’s logistics team for immediate corrective actions. The environmental deviations are logged digitally, ensuring traceability and transparency in machined parts transportation. This smart monitoring approach ensures that parts are always transported safely, preventing environmental damage.

Apply Multi-Layer Inspection Gates

Frigate utilizes multiple inspection gates throughout the transport process to minimize the chances of unnoticed damage. Inspection is performed at several stages: packaging, loading, mid-transit, and final delivery. Each stage includes visual checks, dimensional verifications, and electronic validations, such as torque checks on fastened components. Using specialized tools like laser micrometers, portable CMMs (Coordinate Measuring Machines), and ultrasonic testers, Frigate ensures that parts are inspected thoroughly at each checkpoint. This multi-layered approach reduces the risk of undetected issues during machined parts transportation

Build Redundant Identification Systems

Frigate employs a comprehensive, redundant identification system for all CNC machined parts in transit. Each part is tagged using barcode labels, RFID chips, and physical serial number markings. All tracking data is logged electronically, ensuring complete traceability. If one tracking method fails, secondary and tertiary methods maintain the part’s traceability. This multi-method identification system ensures that parts remain secure and their movements are transparent throughout machined parts transportation, preventing any loss of accountability.

Employ Active Vibration Control Techniques

Frigate takes active measures to control vibrations during transport, using dynamic vibration isolators, spring dampeners, and tuned mass dampers. These systems are designed based on modal analysis of each part’s natural frequency, which helps mitigate harmful resonances that can cause micro-cracks or fatigue. For highly sensitive parts such as turbine blades or medical implants, Frigate ensures that vibrations during machined parts transportation are minimized, protecting parts from damage due to excessive vibrations or resonance frequencies.

Use Load Adaptive Handling Equipment

Frigate avoids using conventional forklifts and cranes, which may create stress concentrations that could deform precision parts. Instead, Frigate employs load-adaptive equipment, including vacuum-assisted lifting systems, cushioned robotic grippers, automatic load spreader bars, and self-balancing hoists. These systems distribute lifting forces evenly across the structural strong points of the parts, ensuring that stress is not concentrated in vulnerable areas. This advanced equipment helps maintain the integrity of the parts’ geometry throughout machined parts transportation

Optimize Logistics Routing Based on Risk

Frigate optimizes transportation routes using AI-driven models that analyze risk factors such as climate volatility, infrastructure quality, and potential delay risks. Frigate reduces exposure to vibrations, temperature fluctuations, and excessive handling by selecting routes with minimal handling points and stable climate conditions. AI algorithms also prioritize routes that ensure smooth transit conditions and reduce transport time, safeguarding parts during machined parts transportation

Establish Emergency and Contingency Protocols

Frigate prepares for the unexpected with robust contingency strategies. These include rapid re-manufacturing of critical parts, deployment of mobile inspection units to assess damages mid-transit, alternative shipment carriers, and ready-to-ship spare parts inventories. These proactive contingency plans ensure that customer production lines are not disrupted in the unlikely event of transport failure. These protocols guarantee reliable transportation of machined parts even under unforeseen circumstances.

Conclusion

Precision CNC machined components require careful handling to protect the investment. Research shows that 58% of quality issues in final assembly are caused by transport errors. Frigate ensures your parts are safely transported with precision handling and vibration control, minimizing rejection rates. Get Instant Quote today to optimize the transportation of your CNC machined parts.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate protect CNC machined parts with micro-tolerances from distortion during transport?

Frigate employs precise load path analysis through advanced CAD-based stress simulations to identify critical dimensions and potential distortion zones. Custom-engineered lifting jigs and support frames are designed for each part’s unique geometry, ensuring that parts are supported in the most structurally secure areas. Using these protocols, we prevent the slightest distortion in parts with micro-tolerances, such as aerospace or medical components, during CNC machined parts transportation.

What is Frigate’s method for monitoring and controlling environmental factors during CNC machined parts transport?

Frigate utilizes IoT-based environmental monitoring systems that track key factors like temperature, humidity, shock, tilt, and vibration. Sensors are strategically placed in transport containers to ensure environmental conditions stay within prescribed limits. If conditions deviate from acceptable parameters—such as exceeding thermal thresholds or encountering excessive tilt—alerts are automatically triggered, allowing immediate intervention to preserve part integrity during CNC machined parts transportation.

How does Frigate’s packaging design protect delicate surface finishes on CNC machined parts?

Frigate uses an application-specific approach to packaging design, where each part is packaged according to its unique surface finish. We employ multi-layer packaging systems for highly polished or coated parts, including shock-absorbing materials and rigid isolators. Packaging is designed to reduce dynamic forces like impact and vibration, ensuring that critical surface finishes, such as Ra values as low as 0.1 µm, remain intact. This engineering approach mitigates the risk of damage that could compromise functional surfaces during the transportation of CNC machined parts.

How does Frigate prevent electrostatic discharge (ESD) and contamination when transporting electronic or highly sensitive machined components?

Frigate integrates ESD-sensitive packaging techniques using conductive foams, anti-static bags, and sealed containers made from electrostatic-dissipative materials. Additionally, we adhere to strict cleanroom standards (ISO Class 7) for packaging environments. All packing materials are tested to ensure they do not introduce particulate contamination, preventing electrostatic damage or surface contamination on precision machined components, such as microelectronics and optical components.

How does Frigate manage the risk of mechanical vibration during the transport of CNC machined parts with delicate tolerances?

Frigate employs dynamic vibration isolation technology that includes spring-loaded mounts, vibration-dampening pallets, and specialized shipping crates equipped with dynamic isolation systems. These technologies minimize resonance frequencies and mitigate the impact of external forces during transport. Specifically, for highly sensitive parts, such as turbine blades or precision medical implants, this vibration control ensures that no harmful frequencies or shocks are transmitted to the parts, preserving their structural integrity and precision during CNC machined parts transportation.

How does Frigate ensure part traceability and prevent misidentification during transport?

Frigate uses a multi-tiered identification system for all CNC machined parts. Primary tracking is done through RFID tags and barcodes, which are scanned at each step of the transport process, from packaging to delivery. Secondary verification uses serialized part numbers, laser etching, and physical markings. In the event of a failure in any primary tracking system, the secondary system ensures continuous part traceability, minimizing the risk of misidentification or loss during CNC machined parts transportation.

How does Frigate ensure CNC machined parts comply with stringent industry standards like AS9100 or ISO 13485 during transport?

Frigate adheres to highly rigorous quality control protocols throughout the entire transport cycle. These protocols are based on industry standards such as AS9100 for aerospace and ISO 13485 for medical devices. Parts undergo multi-phase inspections, including dimensional verification, torque checks, and visual inspections at key stages—packing, mid-transport, and delivery. This approach ensures that any deviation from industry-specific standards is detected and addressed immediately, ensuring continuous compliance throughout CNC machined parts transportation.

What techniques does Frigate use to optimize CNC machined parts transportation routes for risk minimization?

Frigate employs AI-driven logistics optimization software to select the safest and most efficient transport routes. The software considers environmental factors like temperature fluctuations, road quality, and potential delays while analyzing historical data on transport incidents and vibration profiles. By selecting routes with minimal risk factors, Frigate ensures that CNC machined parts are exposed to the least possible strain during transport, protecting parts from damage and reducing the risk of delays.

How does Frigate prevent damage to CNC machined parts with asymmetrical or complex geometries during transport?

Frigate engineers packaging and handling solutions designed for parts with intricate geometries, such as thin-walled, asymmetrical, or overhanging components. We use load-distribution tools like adaptive lifting equipment, vacuum lifters, and load-spreader bars to ensure that the parts are handled and transported with minimal stress. These technologies prevent stress concentrations, preventing any hidden fractures or distortions from forming during the transportation of CNC machined parts.

What contingency measures does Frigate have to handle unexpected failures or damage during transport?

Frigate’s contingency protocols include real-time damage detection systems, emergency re-manufacturing capabilities, and immediate dispatch of inspection teams in case of transport failure. Our logistics teams are trained to activate alternate carriers or emergency transport solutions, and our inventory management system ensures that spare parts or re-manufactured components are ready to be shipped on short notice. These proactive measures ensure that CNC machined parts transportation delays are minimized even during unexpected failures and project timelines remain intact.
