Precision matters. The smallest deviation in machined components—like actuator frames, gear housings, or robotic joints—can compromise the entire system. According to the International Federation of Robotics (IFR), robotic failures cost manufacturers up to $30,000 per hour in unscheduled downtime, with more than 60% of these failures linked to mechanical faults such as machining errors in robotics.
Critical issues arise when tolerances miss the mark by as little as 20 microns (0.02 mm). Robots may lose positioning accuracy, generate excessive torque, or suffer premature breakdowns. These machining errors in robotics disrupt operations and lead to rework, increased warranty claims, and long-term reputational damage. Eliminating these errors isn’t optional—it requires precision control from CAD modeling to final quality assurance.
How Robotics and Automation Manufacturing Errors Impact Profits?
Machining errors in robotics and automation can be the hidden culprits behind major operational setbacks. Even a slight deviation in part dimensions—like a misaligned bolt hole or incorrect surface finish—can disrupt system performance, leading to costly downtime and increased maintenance. In a world where precision is paramount, these errors reduce productivity and erode profits. By addressing machining flaws early in the process, manufacturers can safeguard against unexpected costs and ensure long-term reliability in their robotic systems.
Erosion of Part Accuracy Lowers Return on Investment
One of the lesser addressed but critical factors affecting robotic ROI is the consistent presence of machining errors in robotics. Precision robotics relies on geometric consistency. Components like harmonic reducers, linear actuators, and end-effectors demand sub-50-micron tolerance control. Deviations from this can result in misalignment, introducing backlash or uneven stress distribution during robotic motion.
This inaccuracy leads to more than just mechanical issues—it compromises data feedback loops in servo control systems. When encoders detect inaccurate movement, they trigger safety faults or misfire sequences, causing lower throughput and productivity losses.
Machining errors in robotics often increase recalibration cycles, pushing system maintenance costs higher than planned and lowering the return on capital equipment investment.
Production Line Delays Increase Operating Costs
Assembly line efficiency depends on flawless integration. A single misaligned bolt hole or an out-of-round mounting flange can stop a robot from being installed.
For example, in automotive robotics, where each assembly cell may install hundreds of parts per shift, even a 1% defect rate from machining errors in robotics can halt the process. Technicians may be forced to ream, shim, or modify parts on the floor—resulting in significant downtime.
Machining errors in robotics cause interruptions in one area and across multiple stations, relying on tight-tolerance assemblies.
Warranty Claims and Support Costs Skyrocket
A robotic gripper or joint may pass initial testing, but machining defects often surface under repeated motion cycles. Vibration from unbalanced shafts, uneven wear from poorly finished bores, or thermal expansion from inconsistent wall thickness can all lead to mechanical breakdowns over time.
Warranty claims spike when field failures exceed Mean Time Between Failures (MTBF) projections. Support teams must investigate issues, replace parts, and repair damaged assemblies—all costs that weren’t budgeted.
Machining errors in robotics reduce not only part life but also brand credibility.
Supplier Risk Increases When Quality Control is Missing
When suppliers lack real-time process control and dimensional feedback, the client becomes the quality control gate. Poor supplier consistency affects robot reliability, product launch schedules, and the ability to scale operations.
Every robotic system integrator depends on stable, repeatable component manufacturing. Without this, the failure risk increases exponentially, especially when deploying robots in high-load or safety-critical environments.
Strategies to Prevent Machining Errors in Robotics
Precision machining is essential in robotics, where even minor errors can lead to performance failures and costly downtime. Implementing effective strategies to prevent machining defects is critical to maintaining robotic functionality and optimizing operational efficiency. Below are advanced strategies used to avoid machining errors in robotics, ensuring high-quality production and minimizing risks to system reliability.
Closed-Loop Manufacturing for Precision Dimensional Control
Frigate employs advanced closed-loop CNC systems that provide continuous feedback on part dimensions throughout production. Embedded sensors within the CNC machines constantly monitor factors such as tool offsets, thermal drift, and tool wear, offering real-time data for precision adjustments. This system ensures deviations from specified tolerances are immediately corrected during machining rather than after production, reducing scrap rates and enhancing part accuracy.
For example, Frigate’s linear scale feedback systems with nanometer-level resolution allow for real-time tool adjustments, ensuring that high-precision components such as robotic end-effectors, harmonic reducers, and multi-step shafts stay within strict tolerances. In multi-axis robotic assemblies, where components must be aligned within ±5 microns, the closed-loop system is crucial for maintaining positioning accuracy and ensuring that every part meets its design specifications.
Seamless Digital Thread Alignment from CAD to CNC
Frigate has integrated a fully automated CAD-CAM-CNC workflow that creates a seamless digital thread from the design phase to final production. This system eliminates human error during programming, ensuring that every design specification—positional tolerances, surface profiles, or chamfer depths—transfers directly to the CNC machine without manual intervention.
This digital thread workflow speeds up the transition from design to production and ensures that each part is manufactured with precise fidelity to the original design intent. Frigate employs digital twin technology in complex geometries or non-standard parts to simulate the machining process before production begins. These simulations enable Frigate to validate tool paths, check for potential issues such as collisions, and confirm that the part will meet dimensional accuracy requirements before physical machining occurs.
Intelligent Monitoring for Predictive Tool Wear Management

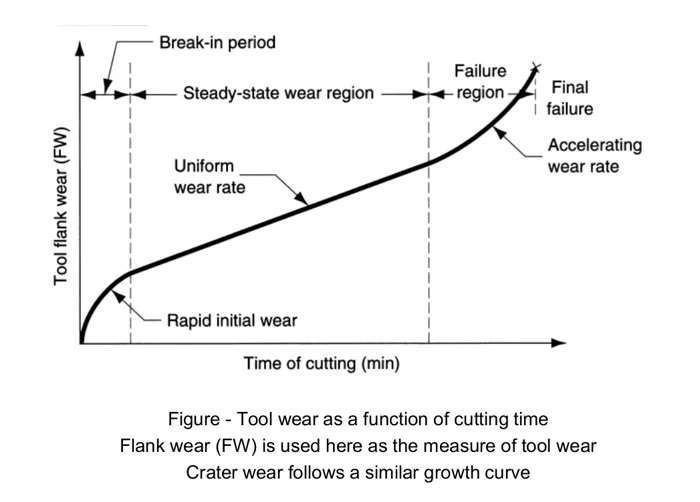

Tool wear, though often gradual and difficult to detect in real-time, can significantly impact machining accuracy. Frigate addresses this challenge with intelligent spindle monitoring systems, which use a combination of acoustic emission sensors, vibration analysis, and power load tracking to detect early signs of tool wear and deviations in the cutting process.
These systems can monitor the performance of cutting tools during the machining cycle, identifying issues such as end mill dulling or drill bit deflection that might not be apparent to the operator. When anomalies are detected—such as a deviation from expected vibration patterns or an increase in power load—the system triggers an automatic pause in the machining process. This allows operators to address tool issues before they result in dimensional errors or part defects, significantly reducing the likelihood of scrap and ensuring high-quality robotic components.
Integrated Metrology at Every Manufacturing Stage
In-line metrology is a crucial part of Frigate’s approach to machining precision. Rather than waiting until the end of production to inspect parts, Frigate integrates metrology systems throughout the manufacturing process to monitor part dimensions and tolerances in real time.
Frigate employs high-precision metrology technologies, including touch probes for bore alignment, laser triangulation for 3D contour validation, and white light interferometry for measuring microscopic surface defects. These in-process inspections provide immediate feedback, allowing quick corrections and minimizing the need for costly rework or scrap.
For example, in robotic components that involve complex geometries or deep pockets, such as arm joints or sensor mounts, this in-line metrology ensures that tolerances are maintained throughout production. By conducting real-time measurements during machining, Frigate can reduce rework rates by up to 95%, improving production efficiency and ensuring on-time delivery. This step-by-step verification is essential to eliminate machining errors in robotics, especially for parts with complex features or tight tolerances.
Process Stability for Complex Robotic Components
Many robotic parts, especially lightweight but structurally complex components like magnesium motor mounts or titanium wrist brackets, are prone to distortion during machining. These parts are highly sensitive to vibration, leading to chatter, poor surface finishes, and dimensional inaccuracies. Frigate implements custom vibration-dampening jigs, balanced fixturing, and adaptive feed rate controls to combat this.
The vibration-dampening jigs stabilize the workpiece during machining, preventing unwanted movement that could lead to tool deflection or inconsistent cutting. Balanced fixturing and adaptive feed rate controls allow the system to adjust the cutting speed based on real-time feedback, ensuring optimal cutting conditions and preventing excessive tool wear.
Frigate can produce highly accurate robotic components by minimizing machining distortion and vibration, especially those that require excellent finish quality and structural integrity for load-bearing applications.
Rigorous Material Testing and Machinability Optimization
Frigate’s commitment to precision starts with a thorough understanding of machining raw materials. Before production, Frigate conducts comprehensive material audits, utilizing ultrasound testing to detect internal voids, eddy current testing for surface anomalies, and machinability index scoring to optimize cutting parameters.

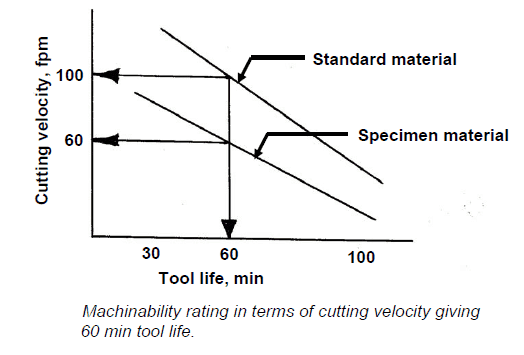

These tests ensure that each material—aluminum, stainless steel, or composites—meets the standards for consistent machining performance. The machinability index scoring helps determine the optimal cutting speed, feed rate, and tool selection for each specific material, allowing Frigate to tailor machining strategies for different alloys and composites.
By performing these tests upfront, Frigate ensures that raw material inconsistencies are detected and corrected before machining begins, preventing defects caused by material flaws and improving overall production efficiency.
Digital Twin Simulations to Optimize Machining Performance
Frigate leverages advanced digital twin simulations to model the machining process before any physical work begins. These simulations create a virtual model of the part and the machining environment, allowing Frigate to evaluate potential issues such as thermal expansion, tool-path collisions, and chip evacuation.
Simulating the machining process digitally provides valuable insights into the behavior of both the material and the cutting tools, enabling Frigate to optimize the tool path, cutting angles, and feed rates before production starts. For example, digital twin simulations allow Frigate to adjust tool approaches to relieve stress concentrations, preventing distortion and ensuring part integrity in parts like thin-walled sensor mounts.
This proactive approach to simulation reduces the risk of machining errors in robotics, improves first-pass yield, and minimizes downtime caused by unanticipated machining problems.
What Automation Trends Predict the Future of Manufacturing?
Particularly in response to the growing demand for precision, flexibility, and efficiency across industries like robotics, aerospace, and medical applications, the role of automation is becoming increasingly critical. As technological advancements continue, manufacturers realize the immense competitive advantage of automation, especially in terms of speed, precision, and scalability.
“The future of manufacturing lies in a combination of cutting-edge robotics, AI, and agile manufacturing systems,” explains industry experts. “Automation is no longer just a tool for large-scale operations; it’s becoming essential for businesses of all sizes that aim to stay competitive, reduce costs, and increase productivity.”
Automation minimizes human error, enhances efficiency, and addresses challenges like supply chain disruptions, labor shortages, and rising production demands. The continual evolution of automation technologies offers manufacturers the opportunity to improve product quality, speed up time-to-market, and streamline operations, which ultimately translates into significant cost savings and enhanced profitability.
As automation in manufacturing progresses, it opens new frontiers for industries to harness the potential of robotics, AI, and other innovations to redefine how products are designed, fabricated, and delivered. Here’s a closer look at the trends shaping the future of manufacturing.
Conclusion
Machining errors in robotics don’t just cause waste. They ripple across entire automation systems. Bad machining affects performance, costs, and customer satisfaction, from poor fit and finish to late delivery.
Precision machining is no longer optional—it’s expected. And only manufacturers with deep control of every machining step can deliver this level of quality. Frigate understands this. That’s why every robotic component that leaves its shop meets strict accuracy, stability, and finish requirements. Get Instant Quote today. Get precision parts delivered on time—with no tolerance for error.
