How does precision machining in semiconductor industry drive equipment performance?

How does precision machining in semiconductor industry drive equipment performance?

Table of Contents

The semiconductor industry is one of the most dynamic and technologically advanced sectors globally. As the backbone of every modern electronic device, it faces constant pressure to innovate, reduce production costs, and improve device performance. Semiconductor manufacturers are continuously pushed to meet the growing demand for smaller, more efficient components, enabling everything from smartphones to automotive systems to operate seamlessly.

In this competitive environment, precision machining in semiconductor manufacturing plays a pivotal role in driving the performance and reliability of the equipment. Precision machining in semiconductor is not just about shaping materials to size—it’s about enhancing functionality, minimizing failure rates, and maximizing operational efficiency. The smallest imperfections in parts, tolerances, and geometries can lead to significant disruptions in semiconductor manufacturing processes. Therefore, semiconductor manufacturers must turn to precision machining to meet tight production timelines, maintain high-quality standards, and stay ahead of the technological curve.

What is the Role of Precision Machining in Semiconductor Industry?

Advanced Material Processing for Semiconductors

Semiconductor materials like silicon, gallium arsenide, and compound semiconductors require precise machining to maintain their electrical and thermal properties. These materials are often used in high-performance applications where heat dissipation and structural integrity are critical. Precision machining in semiconductor helps create microstructures such as microchannels and vias, which ensure efficient heat management and electrical conductivity.

Machining techniques like laser ablation, EDM, and micro-milling allow for micro- to sub-micron precision, ensuring that the material properties remain intact while achieving the required performance in advanced devices.

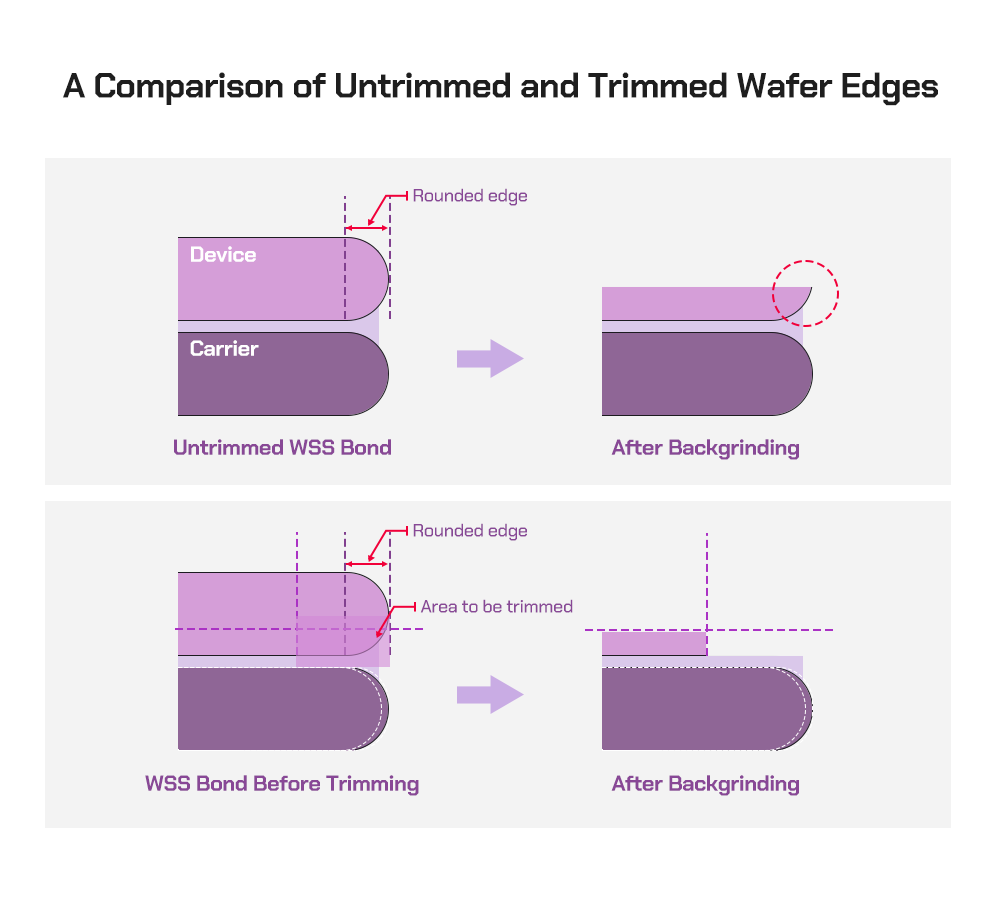

precision machining in semiconductor

Sub-Micron Tolerances & Dimensional Accuracy

In semiconductor manufacturing, tolerances of 1 to 5 microns, and sometimes even tighter, are essential for device functionality. Even a slight deviation can cause misalignment or defects that impact the device’s overall performance. For example, uniform wafer thickness is crucial to avoid defects that reduce yield, and precise surface features ensure components fit perfectly within their systems.

Achieving these tight tolerances requires advanced CNC machines, high-precision spindles, and real-time feedback systems that ensure accuracy and consistency throughout production.

Integration of Complex Geometries into Semiconductor Equipment Design

As semiconductor components become more miniaturized, their design has grown more complex. Modern components require intricate geometries, such as micro interconnects, fine holes, and 3D shapes. These designs optimize semiconductor device power efficiency, signal transmission, and heat management.

Machining techniques like multi-axis CNC milling, EDM, and laser micromachining allow precision creation of these complex geometries. CAD/CAM software aids in optimizing designs for manufacturability, ensuring components meet tight performance requirements.

Material Performance Under Extreme Conditions

Semiconductor components often operate under extreme conditions, such as high temperatures, electrical stress, and radiation. For example, power semiconductors in electric vehicles can exceed temperatures of 150°C, while aerospace devices are exposed to harsh radiation.

Precision machining in semiconductor ensures that materials like silicon carbide (SiC) and gallium nitride (GaN) maintain their performance under these extreme conditions. Machining techniques like grinding and polishing minimize defects, preserving the material’s integrity and ensuring long-term reliability in high-demand environments.

How Precision Machining Enhances the Performance of Semiconductor Components

Minimizing Systemic Failures Through Precision Tolerances

Even the smallest deviation in component dimensions can lead to significant systemic failures in semiconductor equipment. Misalignments, dimensional inconsistencies, or improperly fitted parts may disrupt entire systems, reduce yield rates, and escalate production costs. Precision machining in semiconductor ensures that every component meets sub-micron tolerances, guaranteeing a seamless fit for each part. This precision minimizes the chances of mechanical failure, operational errors, and downtime across the system.

Achieving sub-micron tolerances requires advanced CNC machines capable of high-speed and highly accurate cutting. Integrating precision measurement systems, like laser interferometers and optical scanners, ensures that each part adheres to the strictest specifications. These processes prevent misalignment or malfunction in intricate semiconductor devices, ultimately ensuring superior system reliability and long-term operational success.

Optimization of Thermal Management Systems

Effective thermal management is crucial in semiconductor systems, particularly high-performance chips, which generate large amounts of heat during operation. Without proper heat dissipation, performance is compromised, and the lifespan of the components is drastically reduced. Precision machining in semiconductor contributes significantly to optimizing thermal management by enabling the production of complex features such as microfluidic channels, advanced heat sinks, and optimized cooling mechanisms.

Heat dissipation components require high levels of precision to ensure the smooth flow of heat away from critical semiconductor devices. Machining techniques like micro-milling and electrical discharge machining (EDM) allow for the creation of small, intricate features that enhance the thermal conductivity of materials, enabling the design of more effective cooling systems. These methods help produce microchannels with uniform dimensions, ensuring that heat is managed effectively, thus extending the life and reliability of semiconductor devices.

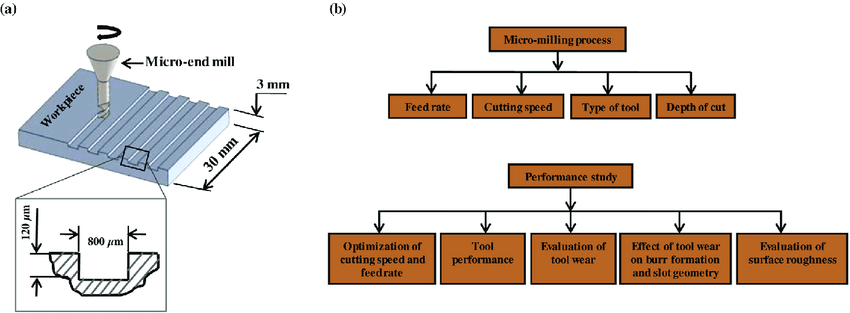

micro-milling techniques

Surface Integrity and Functionality of Components

Surface integrity plays a critical role in the performance and longevity of semiconductor components. High-quality surface finishes reduce friction and wear, compromising the function of components such as microchips, sensors, and connectors. Furthermore, a smooth surface is essential for maintaining electrical conductivity, vital for the accurate operation of semiconductor devices.

To achieve the required surface finishes, semiconductor components undergo precise grinding, polishing, and coating processes. These techniques not only ensure a flawless surface but also enhance the electrical properties of the material. For example, manufacturers can use precision grinding to achieve a high surface finish that reduces contact resistance in microelectronic components, improving both efficiency and reliability. Reducing contaminants and enhancing material strength through surface integrity ensures that each component performs optimally in its application.

Frigate uses advanced surface finishing techniques such as precision grinding and polishing to ensure each component meets stringent surface quality standards. These processes are designed to minimize wear, reduce friction, and enhance electrical conductivity, ensuring that semiconductor components perform optimally in their applications. Frigate’s precise surface finishing enhances components’ durability and operational reliability, reducing the risk of performance degradation over time.

High Throughput & Low Variability in High-Volume Production

High-volume semiconductor production requires maintaining low variability across thousands of components. Even minute inconsistencies in size, shape, or material properties can lead to defects, impacting the final product’s performance. Precision machining in semiconductor ensures that each component is produced to exacting standards, thereby minimizing variability in high-volume manufacturing runs.

Automated systems with advanced feedback loops, such as in-process measurement systems, are crucial in maintaining consistent quality. High-throughput production relies on these systems to perform real-time quality checks, ensuring that each part meets dimensional, structural, and material specifications. The capability to produce large quantities of parts with minimal variation is essential in keeping production costs low while ensuring that all parts contribute to the overall reliability and functionality of the semiconductor equipment.

Innovation in Machining for Miniaturized Semiconductor Components

The miniaturization of semiconductor components has become an essential trend as devices get smaller but more powerful. These tiny components must still deliver top-tier performance while meeting high functional and durability standards. As components shrink, precision machining in semiconductor becomes increasingly important to maintain the required dimensional accuracy, material integrity, and complex feature integration.

Miniaturized components demand specialized tools, such as micro-machining spindles, laser-based processes, and precision EDM, to produce complex geometries at the micro and nanoscale. These advanced machining methods allow for producing small yet highly intricate features, such as microholes, vias, and interconnects, which are crucial for modern semiconductor devices. Moreover, precision machining in semiconductor ensures that these minuscule components retain their structural integrity and electrical properties despite their small size.

This capability to manufacture components at such a small scale enables advancing cutting-edge technologies like mobile devices, wearables, and IoT (Internet of Things) applications, where performance and size are critical factors.

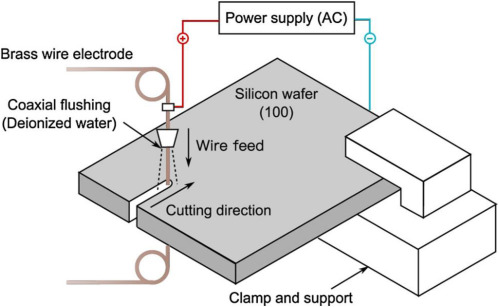

EDM semiconductor

Conclusion

Precision machining is key to improving the performance and reliability of semiconductor components. It minimizes systemic failures through tight tolerances, optimizes thermal management, and ensures surface integrity, all essential for efficient and durable semiconductor devices.

Frigate’s high-precision equipment, advanced technologies, and rigorous quality control help semiconductor manufacturers meet the increasing demands for miniaturization, performance, and reliability. Get Instant Quote today to learn how our precision machining in semiconductor can elevate your manufacturing process.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

What challenges are associated with machining high-hardness semiconductor materials like gallium arsenide and silicon carbide, and how does Frigate address these challenges?

Gallium arsenide and silicon carbide have high hardness and thermal conductivity, making them prone to cracking and chipping during machining. These materials also require precise temperature control to avoid thermal damage. Frigate mitigates these challenges using advanced diamond-coated cutting tools and precise coolant systems to minimize heat buildup, prevent material degradation, and ensure dimensional accuracy. Additionally, we optimize feed rates and cutting speeds to balance material removal rates with tool life.

How does Frigate optimize thermal management components in semiconductor devices using precision machining techniques?

Thermal management in semiconductors requires intricate features like microchannels, heat sinks, and fins. Frigate utilizes micro-milling and laser ablation techniques to create sub-micron features with high aspect ratios, ensuring efficient heat dissipation. By machining precise geometries and using high-conductivity materials, we ensure optimal thermal management, reducing the risk of thermal runaway and improving the device’s lifespan under high-performance conditions.

What advantages does micro-milling offer over traditional CNC machining for high-precision semiconductor components?

Micro-milling allows for producing features as small as 10 microns, essential for creating complex microstructures in semiconductor components. Unlike traditional CNC machining, micro-milling utilizes smaller tool sizes and higher spindle speeds to achieve fine detail without compromising accuracy. Frigate leverages micro-milling to produce high-aspect-ratio geometries, complex microstructures, and sub-micron tolerances, essential for the high-precision requirements of semiconductor manufacturing.

How does Frigate ensure low variability and high consistency in high-volume semiconductor production runs?

Maintaining low variability is crucial for ensuring consistent performance across large batches in high-volume production. Frigate employs closed-loop process control systems, integrating real-time metrology feedback into our CNC machines. This ensures that every part is machined with consistent dimensions and surface quality. Additionally, we utilize automated inspection systems, such as in-line coordinate measuring machines (CMMs) and laser scanners, to monitor and adjust machining parameters in real-time, ensuring minimal deviations across thousands of components.

What surface finish specifications are required for semiconductor components, and how does Frigate achieve them?

Surface finishes in semiconductor components must meet stringent specifications to ensure optimal electrical conductivity, minimal wear, and reduced friction. For example, microchips require a mirror-like finish with roughness values as low as Ra 0.05 µm. Frigate uses precision grinding, polishing, and laser finishing techniques to achieve these ultra-smooth surfaces. Our advanced surface metrology tools, including atomic force microscopy (AFM), ensure that the required surface finishes are met without introducing material defects that could compromise performance.

How does Frigate address the machining of components with complex geometries for miniaturized semiconductor devices?

Miniaturized semiconductor devices require intricate geometries, such as microfluidic channels, undercuts, and deep cavities, which are challenging to machine with traditional methods. Frigate employs multi-axis CNC machining and laser-assisted manufacturing techniques to produce complex 3D shapes with high precision. Using CAD/CAM systems, we can simulate machining paths and optimize tool paths for maximum efficiency, ensuring that even the most complex features are accurately produced within sub-micron tolerances.

What metrology systems does Frigate use to achieve sub-micron precision in semiconductor machining?

Frigate employs a range of advanced metrology systems to ensure sub-micron precision. These include laser interferometers, optical profilers, and high-accuracy CMMs with sub-micron resolution. Additionally, we utilize non-contact measurement tools like confocal microscopes and white light interferometers to inspect critical features without introducing measurement errors. These systems allow for real-time dimensions monitoring, ensuring that every part meets the strict tolerances required for semiconductor manufacturing.

What specific challenges does Frigate face when machining materials for semiconductor components that must operate under high radiation or electrical stress?

Materials used in semiconductor components exposed to radiation or electrical stress must maintain structural integrity and performance. Machining these materials requires precision to avoid introducing microcracks or altering the material properties. To minimize thermal impact, the frigate addresses these challenges by using specialized cutting techniques, such as slow-feed machining and low-temperature cutting methods. We also carefully select materials with radiation-resistant properties and employ post-machining processes like stress-relief annealing to enhance material resilience under extreme conditions.

How does Frigate’s precision machining technology contribute to the high reliability of semiconductor packaging?

Semiconductor packaging requires extremely tight tolerances to ensure secure connections and prevent thermal cycling failures. Frigate’s precision machining capabilities allow us to manufacture intricate packaging components with sub-micron accuracy, such as lead frames, substrate holders and interconnects. Using advanced CNC machining and laser cutting, we ensure precise alignment and minimal gap tolerances between the components, which is critical for maintaining semiconductor packages’ long-term reliability and performance.

What is Frigate’s approach to machining semiconductor components that require hybrid materials or multi-material assemblies?

Hybrid and multi-material assemblies are increasingly common in semiconductor components to optimize performance by combining materials with different properties. Frigate uses specialized tooling and techniques to machine materials with different hardness levels, such as combining metal substrates with ceramic insulators or thermally conductive materials. Our approach involves selective tool changes, precision coolant management, and multi-pass machining to ensure that the integrity of each material is preserved while achieving the required functional geometry. We also employ specialized assembly methods to maintain tight tolerances across all materials in the final component.
