Precision machining environments operate within extremely tight tolerances. Tool life, cutting efficiency, and surface integrity are all interconnected—often hinging on one overlooked variable – the behavior of coolants and lubricants in machining.
Fluid behavior during high-speed cutting critically influences thermal load, chip evacuation, surface finish quality, and tool wear. Yet, many operations continue to treat coolants and lubricants in machining as consumables, not process-defining inputs. This oversight directly impacts productivity and cost efficiency.
According to a study by SME, fluid-related inefficiencies can contribute up to 20% of total machining costs, especially in high-volume or multi-material operations. When properly engineered and monitored, coolants and lubricants in machining can increase tool life by over 200%, reduce thermal distortion, and ensure superior dimensional control.
This blog explores advanced strategies—backed by real-time analytics and process modeling—that Frigate applies to maximize fluid efficiency and extend tool lifespan in modern CNC machining environments.

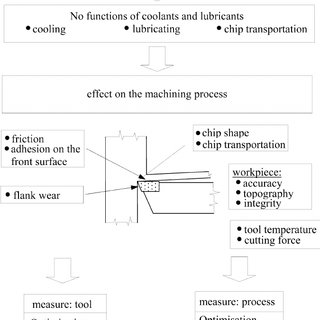

What is the Importance of Coolants and Lubricants in Machining?
During CNC machining, the cutting tool and workpiece interaction generates intense heat and mechanical stress. As cutting speeds increase and tolerances become tighter, the need for effective coolants and lubricants in machining becomes beneficial and essential to part quality and production efficiency.
Thermal and Mechanical Challenges in the Cutting Zone
The tool-workpiece interface is subjected to extreme conditions –
- Frictional heat reaches temperatures up to 800°C in high-speed operations.
- Shear deformation in the chip formation zone increases tool wear rates.
- If not properly managed, localized stress concentrations at the cutting edge lead to premature tool failure.
Without adequate heat dissipation and lubrication, this environment results in –
- Rapid tool degradation from edge chipping, crater wear, or flank wear.
- Dimensional instability, especially in high-precision parts where thermal expansion distorts geometry.
- The workpiece has microstructural damage, such as heat-affected zones (HAZ), microcracks, and residual stresses.
- Excessive tool changeovers, which increase downtime and reduce spindle utilization.
Role of Coolants in CNC Machining
Coolants serve the primary function of thermal control. They –
- Absorb and remove heat from the tool and workpiece interface.
- Prevent thermal softening of cutting edges, particularly in carbide and ceramic tools.
- Help flush away chips from the cutting zone, reducing the chances of chip re-cutting and tool entrapment.
Coolants can penetrate complex tool geometries in high-pressure through-spindle systems, ensuring effective heat management in deep-hole drilling and pocket milling applications.
Role of Lubricants in Machining
Lubricants in machining act at the micro-contact level, reducing metal-to-metal interaction. Their functions include –
- Lowering the coefficient of friction between the tool and workpiece material.
- Enhancing chip evacuation in ductile materials like aluminum, copper, and stainless steel.
- Preventing built-up edge (BUE) formation, especially in sticky materials prone to adhesion.
- Reducing cutting forces and torque improves energy efficiency and prolongs machine spindle life.
The effectiveness of a lubricant depends on its formulation—EP (extreme pressure) additives, viscosity, chemical stability, and compatibility with tool coatings (e.g., TiAlN, DLC).
Synergistic Effect of Coolants and Lubricants
While coolants and lubricants in machining can be delivered separately or as emulsions, their combined effect is critical –
- Temperature regulation at the cutting edge maintains the hardness and geometry of the tool.
- Extended tool life, especially in coated tools, by minimizing wear modes such as abrasion and diffusion.
- Improved surface finish due to lower tool deflection and cleaner cutting action.
- Enhanced metallurgical integrity, especially in aerospace and medical parts requiring post-machining inspections like FPI or X-ray.
In operations like high-speed milling, dry turning, or hard part machining, the selection and delivery of coolants and lubricants in machining directly influence process capability indices (Cp, Cpk) and rejection rates.
Operational and Economic Impact
Neglecting the fluid strategy results in –
- Process instability, as tool condition becomes unpredictable.
- Increased scrap rates are due to thermal warping or surface anomalies.
- Higher production costs are due to unplanned downtime and premature tool replacement.
- Reduced Overall Equipment Effectiveness (OEE), particularly in multi-machine environments.
On the other hand, a well-engineered fluid management system contributes to –
- 30–50% increase in tool life
- Up to 15% reduction in energy consumption per cycle
- Consistent surface quality that meets GD&T tolerances
Best Practices for Using Coolants and Lubricants in CNC Machining
Coolants and lubricants in machining are critical components in the manufacturing process. The right fluids improve tool life, surface finish, cycle times, and part accuracy. At Frigate, fluid management goes beyond selecting the right coolant; it’s a sophisticated, data-driven process that integrates with machine operations to optimize performance.
Each step is customized to match the unique characteristics of the machine, material, and tooling, ensuring that thermal and mechanical stability is maintained throughout the machining process.
Engineering-Based Fluid Selection for Material and Process Variables
Different materials and tools react differently to thermal and mechanical loads. Fluid selection must be made with the material–tool–operation combination in mind. Frigate uses a tailored approach to fluid selection based on the following key factors –
- Material Properties – For example, titanium (Ti6Al4V) has low thermal conductivity (6.7 W/m·K), which leads to heat buildup at the cutting edge. This material requires high-pressure emulsions with strong thermal capacity. In contrast, aluminum alloys such as 6061-T6, which conduct heat more efficiently (167 W/m·K), can benefit from synthetic lubricants in machining that help reduce chip welding and oxidation.
- Tool Materials and Coatings – Coated tools (e.g., PVD TiAlN or CVD Al₂O₃) need fluids that do not degrade the coating. Certain fluids, like high-sulfur oils, can corrode TiN coatings, while chloride-based emulsions can damage AlTiN coatings over time.
- Machining Dynamics – High-speed finishing operations require low-viscosity fluids for optimal chip removal, while low-speed, high-load operations benefit from fluids designed for extreme pressure (EP) conditions.
- Operation Type – Different machining operations—roughing, finishing, drilling, etc.—have distinct cooling needs. Roughing operations, for example, require aggressive cooling and efficient chip evacuation, while finishing operations focus on lubrication for superior surface integrity.
Frigate ensures that each combination of material, tool, and operation gets the correct coolant or lubricant, maximizing tool life, reducing wear, and ensuring high-quality parts.
Treating Coolant Flow as a Dynamic Process Variable
At Frigate, coolant flow is not treated as a fixed parameter but as a dynamic process variable. Fluid delivery is adjusted in real time based on the following –
- Engagement Geometry – The contact area between the tool and workpiece changes as the tool moves, leading to varying thermal loads. Frigate uses CAD-based analysis to predict heat zones and adjusts coolant flow accordingly.
- Spindle Speed and Feed Rate – Higher spindle speeds generate more heat, requiring greater coolant flow. On the other hand, slower, more forceful cuts need fluids with higher film strength.
- Complex Tool Paths – Tight cavities, deep holes, and complex geometries require carefully targeted coolant delivery to ensure efficient chip removal and cooling. Frigate adjusts the flow and pressure to ensure the machining zone stays properly lubricated.
Frigate uses smart coolant systems integrated with machine controls, dynamically adjusting coolant flow, pressure, and delivery angles based on real-time cutting conditions.
Thermographic Modeling and Predictive Fluid Dynamics
Heat distribution during machining is complex, with localized hotspots often forming even with proper fluid application. These hotspots can lead to premature wear, especially in interrupted cuts or challenging tool paths. Frigate combats this issue through advanced technologies like –
- Finite Element Analysis (FEA) – This tool simulates thermal gradients and fluid flow based on various machining conditions to predict where heat will accumulate.
- In-situ Thermal Imaging – Frigate uses infrared cameras to capture real-time temperature data from the tool–chip interface during machining. This allows for immediate adjustments in coolant delivery.
- Predictive Algorithms – These algorithms analyze thermal history, enabling Frigate to proactively adjust coolant flow and pressure.
With these advanced technologies, Frigate ensures precise temperature control throughout machining, maintaining consistent tool performance and part quality.

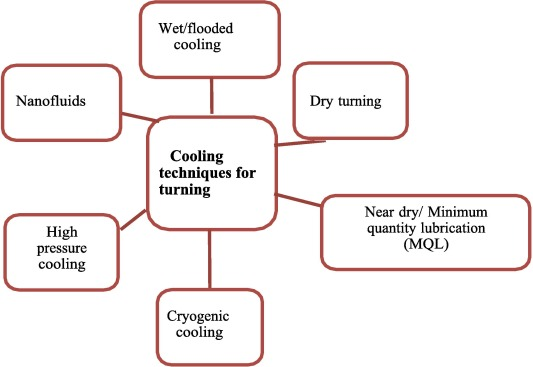

Multi-Modal Lubrication for Complex Part Geometries
For complex parts, a single lubrication strategy often isn’t sufficient. Modern components, especially those in aerospace, automotive, and medical industries, require different lubrication strategies for different regions of the part. Frigate uses a multi-modal fluid delivery system that combines various lubrication methods for different machining operations –
- Flood Cooling – Used for bulk material removal during roughing operations.
- Through-Spindle Coolant (TSC) – Ideal for deep-hole drilling and operations with high aspect ratios.
- Minimum Quantity Lubrication (MQL) – Used for dry or near-dry machining of softer metals like aluminum.

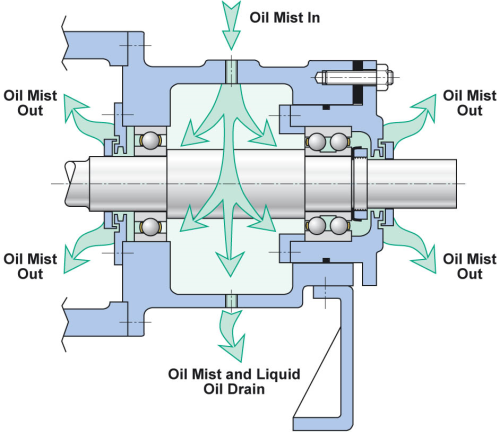

- Air-Oil Mist Systems – For inaccessible areas and delicate tools.
- Cryogenic Cooling – Used in tough-to-machine materials like nickel-based alloys.
By tailoring the lubrication method to each part of the machining operation, Frigate ensures both tool longevity and superior surface quality.
Inline Fluid Monitoring and Predictive Maintenance
The degradation of coolant and lubricant is often gradual, and problems like bacteria growth or particle buildup can affect the machining process. Frigate’s system includes real-time fluid monitoring to detect these issues before they become major problems. The system uses –
- Refractometers to measure fluid concentration in real time.
- pH and conductivity sensors to monitor chemical stability.
- Digital Bacterial Sensors to detect microbial growth.
- Integrated Dashboards to monitor fluid health and usage data.
With these monitoring tools, Frigate can predict when fluid replacement is necessary and take proactive steps to ensure optimal fluid performance. This predictive approach reduces downtime and increases machining consistency.
Coating-Specific Fluid Chemistry
Tool coatings, such as TiN, AlTiN, and DLC, improve cutting efficiency but can be sensitive to certain cool and lubricant chemicals. Frigate ensures fluid compatibility with coatings by considering –
- pH Compatibility – Some coatings react poorly with high-pH fluids, leading to degradation.
- Additive Chemistry – Sulfur, chlorine, and other additives can corrode or degrade coatings if not properly managed.
- Surface Tension – The correct surface tension of the fluid ensures effective lubrication and cooling without compromising the integrity of the coating.
Coating-specific fluid chemistry minimizes wear and extends tool life by maintaining the tool surface optimally.
Environmental Stewardship in Fluid Use
Sustainability is key to modern manufacturing. Frigate is committed to using environmentally friendly practices while maintaining optimal machining performance. Its fluid management strategy includes the following –
- Zero-VOC Fluids – These fluids produce fewer harmful fumes, ensuring a safer environment for operators.
- Mineral-Free Fluids – Reducing the environmental impact while maintaining high performance.
- Recyclable Synthetics – Fluids that last longer and can be recycled, reducing overall waste.
- Closed-Loop Coolant Systems – These systems reclaim coolant, reducing the need for disposal and cutting costs by up to 60%.
Frigate’s fluid management strategy helps minimize environmental impact while ensuring high performance and compliance with regulations.
Automation and Operator-Independent Fluid Management
Human error can introduce variability in coolant application, but Frigate’s automated fluid management system removes this risk. The system includes –
- Automated Mixing Units – These ensure the correct concentration of fluids within ±0.5%.
- Sensor-Driven Controllers – Automatically adjusts flow and pressure based on machining conditions.
- Digital Fluid Usage Tracking – Automatically orders new fluids when needed, preventing shortages or incorrect mixtures.
With automation, Frigate ensures consistent fluid performance across shifts, leading to uniform part quality and minimized tool wear.
Conclusion
Coolants and lubricants in machining are integral, but their effectiveness relies on careful selection, precise delivery, and ongoing management. Frigate’s approach to lubricants in machining combines advanced technologies, real-time monitoring, and process integration to optimize every aspect of fluid use—from selection to disposal. This improves tool life and part quality and ensures operational efficiency and sustainability.
