Achieving Precision in Miniature Components with Micro CNC Machining

Tamizh Inian

April 30, 2025

The demand for miniature components continues to rise across various industries such as aerospace, medical, electronics, and automotive. As these industries push towards more compact designs, highly precise, small-scale components are essential. These miniature parts often require tight tolerances, sometimes reaching micron levels, and must be created impeccably. In response, manufacturers are turning to Micro CNC Machining, a cutting-edge technology that delivers exceptional precision for miniature components.

Micro CNC Machining allows for the creation of intricate and detailed parts with remarkable accuracy, exceeding the capabilities of conventional machining. This technology can produce parts smaller than a grain of rice, with tolerances as tight as 1 micron. According to industry data, the market for micro machining is projected to grow substantially, with demand for high-precision components expected to drive innovation in the field. This blog will explore how micro CNC machining achieves precision and transforms industries that are dependent on miniature components.

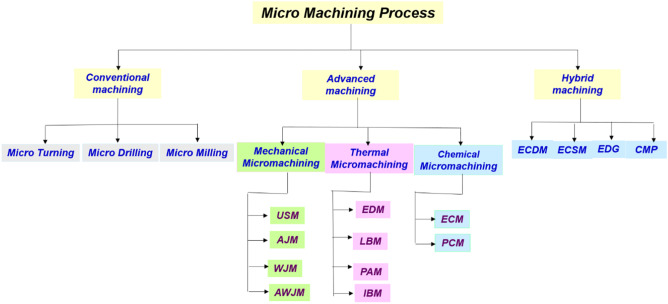

What is Micro CNC Machining?

Micro CNC Machining is an advanced manufacturing process designed to produce extremely small components with high precision, often down to the micrometer scale (1 micron = 0.001mm). Unlike traditional CNC machining, which handles larger parts with tolerances of 0.1mm or more, Micro CNC Machining works with parts as small as 10 microns, achieving tolerances within the micrometer range.

This process combines high-speed spindles, tiny cutting tools, and sophisticated software to create intricate geometries and complex features. Micro CNC Machining is used in industries like microelectronics, medical devices, aerospace, and precision instruments, where every millimeter—or even micrometer—matters. For instance, medical devices such as micro needles or sensors can be produced with tolerances as tight as ±5 microns.

As the demand for miniaturized products grows, the global micro machining market is expected to expand at a CAGR of 6.5%, driven by sectors requiring high-precision, small-scale components.

How Does Micro Machining Differ from Conventional Machining?

Micro CNC Machining differs from conventional machining methods due to the scale and precision required. Both rely on CNC technology, but micro machining is designed to address the challenges of producing miniature components at the micrometer scale.

Scale of Precision

Micro CNC Machining operates on parts as small as a few microns, achieving tolerances as tight as 1 micron. At the same time, conventional CNC machines work with parts ranging from millimeters to several centimeters and typically have tolerances of 0.1mm or larger.

Micro CNC machining can achieve tolerances as fine as 1 micron (0.001mm), essential for aerospace and medical devices.

Conventional CNC machining typically works within a tolerance range of 0.1mm or more, suitable for larger components.

Precision parts in micro machining must be manufactured with extremely tight tolerances for high-performance applications, where even the smallest variation can cause failure.

The difference in scale allows micro machining to produce highly intricate parts that conventional methods simply cannot match, making it ideal for industries where accuracy is crucial, such as in microelectronics or biomedical devices.

Tooling Requirements

Micro CNC Machining uses specialized miniaturized tooling, such as micro drills and ultra-fine end mills, often smaller than 0.1mm in diameter. These tools are delicate and require meticulous handling to avoid wear and breakage.

Micro tools are extremely small, often less than 0.1mm in diameter, and require precision handling.

The fragile nature of micro tools requires specific cutting speeds and feeds to avoid tool failure.

Specialized tools like micro drills, micro reamers, and miniaturized end mills make detailed cuts in tiny components.

In contrast, conventional machining tools are larger and designed for bulk material removal, making them more resilient and better suited for handling standard-sized components. However, these larger tools cannot achieve the fine details required in micro machining.

Cutting Path Complexity

Micro CNC Machining involves intricate cutting paths to produce fine details for miniature components. This process accounts for additional factors like tool deflection, vibration, and thermal effects, which are crucial for maintaining precision.

Cutting paths in micro machining are much more complex, requiring precision adjustments for the smallest deflections.

Vibration and tool deflection are minimized by using advanced software and vibration damping technologies.

Thermal expansion and material deformation are accounted for during the cutting process.

In conventional machining, cutting paths are relatively simpler, as the size and material properties of the parts allow for less precision in path planning. This results in faster, less complex operations for larger components.

Material Properties

At the micro scale, materials behave differently. They are more sensitive to heat, stress, and deformation, requiring advanced cooling systems and precision tool management. Conventional machining does not face the same challenges because larger materials are more resilient during the machining process.

Micro materials are more sensitive to heat and stress, making them prone to warping or damage during machining.

Advanced cooling techniques are used in micro CNC machines to keep tool and part temperatures stable and prevent material deformation.

Materials like medical-grade alloys or semiconductors require special handling to avoid contamination or damage at the microscopic level.

In contrast, conventional machining typically uses bulk materials that do not require such advanced cooling or delicate handling. These materials are more robust during the machining process.

Tool Wear and Thermal Management

Tool wear in micro machining is accelerated due to the delicate nature of the tools. Micro CNC machines have advanced cooling systems to ensure parts remain precise during production, avoiding thermal distortion.

Tool wear is faster in micro machining due to tools’ smaller size and fragility.

Cooling systems are critical for maintaining tool life and accuracy during cutting.

Thermal distortion is minimized using advanced liquid or air cooling systems designed specifically for micro components.

Conventional machining tools are larger, so they do not experience the same wear and heat generation level. As a result, thermal management is less critical in conventional machining processes.

Surface Finish and Finish Quality

Micro CNC Machining results in parts with exceptionally smooth surface finishes. The finer tools and advanced machining techniques minimize imperfections, achieving roughness values below 0.05 microns. This is ideal for applications where high-quality surface finishes are critical.

Micro machining produces surface finishes with roughness values below 0.05 microns—critical for precision instruments and components.

Advanced tool control ensures a high level of finish with minimal post-processing required.

Surface quality is essential for applications where friction, wear resistance, or aesthetic quality is paramount.

In contrast, conventional machining often leaves a rougher finish, which may require additional processes like polishing or coating to achieve the desired quality. Micro machining avoids these extra steps by producing the finish directly during cutting.

How to Achieve Precision in Miniature Components with Micro CNC Machining?

Achieving precision in miniature components requires a combination of advanced methods, specialized equipment, and expertise. Micro CNC Machining stands out as an ideal process for producing highly accurate and intricate miniature parts, thanks to its ability to handle complex geometries and maintain micron-level tolerances. Frigate excels in this domain, ensuring high-precision results for industries with stringent requirements. Below are the key techniques and factors involved in ensuring the high precision of micro-scale components:

Use of Specialized Micro Tools

Micro tools are essential for producing precise cuts in miniature components. These include miniature end mills, micro drills, and precision cutting bits specifically designed for ultra-fine cutting. Frigate uses these specialized tools to maintain accuracy in parts that may be smaller than 1mm in size.

Miniature end mills and micro drills are often smaller than 0.1mm in diameter, enabling fine features and precise geometries to be carved out.

Tool deflection is minimized through careful selection and cutting parameters, ensuring that even delicate materials can be machined without deformation.

Precision cutting bits maintain sharpness and minimize wear, ensuring consistent part quality through machining.

These specialized tools are engineered to withstand the unique demands of micro machining, which involves precise handling and cutting of fragile materials without compromising part quality.

High-Speed Spindles

High-speed spindles are critical in achieving high precision during Micro CNC Machining. These spindles can operate at speeds exceeding 100,000 RPM, providing the fast and accurate cutting capabilities needed to create miniature parts with intricate features. At Frigate, high-speed spindles are integral to ensuring smooth and efficient machining of tiny components.

High-speed spindles reduce the risk of excessive heat generation, which can distort tiny parts and compromise their dimensional accuracy.

The fast rotation ensures smooth cutting at a microscopic scale, enabling the production of detailed surfaces without the need for extensive post-processing.

Faster cuts allow manufacturers to increase production efficiency without sacrificing the precision needed for miniaturized components.

Operating at such high speeds makes the machining process much more efficient, enabling faster production times while maintaining the fine tolerances required for precision parts.

Advanced CNC Software

Advanced CNC programming software is integral to achieving precision in Micro CNC Machining. Frigate utilizes state-of-the-art CNC software that enables the creation of complex toolpaths to guide micro tools precisely, even when dealing with components requiring micrometer-level tolerances.

To ensure accuracy, software algorithms generate optimized toolpaths that account for tool wear, vibrations, and material characteristics.

The software can simulate and adjust dynamically for dynamic factors, such as tool deflection, thermal expansion, and cutting forces, improving overall precision.

Automated compensation features ensure that the toolpath accounts for slight shifts or changes in the tooling, ensuring precision is maintained throughout the machining process.

By leveraging sophisticated CNC software, Frigate can manage the complexities of micro machining, reduce errors, and achieve exceptional precision in the finished product.

Machine Calibration and Alignment

For Micro CNC Machining to deliver the highest precision, proper machine calibration, and alignment are essential. Even the smallest misalignment can cause dimensional errors, which is particularly detrimental when working with miniature components. At Frigate, regular calibration ensures that all machines operate within the required tolerances for precision micro machining.

Frequent calibration ensures that every component of the CNC machine, including the spindle, tool holders, and axes, is properly aligned.

Laser-based calibration systems adjust machine parameters to the micro scale, ensuring that every movement is accurate within microns.

Reduced machine errors from misalignment translate directly into more consistent, high-quality parts with reduced scrap rates.

Regular machine maintenance, including alignment checks, ensures the CNC machine operates within its specified tolerances, allowing for high precision in every part produced.

Precision Cutting Paths

The design of the cutting path is one of the most critical aspects of achieving high precision in Micro CNC Machining. At Frigate, cutting paths are carefully optimized to ensure each cut is made with the utmost precision, maintaining fine geometries for miniature components.

Toolpath optimization ensures the tool follows the correct path while minimizing tool deflection and vibration.

Cutting paths are specifically designed to account for material behavior, considering how it responds to stress, heat, and cutting forces.

Complex geometries are created by breaking down the part into smaller, more manageable segments, each requiring specific cuts to avoid deformation and ensure precision.

By carefully planning the toolpath and adjusting for factors like tool deflection and material properties, Frigate ensures that parts are produced to exacting standards, maintaining tight tolerances.

Micro Toolpath Simulation

Micro CNC Machining requires meticulous planning and validation to ensure the toolpaths achieve the desired precision. Before machining begins, Frigate runs detailed simulations of toolpaths to predict potential issues, ensuring that no errors are introduced into the machining process.

Simulation software evaluates the programmed toolpaths to identify errors, such as tool collisions, inaccuracies, or unoptimized cutting sequences.

Real-time feedback allows for adjustments in the toolpath to correct for potential misalignments, preventing costly mistakes during machining.

Error detection in the simulation phase reduces the risk of producing defective parts by ensuring that tool paths are optimized for accuracy and efficiency.

Simulating toolpaths in advance saves time, minimizes waste, and enhances overall part quality by addressing any possible issues before machining begins.

Integrated Feedback Systems

Real-time feedback systems are essential in micro machining to maintain consistent precision. At Frigate, these systems continuously monitor various parameters during machining, ensuring the desired level of precision is achieved and maintained.

Integrated sensors monitor critical parameters, such as temperature, cutting speed, and vibration, and send data to the operator or software for immediate adjustments.

Continuous monitoring helps maintain the desired cutting conditions, preventing issues like thermal distortion or excessive tool wear that could compromise precision.

Adaptive control systems can automatically adjust machining parameters, such as feed rates or tool speed, to maintain optimal precision during the cutting process.

By incorporating real-time monitoring and feedback, Frigate ensures that each part is produced precisely, reducing the risk of defects during production.

Advanced Cooling Systems

Micro CNC Machining generates significant heat, especially when operating at high speeds. Uncontrolled heat can cause material distortion or dimensional inaccuracies. Advanced cooling systems maintain the tool’s and the component’s integrity throughout the machining process. Frigate employs advanced cooling systems to prevent heat-related issues during machining.

Microjets and cryogenic cooling systems direct coolants directly onto the cutting zone, helping to prevent overheating and maintaining dimensional stability.

Localized cooling minimizes the risk of heat-related deformations, ensuring that parts remain within their required tolerances.

Advanced thermal management ensures the machining environment is optimized for high-precision cuts, preventing thermal damage to the material and tool.

Advanced cooling technologies are crucial in maintaining the integrity of miniature components, allowing micro CNC machines to operate efficiently without sacrificing precision.

Tight Tolerances and Dimensional Accuracy

Achieving tight tolerances, often as fine as 1 micron, is essential in Micro CNC Machining, particularly for industries like aerospace, medical devices, and microelectronics. These tight tolerances ensure that miniature components function as intended and meet rigorous industry standards. Frigate excels in providing high-precision parts with micron-level accuracy.

Tolerances of 1 micron or better are commonly achieved in micro machining, which is vital for the precise performance of parts in high-stakes industries.

Consistent dimensional accuracy is maintained through precise toolpath planning, machine calibration, and real-time feedback systems.

Error-free parts with tight tolerances are critical for ensuring that components function properly, particularly in medical implants or microelectronics where even the smallest variation can lead to failure.

Maintaining tight tolerances is essential to avoid part failure and ensure that the miniature components perform effectively in their intended applications.

Surface Finish Quality

The surface finish of a miniature component is crucial for its performance and aesthetic quality. Frigate focuses on achieving superior surface finishes, producing smooth, clean, and defect-free surfaces vital for miniature components’ functionality and appearance.

Surface roughness values can be as low as 0.05 microns, ensuring that parts are functionally efficient and visually flawless.

Finer cutting tools and optimized cutting paths contribute to a superior surface finish by reducing tool marks, burrs, or imperfections.

Minimal post-processing is required since the surface quality achieved in the machining process is typically sufficient for high-precision applications.

A high-quality surface finish ensures that the miniature components look good and meet performance standards that may require smooth surfaces for functionality, durability, or biocompatibility.

Conclusion

Micro CNC Machining provides exceptional precision for manufacturing miniature components, making it ideal for medical devices, aerospace, and electronics industries. It achieves tight tolerances, intricate geometries, and superior surface finishes that conventional methods can’t match. While it may come with higher costs and slower processes, precision and material handling advantages make it invaluable for high-performance applications.

If you’re looking for high-quality miniature components with unparalleled precision, Get Instant Quote today to learn how our Micro CNC Machining services can meet your needs.

CNC Machining

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate address tool wear when machining ultra-fine features with Micro CNC tools?

Micro tools are prone to wear due to their small size and high cutting forces. Frigate employs specialized tool coatings like TiAlN (Titanium Aluminum Nitride) to reduce friction and wear. We also implement high-frequency tool condition monitoring using in-process sensors. These sensors detect early signs of tool degradation, ensuring minimal impact on part precision.

What methods does Frigate use to achieve sub-micron tolerances in Micro CNC Machining?

To achieve sub-micron tolerances, Frigate uses high-precision spindles that operate at speeds exceeding 100,000 RPM. Our proprietary multi-axis control systems allow us to fine-tune the tool path. This compensates for thermal drift or mechanical errors, ensuring tolerances down to 0.1 microns are maintained across production cycles.

How does Frigate mitigate thermal deformation in micro-scale parts during high-speed machining?

Micro CNC Machining generates significant heat at high cutting speeds. This can cause material distortion. Frigate uses advanced cooling strategies such as high-pressure microjets and cryogenic cooling. These techniques precisely target the cutting zone, keeping the material and tool temperature stable, which preserves dimensional accuracy and prevents distortion.

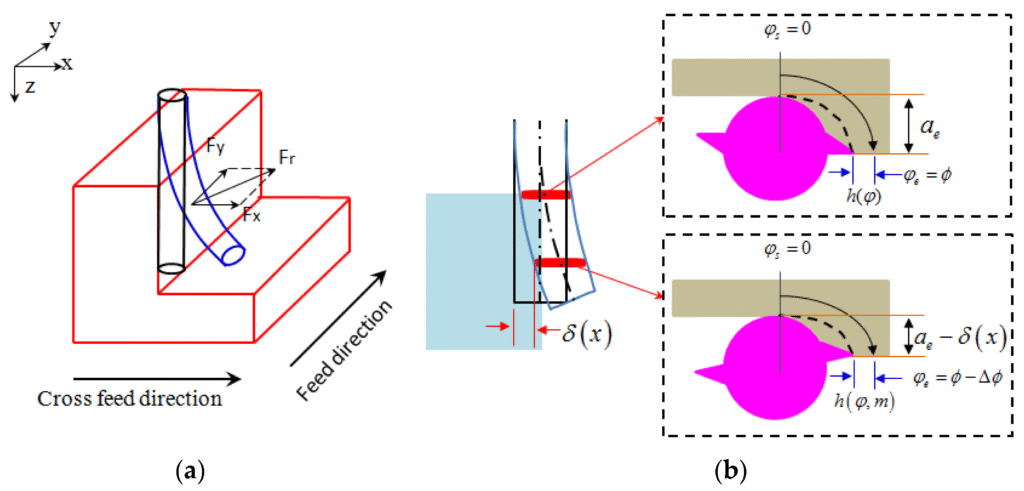

What is Frigate's approach to handling micro tool deflection during the machining of complex microstructures?

Micro tool deflection becomes more prominent with smaller tools. To address this, Frigate uses dynamic toolpath optimization. Real-time feedback from strain gauges embedded in the tooling also helps measure deflection. The system adjusts the machine parameters, such as feed rate and cutting force, to compensate for tool deflection during intricate cuts.

How does Frigate's advanced CNC software enhance precision in machining miniature components?

Frigate uses sophisticated CNC software, including real-time simulation, predictive toolpath modeling, and compensation algorithms. These algorithms predict and correct factors such as tool wear, thermal expansion, and vibration. The software integrates with machine tool monitoring systems to provide continuous feedback, ensuring precise cuts in delicate geometries.

How does Frigate ensure high repeatability in Micro CNC Machining for production runs?

Frigate ensures high repeatability by using high-accuracy motion control systems. We also incorporate thermal compensation mechanisms. Our machines are equipped with advanced linear motors and feedback encoders to track movements at the micron level. After each production batch, we recalibrate and check the alignment accuracy to ensure that every part meets tight specifications.

How does Frigate handle material-specific challenges in Micro CNC Machining, such as the machining of brittle or ductile materials?

Brittle materials like ceramics and ductile materials like aluminum alloys require different machining approaches. Frigate employs slower feed rates and low cutting forces for brittle materials to prevent cracking. We adjust cutting speeds for ductile materials and use tool coatings to minimize deformation. This tailored approach ensures optimal results in precision and surface finish.

What technologies does Frigate use to prevent vibration and chatter during high-speed micro machining?

Vibration and chatter can affect machining precision. Frigate uses vibration damping systems integrated with the machine structure. We also use advanced dynamic balancing of high-speed spindles. Specialized tool holders are designed to absorb vibrations, minimizing their impact on toolpath accuracy and surface finish quality.

How does Frigate manage micro toolpath complexity for high-precision miniature parts?

Toolpath complexity increases when precision is required for micro parts. Frigate uses advanced multi-axis CNC machines that can execute highly complex toolpaths. Our software generates toolpaths for factors like tool flex, machine thermal drift, and material response. This optimization ensures minimal error accumulation during machining.

How does Frigate control for runout and misalignment in high-precision micro CNC machining?

Frigate’s machines are equipped with high-precision rotary encoders and zero-backlash drives to control runout and misalignment. These systems ensure no deviation in tool positioning, even at high speeds. We also use laser calibration systems to verify the alignment of machine axes. This allows us to correct misalignment, ensuring the highest accuracy throughout machining.
