The Ultimate Buying Guide to Ferrite Core Transformers for PCB Designs

Tamizh Inian

May 30, 2025

Modern electronic devices are getting smaller, faster, and more efficient. But as circuit boards shrink, the challenge of placing powerful components into tight spaces grows. One critical part that engineers must get right in these compact designs is the ferrite core transformers for PCB.

Ferrite core transformers for PCB facilitate the safe and efficient transfer of energy within the circuit. They also block unwanted noise and reduce heat. If chosen wrong, they can overheat, create noise, or fail electrical safety tests. That’s why this Ferrite Core Transformers buying guide helps you select the right component for your compact PCB design.

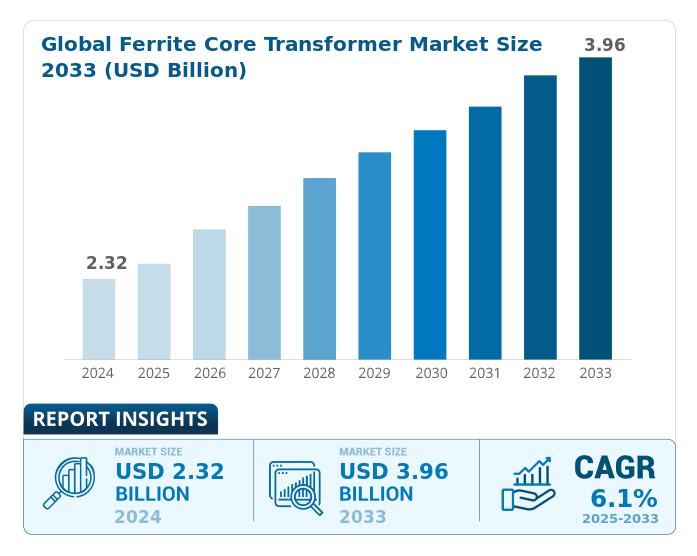

According to a 2023 market report by Research and Markets, the global ferrite core transformer market is projected to reach $3.96 billion by 2033, driven by rising demand in consumer electronics, electric vehicles (EVs), and medical devices.

This blog explains all the important things to look for when buying a ferrite core transformer. It also covers application-specific tips and why Frigate is the right partner for such high-performance components.

Key Considerations While Buying Ferrite Core Transformers

Selecting the right ferrite core transformers for PCBs requires more than just matching size and voltage; it also necessitates considering the specific characteristics of the transformer. It involves balancing magnetic performance, thermal behavior, EMI control, and compliance with safety standards.

As devices shrink and power density rises, transformers must deliver efficiency and reliability in limited space. Poor choices can lead to overheating, noise issues, or regulatory failures.

The following points highlight the critical technical factors that influence transformer performance and long-term viability in high-density electronic systems.

Magnetic Performance Under Space Constraints

In compact PCB designs, every millimeter counts. Ferrite core transformers for PCB must deliver optimal magnetic performance within confined geometries. Factors such as core material type, core dimensions, operating frequency, and flux density directly impact this performance.

Two commonly used ferrite material classes are –

MnZn (Manganese-Zinc) – Exhibits high permeability and low core loss at lower frequencies, typically up to 1 MHz. It’s ideal for power transformers in switch-mode power supplies (SMPS).

NiZn (Nickel-Zinc) – Offers higher resistivity and performs well at frequencies up to 100 MHz, making it suitable for RF transformers and high-frequency signal isolation.

Another critical parameter is the AL value (inductance factor), which denotes the inductance per 1000 turns squared. While a high AL value enables higher inductance in smaller windings, it can also result in increased leakage inductance or core saturation if not managed properly.

Additionally, the saturation flux density (B_sat) of the material should align with the peak flux demands of the circuit. Designing too close to B_sat risks magnetic saturation under load transients, reducing performance and increasing core losses.

For PCB-constrained applications, a balance between core material, shape, and AL value is essential to maintain inductance without oversizing the transformer.

Thermal Load Handling in High-Density Environments

Thermal management is a primary concern in densely populated printed circuit boards (PCBs). Ferrite cores are susceptible to temperature-induced magnetic degradation, particularly beyond their Curie temperature, where the core loses its magnetic properties.

Typical Curie temperatures for ferrite materials are –

MnZn – 120°C to 220°C

NiZn – 200°C to 300°C

In compact applications, the transformer must withstand prolonged thermal stress without performance drift. Key thermal considerations include –

Thermal resistance (R_th) of the core and windings, affecting how effectively heat dissipates to the ambient.

Core loss (P_core), which is frequency- and flux-dependent, contributes to internal heat generation.

Winding loss (P_cu), which increases with current and affects overall temperature rise.

Engineers often introduce air gaps in the magnetic circuit to reduce the effective permeability, enabling better flux distribution and saturation control. However, excessive gapping may reduce inductance and increase stray fields. Proper thermal simulation and derating analysis are critical to ensure performance longevity under varying thermal loads.

Geometry-to-Function Fit for Circuit Topologies

Transformer geometry has a direct impact on electrical performance, winding layout, EMI behavior, and mechanical integration. Matching core geometry to the circuit topology is vital –

EE Cores – Suitable for flyback and forward converters. They provide a good balance between size, ease of winding, and core efficiency.

PQ Cores – Offer high power density in a compact footprint. Ideal for high-frequency SMPS applications.

EP and RM Cores – Minimize leakage inductance and radiated EMI. Often used in medical and communication circuits.

Toroidal Cores – Feature closed magnetic paths, minimizing external field emissions. However, winding is more complex.

Each shape affects –

Winding window area, which dictates how much copper can fit and impacts current handling.

Leakage inductance, affecting switching efficiency and snubber requirements.

Mounting and cooling options, especially in vertical or horizontal board layouts.

Proper core geometry selection improves transformer efficiency, EMI compliance, and mechanical stability.

Precision Winding and Safety Compliance

Transformer winding quality is a determining factor in electrical performance, safety, and noise characteristics. Winding techniques must match the application’s frequency, voltage, and isolation needs.

Some advanced winding strategies include –

Bifilar winding – Two wires wound together to reduce leakage inductance and maintain tight coupling.

Sandwich winding – Interleaving primary and secondary windings to balance magnetic flux and lower parasitic effects.

Triple-insulated wire – Offers reinforced isolation without the need for additional barriers.

For safety-critical applications, transformers must comply with international standards like UL 62368, IEC 60601, and VDE 0884, which define –

Creepage distance – Minimum distance along an insulating surface between conductors.

Clearance distance – Minimum air gap between conductors.

Dielectric withstand voltage – Voltage level a transformer can endure without breakdown.

In medical, industrial, and automotive systems, transformers often require reinforced or double insulation, as well as isolation voltages exceeding 3–6 kV. Proper selection of bobbin material, wire insulation class, and layer insulation is crucial to meet these regulations.

EMI Optimization and Noise Control

Ferrite core transformers for PCB, especially in high-frequency circuits, play a major role in electromagnetic interference (EMI) mitigation. Poor transformer design can lead to excessive conducted and radiated emissions, jeopardizing product certification and system stability.

Key techniques to reduce EMI include –

Use of high-resistivity ferrite materials (like NiZn) for better high-frequency attenuation.

Core shielding using conductive enclosures or internal shields.

Optimized winding layout to minimize stray capacitance and coupling noise.

Careful core gap placement, ensuring magnetic flux remains confined within the core structure.

Transformer EMI performance is also influenced by PCB layout, grounding strategy, and snubber circuits. Compliance with standards such as FCC Part 15, CISPR 11/22, and MIL-STD-461 is often required in commercial, industrial, and defense electronics.

Designers should validate transformer behavior under both conducted and radiated emission conditions, especially in densely packed boards operating above 100 kHz.

Customization, Lifecycle, and Sourcing

Design requirements in modern electronics often fall outside standard specifications. Custom ferrite core transformers for PCB are necessary when –

The footprint or height must fit non-standard PCB layouts.

Unique voltage or power levels are involved.

There’s a need for special insulation systems or ruggedized enclosures.

However, custom Ferrite Core Transformers for PCB introduce challenges in supply chain reliability, cost control, and manufacturing scalability.

Key considerations include –

Material availability – Core materials and magnetic wire must be available over the product’s lifetime (5–10 years or more in some industries).

Tooling and prototyping timelines – Long lead times can delay product launches.

Vendor capability – Suppliers must support both low-volume engineering builds and high-volume production, ensuring consistency across all lots.

Component obsolescence is another concern. Core shapes or materials may be discontinued due to market shifts. Long-term planning, including alternative sourcing strategies, second-source approvals, and qualification stock, can help reduce business risk.

Custom transformers should be backed by comprehensive documentation, including performance curves, mechanical drawings, material declarations (such as RoHS and REACH), and regulatory compliance certifications.

Ferrite Core Transformer Buying Guide by Application

Application-specific requirements often dictate the Ferrite Core Transformers for PCB design more than generic specifications. The magnetic material, core geometry, insulation system, and winding technique must be carefully chosen based on the functional demands of the target circuit. Below are key application areas with technical guidance on Ferrite Core Transformers for PCB selection –

Switch Mode Power Supplies (SMPS)

SMPS circuits are widely used in AC/DC adapters, DC/DC converters, LED drivers, and industrial power modules. These systems operate at high switching frequencies—typically between 50 kHz and 500 kHz—where minimizing core and copper losses is critical to efficiency.

Key Design Considerations –

Core Material – Use MnZn ferrites with optimized core loss characteristics at the desired operating frequency. Materials like N87 (TDK), 3C94 (Ferroxcube), or equivalent are preferred for their low hysteresis and eddy current losses.

Core Shapes – EE and PQ cores offer efficient winding space and thermal dissipation, making them suitable for medium- to high-power densities. PQ cores offer compact footprints with high volumetric efficiency.

Thermal Behavior – Evaluate core loss vs. temperature data to prevent excessive heat buildup. Incorporate core derating and thermal vias on the PCB for enhanced dissipation.

Air Gap Management – Flyback topologies often require precise air gap management to store energy without saturating the core. Careful placement reduces EMI and optimizes energy transfer.

Signal Isolation in Digital Interfaces

Digital communication protocols, such as Ethernet, CAN, RS-485, and USB, require high-speed signal transfer with minimal distortion and reliable galvanic isolation. Ferrite Core Transformers for PCB in these systems are signal-coupling devices, not power converters.

Key Design Considerations –

Core Material – Use NiZn ferrites due to their higher resistivity and better performance above 1 MHz. These materials reduce capacitive coupling and improve common-mode noise rejection.

Core Geometry – Choose toroidal or EP cores, which confine magnetic fields and reduce external EMI. Their symmetrical designs minimize differential and common-mode emissions.

Isolation Rating – Ensure compliance with interface-specific standards, such as IEEE 802.3 for Ethernet. Isolation voltages ranging from 1.5 kV to 3 kV are common, with reinforced insulation layers for added safety.

Bandwidth Optimization – The transformer’s winding must be designed to match the impedance and bandwidth requirements of the signaling standard, ensuring minimal reflection and distortion.

Gate Drive Transformers for Wide Bandgap Devices (SiC/GaN)

Gate drive transformers are crucial in high-speed power stages that utilize Silicon Carbide (SiC) and Gallium Nitride (GaN) switches. These components operate at switching frequencies often exceeding 1 MHz, requiring precise and low-loss magnetic coupling.

Key Design Considerations –

Leakage Inductance – Must be extremely low (<50 nH in many cases) to prevent signal distortion and ensure fast rise/fall times. This is critical for clean switching edges.

Tight Magnetic Coupling – Use bifilar winding techniques and short turn lengths to enhance coupling and minimize propagation delay.

Core Material – Select ferrites with high saturation flux density (>400 mT) and stable performance at elevated frequencies. Materials must also exhibit low core loss in the MHz range.

Geometry – EFD and low-profile EP cores are preferred for compact layouts and reduced loop areas, which minimize parasitic effects and radiated EMI.

Medical and Safety-Critical Systems

In medical electronics, patient safety and regulatory compliance are non-negotiable. Ferrite Core Transformers for PCB in these systems are not just signal or power components—they are safety barriers.

Key Design Considerations –

Safety Standards – Designs must comply with IEC 60601-1, UL 60601, or similar. These specify creepage, clearance, insulation grade, and withstand voltage requirements. Typical isolation voltages range from 4 kV to 5 kV, with double or reinforced insulation being mandatory.

Core Shape – RM and EP cores are preferred for their low EMI emissions and compact shielding properties, which are crucial in sensitive environments such as imaging or monitoring systems.

Thermal and Electrical Stability – Use materials with tight tolerance over temperature and minimal drift to ensure reliable long-term operation.

Winding Practices – Employ triple-insulated wire or multiple insulation barriers. Conformal coatings and encapsulation are often used to prevent contamination or breakdown in humid environments.

Automotive Electronics

Extreme temperature fluctuations, mechanical vibration, and electrical transients characterize Automotive environments. Ferrite Core Transformers for PCB here must be robust, compact, and compliant with stringent reliability standards.

Key Design Considerations –

Environmental Ratings – Components must meet the AEC-Q200 qualification. This includes thermal shock, vibration, humidity, and electrical stress testing.

Core Geometry – Use EC, EP, or compact PQ cores for optimal mounting and vibration resistance. These geometries also allow automated winding and SMD-compatible layouts.

Operating Range – Materials must support a wide temperature span, typically ranging from -40°C to +150°C. Ferrites must retain magnetic performance at these extremes without early saturation.

Mechanical Durability – Coated windings, potting compounds, and mechanical bracing are used to protect against fatigue and stress cracking.

Transient Resilience – High-voltage spikes and load dumps require robust insulation systems and high dielectric strength.

What Makes Frigate the Go-To Choice for Compact Transformer Needs?

Ferrite core transformers for PCB, though small in size, play a critical role in the performance, safety, and electromagnetic behavior of modern electronic systems. In high-density PCB environments, even minor inefficiencies in transformer design can lead to heat buildup, signal integrity issues, or electromagnetic interference that ripples through the entire device.

Frigate understands that transformers are not just off-the-shelf components—they are engineered solutions deeply integrated into the core of the end product. This is why Frigate collaborates closely with design and engineering teams to co-develop Ferrite Core Transformers for PCB that are optimized for the application, not just the specifications.

Tailored Core Design for Space-Constrained Layouts

Frigate specializes in custom ferrite core machining, allowing precise alignment with board geometries, clearance requirements, and mechanical constraints. Whether it’s modifying standard core shapes or creating hybrid geometries, the focus is on maximizing magnetic performance within limited real estate—especially vital for medical devices, wearables, or compact power modules.

Magnetic Simulation and Winding Optimization

Using advanced finite element magnetic modeling (FEM) and simulation tools, Frigate analyzes core saturation, flux density distribution, and leakage paths. These insights drive decisions on air gap positioning, winding window utilization, and interleaved winding strategies—all of which reduce stray fields and improve coupling efficiency.

This modeling approach helps prevent issues such as unexpected core saturation during transients or excessive leakage inductance, which degrades switching performance.

Thermal Engineering for High-Stress Environments

Frigate utilizes thermal simulation and IR mapping techniques to ensure that ferrite cores and windings operate within safe limits in demanding environments, such as EV onboard chargers, solar inverters, and industrial automation drives. By selecting materials with the right Curie temperature and designing for optimal heat dissipation paths, Frigate’s Ferrite Core transformers for PCB maintain performance over prolonged duty cycles.

Customized thermal solutions, including encapsulation, forced-air compatible geometries, and thermally conductive potting, are also offered to meet specific application needs.

Regulatory Compliance and Testing Support

Navigating safety and EMC regulations can be a challenge, particularly in industries like medical, automotive, or telecommunications. Frigate provides comprehensive support for certifications such as UL 1446, IEC 60601, AEC-Q200, EN 60950, and CISPR/FCC Class B EMC requirements.

From primary-to-secondary isolation strategies to creepage and clearance validation, Frigate ensures every design passes both simulation and bench testing, reducing design iterations and approval timelines.

Prototyping Agility with Production Scalability

Time-to-market pressure demands rapid iteration. Frigate offers fast-turn prototyping with tight process control, enabling customers to validate mechanical fit, magnetic behavior, and thermal response in real system conditions. Once validated, the same design transitions seamlessly into high-volume automated production, preserving performance consistency across product batches.

Frigate’s manufacturing lines are equipped for both low-volume, specialized builds and the production of millions of units per year, making it ideal for both niche applications and mass-market electronics.

Lifecycle Engineering and Documentation Excellence

Beyond production, Frigate provides comprehensive end-to-end technical documentation, including 3D models, material declarations (RoHS/REACH), FMEA reports, and thermal and magnetic simulations. BOM traceability, change notification systems, and long-term supply chain planning ensure that transformer designs remain stable and available over the entire product lifecycle.

With robust supplier relationships and active inventory management, risks of material obsolescence or supply disruption are minimized—critical for mission-critical and long-lived products.

Conclusion

Ferrite core transformers for PCB designs are critical in electronics. They control power, reduce noise, and maintain safety. But choosing the right one is not easy.

Frigate provides comprehensive support, from design to delivery. With deep technical experience and fast engineering response, Frigate ensures every ferrite transformer performs as expected.

Need help to pick the right ferrite core transformers for PCB? Reach out to Frigate’s engineering team today. Let’s build it right from the core.

Transformers

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do you verify transformer stability under fast transient loads in compact PCB designs?

We use high-speed current and voltage probes to record inrush and turn-off spikes during SMPS startup and shutdown. Waveform analysis confirms the core does not saturate when flux density approaches. Thermal imaging checks hot-spot formation under pulsed loads. This ensures your Ferrite Core Transformers buying guide criteria for transient resilience are met.

What techniques control magnetostriction and audible noise in high-frequency transformers?

We select ferrite materials with low magnetostrictive coefficients to reduce vibration. Precise gapping and optimized winding tension minimize flux jumps that cause hum. Acoustic vibration tests in anechoic chambers measure sound levels at operating frequencies. This process delivers ultra-quiet performance for sensitive compact PCB designs.

How is partial discharge assessed in ferrite core transformers for safety-critical applications?

A step-voltage test, up to 1.5 times the rated isolation voltage, identifies internal voids or insulation defects. We monitor discharge inception voltage (PDIV) and map discharge magnitude over time. Test data are compared against IEC 60270 thresholds for minimal corona activity. This ensures long-term dielectric integrity in your Ferrite Core Transformers buying guide.

Which methods mitigate eddy current and core loss at elevated temperatures?

We analyze core loss vs. temperature curves from material datasheets to select ferrites with stable μᵣ and low hysteresis loss above 100 °C. Laser-machined lamination reduces eddy paths, lowering I²R heating. Thermal simulations predict loss distribution, guiding copper and core cooling strategies. The result is minimal performance degradation in high-temp environments.

How does Frigate manage ferrite material sourcing to prevent obsolescence?

We qualify multiple ferrite vendors with equivalent material grades to avoid single-source risks. Long-term purchase agreements secure raw core stock for the expected product lifecycle. A proactive obsolescence tracking system flags end-of-life notifications six months in advance. This ensures a consistent supply for your Ferrite Core Transformers purchasing projects.

How are parasitic capacitance and leakage inductance controlled in tight-layout transformers?

We perform 3D EM simulations to model interwinding capacitance and stray inductance in specific PCB footprints. Bifilar or interleaved winding patterns minimize loop areas and reduce leakage paths. Precision bobbin design maintains consistent turn-to-turn spacing, controlling parasitics. This ensures signal integrity in high-frequency performance scenarios.

What simulation tools validate EMI performance before prototyping?

Frigate uses finite-element analysis (FEA) combined with SPICE-based circuit models to predict radiated and conducted emissions. We simulate common-mode and differential-mode behaviors under real switching waveforms. EMC filters and shield designs are iterated virtually to meet CISPR and FCC limits. This shortens development cycles in your Ferrite Core Transformers buying guide.

How is winding tension regulated for consistent inductance in large production runs?

Automated tension control systems monitor real-time wire tension to within ±1%. Tension data are logged per winding for traceability and quality audits. Consistent tension prevents variations in coil density that alter inductance and coupling. This delivers uniform magnetic performance across all units.

What validation steps ensure creepage and clearance in low-profile transformers?

We utilize high-resolution 3D scans of molded components to verify minimum creepage and clearance distances by IEC 60664. Conformal coating thickness is measured with ultrasonic gauges to confirm insulation integrity. High-voltage AC leakage tests validate real-world dielectric performance. This safeguards against creepage failure in space-constrained printed circuit boards (PCBs).

How does Frigate accelerate prototype iterations without sacrificing quality?

Rapid-turn tooling with modular core inserts enables design tweaks within days rather than weeks. In-house winding labs provide same-day sample builds for electrical and thermal testing. Integrated QA benches run dielectric, EMI, and performance tests immediately after winding. This fast prototyping workflow aligns with the Ferrite Core Transformers buying guide needed for quick time-to-market.
