Industrial machines work hard every day. They need much power to run heavy tools, motors, and systems. This power must be steady and safe. If the voltage is too low or too high, machines can break down. That means lost time and money. One of the best ways to manage this power is through EI Core Transformers.
These EI Core Transformers for industrial machinery help regulate high voltage. They keep machines running smoothly and prevent overheating or damage. Using the right transformer is very important in factories, power plants, and manufacturing lines.
It is not just about getting a transformer. It’s about getting one that performs well, lasts long, and fits the need. That’s why EI Core Transformers are becoming popular in industrial sectors.
Let’s explore what makes them special, how they work, and how Frigate builds them highly and precisely.
What are EI Core Transformers?
EI Core Transformers are electromagnetic devices constructed using laminated silicon steel sheets, precision-cut in the form of the letters “E” and “I.” These laminations are stacked to form the magnetic core, the path for magnetic flux. The E-shaped lamination carries the primary and secondary windings, while the I-shaped lamination completes the magnetic circuit, creating a closed-loop structure essential for efficient magnetic coupling.
Using laminated cores is critical in minimizing eddy current losses, which are induced when alternating current (AC) passes through the transformer windings. The flow of eddy currents is restricted by slicing the core into thin, insulated layers, reducing heat generation and improving overall transformer efficiency. This design also minimizes hysteresis losses due to the directional grain orientation of the steel, optimizing magnetic performance.
Typically, cold-rolled grain-oriented (CRGO) steel is used for EI cores due to its superior magnetic properties, which include high permeability and low core loss. CRGO steel ensures the transformer can handle high magnetic flux densities with minimal energy loss, which is especially crucial in high-voltage industrial applications.
Key construction characteristics of EI Core Transformers for industrial machinery include:
- High-conductivity windings, typically copper or aluminum, for reduced resistive losses and better current-carrying capacity.
- Class F or Class H insulation systems can withstand thermal stresses in applications up to 33 kV.
- Precision lamination stacking ensures minimal air gaps, consistent magnetic performance, and structural rigidity.
- Custom core dimensions and winding configurations allow optimal adaptation to the load characteristics and spatial constraints of specific industrial systems.
EI Core Transformers achieve a reliable balance between electrical efficiency, thermal performance, and mechanical integrity by optimizing core material, lamination thickness, and magnetic path geometry. They are well-suited for industrial environments requiring consistent voltage regulation and long-term operational reliability under high electrical loads.
How EI Core Transformers Are Best for High Voltage Use in Industrial Machinery
Industrial environments require reliable, high-performance electrical systems. Transformers in such settings must consistently deliver high-voltage power, handle electrical disturbances, and endure harsh operational conditions. EI Core Transformers for industrial machinery are engineered precisely for this purpose. Their geometry, material selection, and assembly techniques make them ideal for high-voltage industrial applications.
Below are the critical reasons why EI Core Transformers for industrial machinery are the preferred choice, operating under high-voltage conditions –
Magnetic Flux Optimization for High Voltage
High-voltage industrial environments require transformers capable of managing dense magnetic fields without saturation or instability. Regardless of load changes, magnetic flux must be consistent to ensure uninterrupted performance and thermal reliability.

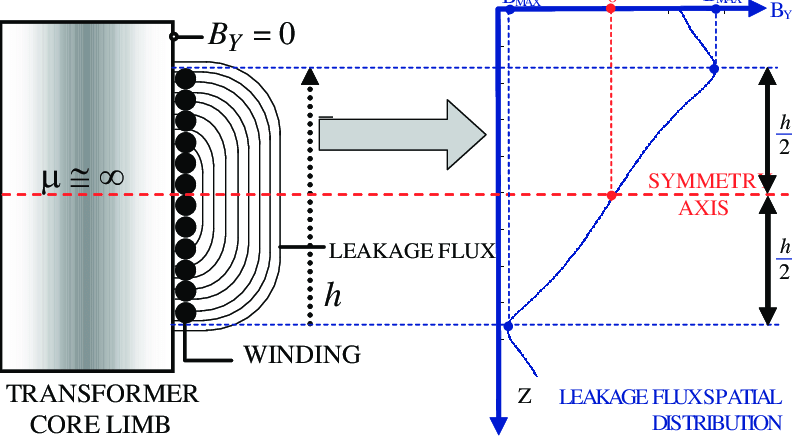

Frigate engineers EI Core Transformers for industrial machinery with tightly stacked CRGO laminations that maintain a uniform magnetic circuit. Finite element analysis (FEA) and electromagnetic field simulations guide core shaping and lamination alignment, optimizing magnetic permeability and minimizing flux leakage. The “E” and “I” structures ensure low reluctance pathways, promoting stable flux even during dynamic load cycles or inductive spikes.
This controlled flux behavior enables machinery to operate under fluctuating voltages with reduced risk of insulation stress, premature wear, or efficiency loss.
Voltage Regulation and Harmonic Control
Power quality in industrial systems hinges on consistent voltage output and suppression of harmonic disturbances. Voltage deviations or harmonic currents can deteriorate sensitive equipment, increase maintenance intervals, and elevate energy costs.
Frigate’s EI Core Transformers for industrial machinery are engineered with customized winding techniques—including progressive layering, interleaving, and symmetrical coil configurations—that enhance voltage stability across varying loads. These configurations reduce impedance imbalance, facilitating precise voltage regulation and ensuring compatibility with voltage-sensitive machinery like VFDs and PLCs.
Harmonic mitigation is achieved through low-leakage magnetic paths and balanced magnetic flux distribution, significantly lowering Total Harmonic Distortion (THD). Factory-tested designs from Frigate consistently meet IEEE 519 recommendations, with measurable THD reductions improving motor lifespan and system efficiency.
Thermal Stability Under Load
Industrial transformers must endure elevated ambient temperatures and continuous operation without thermal degradation. Heat buildup, if unmanaged, leads to dielectric breakdown, coil deformation, and mechanical stress.
Frigate incorporates Class H insulation systems rated up to 180°C and high-dielectric varnish coatings applied via vacuum-pressure impregnation. Core materials exhibit low watt loss, ensuring minimal internal heat generation under no-load and full-load conditions.
Each EI Core Transformer is thermally modeled using CFD simulations to identify hotspots and airflow paths. Designs often include radiated steel housings, open-frame ventilation, or optional forced-air cooling features based on installation constraints. Thermal endurance is validated through heat-run tests, conforming to IEC 60076 standards for temperature rise, ensuring performance reliability in mission-critical systems.
Mechanical Durability in Dynamic Environments
Operational facilities expose transformers to continuous mechanical stress, including vibrations, structural shocks, and dynamic load changes. Mechanical fatigue can loosen lamination stacks, introduce magnetic noise, or degrade winding integrity.
Frigate fabricates EI Core Transformers for industrial machinery with precision-machined lamination packs secured using heavy-duty non-magnetic clamps. Damping pads and anti-resonance frames are installed to absorb shocks and suppress structural vibrations. Welded structural components and bolted base assemblies enhance durability during installation, transport, or seismic activity.
Units undergo mechanical vibration and impact testing to IEC/IEEE specifications, qualifying them for deployment in rugged industrial environments such as offshore rigs, ship decks, and metallurgical plants.
Loss Minimization and Lifecycle Efficiency
Energy losses in transformers directly translate to operational expenses and thermal waste. Reducing core and copper losses improves long-term energy efficiency and contributes to sustainability goals.
Frigate designs EI Core Transformers for industrial machinery to operate with total losses below 2%, achieved through precision-milled CRGO laminations (core loss <1.2 W/kg) and tightly regulated copper fill factors. Custom winding layouts are optimized for low resistance and reduced eddy current effects.
Loss segmentation analysis—separating no-load (core) and load (winding) losses—is part of Frigate’s quality inspection protocol. According to empirical data, a 1% reduction in transformer losses can yield over $10,000 in energy savings annually in a medium-scale industrial facility. Frigate’s optimized EI cores help meet this target while ensuring transformer longevity through reduced heat-induced degradation.
Seamless Integration in New and Legacy Systems
Industrial ecosystems often feature a mix of legacy equipment and modern machinery. Transformer compatibility across these systems is critical for retrofit efficiency and functional continuity.
Frigate engineers modular EI Core Transformers for industrial machinery with universal mounting brackets, compact geometries, and adjustable voltage tap changers. This enables rapid adaptation to varying busbar layouts, switchgear placements, and enclosure constraints. Coil tap positions can be customized to enable ±5% or ±10% voltage variation for localized adjustments without requiring full system upgrades.
All units have standardized termination points and optional shielding for electrical isolation. The result is seamless plug-and-play integration into existing infrastructure, minimizing downtime and installation costs.
Compliance with International Safety and Performance Standards
Transformer reliability is inseparable from its adherence to global electrical, thermal, and mechanical standards. Non-compliance can lead to regulatory penalties, increased insurance costs, and critical system failures.
Frigate certifies all EI Core Transformers for industrial machinery under IEC 60076, IS 2026, and ANSI C57 standards. Compliance includes dielectric strength testing, impulse withstand verification, insulation breakdown assessments, and thermal rise trials. Each unit is supplied with full-type test documentation, material traceability, and quality inspection certificates for audit support and internal QA integration.
By designing with compliance at the core, Frigate ensures electrical safety and procurement confidence for engineering and purchasing departments managing multi-country installations or export-driven projects.
Conclusion
High-voltage industrial machinery demands electrical components that deliver performance, stability, and endurance across the board. EI Core Transformers for industrial machinery serve this purpose with exceptional reliability, especially when engineered for thermal, mechanical, and electrical optimization.
Frigate stands at the forefront of EI Core Transformer manufacturing, delivering customized, precision-built transformers that integrate seamlessly into legacy or modern systems while offering measurable energy savings and extended lifecycle benefits. From CRGO core optimization to insulation reliability, every Frigate transformer is engineered for critical environments.
Looking for a dependable transformer partner? Frigate offers full-cycle transformer design, build, testing, and support to precisely meet your industrial power needs. Contact Us Today, learn how Frigate can tailor EI Core Transformers for industrial machinery high-voltage applications.
