What Are Different Low Harmonic Distortion Applications?

Harmonic distortion arises when non-linear electrical loads cause current waveforms to deviate from the ideal sinusoidal shape. These distortions result in harmonic currents that propagate through the power system, leading to voltage waveform distortion and an array of electrical performance issues. According to IEEE 519, the Total Harmonic Distortion (THD) for voltage in critical applications should remain below 5%. In sensitive environments, limits of below 3% are often targeted to ensure operational stability and compliance.

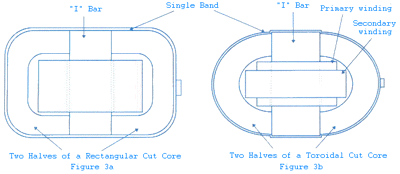

C-Core Transformers for low harmonic distortion applications play a pivotal role in these scenarios due to their low core losses, reduced flux leakage, and superior magnetic uniformity. Below are some of the most technically demanding applications where harmonic control is essential –

Process Automation and Precision Manufacturing

Modern manufacturing processes—particularly in aerospace, pharmaceutical, and semiconductor industries—rely on sophisticated automation systems. These systems often involve servo drives, PLC-based control loops, and sensitive instrumentation. Non-linear power loads such as variable frequency drives (VFDs), robotic arms, and industrial control units generate high-frequency harmonic currents that can degrade power quality.

Harmonic distortion in such environments leads to –

  • PID control loop instability, especially when feedback sensors experience noise due to voltage irregularities.
  • Electromagnetic interference (EMI) affecting the accuracy of analog signal transmission.
  • Timing and synchronization errors in high-speed production lines.

C-Core Transformers for low harmonic distortion applications, with their high magnetic permeability and symmetrical construction, suppress harmonic propagation by maintaining waveform fidelity across the transformer’s magnetic path. This ensures that downstream equipment receives clean, undistorted voltage, thereby preserving process accuracy and system uptime.

Grid-Tied Renewable Energy Systems

The integration of solar photovoltaic (PV) inverters, wind turbine converters, and battery energy storage systems (BESS) into power grids introduces switching harmonics due to the power electronic converters used in these systems. These harmonics not only distort the local grid voltage but also –

  • Induce parallel resonance with power factor correction capacitors.
  • Lead to interharmonics, resulting in system instability and false tripping of protective devices.
  • Cause thermal overloads in neutral conductors and transformers due to zero-sequence harmonics.

In such systems, C-Core Transformers for low harmonic distortion applications are deployed at the point of common coupling (PCC) and within isolation circuits to mitigate harmonics. Their design enables suppression of high-order harmonic components while providing galvanic isolation. This enhances grid stability and ensures compliance with grid codes, such as IEEE 1547 and IEC 61000-3-6, which mandate harmonic filtering in distributed generation systems.

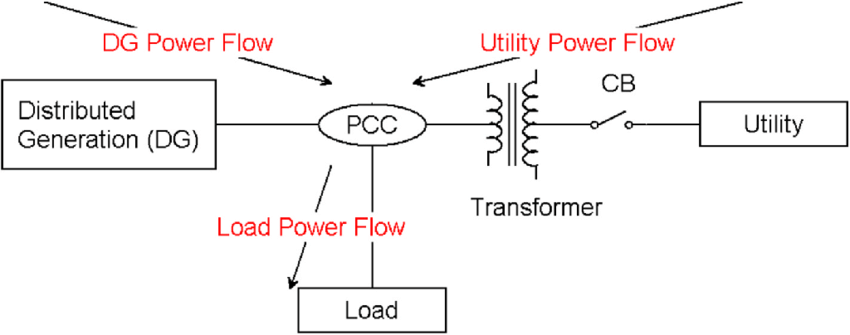

point of common coupling

High-Availability IT and Data Infrastructure

Mission-critical IT environments—such as data centers, telecom switching hubs, and financial trading platforms—require extremely low Total Harmonic Distortion (THD), often below 2%, to maintain hardware integrity and data reliability. These facilities operate large banks of uninterruptible power supplies (UPS), power distribution units (PDUs), and switch-mode power supplies (SMPS), all of which are significant sources of harmonic generation.

Consequences of unmanaged harmonics in IT infrastructure include –

  • Power supply malfunction and derating due to input waveform distortion.
  • Voltage imbalance across server racks, leading to forced shutdowns and overheating.
  • Data loss or corruption caused by undervoltage events or transient surges.

To maintain a distortion-free power backbone, C-Core Transformers for low harmonic distortion applications are integrated into power conditioning units (PCUs) and isolation transformers for critical load banks, ensuring a reliable power supply. Their reduced magnetostriction and enhanced eddy current suppression characteristics provide highly stable voltage outputs, even under variable, pulsed, or unbalanced loads, ensuring uninterrupted system operation.

High-Sensitivity Industrial Equipment

Industrial equipment that relies on precise electrical inputs—such as laser cutters, electron beam welders, lithography machines, and automated test equipment (ATE)—is particularly vulnerable to waveform irregularities. These systems require both voltage stability and harmonic purity to function correctly.

Harmonic distortion in these applications can cause –

  • Laser misalignment or beam intensity fluctuation due to supply voltage variation.
  • Arc instability in welding systems, compromising weld quality and penetration.
  • Component misclassification or test failures in automated quality assurance systems.

Deploying C-Core Transformers for low harmonic distortion applications in these circuits ensures reduced waveform distortion through optimized core design, which minimizes both hysteresis and eddy current losses. The transformers’ low leakage inductance also supports fast transient response, reducing voltage sags during rapid load changes and safeguarding process integrity.

What You Should Consider While Buying C-Core Transformers for Low Harmonic Distortion Applications

Selecting the wrong C-Core Transformer can lead to critical failures like harmonic amplification, waveform deformation, thermal overloading, and non-compliance with standards. These risks are amplified in harmonic-sensitive applications such as renewable energy, data centers, process automation, and semiconductor manufacturing. Each transformer must not only deliver power efficiently but also suppress harmonic propagation across frequency spectrums specific to the application.

Frigate addresses these challenges through a deeply engineered, application-driven approach. Below are eight core parameters—each supported by Frigate’s technical capabilities—that must be evaluated to ensure reliable and distortion-free performance.

Electromagnetic Compatibility (EMC) and Design Validation

Harmonic spikes and electromagnetic interference (EMI) are frequent culprits of power quality violations and device malfunctions. For mission-critical systems, transformers must exhibit minimal electromagnetic radiation and coupling

Frigate designs C-Core Transformers for low harmonic distortion applications with –

  • Shielded multi-layer winding topologies to reduce radiated emissions.
  • Low inter-winding capacitance through insulation-grade spacing and electrostatic shielding.
  • 3D electromagnetic field simulations (EMF) combined with finite element analysis (FEA) to validate field strength, coupling coefficients, and flux leakage.

Frigate’s in-house simulation and lab validation ensure that each transformer complies with global EMC standards—significantly reducing interference in noise-sensitive environments.

Magnetic Flux Optimization and Core Anisotropy

Anisotropy in magnetic cores directly impacts how efficiently a transformer handles non-sinusoidal waveforms. A core not aligned with the magnetic path can introduce local saturation, flux noise, and excessive magnetizing current—especially at partial load or under harmonics.

Frigate mitigates this through –

  • Use of high-grade grain-oriented silicon steel with anisotropic alignment optimized for flux direction.
  • Precision-mitered core joints and zero-gap stacking reduce reluctance and hysteresis.
  • Advanced lamination modeling to ensure optimal flux distribution across the core surface.

This results in C-Core Transformers for low harmonic distortion applications with minimized core losses and harmonically stable flux behavior, which is critical for systems exposed to complex waveforms.

System-Level Harmonic Matching

Standard catalogue transformers often fail under real-world load conditions because they are not tuned to actual harmonic spectra. Harmonics vary depending on load asymmetry, switching frequency, and the type of equipment (e.g., VFDs, UPS, active rectifiers).

Frigate conducts system-level studies that include –

  • Fourier analysis of load harmonics across frequency domains.
  • Harmonic impedance profiling to understand how transformer reactance interacts with system loads.
  • Digital twin modeling for full-load harmonic simulation under nonlinear stress.

This engineering-first approach enables Frigate to deliver custom-tuned transformers that respond accurately to the harmonic environment—ensuring distortion control from design through commissioning.

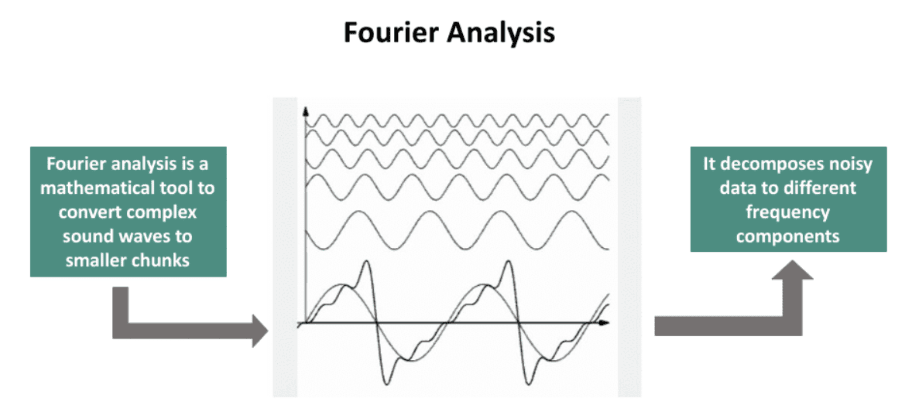

transformer fourier analysis

Operational Risk Mitigation and Thermal Management

Harmonic components cause additional eddy currents, core losses, and skin effect-induced heating, which result in localized hot spots, reduced insulation life, and thermal runaway.

Frigate addresses this with –

  • Resin-encapsulated windings that provide dielectric strength and thermal buffering.
  • Thermally optimized winding windows to enhance airflow and reduce ΔT across layers.
  • Dynamic thermal modeling tools to simulate heat dissipation under harmonic load profiles.

Combined with temperature rise testing under THD conditions, Frigate’s transformers are engineered to operate safely even when harmonic loading exceeds 20% of the base current—ensuring high MTBF and system uptime.

Verified Harmonic Response Testing

Routine no-load and full-load tests reveal basic performance but do not uncover harmonic vulnerabilities. For sensitive applications, harmonic-specific testing is crucial to verify transformer behavior under distorted supply conditions.

Frigate includes –

  • Total Harmonic Distortion (THD) measurement across load percentages (25%, 50%, 100%).
  • Oscilloscope-based waveform capture for current and voltage harmonics.
  • Core saturation mapping under both linear and non-linear excitation.

This comprehensive testing package—delivered as part of Frigate’s factory acceptance test (FAT)—helps customers validate transformers before integration, reducing commissioning risk and project delays.

Traceability and Configuration Control

Inconsistent core laminations, winding geometries, or insulation materials from repeat orders can lead to performance drift, installation challenges, and audit non-conformities

Frigate enforces strict digital configuration management through –

  • Serialized digital bill of materials (BOMs) linked to CAD and test files.
  • Batch-level traceability of lamination and insulation inputs.
  • Documented testing reports retained for lifecycle trace and future support.

This level of transparency ensures that every unit of a recurring order is identical to the original, eliminating surprises during system upgrades or expansions.

Standards Compliance

Power quality compliance is not optional—particularly in regulated sectors like healthcare, aerospace, and grid-tied renewables. C-Core Transformers for low harmonic distortion applications must meet both transformer-specific and harmonic-specific standards.

Frigate’s solutions meet or exceed –

  • IEEE 519 – Limits for current and voltage harmonic content in electrical systems.
  • IEC 60076 – Requirements for transformer insulation, cooling, and mechanical integrity.
  • EN 61000-4 series – Electromagnetic immunity and emissions compliance for harmonics and fast transients.

Each Frigate transformer is shipped with a standards compliance dossier, simplifying regulatory submission, audit approvals, and internal documentation requirements.

Lead Time and Scale Alignment

Custom transformer projects often face delays due to core manufacturing bottlenecks, supplier constraints, or lack of forecasting. These setbacks can stall electrical commissioning or cause costly project rescheduling.

Frigate minimizes these risks by –

  • Maintaining control over the core lamination supply chain, including raw material sourcing and in-house cutting.
  • Using automated production scheduling systems to align transformer delivery with project timelines.
  • Providing predictive lead time models that integrate customer demand and capacity planning.

This ensures that high-performance, customized C-Core Transformers for low harmonic distortion applications are delivered on time—even under aggressive schedule requirements—while supporting scalability for future expansion.

Conclusion

C-Core Transformers for low harmonic distortion applications play a pivotal role in maintaining power integrity across harmonic-sensitive environments. Their ability to suppress harmonic distortion ensures consistent equipment performance, prolongs asset lifespan, and supports regulatory compliance—especially in sectors such as automation, energy, IT infrastructure, and precision manufacturing.

When evaluating transformer options, it is critical to assess magnetic core alignment, thermal behavior under harmonic load, electromagnetic compatibility, and harmonic response. Equally important is selecting a supplier with proven expertise in customized design, simulation-driven validation, and traceable manufacturing processes.

Get in touch with Frigate today to discuss your technical requirements, request a custom quote, or schedule a design consultation.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do C-Core Transformers enhance power factor correction in harmonic-rich environments?

C-Core Transformers improve power factor by reducing the phase angle shift caused by harmonic currents. Their low leakage reactance and optimized magnetic path minimize reactive power losses. This leads to better alignment between voltage and current waveforms, enhancing true power transfer efficiency. Frigate’s precise core material selection further ensures minimal hysteresis, stabilizing power factor under varying loads.

In what ways can Frigate’s C-Core Transformers be integrated with active and passive harmonic filters for system-wide harmonic mitigation?

Frigate designs C-Core Transformers with low interwinding capacitance and balanced flux distribution to prevent filter resonance issues. These transformers support the operation of active filters by providing a clean isolation barrier that does not distort harmonic spectra. Their low stray inductance enhances the accuracy of passive filter tuning. This synergy reduces total harmonic distortion across the entire power system.

What distinguishes the magnetic saturation characteristics of C-Core Transformers compared to traditional EI-Core units under heavy non-linear loading?

C-Core Transformers feature continuous magnetic paths without air gaps, reducing localized saturation points. This uniform flux distribution prevents premature core saturation, a common issue in EI-Core transformers. Frigate’s use of grain-oriented steel with anisotropic properties reduces core losses at high harmonic currents. Consequently, waveform integrity is preserved, even during transient harmonic spikes.

How does Frigate optimize C-Core Transformers for high-frequency switching applications such as solar inverters and UPS systems?

High-frequency switching introduces eddy current losses that increase core heating and reduce efficiency. Frigate uses specialized low-loss steel laminations and resin-encapsulated winding techniques to minimize these losses. Electrostatic shielding within the core assembly reduces capacitive coupling and EMI emissions. These design measures maintain transformer performance and thermal stability at frequencies up to several kHz.

What considerations are involved in designing C-Core Transformers for loads with high di/dt characteristics?

Rapid current changes induce voltage spikes and flux imbalances that can stress transformer insulation and magnetic cores. Frigate engineers use optimized winding layouts with minimal leakage inductance to mitigate these effects. Core geometry is tailored to provide fast magnetic response and stable flux paths. Thermal simulations ensure the prevention of hotspots during dynamic load conditions.

How does Frigate address acoustic noise generated by harmonic flux variations in C-Core Transformers?

Harmonic currents induce fluctuating magnetostriction forces causing core vibration and audible noise. Frigate employs precision-laminated cores clamped with vibration-damping resins to reduce mechanical resonance. Windings are impregnated with epoxy to prevent microphonic noise. Additionally, structural design minimizes magnetostrictive strain, ensuring quieter operation in sensitive environments.

Are Frigate’s C-Core Transformers suitable for floating or isolated ground systems in terms of insulation and harmonic performance?

Yes, Frigate customizes insulation coordination to handle floating and high-resistance grounded configurations. Dielectric materials and winding insulation are rated to withstand transient overvoltages amplified by harmonic resonance. Core and winding designs minimize capacitive coupling to ground, reducing leakage currents. These measures maintain transformer integrity and harmonic filtering in isolated ground setups.

How are Frigate’s C-Core Transformers adapted for high-altitude installations with reduced air density affecting cooling and insulation?

Reduced air density lowers convective cooling efficiency and dielectric breakdown voltage at altitude. Frigate incorporates thermal derating in transformer design, increasing conductor cross-section and enhancing thermal pathways. Insulation systems are upgraded with higher creepage and clearance distances to prevent corona discharge. These adaptations ensure reliable operation in environments above 1000 meters elevation.

What design strategies are used in Frigate’s C-Core Transformers to control harmonic propagation between interconnected electrical subsystems?

Frigate optimizes core lamination stacking and winding arrangements to create directional impedance, controlling harmonic flow paths. Flux barriers are implemented to isolate harmonic currents between primary and secondary circuits. This prevents resonance and reflection of specific harmonic orders. Such designs reduce the risk of harmonic amplification and cross-system interference.
