Underwater systems face extreme pressure, corrosive environments, temperature fluctuations, and movement due to tides and currents. Power, communication, or fluid system failures can lead to expensive downtime and operational disruptions. Umbilical cables integrate multiple functions—power, data, and fluid transmission—into a system, ensuring reliable operations in harsh underwater conditions.
Why Reliability is Essential in Subsea Operations?
Reliability in subsea systems is crucial to minimizing risks, reducing downtime, and improving operational efficiency. Umbilical cables offer reliability by integrating power, data, and fluid transport, ensuring smooth system performance. These cables help maintain consistent power delivery, real-time data exchange, and fluid injection under extreme environmental pressures, essential for uninterrupted subsea operations and cost control.
Power Transmission
Umbilical cables support transmitting high-voltage power to subsea equipment, such as pumps and valves, over long distances. Cables use materials like cross-linked polyethylene (XLPE) for insulation, minimizing energy losses and heat build-up. This ensures efficient power delivery without degradation in performance over time.
Data Communication
Real-time data is vital for subsea monitoring and control. Umbilical cables include high-speed fiber optic lines to transmit data at high bandwidths (over 10 Gbps) with minimal latency, ensuring smooth communication for operational stability. Backup copper communication lines also help safeguard data transfer in case of failures.
Fluid Transportation
Integrated conduits within umbilical cables deliver essential fluids like chemicals, hydraulic power, and coolants to subsea systems. These conduits are designed to withstand extreme pressures and are made from durable materials, like polyamide tubing, which can endure pressures of over 15,000 psi in high-pressure applications, ensuring fluid delivery remains uninterrupted.
Operational Resilience
Umbilical cables are engineered to handle dynamic stresses, such as bending and twisting, caused by waves and platform movement. Steel wire armoring and helical stranding techniques enhance the cable’s flexibility and durability, enabling it to maintain structural strength even under constant movement in harsh underwater conditions.
Economic Efficiency
A reliable umbilical cable minimizes operational disruptions and reduces maintenance costs, contributing to greater economic efficiency. For instance, the average downtime cost for offshore oil production can reach up to $8 million daily. Using durable cables lowers the risk of costly failures and improves project profitability.
How Umbilical Cables Meet Subsea Challenges?

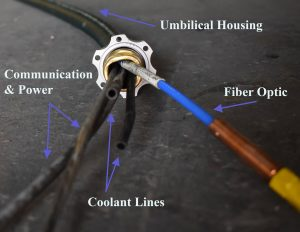

Umbilical cables are designed with advanced features to withstand the demanding subsea environment. They integrate power, data, and fluid transmission into a compact, multifunctional cable, reducing complexity and failure risks. High-performance materials and dynamic fatigue resistance ensure these cables meet the operational challenges of waves, pressure, and temperature extremes.
Integrated Systems
Umbilical cables simplify installation and reduce the chances of failure by combining power, data, and fluid transport into a single cable. This integration also enhances the cable’s overall performance by minimizing the number of components that could malfunction, thus providing a reliable subsea system.
Material Selection
Umbilical cables use specialized materials like thermoplastic polyurethane (TPU) and polyethylene (PE) for their outer sheaths, as they resist abrasion, UV exposure, and chemical degradation. These materials ensure the cables can endure harsh environmental conditions, while internal fiber optics are protected with aramid fibers, offering additional strength and durability.
Dynamic Fatigue Resistance
Umbilical cables must resist fatigue due to constant motion and bending from tides and platform movements. Spiral-lay construction and similar techniques help evenly distribute stress throughout the cable, preventing damage caused by repeated bending or twisting and ensuring the cable maintains its structural integrity over time.
Electromagnetic Interference (EMI) Shielding
To maintain data integrity, umbilical cables are equipped with shielding that prevents electromagnetic interference (EMI) from power cores. Materials like aluminum-mylar tape shield data lines from EMI, ensuring that the communication signals remain clear and uninterrupted even in high-voltage power transmission.
Pressure and Temperature Handling
Umbilical cables are designed to perform under high-pressure conditions, such as those found at depths of over 3,000 meters. The cables are tested to withstand pressures exceeding 300 bar. They can operate across a wide range of temperatures, from -5°C to 120°C, ensuring stable performance in deep-sea environments and geothermal energy applications.
Technical Features That Ensure Longevity
Umbilical cables are built for long operational lifespans, with many systems designed to last over 20 years. They incorporate pressure management, abrasion resistance, and corrosion protection to remain functional and durable throughout their lifecycle.
Pressure Management

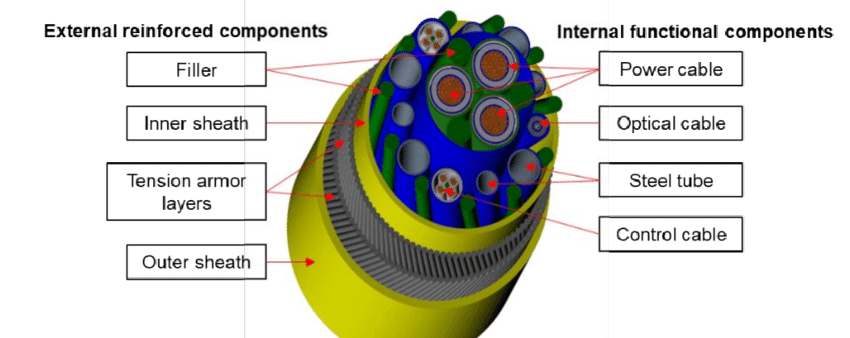

Umbilical cables use multi-layer construction with extruded polymer sheaths and metallic reinforcements to prevent deformation under extreme hydrostatic pressure. Materials like nylon 11 provide added strength and flexibility for cables in extreme depths, ensuring the cable can maintain its integrity under pressure.
Abrasion Resistance
Umbilical cables are often exposed to mechanical damage from seabed contact, marine organisms, or debris. To counteract this, the outer sheath is made from tough materials like chlorinated polyethylene (CPE), which resists abrasions and ensures the cable maintains its functionality in rough underwater environments.
Corrosion Resistance
Saltwater and aggressive chemicals in subsea environments can lead to corrosion. Umbilical cables are designed with protective coatings, such as epoxy-polyurethane composites, to protect metallic components from corrosion. Internal components, like stainless steel wires, are chosen for their resistance to stress corrosion cracking and pitting, further enhancing the cable’s longevity.
Thermal Stability
For subsea cables exposed to elevated temperatures, such as geothermal or oil extraction applications, materials like polytetrafluoroethylene (PTFE) are used for their high-temperature resistance. These materials help maintain cable performance over long periods of exposure to extreme heat, ensuring the cable remains functional.
Fatigue Testing and Validation
To ensure their longevity, umbilical cables undergo extensive testing that simulates long-term use, including dynamic bending, twisting, and axial loading. These tests confirm the cables’ ability to withstand repeated movements and stress over millions of cycles without structural failure.
Quality Assurance in Manufacturing Umbilical Cables
Manufacturing umbilical cables involves stringent quality control processes to ensure they meet reliability and performance standards. Rigorous testing at every stage of production guarantees that the cables will function under extreme subsea conditions without failure.
Material Integrity Testing
Before production, materials used to construct umbilical cables undergo comprehensive testing to ensure they meet necessary strength, thermal stability, and chemical compatibility requirements. These tests ensure that the components used in the cables are suitable for subsea environments and can withstand operational stresses.
Hydrostatic Pressure Testing

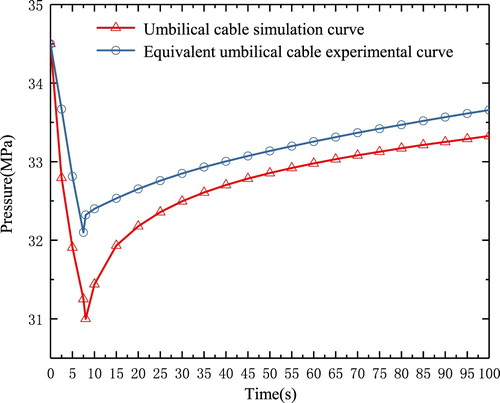

Cables are subjected to high-pressure testing to simulate deep-sea conditions. This ensures the cables maintain their structural integrity and perform effectively underwater pressures up to 3,000 meters deep, verifying their durability and reliability in extreme conditions.
Electrical Validation
The electrical components of umbilical cables, such as power cores and communication lines, undergo high-voltage testing to assess insulation resistance, dielectric strength, and breakdown voltage. These tests ensure the cables will not suffer short circuits or power loss during long-distance transmission.
Dynamic Stress Testing
Umbilical cables are also tested for their ability to withstand motion. Advanced test rigs simulate the bending, twisting, and stretching caused by subsea movement, verifying the cable’s ability to endure repeated dynamic stress without structural damage.
Standards Compliance
Manufacturers must ensure that umbilical cables comply with international standards, such as ISO 13628-5 and API 17E. Adherence to these standards ensures the cables are compatible with global subsea projects and meet safety, reliability, and interoperability requirements.
Applications and Tailored Solutions
Umbilical cables are used across various industries and tailored to meet the specific needs of each application. Their ability to integrate power, data, and fluid transmission makes them versatile and indispensable in underwater operations.
Oil and Gas
In the oil and gas industry, umbilical cables support subsea pumps, wellheads, and manifolds by delivering power, data, and chemical injections. The cables also transport high-pressure fluids, like those used in hydraulic fracturing, making them critical for safe and efficient operation.
Renewable Energy
Offshore wind farms depend on umbilical cables to transmit power from turbines to shore-based substations. The cables also provide real-time turbine performance monitoring through integrated fiber optic communication lines, ensuring consistent energy production.
Marine Research
In marine research, lightweight umbilical cables power remotely operated vehicles (ROVs) and transmit data collected from deep-sea exploration. These cables ensure reliable data transmission and power delivery for underwater exploration projects.
Defense Systems
In defense applications, umbilical cables provide secure power and communication lines for naval operations and underwater surveillance systems. Their ability to deliver encrypted data ensures the security and functionality of military equipment.
Aquaculture
Umbilical cables are also used in offshore fish farms, powering automated feeding systems and sensors that monitor environmental conditions. These cables help optimize resource management and ensure efficient aquaculture operations.
Frigate’s Expertise in Manufacturing Umbilical Cables
Frigate provides high-quality umbilical cables tailored to the specific needs of subsea industries. Their expertise in customized engineering, advanced material use, and precise manufacturing ensures that each cable meets the demanding requirements of deep-sea operations.
Integration of Hybrid Systems in Umbilical Cables
Frigate specializes in creating hybrid umbilical cables, integrating power, data transmission, and chemical injection capabilities into a single cable assembly. This reduces the need for multiple cables, enhancing operational efficiency. The hybrid systems are designed with optimized material compatibility, allowing for seamless data transmission via fiber optics and high-power transmission through electrical conductors, ensuring minimal signal loss and effective power delivery even at extreme depths.
High-Performance Polymer Coatings
Frigate utilizes advanced polymer coatings for enhanced protection against extreme environmental factors. These coatings include UV-resistant and anti-fouling agents that reduce the risk of biological growth, corrosion, and wear. Polymeric coatings such as thermoplastic elastomers are used for mechanical and environmental protection, ensuring that the umbilical cable maintains its integrity when exposed to seawater, oils, and high-pressure environments typical in deep-sea operations.
Advanced Load Management Systems
Frigate incorporates advanced load management systems into the design of their umbilical cables to ensure optimal strain distribution and load-bearing capacity. Using multi-layer construction techniques, such as integrating braided steel wires or aramid fibers, the cables can withstand mechanical tension, torsion, and bending forces that occur during subsea operations. These advanced load distribution systems reduce the risk of premature failure and fatigue over the cable’s lifecycle.
Subsea Deployment and Retrieval Optimization
Frigate’s cables are engineered with specialized deployment and retrieval mechanisms in mind. To minimize strain during installation or removal from subsea operations, Frigate designs cables with integrated bending stiffness and flexibility characteristics tailored to the dynamic environments of offshore platforms and vessels. This ensures that cables can be deployed and retrieved without damaging sensitive internal components or causing excessive wear.
Redundancy and Fault Tolerance
Frigate employs a multi-layer approach to redundancy within the cable’s design to prevent complete system failure in the event of a localized fault. This includes dual power lines, multiple communication channels, and backup fluid conduits, which can function autonomously if part of the system experiences a failure. Such redundancy ensures that subsea operations continue without disruption, even when a fault occurs within one component of the umbilical cable.
Dynamic Stress Compensation
Frigate’s umbilical cables are designed with dynamic stress compensation features that account for the shifting and movement of subsea platforms or drilling rigs. This involves using flexible cores and outer layers that can handle cyclic loading without compromising the integrity of the internal systems. Using thermoplastic polyurethane (TPU) materials, Frigate ensures the cable maintains its form even under repeated flexing, elongation, and torsion.
Conclusion
Umbilical cables are the backbone of reliable underwater systems. They ensure power, data, and fluid flow in the harshest environments, from oil and gas to renewable energy. These cables keep critical operations running smoothly by addressing challenges like extreme pressure, corrosion, and mechanical stress.
