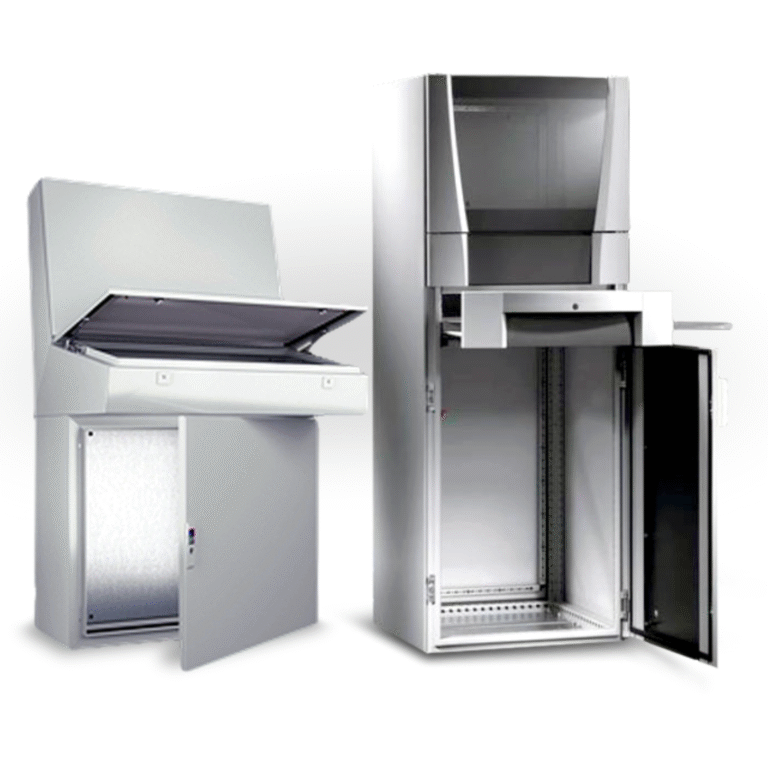

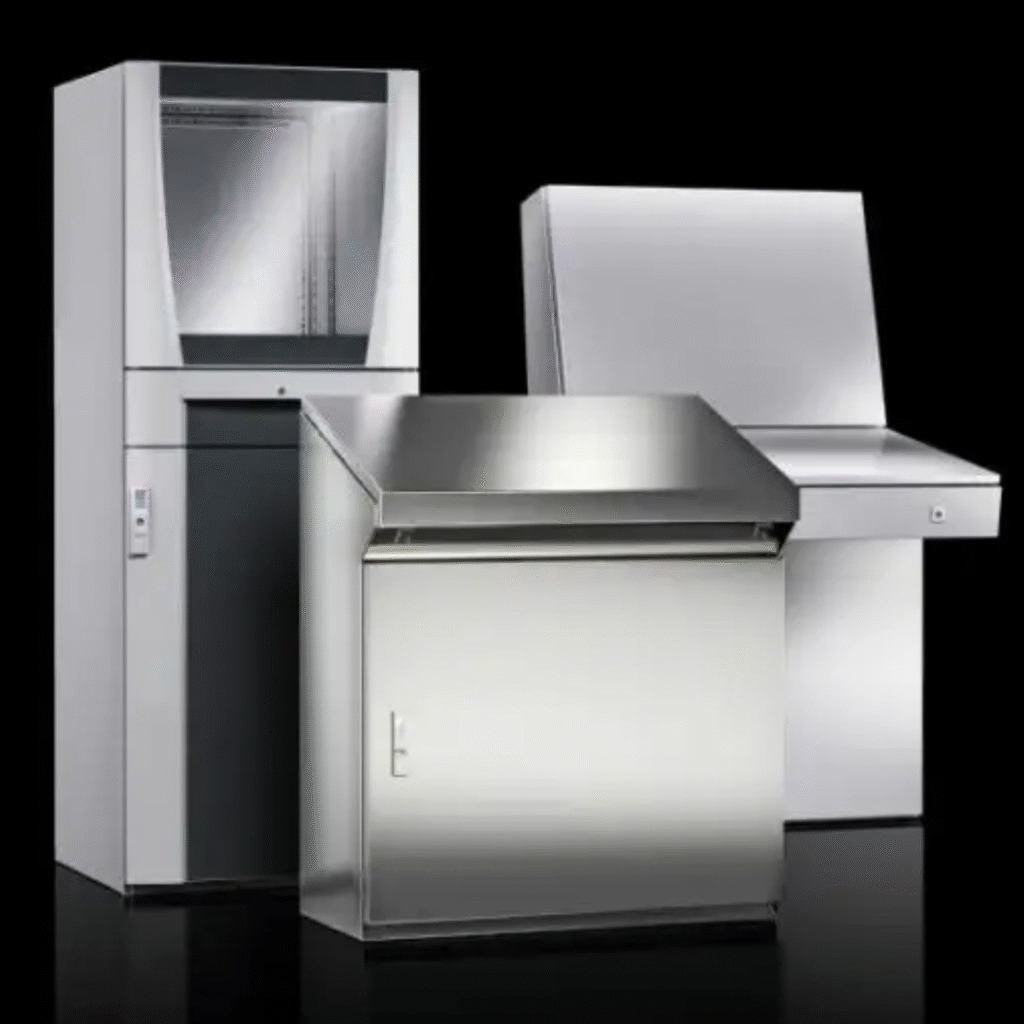

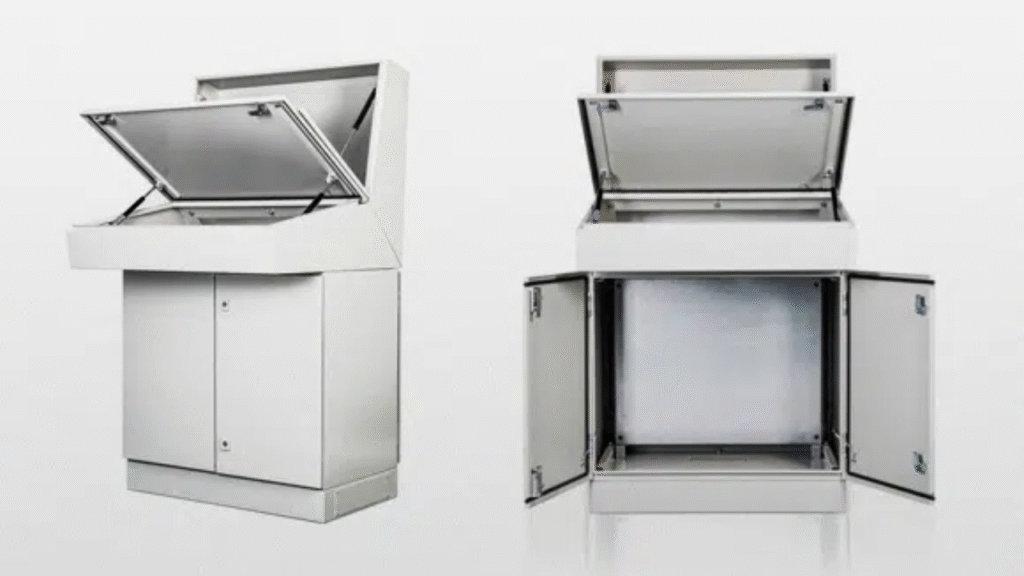

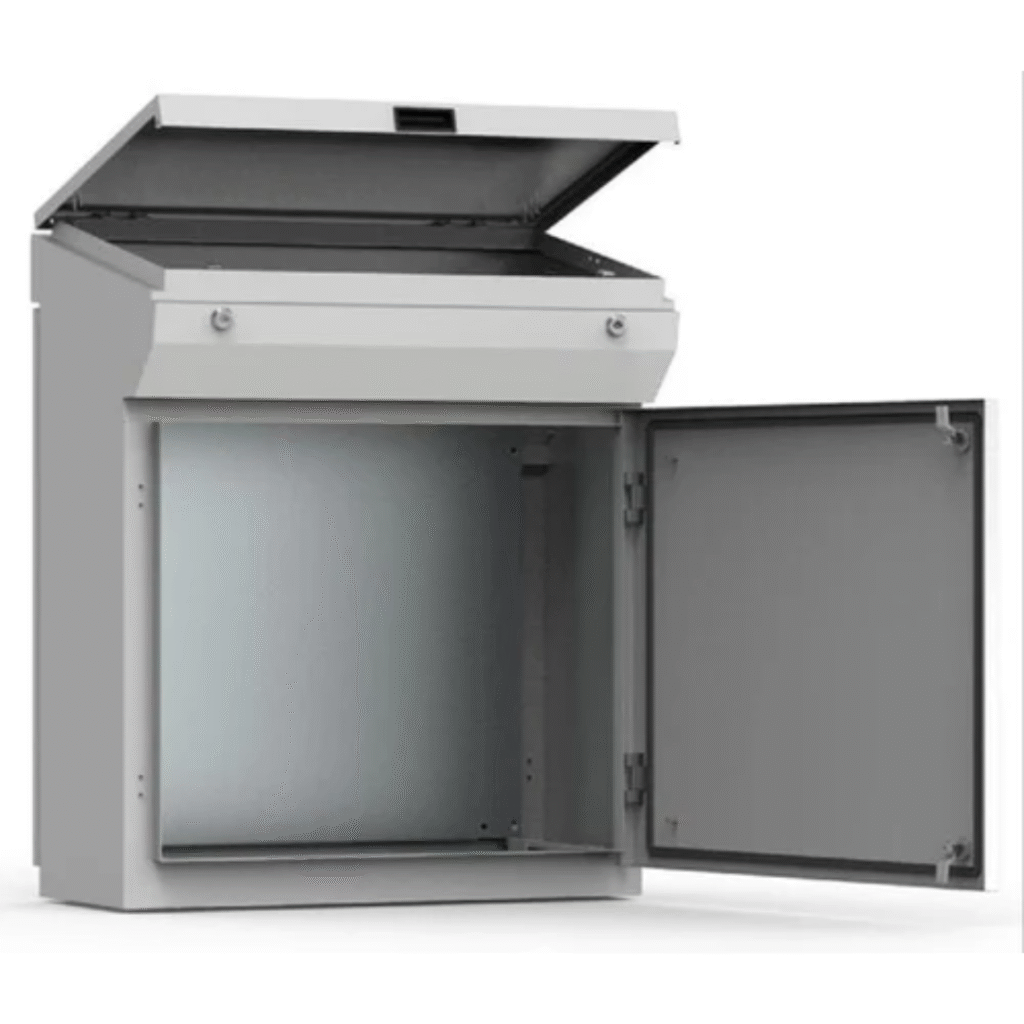

Console & Consolet Enclosures

Console & Consolet Enclosures are designed with high-precision seals and gaskets that meet strict IP ratings, such as IP65, IP66, and IP67. These enclosures provide superior protection against water ingress, airborne particulates, and chemicals commonly found in industrial environments. The enclosure design utilizes advanced sealing technologies, including silicone and polyurethane gaskets, ensuring that components within the enclosure are shielded from moisture and dust even in harsh conditions.

Material Type & Grade

Mild Steel (Grade 1018) / Stainless Steel (304 or 316) / Aluminum (5052-H32)

Surface Finish

Powder Coated (RAL Colors) / Brushed / Anodized / Electropolished

IP Rating

IP54, IP65, IP66, or IP67 (based on model)

NEMA Rating

NEMA 1, 3R, 4, 4X, or 12

Impact Resistance (IK)

IK08 to IK10 (depending on design)

Product Description

The material selection process is optimized for environmental stress, incorporating stainless steel or aluminum alloys with corrosion-resistant coatings. The enclosures’ durability minimizes the risk of degradation from environmental exposure, leading to a reduced need for maintenance and replacement over time.

EMI/RFI Shielding

Optional Conductive Gasket / Copper Mesh Lining

Thermal Management

Optional Fan Cutouts, Louvers, or Heat Exchangers

Grounding & Bonding Points

Integrated Ground Studs / External Ground Lugs

Sealing System

Polyurethane / Silicone Gasket (Continuous Seal)

Fire Resistance Rating

UL 94 V-0 / IEC 60695-2-11 Compliant

Environmental Compliance

RoHS / REACH / CE / UL Certified

Load Bearing Capacity

Up to 150 kg (depending on mounting and design)

Operating Temperature Range

-40°C to +85°C

UV Stability

UV Stabilized Coating / Complies with ASTM G154

Salt Spray Resistance

500 to 1000 Hours per ASTM B117

Seismic Rating

Designed for Seismic Zone 4 (optional)

Mounting Provisions

Wall Mount / Floor Stand / Pole Mount / Desktop

Dimensions

Customizable – Common sizes from 300x300x150 mm to 1200x1000x300 mm

Weight Capacity

Up to 250 kg (console-specific)

Lock Type

Quarter Turn / Key Lock / Padlockable Handle

Technical Advantages

Another key concern is durability in the face of mechanical impact, vibration, and thermal expansion. Our enclosures are constructed using high-grade metals such as marine-grade stainless steel or powder-coated aluminum alloys, both known for their ability to withstand high levels of mechanical stress. These materials offer high tensile strength and resistance to fatigue, ensuring that the enclosures can handle significant impacts or sustained vibrations without compromising structural integrity.

In addition, the design includes reinforced corners and edges to prevent deformation and enhance impact resistance. The internal frame structures are specifically engineered to absorb shocks, preventing damage to sensitive equipment. For particularly demanding applications, enclosures can be configured with advanced anti-vibration mounts and shock-absorbing materials, ensuring the contents remain protected even under extreme mechanical conditions.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Telecommunications

Ensures precise EMI/RFI shielding and thermal dissipation for mission-critical communication and signal processing equipment.

Aerospace

Provides robust mechanical protection and vibration resistance for avionics, with thermal management to meet extreme operating conditions.

Medical Equipment

Offers EMC protection and anti-corrosion enclosures for sensitive medical electronics in sterilized and regulated environments.

Oil and Gas

Provides high-strength, corrosion-resistant enclosures that comply with ATEX/IECEx standards for explosive atmospheres and extreme climates.

Automotive

This product protects ECUs, sensors, and power electronics from vibration, thermal cycling, and electromagnetic disturbances in automotive systems.

Power Distribution

Delivers heat dissipation and grounding protection for critical components like transformers, circuit breakers, and load centres.

Modularity and Customization for Complex Requirements

In many industrial settings, a one-size-fits-all enclosure simply won’t suffice. Console & Consolet Enclosures are designed with modularity, offering configurable internal spaces and mounting options to accommodate various equipment. Enclosures can be equipped with removable panels, adjustable racking systems, and custom-cut inserts to hold specialized components securely.

Furthermore, specific application requirements such as cable management, power distribution, or fluid containment can be incorporated into the design, allowing for easy customization. For industries with strict space constraints or unique environmental factors, enclosures can be tailored with specific ingress protection ratings, airflow management systems, and custom access ports for wiring and cables.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate ensure thermal management in enclosures for high-power industrial electronics?

Frigate enclosures are designed with high thermal conductivity materials, such as aluminium alloys and copper-based composites, to efficiently transfer heat away from internal components. In addition, custom-designed heat sinks and integrated passive/active cooling systems (like thermoelectric cooling or forced air circulation) are implemented to prevent thermal buildup and ensure consistent operation in power-dense applications.

What materials does Frigate use for corrosion resistance in extreme environments like offshore oil rigs?

Frigate uses corrosion-resistant materials such as marine-grade 316L stainless steel, titanium alloys, and high-grade composites specifically chosen to withstand aggressive environmental conditions, including saltwater, chemicals, and fluctuating temperatures. These materials are often coupled with coatings like epoxy or powder-coating to further extend the enclosures’ service life in harsh environments.

How does Frigate achieve high mechanical strength in enclosures for critical military applications?

Frigate designs enclosures with high-strength alloys, including superalloys and impact-resistant composites, to meet military-grade specifications. These enclosures undergo rigorous testing under MIL-STD-810G standards for shock, vibration, and thermal cycling. Reinforced corner structures and pressure-relief mechanisms are incorporated to protect sensitive electronics in combat or field conditions where mechanical forces are high.

How do Frigate's enclosures maintain precise EMI shielding in data-sensitive systems?

Frigate’s enclosures employ multi-layer EMI shielding, using conductive gaskets made of copper or aluminum alloys and advanced electrostatic dissipative coatings. These materials work together to form a continuous shield, preventing radiated and conducted EMI. This is critical in telecommunications and medical devices, where signal integrity must be maintained even in high-frequency noise.

What design features in Frigate’s enclosures ensure long-term durability in outdoor industrial environments?

Frigate incorporates IP65, IP66, or IP67-rated seals, ensuring the enclosures are fully protected against dust and water ingress. Materials like weather-resistant polycarbonate and anodized aluminum are used for exterior surfaces to withstand UV degradation, extreme temperatures, and humidity. The enclosures are designed for thermal stability, ensuring that internal components remain operational despite fluctuating outdoor conditions.
