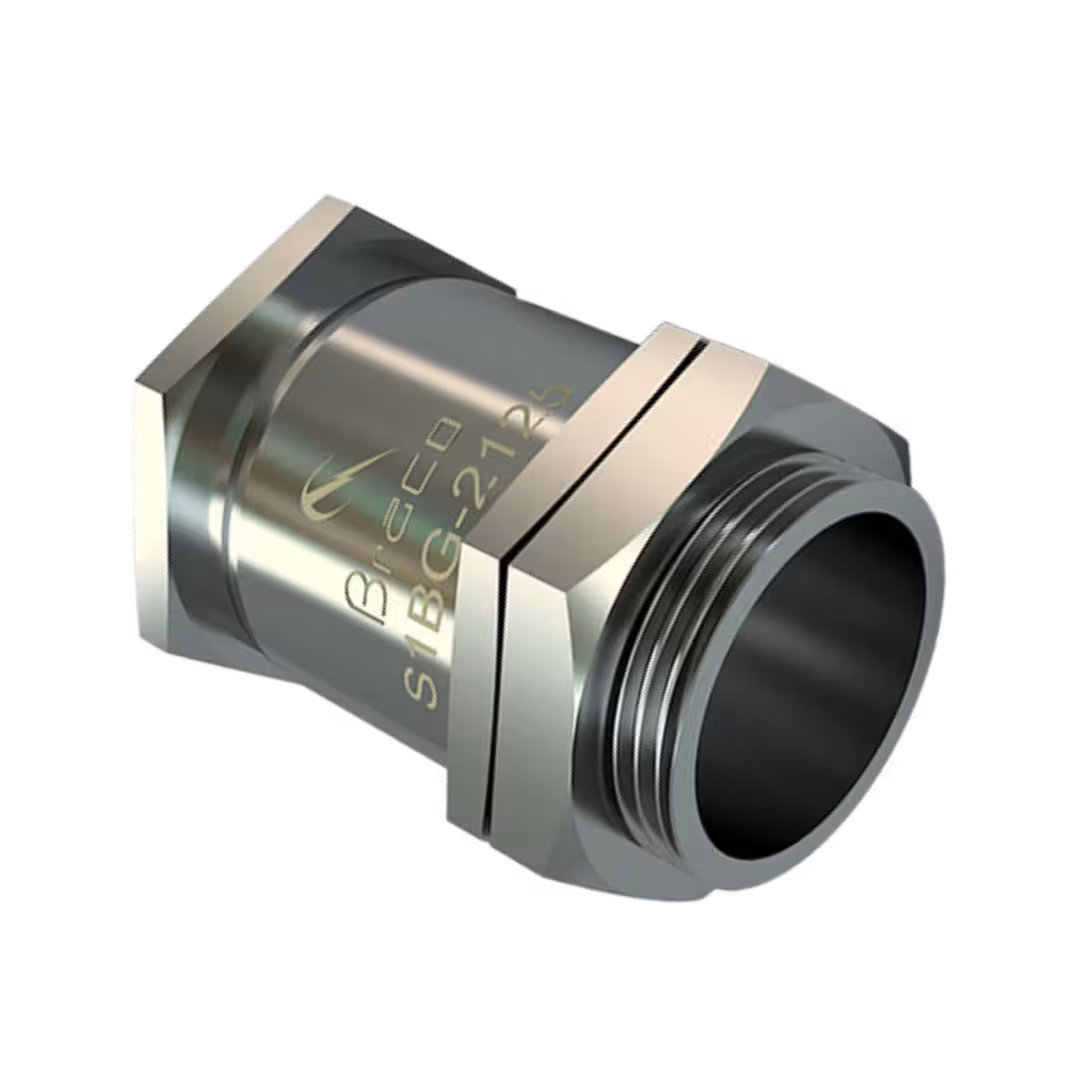

Single Compression Heavy Duty Brass Glands

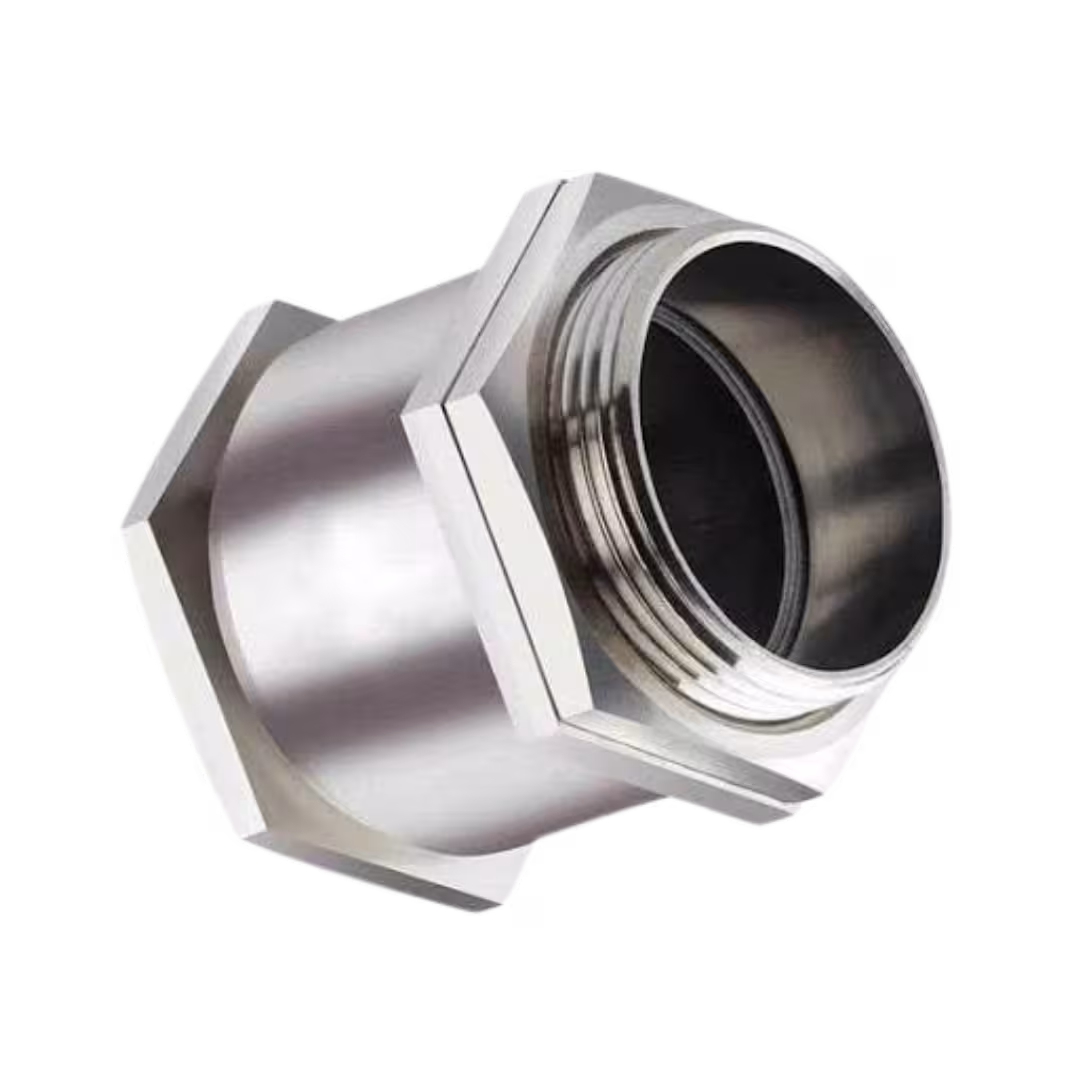

Single Compression Heavy Duty Brass Glands - Image 2
Engineered for ultimate reliability in high-stress industrial environments, Frigate’s Single Compression Heavy Duty Brass Glands (SIBG) provide robust, weatherproof, and dust-tight cable management. Crafted from premium nickel-plated brass, these glands ensure uncompromising safety and superior earthing provisions for both armored and unarmored cables.

Cable Suitability

Armored and Unarmored Cables

Body Material

Premium Brass

Surface Finish

Nickel Plated

Sealing Element

Nitrile Rubber Ring

Washer Type

Three Mild Steel (M S) Washers

Price Range:

Price range: $282.00 through $13,490.00 /per unit

  • Competitive Pricing
  • Order Flexibility
  • Volume Discounts
Request Bulk Quote

You're Protected With Every Order

Frigate ensures reliable electrical products, proper invoice support, and post-order assistance, so you can purchase with confidence.

100% Genuine Products

Direct from brand-authorised sources.

Manufacturer Assured

Warranty as per manufacturer terms.

GST Invoice

Compliant invoice with every order.

Technical Support

Expert help for product selection.

Business Features

Exclusive benefits for bulk buyers.

  • World Wide Delivery
  • Secure Payments
  • Dedicated Account Manager
  • Post-Order Support

Price & Specification Details

WEATHER PROOF FLAME PROOF
O.D. Range (mm) Nipple Entry Cat No. Rate / Unit Cat No. Rate / Unit
8 – 12 5/8″ BPW 3/8″ 282.00 BPF 3/8″ 324.00
8 – 13 5/8″ BPW 1/2″ 282.00 BPF 1/2″ 324.00
8 – 13 3/4″ BPW 001S 294.00 BPF 001S 338.00
11 – 15 3/4″ BPW 5/8″ 345.00 BPF 5/8″ 397.00
12.5 – 16.5 3/4″ BPW 001 345.00 BPF 001 397.00
12.5 – 16.5 3/4″ BPW 01S 370.00 BPF 01S 426.00
15 – 18 3/4″ BPW 01 420.00 BPF 01 483.00
15 – 18 1″ BPW 01L 474.00 BPF 01L 545.00
18 – 20 1″ BPW 02 536.00 BPF 02 616.00
18 – 20 3/4″ BPW 02S 555.00 BPF 02S 638.00
20 – 23 1″ BPW 1″ 536.00 BPF 1″ 616.00
20 – 23 1″ BPW 03 545.00 BPF 03 627.00
23 – 26 1″ BPW 04 744.00 BPF 04 856.00
23 – 26 1-1/4″ BPW 04L 822.00 BPF 04L 945.00
26 – 30 1-1/4″ BPW 05 926.00 BPF 05 1065.00
26 – 30 1-1/2″ BPW 05L 1064.00 BPF 05L 1224.00
30 – 33 1-1/2″ BPW 06 1324.00 BPF 06 1524.00
30 – 33 1-1/4″ BPW 06S 1348.00 BPF 06S 1550.00
33 – 37 1-1/2″ BPW 07 1566.00 BPF 07 1801.00
37 – 41 2″ BPW 08 1881.00 BPF 08 2163.00
41 – 46 2″ BPW 09 2034.00 BPF 09 2339.00
46 – 52 2″ BPW 010 2476.00 BPF 010 2847.00
46 – 52 2-1/2″ BPW 010L 2721.00 BPF 010L 3129.00
52 – 60 2-1/2″ BPW 011 3705.00 BPF 011 4261.00
60 – 66 3″ BPW 012 4357.00 BPF 012 4999.00
66 – 72 3″ BPW 013S 5606.00 BPF 013S 6447.00
72 – 78 3-1/4″ BPW 013 5914.00 BPF 013 6801.00
78 – 83 3-1/2″ BPW 014 7452.00 BPF 014 8570.00
83 – 93 4″ BPW 015 8694.00 BPF 015 9998.00
93 – 104 4-1/2″ BPW 016 11730.00 BPF 016 13490.00
CAT NO. Entry Thread Dia. (C) Exit Bore Dia. (B) Inner Body Bore (A) Width Across Flats (A/F) Width Across Corners (A/C) Thread Length (D) Sealing Ring I.D. (R) CABLE ACCEPTANCE DIA (MM)
SIBG-1612 12 16 12 22 25.5 9 8 5 – 8
SIBG-1616 16 19 12 25 28.5 9 11 9 – 11
SIBG-1619 19 19 15 25 28.5 9 13 10 – 13
SIBG-2119 19 23 15 30 34 9.5 16 13 – 16
SIBG-2125 25.4 23 21 30 34 9.5 18 15 – 18
SIBG-2925 25.4 33 21 40 45 10 21 18 – 21
SIBG-2932 32 33 27 40 45 10 23 20 – 23
SIBG-2938 38 33 32 43 50 10 25 21 – 25
SIBG-3638 38 41 32 49 56 11 33 29 – 33
SIBG-4251 51 47 44.5 59 68 11 38 34 – 38
SIBG-5451 51 56 44.5 68 78 12 44 40 – 44
SIBG-5463 63.5 56 55 68 78 12 46 41 – 46
SIBG-6063 63.5 64 55 76 87 12 53 48 – 53
SIBG-6675 76 72 66 85 98 13 62 57 – 62
SIBG-7882 82 82 72 95 110 15 70 65 – 70

Product Detail

Frigate’s Single Compression SIBG Glands are premium mechanical entry devices designed to secure and protect electrical cables passing through enclosures and bulkheads. They deliver reliable cable retention and an optimized environmental seal, making them an indispensable choice for heavy-duty industrial wiring.

Ingress Protection

IP-60

Operating Temperature

-20°C to +80°C

Applicable Standards

IS 12943 / IEC-62444 / BS 6121: Part 1

Max Cable Capacity

Cables up to 1000 sq. mm. / Control cables up to 61 cores

Thread Compatibility

ET / MM / NPT (Without check nut)

Components Included

Gland Body, Compression Nut (CAP), Check Nut, Rubber Ring, 3 Metal Washers

Technical Advantages

These heavy-duty glands feature a rugged nickel-plated brass construction that provides excellent corrosion resistance alongside high-performance protection against dust and moisture ingress. Furthermore, their integrated three-metal washer layout and high-grade nitrile rubber ring ensure exceptional mechanical strain relief and optimal earthing performance for armored cabling systems.

Compliances

ISO 90012015

QA-AC-628923

Why customers choose FRIGATE?

Built on trust, manufacturing expertise, and long-term support.

5+ years of experience

Trusted for reliable manufacturing solutions.

World Wide delivery

From factories to doorsteps across the world.

Secure payments

Multiple safe options with full transaction security.

Dedicated account manager

Single point of contact for orders and queries.

Post-order support

Reliable support that stays with you after delivery.

Having Doubts? Our FAQ

What international standards do Frigate's SIBG glands adhere to?

Our single compression brass glands are fully compliant with IS 12943, IEC-62444, and BS 6121: Part 1 standards, guaranteeing quality and safety for global industrial applications.

Can these glands withstand extreme environmental conditions?

Yes, they feature an IP-60 ingress protection rating, making them completely dust-tight, and they operate flawlessly across a broad temperature spectrum from -20°C to +80°C.

What types of threads are available for customization?

Frigate offers specialized configurations with ET (Electrical Thread), MM (Metric), and NPT (National Pipe Thread) choices supplied without a check nut to suit your exact infrastructure needs.

What cable sizes and core capacities can these brass glands accommodate?

They support extensive cable diameters accepting up to 1000 sq. mm. for standard lines, and can accommodate control cables bundled with up to 61 distinct cores.

What components are standard inside a single compression kit?

Each standard assembly includes a robust brass gland body, one compression nut (CAP), one brass check nut, a durable nitrile rubber sealing ring, and three mild steel (MS) washers.
