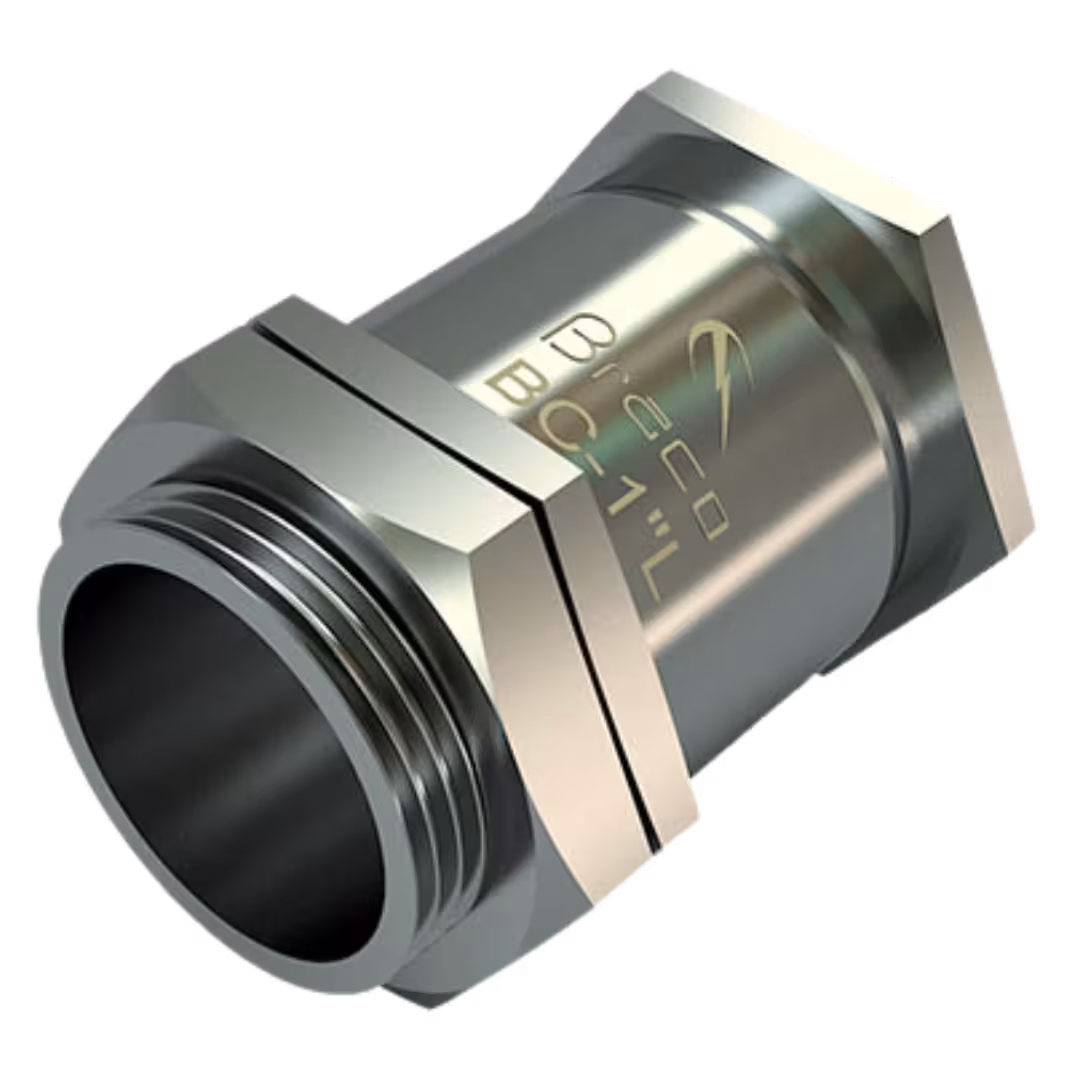

Single Compression Brass Glands

CABLE GLAND

CAT NO.

O.D. RANGE (MM)

NIPPLE ENTRY

Clear

Safe & Secure Payments

Order Quantity (Units)	Discount Offered (%)
1 – 499	Base Rate (0%)
500 – 1,999	5% Off
2,000 – 4,999	10% Off
5,000 +	Custom Pricing

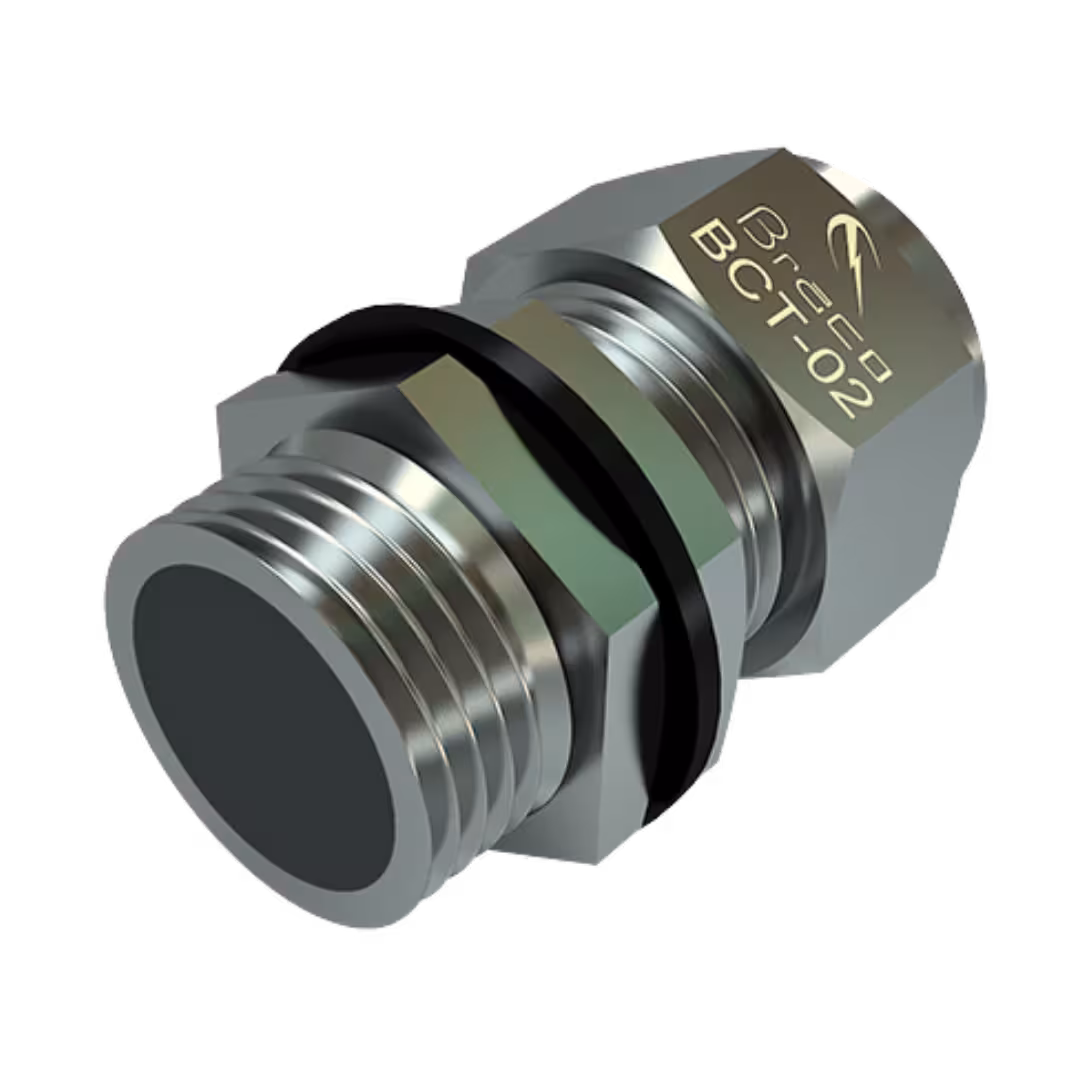

Single Compression Brass Glands - Image 2

Secure your critical industrial electrical systems with Frigate’s high-precision Single Compression Brass Cable Glands, engineered for ultimate durability and heavy-duty performance. Designed to meet stringent international standards, our glands provide seamless, weatherproof, and dust-tight strain relief for complex commercial and manufacturing setups.

Gland Components

Body, Compression Nut, Check Nut, Rubber Ring, 3 Metal Washers

Primary Material

Premium Precision-Machined Brass Casting

Surface Finish

Standard Nickel-Plated (Custom options: Cadmium, Tin, or Passivated)

Ingress Protection Rating

IP-60 (Weatherproof and Dust-tight)

Operating Temperature

-20° C to +80° C

Price Range:

Price range: $282.00 through $13,490.00 /per unit

You're Protected With Every Order

Frigate ensures reliable electrical products, proper invoice support, and post-order assistance, so you can purchase with confidence.

100% Genuine Products

Direct from brand-authorised sources.

Manufacturer Assured

Warranty as per manufacturer terms.

GST Invoice

Compliant invoice with every order.

Technical Support

Expert help for product selection.

Business Features

Exclusive benefits for bulk buyers.

Price & Specification Details

WEATHER PROOF				FLAME PROOF
O.D. Range (mm)	Nipple Entry	Cat No.	Rate / Unit	Cat No.	Rate / Unit
8 – 12	5/8″	BPW 3/8″	282.00	BPF 3/8″	324.00
8 – 13	5/8″	BPW 1/2″	282.00	BPF 1/2″	324.00
8 – 13	3/4″	BPW 001S	294.00	BPF 001S	338.00
11 – 15	3/4″	BPW 5/8″	345.00	BPF 5/8″	397.00
12.5 – 16.5	3/4″	BPW 001	345.00	BPF 001	397.00
12.5 – 16.5	3/4″	BPW 01S	370.00	BPF 01S	426.00
15 – 18	3/4″	BPW 01	420.00	BPF 01	483.00
15 – 18	1″	BPW 01L	474.00	BPF 01L	545.00
18 – 20	1″	BPW 02	536.00	BPF 02	616.00
18 – 20	3/4″	BPW 02S	555.00	BPF 02S	638.00
20 – 23	1″	BPW 1″	536.00	BPF 1″	616.00
20 – 23	1″	BPW 03	545.00	BPF 03	627.00
23 – 26	1″	BPW 04	744.00	BPF 04	856.00
23 – 26	1-1/4″	BPW 04L	822.00	BPF 04L	945.00
26 – 30	1-1/4″	BPW 05	926.00	BPF 05	1065.00
26 – 30	1-1/2″	BPW 05L	1064.00	BPF 05L	1224.00
30 – 33	1-1/2″	BPW 06	1324.00	BPF 06	1524.00
30 – 33	1-1/4″	BPW 06S	1348.00	BPF 06S	1550.00
33 – 37	1-1/2″	BPW 07	1566.00	BPF 07	1801.00
37 – 41	2″	BPW 08	1881.00	BPF 08	2163.00
41 – 46	2″	BPW 09	2034.00	BPF 09	2339.00
46 – 52	2″	BPW 010	2476.00	BPF 010	2847.00
46 – 52	2-1/2″	BPW 010L	2721.00	BPF 010L	3129.00
52 – 60	2-1/2″	BPW 011	3705.00	BPF 011	4261.00
60 – 66	3″	BPW 012	4357.00	BPF 012	4999.00
66 – 72	3″	BPW 013S	5606.00	BPF 013S	6447.00
72 – 78	3-1/4″	BPW 013	5914.00	BPF 013	6801.00
78 – 83	3-1/2″	BPW 014	7452.00	BPF 014	8570.00
83 – 93	4″	BPW 015	8694.00	BPF 015	9998.00
93 – 104	4-1/2″	BPW 016	11730.00	BPF 016	13490.00

Cat No.	Entry Thread (C)	Nipple Length (D)	Inner Bore (A)	Body Length (B)	Across Flat (A/F)	Across Corner (A/C)	Gland ID (R)	Cable O.D. Range (mm)
BC-3/8″	1/2″	6	12	14	19	21.8	8	9.0 – 13.5
BC-1/2″L	5/8″	6.5	13	15	21	23.5	12	10.0 – 14.5
BC-1/2″H	5/8″	7.5	13	15	21	23.5	12	10.0 – 14.5
BC-5/8″L	3/4″	7	15	15	21	23.5	12	10.0 – 14.5
BC-5/8″H	3/4″	8	15	15	21	23.5	12	10.0 – 14.5
BC-3/4″L	3/4″	8	15	17.5	23	26	14	14.0 – 17.0
BC-3/4″H	3/4″	9	15	17.5	23	26	14	14.0 – 17.0
BC-7/8″L	3/4″	8	15	20	25	29	16	17.0 – 19.5
BC-7/8″H	3/4″	9	15	20	25	29	16	17.0 – 19.5
BC-1″L	1″	8	21.5	23.5	29	33	20	19.5 – 23.0
BC-1″H	1″	10	21	23.5	29	34.5	20	19.5 – 23.0
BC-1″S	3/4″	8	15	23.5	29	33	18	19.5 – 23.0
BC-1-1/8″	1-1/8″	10.5	25	28	34	39	25	23.0 – 27.0
BC-1-1/4″	1-1/4″	10.5	27	31.5	36.5	42	27	27.0 – 30.0
BC-1-3/8″	1-3/8″	10.5	31	35.5	42	49	31	30.0 – 34.0
BC-1-1/2″	1-1/2″	10.5	34	39	45	52	33	34.0 – 38.0
BC-1-3/4″	1-3/4″	11.5	40	45	51	59	39	38.0 – 44.0
BC-2″	2″	11.5	45	51.5	59	68	44	44.0 – 50.0
BC-2-1/4″	2-1/4″	11.5	52	58	64	73	52	50.0 – 56.5
BC-2-1/2″	2-1/2″	13	58	62.5	69	80	58	56.5 – 61.0
BC-2-3/4″	2-3/4″	13.5	65.5	70	77	89	65	61.0 – 68.0
BC-3″	3″	13.5	69.5	76	86	96	70	68.0 – 74.0
BC-3-1/4″	3-1/4″	15	75	82	91	105	75	74.0 – 80.0
BC-3-1/2″	3-1/2″	15	82	88	101	116	80	80.0 – 86.0
BC-4″	4″	20	92.5	100	110	127	86	86.0 – 98.0
BC-4-1/2″	4-1/2″	23	102	108	127	145	90	98.0 – 105.0

Product Detail

Frigate’s Single Compression Brass Cable Glands are precision-engineered from high-grade brass castings to achieve structural stability in challenging industrial environments. Each unit incorporates an integrated multi-washer system and a resilient Nitrile rubber seal that works harmoniously to prevent environmental contamination and mechanical wire stress.

Applicable Standards

IS 12943 / IEC-62444 / BS 6121: Part 1

Compatible Cable Capacities

Up to 1000 sq.mm. (Armored/Unarmored)

Control Cable Core Capacity

Up to 61 Cores

Standard Entry Threads

BS-31 (BSC Threads)

Optional Entry Threads

ET / Metric / NPT (Available without check nut)

Internal Sealing Ring

High-Grade Nitrile Rubber

Technical Advantages

By using precise CNC machining techniques, Frigate guarantees optimized thread alignment and robust earthing continuity that safeguards low-to-high voltage system arrays. Our advanced nickel-plating chemistry acts as an impenetrable barrier against oxidizing atmospheres, meaning longer component service life and reduced maintenance down-time for your plant operations.

Compliances

ISO 9001:2015

QA-AC-6289/23

Why customers choose FRIGATE?

Built on trust, manufacturing expertise, and long-term support.

Having Doubts? Our FAQ

Can Frigate supply custom single compression brass glands with non-standard plating or thread lengths?

Yes, we provide full custom manufacturing services tailored to your project requirements. Through our engineering network, you can request specific modifications such as extended nipple lengths, alternate thread pitches, or specialized anti-corrosive plating like tin, cadmium, or passivated finishes.

Can these single compression glands be used out in the open with rain exposure?

Yes, our cable glands are certified dust-tight and weatherproof to an IP-60 rating level. They are built with robust internal elastomeric compression gaskets that prevent particulate matter or water sprays from entering panels, junctions, and control enclosures.

What standard thread profiles does Frigate provide for these brass glands?

Our standard production lines utilize BS-31 (BSC Imperial Threads). However, to suit your specific global equipment integrations, we regularly supply Metric, ET, and NPT thread profiles upon specialized contract engineering requests.

Does Frigate support specialized anti-corrosive finishes for coastal installations?

Absolutely. While our standard offering relies on standard industrial nickel plating, we provide comprehensive manufacturing flexibility to plate units with custom Cadmium, Tin, or tailored Passivated surface coatings depending on your localized chemical exposures.

Are these glands suitable for high-core count distribution cables?

Yes, this product family easily accommodates massive physical installations, including unarmored/armored power cables up to 1000 sq.mm sizes and highly dense multi-core signal control cables containing up to 61 individual cores.
