Double Compression Brass Glands

Safe & Secure Payments

Order Quantity Discount Offered
1 – 49 pcs 0%
50 – 99 pcs 3% off
100 – 249 pcs 5% off
250 – 499 pcs 8% off
500 – 999 pcs 10% off
1,000 – 2,499 pcs 12% off
2,500+ pcs Custom pricing
Double Compression Brass Glands

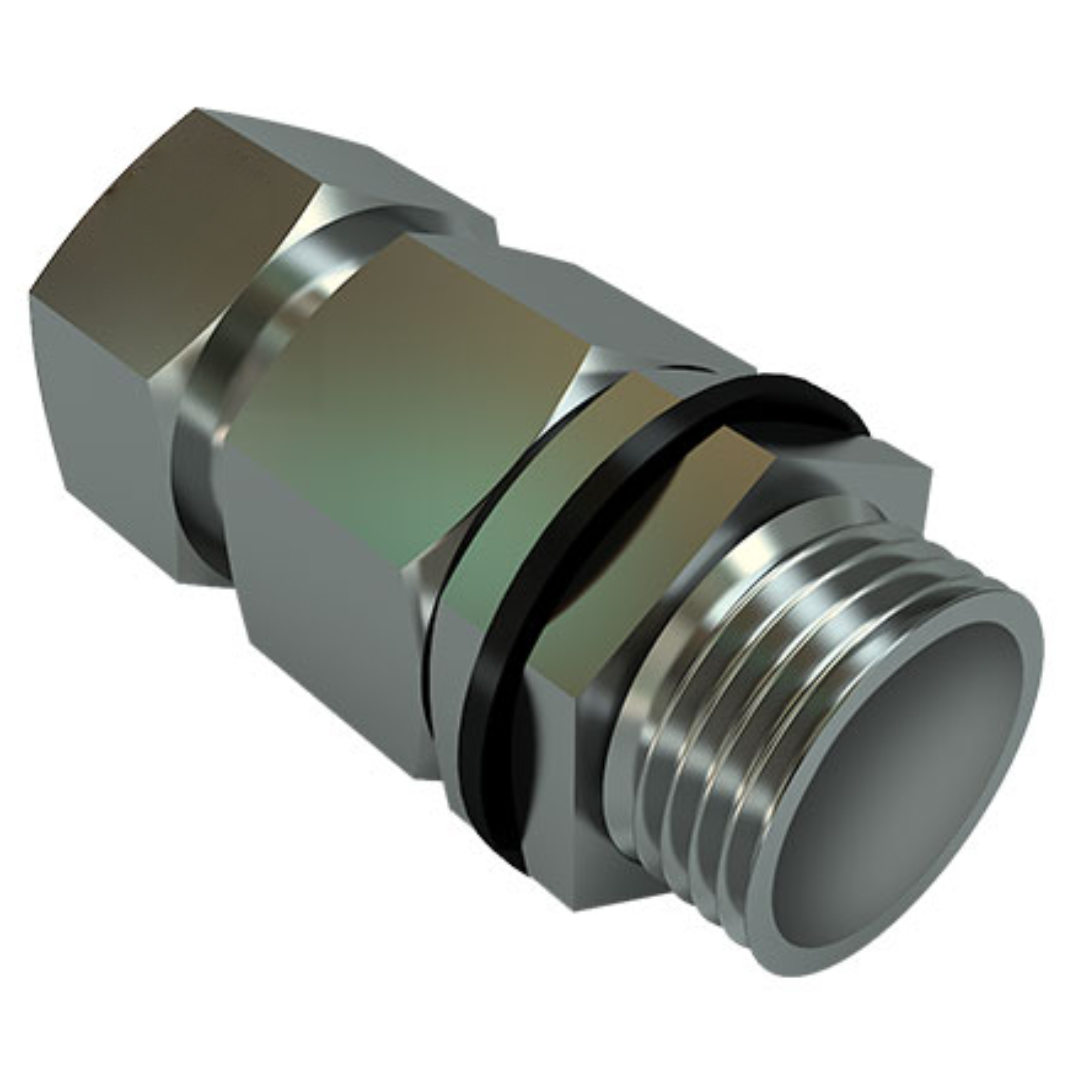

Double Compression Brass Glands - Image 2

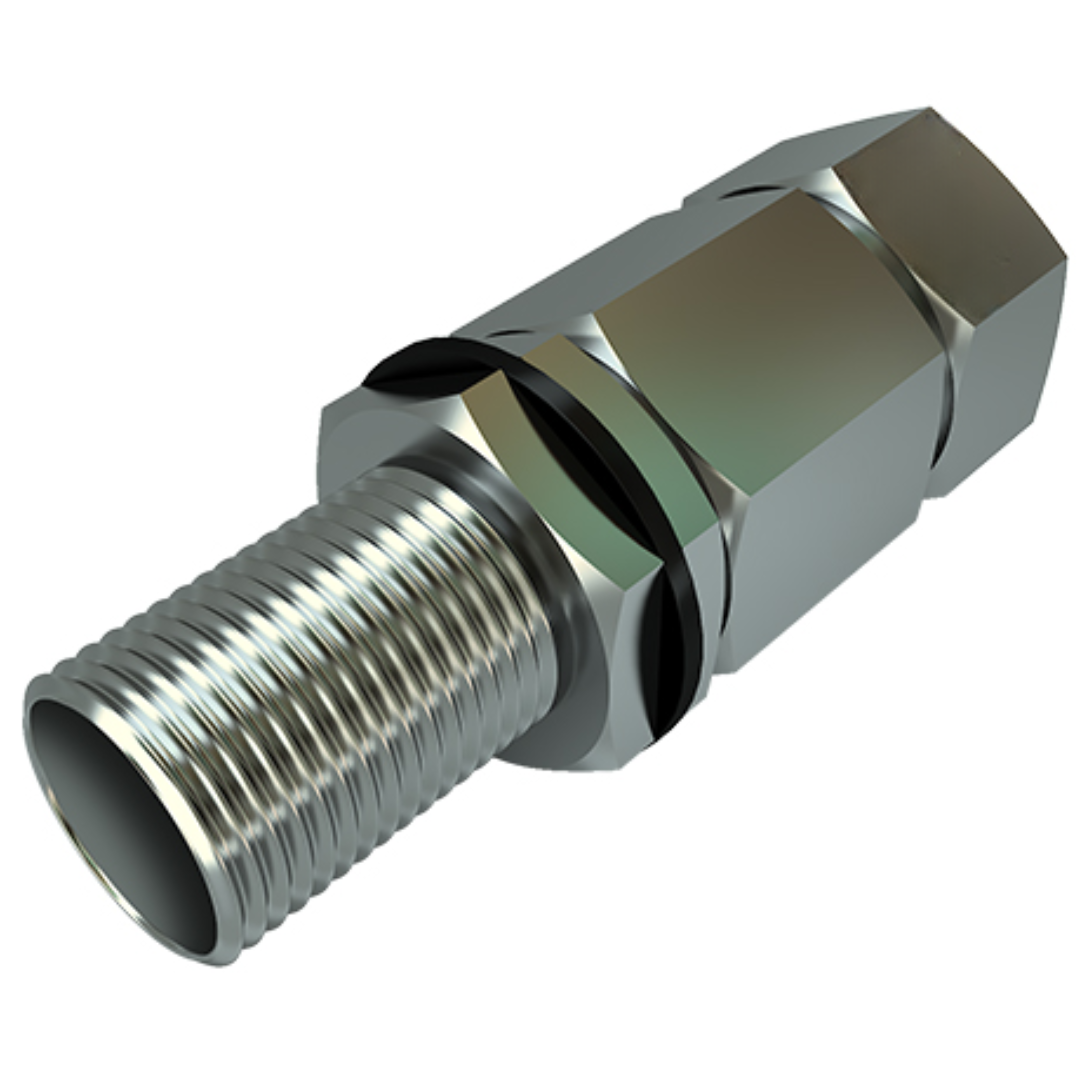

Double Compression Brass Glands - Image 3
Braco’s Double Compression Brass Cable Glands provide certified armoured cable termination for weatherproof and flameproof industrial environments. Designed to IS 12943 / IEC-62444 / BS 6121 standards, the BPW and BPF series address the mechanical retention and environmental sealing demands of mission-critical electrical installations.

Brand

Braco

Thread

ET / MM / NPT

IP Rating

IP-66

Operating Temperature

-20˚C to +80˚C

Finish

Nickel Plated

Price Range:

Price range: $282.00 through $13,490.00 /per unit

  • Competitive Pricing
  • Order Flexibility
  • Volume Discounts
Request Bulk Quote

You're Protected With Every Order

Frigate ensures reliable electrical products, proper invoice support, and post-order assistance, so you can purchase with confidence.

100% Genuine Products

Direct from brand-authorised sources.

Manufacturer Assured

Warranty as per manufacturer terms.

GST Invoice

Compliant invoice with every order.

Technical Support

Expert help for product selection.

Business Features

Exclusive benefits for bulk buyers.

  • World Wide Delivery
  • Secure Payments
  • Dedicated Account Manager
  • Post-Order Support

Price & Specification Details

WEATHER PROOF FLAME PROOF
O.D. Range (mm) Nipple Entry Cat No. Rate / Unit Cat No. Rate / Unit
8 – 12 5/8″ BPW 3/8″ 282.00 BPF 3/8″ 324.00
8 – 13 5/8″ BPW 1/2″ 282.00 BPF 1/2″ 324.00
8 – 13 3/4″ BPW 001S 294.00 BPF 001S 338.00
11 – 15 3/4″ BPW 5/8″ 345.00 BPF 5/8″ 397.00
12.5 – 16.5 3/4″ BPW 001 345.00 BPF 001 397.00
12.5 – 16.5 3/4″ BPW 01S 370.00 BPF 01S 426.00
15 – 18 3/4″ BPW 01 420.00 BPF 01 483.00
15 – 18 1″ BPW 01L 474.00 BPF 01L 545.00
18 – 20 1″ BPW 02 536.00 BPF 02 616.00
18 – 20 3/4″ BPW 02S 555.00 BPF 02S 638.00
20 – 23 1″ BPW 1″ 536.00 BPF 1″ 616.00
20 – 23 1″ BPW 03 545.00 BPF 03 627.00
23 – 26 1″ BPW 04 744.00 BPF 04 856.00
23 – 26 1-1/4″ BPW 04L 822.00 BPF 04L 945.00
26 – 30 1-1/4″ BPW 05 926.00 BPF 05 1065.00
26 – 30 1-1/2″ BPW 05L 1064.00 BPF 05L 1224.00
30 – 33 1-1/2″ BPW 06 1324.00 BPF 06 1524.00
30 – 33 1-1/4″ BPW 06S 1348.00 BPF 06S 1550.00
33 – 37 1-1/2″ BPW 07 1566.00 BPF 07 1801.00
37 – 41 2″ BPW 08 1881.00 BPF 08 2163.00
41 – 46 2″ BPW 09 2034.00 BPF 09 2339.00
46 – 52 2″ BPW 010 2476.00 BPF 010 2847.00
46 – 52 2-1/2″ BPW 010L 2721.00 BPF 010L 3129.00
52 – 60 2-1/2″ BPW 011 3705.00 BPF 011 4261.00
60 – 66 3″ BPW 012 4357.00 BPF 012 4999.00
66 – 72 3″ BPW 013S 5606.00 BPF 013S 6447.00
72 – 78 3-1/4″ BPW 013 5914.00 BPF 013 6801.00
78 – 83 3-1/2″ BPW 014 7452.00 BPF 014 8570.00
83 – 93 4″ BPW 015 8694.00 BPF 015 9998.00
93 – 104 4-1/2″ BPW 016 11730.00 BPF 016 13490.00
WEATHER PROOF FLAME PROOF
O.D. Range (mm) Nipple Entry Cat No. Rate / Unit Cat No. Rate / Unit
8 – 12 5/8″ BPW 3/8″ 282.00 BPF 3/8″ 324.00
8 – 13 5/8″ BPW 1/2″ 282.00 BPF 1/2″ 324.00
8 – 13 3/4″ BPW 001S 294.00 BPF 001S 338.00
11 – 15 3/4″ BPW 5/8″ 345.00 BPF 5/8″ 397.00
12.5 – 16.5 3/4″ BPW 001 345.00 BPF 001 397.00
12.5 – 16.5 3/4″ BPW 01S 370.00 BPF 01S 426.00
15 – 18 3/4″ BPW 01 420.00 BPF 01 483.00
15 – 18 1″ BPW 01L 474.00 BPF 01L 545.00
18 – 20 1″ BPW 02 536.00 BPF 02 616.00
18 – 20 3/4″ BPW 02S 555.00 BPF 02S 638.00
20 – 23 1″ BPW 1″ 536.00 BPF 1″ 616.00
20 – 23 1″ BPW 03 545.00 BPF 03 627.00
23 – 26 1″ BPW 04 744.00 BPF 04 856.00
23 – 26 1-1/4″ BPW 04L 822.00 BPF 04L 945.00
26 – 30 1-1/4″ BPW 05 926.00 BPF 05 1065.00
26 – 30 1-1/2″ BPW 05L 1064.00 BPF 05L 1224.00
30 – 33 1-1/2″ BPW 06 1324.00 BPF 06 1524.00
30 – 33 1-1/4″ BPW 06S 1348.00 BPF 06S 1550.00
33 – 37 1-1/2″ BPW 07 1566.00 BPF 07 1801.00
37 – 41 2″ BPW 08 1881.00 BPF 08 2163.00
41 – 46 2″ BPW 09 2034.00 BPF 09 2339.00
46 – 52 2″ BPW 010 2476.00 BPF 010 2847.00
46 – 52 2-1/2″ BPW 010L 2721.00 BPF 010L 3129.00
52 – 60 2-1/2″ BPW 011 3705.00 BPF 011 4261.00
60 – 66 3″ BPW 012 4357.00 BPF 012 4999.00
66 – 72 3″ BPW 013S 5606.00 BPF 013S 6447.00
72 – 78 3-1/4″ BPW 013 5914.00 BPF 013 6801.00
78 – 83 3-1/2″ BPW 014 7452.00 BPF 014 8570.00
83 – 93 4″ BPW 015 8694.00 BPF 015 9998.00
93 – 104 4-1/2″ BPW 016 11730.00 BPF 016 13490.00

Product Detail

The dual-compression mechanism independently clamps the cable armour and the outer sheath, ensuring sustained mechanical grip and IP-66 ingress protection under vibration, thermal cycling, and cable load conditions. Manufactured from nickel-plated brass with nitrile/neoprene rubber sealing elements, these glands cover cable ODs from 8 mm to 104 mm across 30+ size variants operating between −20°C and +80°C.

Gland Body

Brass

Flat Washer

Nitrile/ Neoprene Rubber

Check Nut

Brass

Inner Seal

Nitrile Rubber

Outer Seal

Nitrile/ Neoprene Rubber

Certification

IS 12943 / IEC-62444 / BS 6121: PART 1/ IS/IEC 60079:PART-1

Technical Advantages

The independent armour and sheath clamping eliminates relative movement between cable layers, reducing seal degradation risk in high-vibration environments. Long-term retention is achieved without supplementary locking hardware, reducing installation time and failure rates across large-scale switchgear builds.

The BPF variant incorporates a 25 mm barrel depth meeting IS/IEC 60079:Part-1 flame path requirements for Zone 1 and Zone 2 classifications. Tri-thread compatibility across ET, Metric (M-16 to M-115), and NPT enables direct integration with global OEM enclosures without adapters.

Compliances

ISO 9001 : 2015

Why customers choose FRIGATE?

Built on trust, manufacturing expertise, and long-term support.

5+ years of experience

Trusted for reliable manufacturing solutions.

World Wide delivery

From factories to doorsteps across the world.

Secure payments

Multiple safe options with full transaction security.

Dedicated account manager

Single point of contact for orders and queries.

Post-order support

Reliable support that stays with you after delivery.

Having Doubts? Our FAQ

What distinguishes a double compression gland from a single compression type?

Single compression glands clamp only one cable layer, leaving the other unrestrained. Frigate’s double compression design independently locks both the wire armour and the outer sheath, preventing axial cable movement under vibration or mechanical load. This preserves IP-66 sealing integrity over the full service life and reduces cable pullout risk in demanding industrial and panel installations.

Are BPF flameproof glands certified for Zone 1 and Zone 2 hazardous area installations?

Frigate’s BPF series complies with IS/IEC 60079:Part-1, qualifying them for Zone 1 and Zone 2 hazardous area installations. The 25 mm barrel depth meets the certified flameproof flame path length requirement. Engineering teams should validate zone classifications and applicable Ex markings against site-specific hazardous area documentation before finalizing procurement specifications.

What armoured cable types are compatible with Frigate's double compression glands?

Frigate’s double compression glands accommodate both steel wire armour (SWA) and steel tape armour (STA) cables. The brass armour clamp and clamping ring assembly provides positive mechanical grip on both armour types. Procurement teams should specify the exact cable OD and armour type when selecting SKUs from the BPW or BPF series to ensure optimal sealing performance.

How does tri-thread compatibility benefit OEM panel builders and integrators?

Tri-thread availability across ET, Metric (MM), and NPT standards eliminates thread adapters when integrating into enclosures from different global OEM vendors. This reduces procurement complexity, lowers failure risk at adapter interfaces, and allows a single gland family to be specified across mixed-standard switchgear, junction boxes, and control panel builds without sourcing alternate fittings.

What are the key construction differences between the BPW and BPF series glands?

Both series share brass body construction, nitrile/neoprene sealing elements, and nickel-plated finish. The primary distinction is barrel depth: BPW uses a 15–20 mm depth for IP-66 weatherproof sealing, while BPF uses a fixed 25 mm depth to satisfy IEC 60079 flameproof path requirements. BPF glands additionally comply with IS/IEC 60079:Part-1 alongside IS 12943 and IEC-62444.
