Flange Type Brass Cable Glands

Safe & Secure Payments

Order Quantity Range (Units) Contract Discount Offered (%)
1 – 100 Base Rate (0% Discount)
101 – 500 5% Volume Discount
501 – 2,000 10% Volume Discount
2,001 – 5,000 15% Volume Discount
5,001+ Custom Pricing

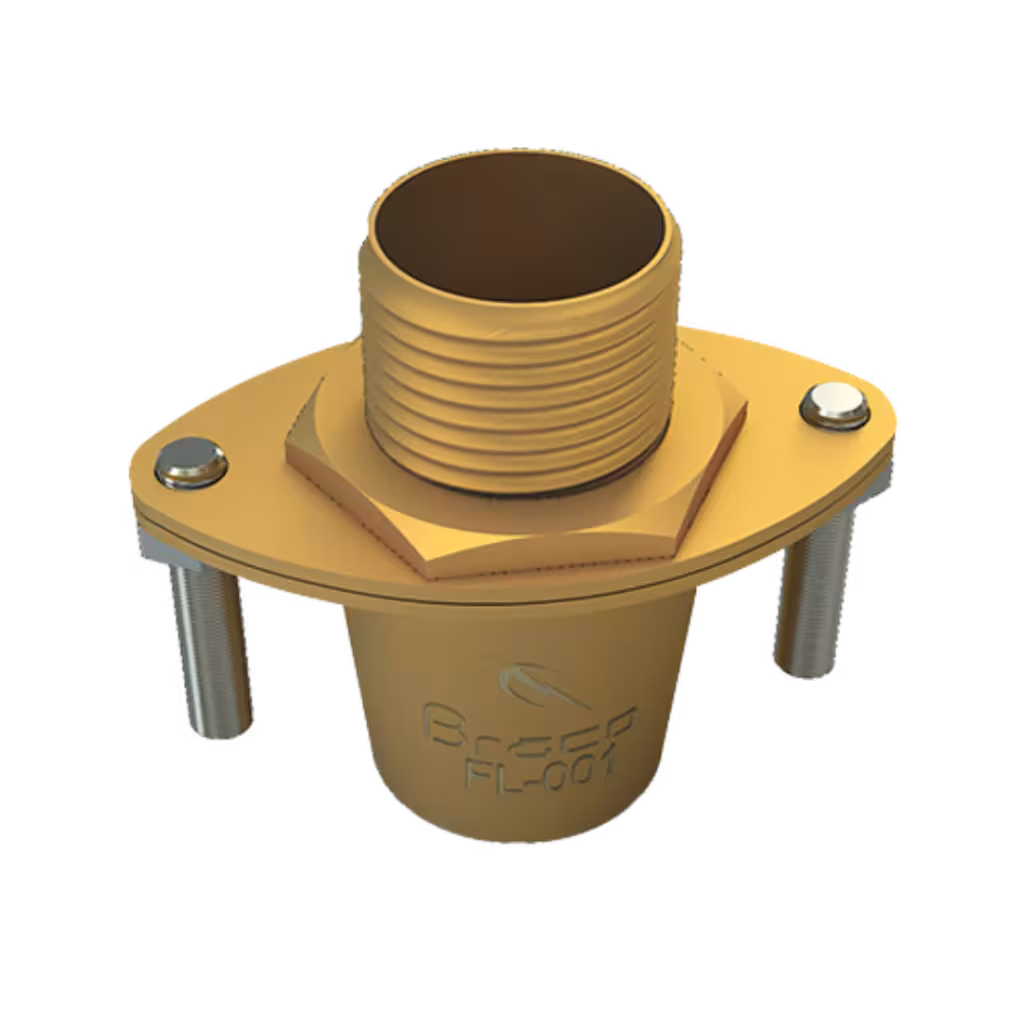

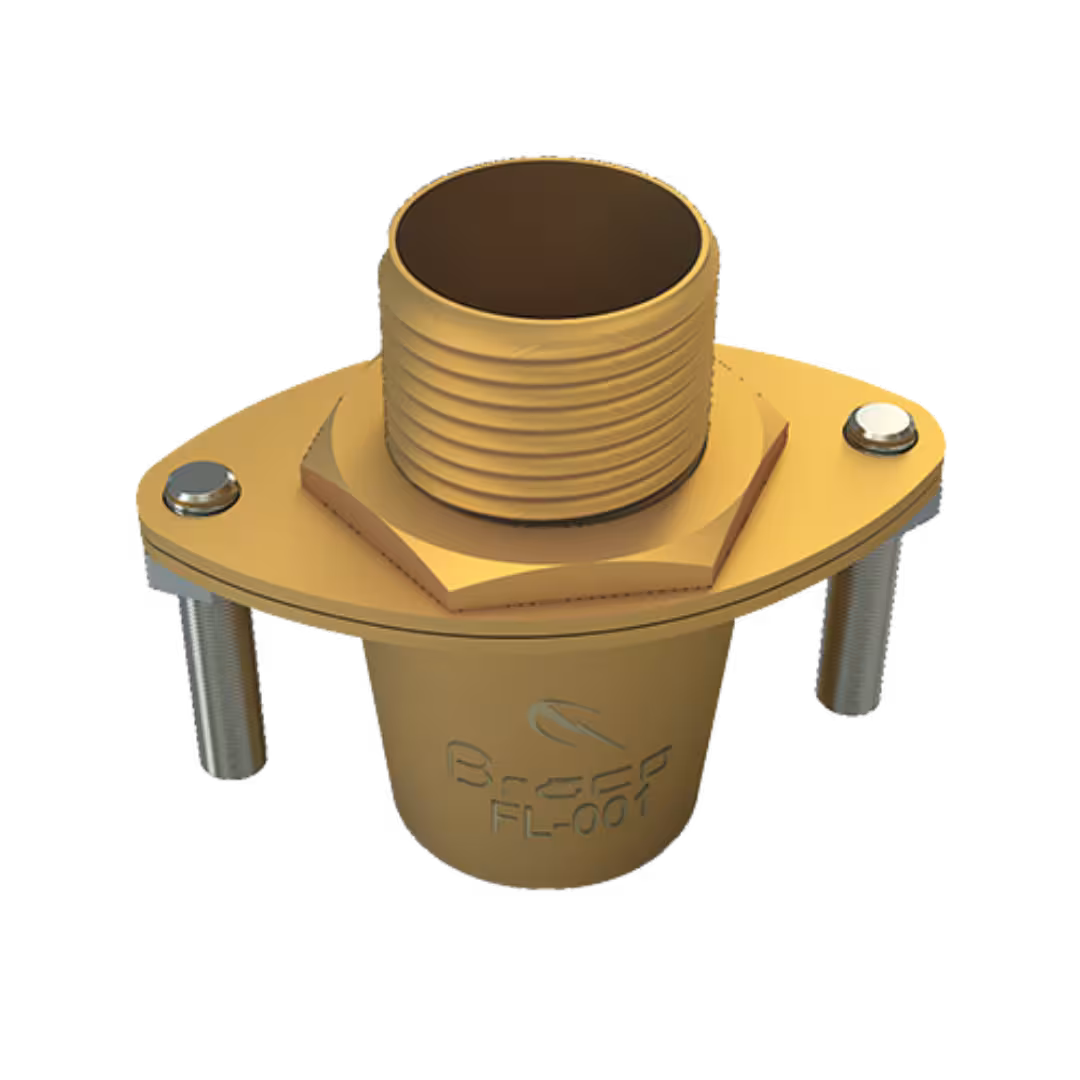

Flange Type Brass Cable Glands

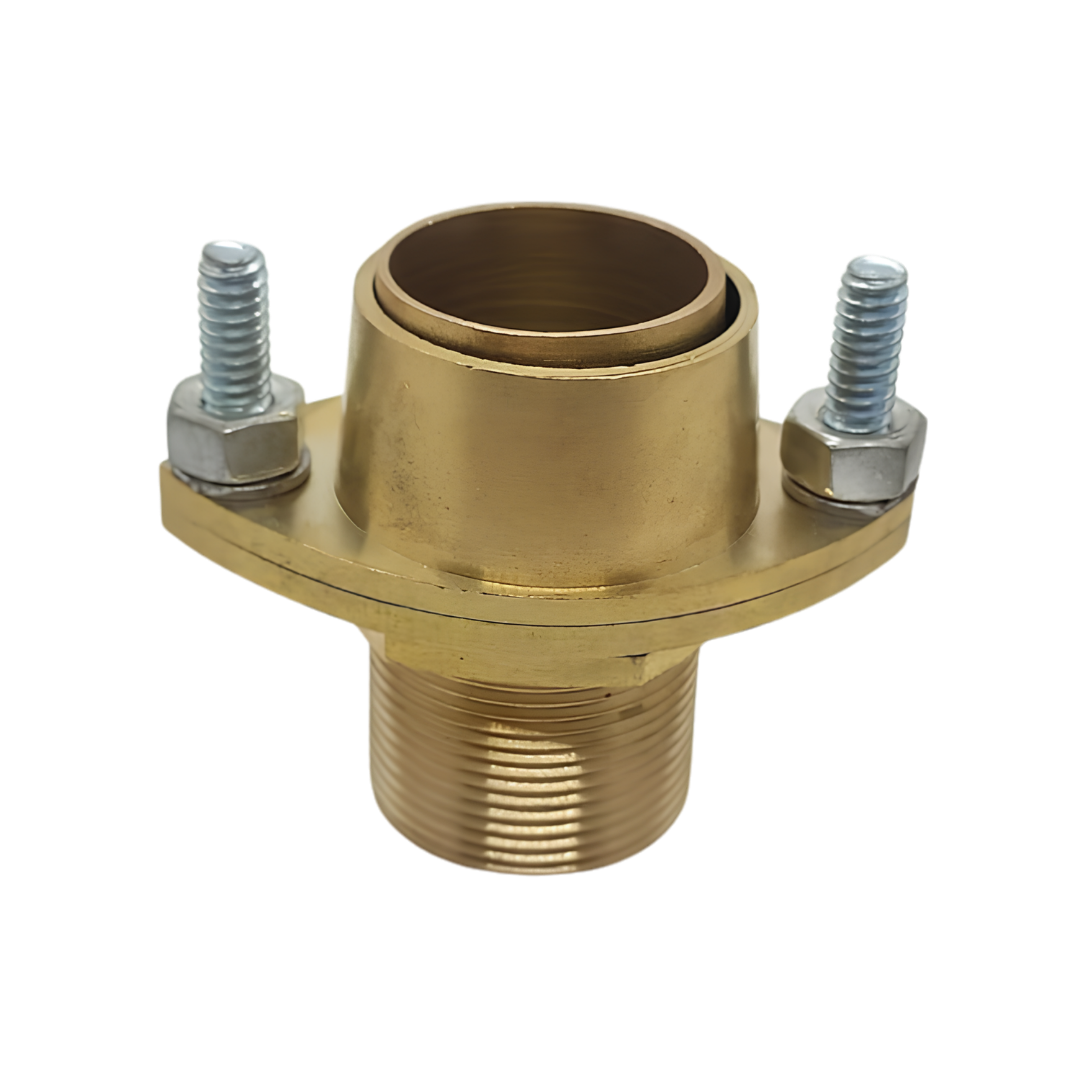

Flange Type Brass Cable Glands - Image 2
Frigate presents precision-crafted Flange Type Brass Cable Glands, meticulously engineered from high-grade brass castings to provide robust mechanical clamping for armored cables in heavy-duty environments. Designed specifically for demanding outdoor B2B manufacturing and electrical infrastructure applications, these glands guarantee maximum cable security and seamless environmental sealing.

Material Construction

High-Grade Machined Brass Castings

Application Suitability

Rugged Outdoor and Indoor Industrial Installations

Compatible Cable Type

Single & Multi-Core Armoured Cables

Clamping Mechanism

Oval Flange Plate Clamped with Galvanized Mild Steel Studs

Armor Grip Profile

Precision Tapered Cone & Body Assembly

Price Range:

Price range: $282.00 through $13,490.00 /per unit

  • Competitive Pricing
  • Order Flexibility
  • Volume Discounts
Request Bulk Quote

You're Protected With Every Order

Frigate ensures reliable electrical products, proper invoice support, and post-order assistance, so you can purchase with confidence.

100% Genuine Products

Direct from brand-authorised sources.

Manufacturer Assured

Warranty as per manufacturer terms.

GST Invoice

Compliant invoice with every order.

Technical Support

Expert help for product selection.

Business Features

Exclusive benefits for bulk buyers.

  • World Wide Delivery
  • Secure Payments
  • Dedicated Account Manager
  • Post-Order Support

Price & Specification Details

WEATHER PROOF FLAME PROOF
O.D. Range (mm) Nipple Entry Cat No. Rate / Unit Cat No. Rate / Unit
8 – 12 5/8″ BPW 3/8″ 282.00 BPF 3/8″ 324.00
8 – 13 5/8″ BPW 1/2″ 282.00 BPF 1/2″ 324.00
8 – 13 3/4″ BPW 001S 294.00 BPF 001S 338.00
11 – 15 3/4″ BPW 5/8″ 345.00 BPF 5/8″ 397.00
12.5 – 16.5 3/4″ BPW 001 345.00 BPF 001 397.00
12.5 – 16.5 3/4″ BPW 01S 370.00 BPF 01S 426.00
15 – 18 3/4″ BPW 01 420.00 BPF 01 483.00
15 – 18 1″ BPW 01L 474.00 BPF 01L 545.00
18 – 20 1″ BPW 02 536.00 BPF 02 616.00
18 – 20 3/4″ BPW 02S 555.00 BPF 02S 638.00
20 – 23 1″ BPW 1″ 536.00 BPF 1″ 616.00
20 – 23 1″ BPW 03 545.00 BPF 03 627.00
23 – 26 1″ BPW 04 744.00 BPF 04 856.00
23 – 26 1-1/4″ BPW 04L 822.00 BPF 04L 945.00
26 – 30 1-1/4″ BPW 05 926.00 BPF 05 1065.00
26 – 30 1-1/2″ BPW 05L 1064.00 BPF 05L 1224.00
30 – 33 1-1/2″ BPW 06 1324.00 BPF 06 1524.00
30 – 33 1-1/4″ BPW 06S 1348.00 BPF 06S 1550.00
33 – 37 1-1/2″ BPW 07 1566.00 BPF 07 1801.00
37 – 41 2″ BPW 08 1881.00 BPF 08 2163.00
41 – 46 2″ BPW 09 2034.00 BPF 09 2339.00
46 – 52 2″ BPW 010 2476.00 BPF 010 2847.00
46 – 52 2-1/2″ BPW 010L 2721.00 BPF 010L 3129.00
52 – 60 2-1/2″ BPW 011 3705.00 BPF 011 4261.00
60 – 66 3″ BPW 012 4357.00 BPF 012 4999.00
66 – 72 3″ BPW 013S 5606.00 BPF 013S 6447.00
72 – 78 3-1/4″ BPW 013 5914.00 BPF 013 6801.00
78 – 83 3-1/2″ BPW 014 7452.00 BPF 014 8570.00
83 – 93 4″ BPW 015 8694.00 BPF 015 9998.00
93 – 104 4-1/2″ BPW 016 11730.00 BPF 016 13490.00
Cat No. Flange Entry Internal Dia (E) [mm] Max Cable Dia (B) [mm] Under Armour Dia (A) [mm] Thread Length (L) [mm] Acceptance Min [mm] Acceptance Max [mm] Verified Cable O.D. Range [mm]
FL-5 16.0 16.5 12.0 13.0 12.0 16.5 12.0 – 16.5
FL-4 19.0 19.0 15.0 13.0 15.0 19.0 15.0 – 19.0
FL-3 19.0 20.5 15.0 13.0 18.5 20.5 18.5 – 20.5
FL-2 25.0 24.5 21.0 14.0 20.5 24.5 20.5 – 24.5
FL-1 31.0 30.5 28.0 15.0 24.0 30.0 24.0 – 30.0
FL-11 31.0 34.0 28.0 15.0 29.5 34.0 29.5 – 34.0
FL-0 35.0 35.0 31.0 15.0 32.5 35.0 32.5 – 35.0
FL-00 37.5 38.0 33.5 15.0 34.5 38.0 34.5 – 38.0
FL-38 42.0 43.0 37.5 15.0 37.0 42.0 37.0 – 42.0
FL-001 49.0 48.0 44.0 15.0 40.5 45.0 40.5 – 44.0
FL-002 53.5 52.0 48.0 15.0 45.0 52.0 43.5 – 52.0
FL-003 60.0 59.0 55.0 15.0 51.0 58.0 51.0 – 58.0
FL-0033 65.0 64.5 60.0 15.0 56.5 64.0 56.5 – 67.0
FL-004 75.0 74.0 67.0 20.0 64.0 74.0 66.0 – 76.0
FL-005 100.0 85.0 90.0 22.5 74.0 85.0 75.0 – 83.0

Product Detail

Frigate’s Flange Type Brass Cable Glands are precision-engineered mechanical assemblies designed to provide maximum armor clamping and exceptional environmental sealing for industrial wiring layouts. Constructed with an oval-shaped flange and galvanized mild steel studs, these heavy-duty glands ensure reliable electrical continuity and rigid cable support in highly demanding outdoor applications.

Termination Interface

Integrated Tapered Cone and Locking Nut Components

Component Breakdown

Check Nut, Gland Plate, Gland Body, Taper Cone, Studs, Nuts

Environmental Protection

Weatherproof, Moisture-Resistant, and Dustproof Seal

Mechanical Security

Advanced Tensile Strain Relief to Prevent Cable Pull-Out

Finishing/Plating Options

Natural Brass Finish (Nickel-Plating Available on Request)

Compliance Standard

Manufactured to Exact B2B Industrial Procurement Standards

Technical Advantages

These heavy-duty glands feature a rugged nickel-plated brass construction that provides excellent corrosion resistance alongside high-performance protection against dust and moisture ingress. Furthermore, their integrated three-metal washer layout and high-grade nitrile rubber ring ensure exceptional mechanical strain relief and optimal earthing performance for armored cabling systems.

Compliances

ISO 90012015

QA-AC-628923

Why customers choose FRIGATE?

Built on trust, manufacturing expertise, and long-term support.

5+ years of experience

Trusted for reliable manufacturing solutions.

World Wide delivery

From factories to doorsteps across the world.

Secure payments

Multiple safe options with full transaction security.

Dedicated account manager

Single point of contact for orders and queries.

Post-order support

Reliable support that stays with you after delivery.

Having Doubts? Our FAQ

For what specific types of cables are these flange-type glands engineered?

These mechanical glands are tailored explicitly for armored cables, offering a heavy-duty clamping system to safely terminate and anchor armored layers in critical plant environments.

What installation hardware is provided with each individual gland unit?

Each package contains a complete termination assembly comprising a brass body with an oval flange, a clamping plate, tapered cones, high-tensile galvanized mild steel studs, and complementary fastening nuts.

Can these flange-type glands withstand outdoor exposure in coastal or high-humidity zones?

Yes, the premium machined brass combined with galvanized hardware is intentionally designed for rugged outdoor utility, providing long-term resistance against environmental deterioration and ambient moisture.

Does Frigate support custom surface plating requests for these brass components?

Absolutely. While our baseline models feature a high-quality natural brass finish, we offer wholesale custom nickel-plating options to fulfill custom corporate engineering standards.

How do we determine the precise catalog size needed for our industrial wiring setup?

Simply measure your cable’s outer diameter (O.D.) and under-armour diameter, then locate the corresponding row in our Master Specification Table to identify the ideal Frigate part designation from FL-5 to FL-005.
