Double Compression Stainless Steel Cable Glands

Safe & Secure Payments

Order Quantity Range (Units) Discount Offered (%)
1 – 99 Base Price (0%)
100 – 499 5% Off
500 – 999 10% Off
1,000+ Custom Pricing

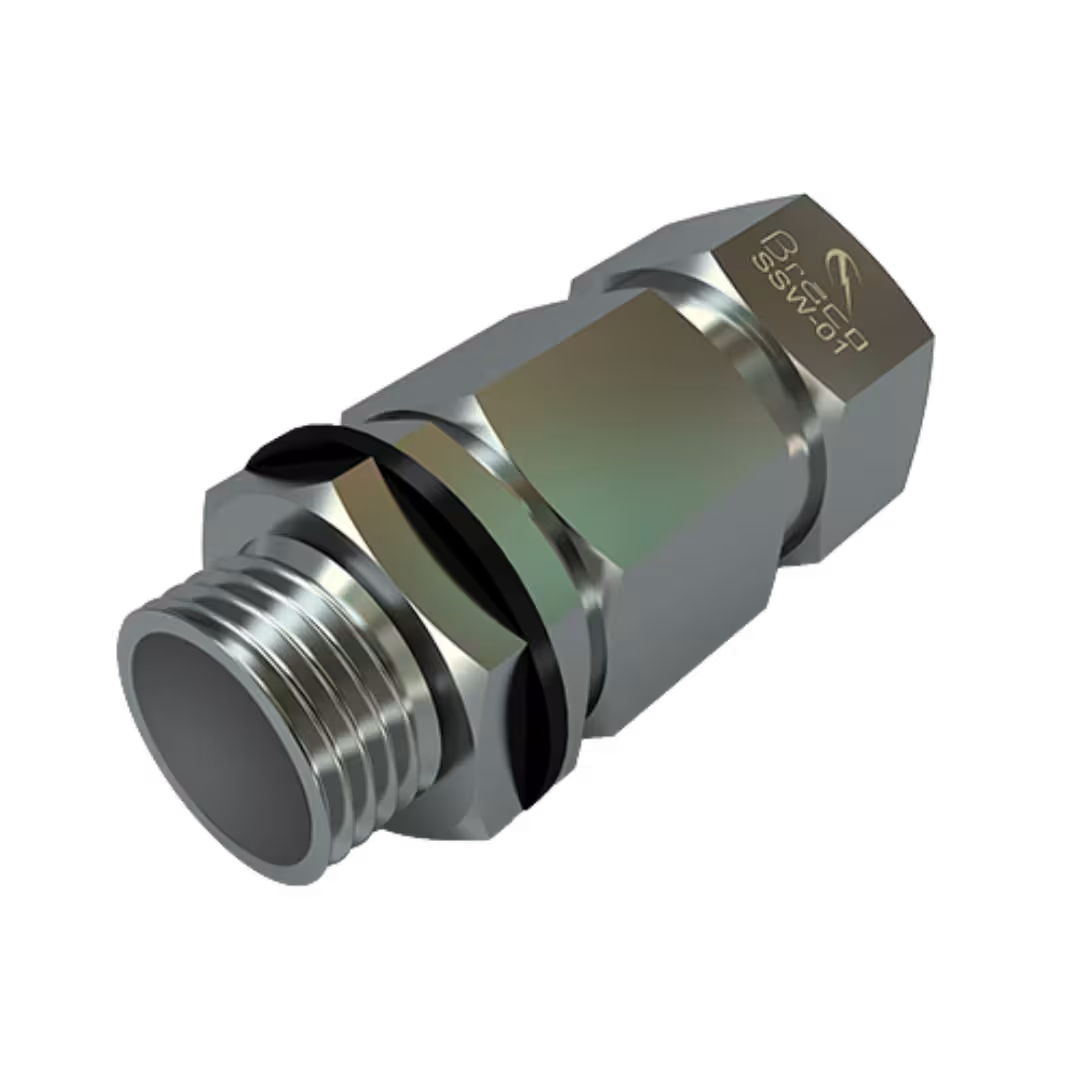

Double Compression Stainless Steel Cable Glands

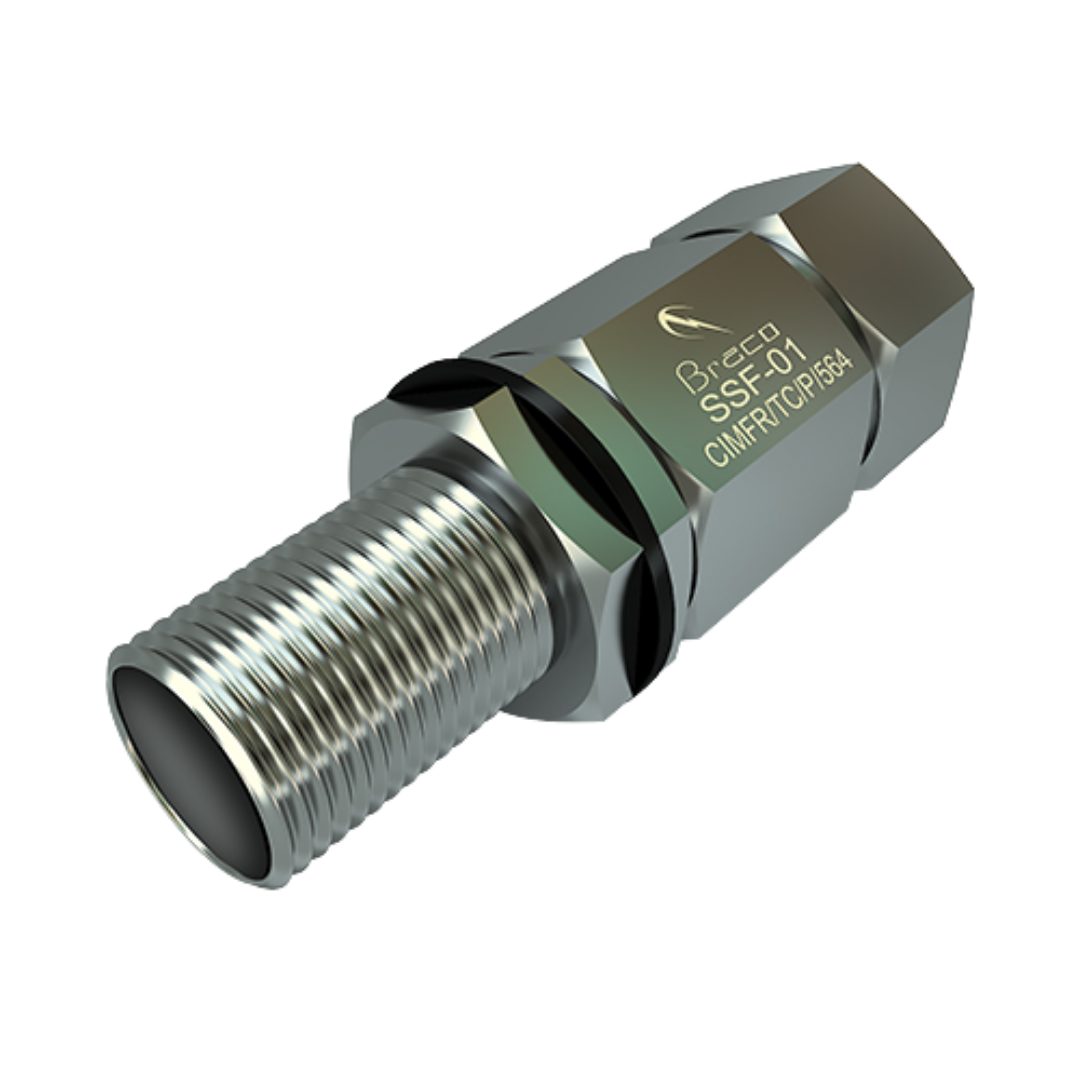

Double Compression Stainless Steel Cable Glands - Image 2
Partner with Frigate for premium, high-integrity cable management solutions meticulously engineered for the most demanding industrial environments. Our Double Compression Stainless Steel Cable Glands provide dual moisture-proof seals and IP66-rated protection to keep your armored cables secure against harsh weather, dust, and corrosive elements.

Material Availability

Grade SS304 / SS316 Stainless Steel

Ingress Protection (IP)

IP66 Weatherproof & Waterproof

Operating Temperature

-20°C to +80°C

Sealing System

Double Compression (Inner & Outer Nitrile/Neoprene Rubber Seals)

Applicable Standards

IS 12943 / IEC-62444 / BS 6121: PART 1

Price Range:

Price range: $282.00 through $13,490.00 /per unit

  • Competitive Pricing
  • Order Flexibility
  • Volume Discounts
Request Bulk Quote

You're Protected With Every Order

Frigate ensures reliable electrical products, proper invoice support, and post-order assistance, so you can purchase with confidence.

100% Genuine Products

Direct from brand-authorised sources.

Manufacturer Assured

Warranty as per manufacturer terms.

GST Invoice

Compliant invoice with every order.

Technical Support

Expert help for product selection.

Business Features

Exclusive benefits for bulk buyers.

  • World Wide Delivery
  • Secure Payments
  • Dedicated Account Manager
  • Post-Order Support

Price & Specification Details

WEATHER PROOF FLAME PROOF
O.D. Range (mm) Nipple Entry Cat No. Rate / Unit Cat No. Rate / Unit
8 – 12 5/8″ BPW 3/8″ 282.00 BPF 3/8″ 324.00
8 – 13 5/8″ BPW 1/2″ 282.00 BPF 1/2″ 324.00
8 – 13 3/4″ BPW 001S 294.00 BPF 001S 338.00
11 – 15 3/4″ BPW 5/8″ 345.00 BPF 5/8″ 397.00
12.5 – 16.5 3/4″ BPW 001 345.00 BPF 001 397.00
12.5 – 16.5 3/4″ BPW 01S 370.00 BPF 01S 426.00
15 – 18 3/4″ BPW 01 420.00 BPF 01 483.00
15 – 18 1″ BPW 01L 474.00 BPF 01L 545.00
18 – 20 1″ BPW 02 536.00 BPF 02 616.00
18 – 20 3/4″ BPW 02S 555.00 BPF 02S 638.00
20 – 23 1″ BPW 1″ 536.00 BPF 1″ 616.00
20 – 23 1″ BPW 03 545.00 BPF 03 627.00
23 – 26 1″ BPW 04 744.00 BPF 04 856.00
23 – 26 1-1/4″ BPW 04L 822.00 BPF 04L 945.00
26 – 30 1-1/4″ BPW 05 926.00 BPF 05 1065.00
26 – 30 1-1/2″ BPW 05L 1064.00 BPF 05L 1224.00
30 – 33 1-1/2″ BPW 06 1324.00 BPF 06 1524.00
30 – 33 1-1/4″ BPW 06S 1348.00 BPF 06S 1550.00
33 – 37 1-1/2″ BPW 07 1566.00 BPF 07 1801.00
37 – 41 2″ BPW 08 1881.00 BPF 08 2163.00
41 – 46 2″ BPW 09 2034.00 BPF 09 2339.00
46 – 52 2″ BPW 010 2476.00 BPF 010 2847.00
46 – 52 2-1/2″ BPW 010L 2721.00 BPF 010L 3129.00
52 – 60 2-1/2″ BPW 011 3705.00 BPF 011 4261.00
60 – 66 3″ BPW 012 4357.00 BPF 012 4999.00
66 – 72 3″ BPW 013S 5606.00 BPF 013S 6447.00
72 – 78 3-1/4″ BPW 013 5914.00 BPF 013 6801.00
78 – 83 3-1/2″ BPW 014 7452.00 BPF 014 8570.00
83 – 93 4″ BPW 015 8694.00 BPF 015 9998.00
93 – 104 4-1/2″ BPW 016 11730.00 BPF 016 13490.00
Weatherproof Cat. No. Flameproof Cat. No. Acceptable Cable OD Range (mm) Nipple Thread (ET) Nipple Thread (MM) Nipple Thread (NPT) Outer Nut Length (mm) Inner Body Length (mm) Across Flats Wrench Size (mm) Across Corners Clearance (mm) Thread Engagement Length (mm)
SSW 001S SSF 001S 8 – 14 3/4″ M-20 1/2″ NPT 14 13 22 25 15
SSW 5/8″ SSF 5/8″ 11 – 15 3/4″ M-20 1/2″ NPT 17 14 23 26 15
SSW 001 SSF 001 12.5 – 16.5 3/4″ M-20 1/2″ NPT 17 14 24 27.5 15
SSW 01S SSF 01S 12.5 – 16.5 3/4″ M-20 1/2″ NPT 17.5 14 24 27.5 15
SSW 01 SSF 01 15 – 18 3/4″ M-20 1/2″ NPT 18.5 15 27 30 15
SSW 01L SSF 01L 15 – 18 1″ M-25 3/4″ NPT 18.5 15 27 30 15
SSW 02 SSF 02 18 – 20 1″ M-25 3/4″ NPT 20.5 16 30 35 15
SSW 02S SSF 02S 18 – 20 3/4″ M-20 1/2″ NPT 20.5 14 30 35 15
SSW 03 SSF 03 20 – 23 1″ M-25 3/4″ NPT 23 18 30 35 15
SSW 04 SSF 04 23 – 26 1″ M-25 3/4″ NPT 27 20 35 41 15
SSW 04L SSF 04L 23 – 26 1-1/4″ M-32 1″ NPT 27 24 35 41 15
SSW 05 SSF 05 26 – 30 1-1/4″ M-32 1″ NPT 31 24 40 46 15
SSW 05L SSF 05L 26 – 30 1-1/2″ M-40 1-1/4″ NPT 31 26 40 46 15
SSW 06 SSF 06 30 – 33 1-1/2″ M-40 1-1/4″ NPT 34 31 47 53 15
SSW 06S SSF 06S 30 – 33 1-1/4″ M-32 1″ NPT 34 24 47 53 15
SSW 07 SSF 07 33 – 37 1-1/2″ M-40 1-1/4″ NPT 38 32 52 58 15
SSW 08 SSF 08 37 – 41 2″ M-50 1-1/2″ NPT 42 38 56 64 15
SSW 09 SSF 09 41 – 46 2″ M-50 1-1/2″ NPT 47 39 59 67 15
SSW 010 SSF 010 46 – 52 2″ M-50 1-1/2″ NPT 53 44 67.5 77 20
SSW 010L SSF 010L 46 – 52 2-1/2″ M-63 2″ NPT 53 50 67.5 77 20
SSW 011 SSF 011 52 – 60 2-1/2″ M-63 2″ NPT 61 56 80 92 20
SSW 012 SSF 012 60 – 66 3″ M-75 2-1/2″ NPT 68 64 85 98 20
SSW 013S SSF 013S 66 – 72 3″ M-75 2-1/2″ NPT 73 64 99 113 20
SSW 013 SSF 013 72 – 78 3-1/4″ M-82 3″ NPT 79 74 99 113 20
SSW 014 SSF 014 78 – 83 3-1/2″ M-90 3″ NPT 84 78 105 118 20
SSW 015 SSF 015 83 – 93 4″ M-100 3-1/2″ NPT 95 88 115 129 20
SSW 016 SSF 016 93 – 104 4-1/2″ M-115 4″ NPT 106 100 125 140 20

Product Detail

Frigate’s double compression cable glands are precisely machined from premium SS304 and SS316 stainless steel to ensure maximum mechanical strength and lifelong durability in severe industrial environments. Equipped with distinct inner and outer Nitrile/Neoprene rubber seals, these glands provide continuous IP66 protection, making them ideal for heavy-duty armored cable management across processing plants, marine applications, and infrastructure projects.

Acceptable Cable OD Range

8 mm to 104 mm

Nipple Thread Types

ET / Metric (MM) / NPT

Nipple Thread Sizes

5/8″ to 4-1/2″ (ET) / M-16 to M-115 (MM) / 1/2″ to 4″ (NPT)

Surface Finish

Natural Finish

Armour Compatibility

Specially designed for Versatile Armoured Cable Protection

Standard Accessories

Check Nut, Flat Washer, Gland Barrel, Armour Clamp, Clamping Ring, Gland Body, Sealing Nut

Technical Advantages

By utilizing a dual-seal design, these glands compress simultaneously on the inner sheath and the outer jacket of the cable, which establishes a gas-tight, moisture-proof barrier that effectively eliminates internal condensation and environmental ingress. Furthermore, when paired with an optional protective PVC shroud, our high-grade stainless steel construction exhibits outstanding resistance to corrosive salts, acidic vapors, and extreme temperature fluctuations ranging from -20°C to +80°C.

Compliances

ISO 9001:2015

QA-AC-628923

Why customers choose FRIGATE?

Built on trust, manufacturing expertise, and long-term support.

5+ years of experience

Trusted for reliable manufacturing solutions.

World Wide delivery

From factories to doorsteps across the world.

Secure payments

Multiple safe options with full transaction security.

Dedicated account manager

Single point of contact for orders and queries.

Post-order support

Reliable support that stays with you after delivery.

Having Doubts? Our FAQ

Can Frigate supply these double compression glands with custom thread lengths for thicker enclosure walls?

Yes, while our standard catalog specifies a thread engagement length (D) of 15mm or 20mm depending on the size, Frigate can manufacture extended or custom nipple thread lengths to safely clear thick concrete walls, customized cast enclosures, or specialized gland plates.

What is the lead time for bulk commercial orders of Grade SS316 vs. Grade SS304 glands?

Standard SS304 configurations are highly stocked and typically ship within 3–5 business days, whereas specialized marine-grade SS316 runs or very large diameter sizes are manufactured to order with an average production lead time of 2–3 weeks depending on production capacity.

Which stainless steel grade should I choose for my procurement order, SS304 or SS316?

SS304 provides exceptional structural strength and excellent corrosion resistance for standard industrial, manufacturing, and commercial setups. For marine installations, offshore platforms, or environments exposed to chemical washdowns and high chloride levels, we strongly recommend opting for SS316 due to its enhanced resistance to pitting and chemical attack.

Are these cable glands compliant with international engineering and manufacturing standards?

Yes. Frigate’s double compression stainless steel glands are rigorously tested and comply fully with international standards including IS 12943, IEC-62444, and BS 6121: Part 1, ensuring seamless integration into global engineering frameworks.

Can I get custom thread types if my project specifies non-standard machinery entries?

Absolutely. Our manufacturing lines support multiple standard thread profiles including ET (Electrical Thread), Metric (MM), and NPT (National Pipe Tapered) options across all sizes. Please select your preference during configuration or reach out to our engineering support team for specialized project requirements.
