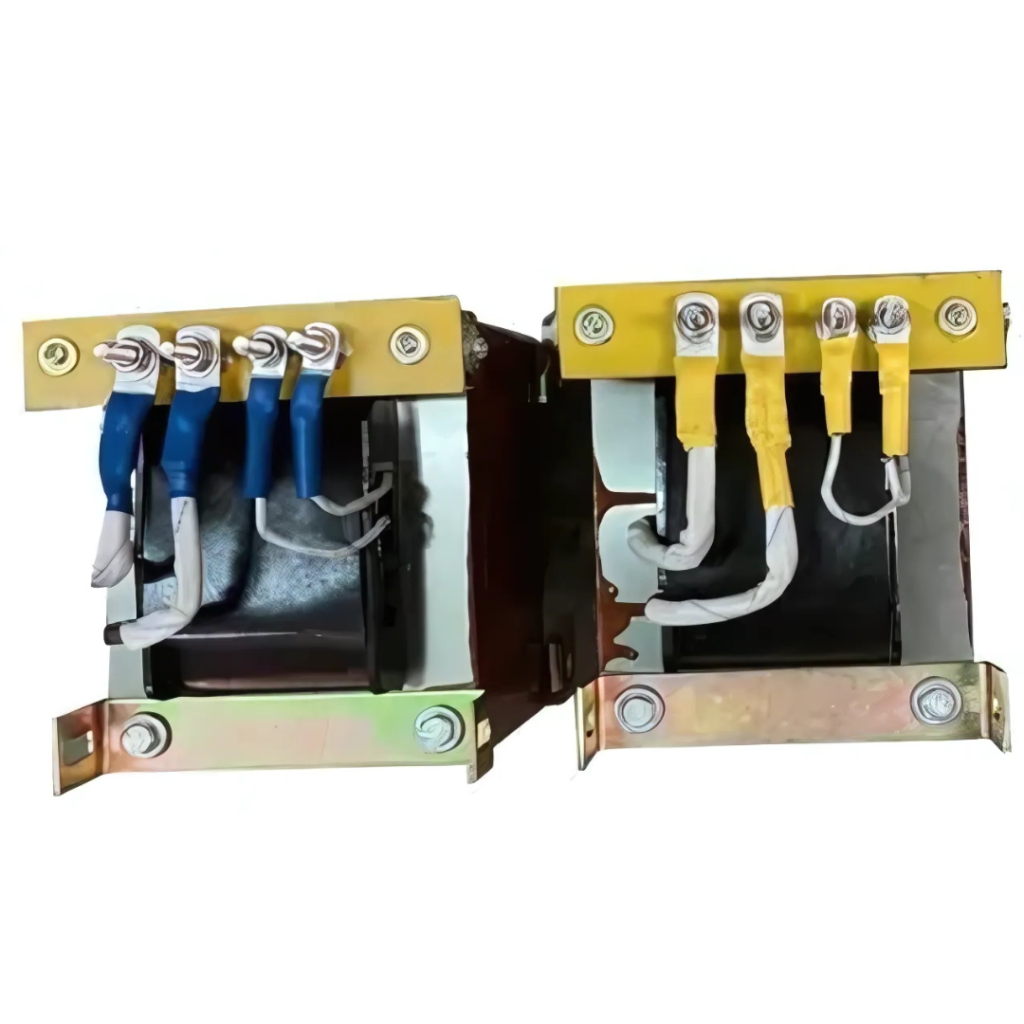

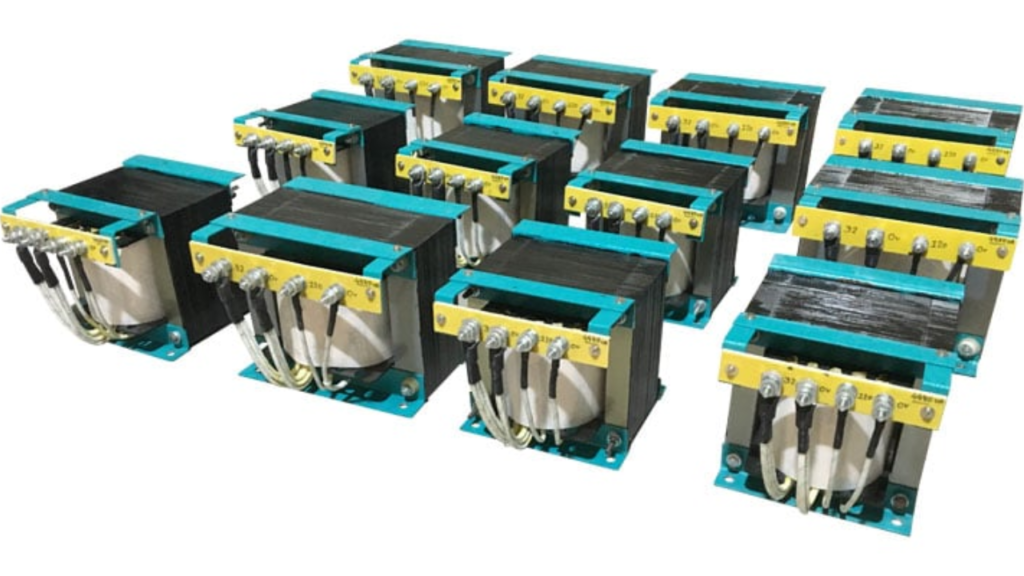

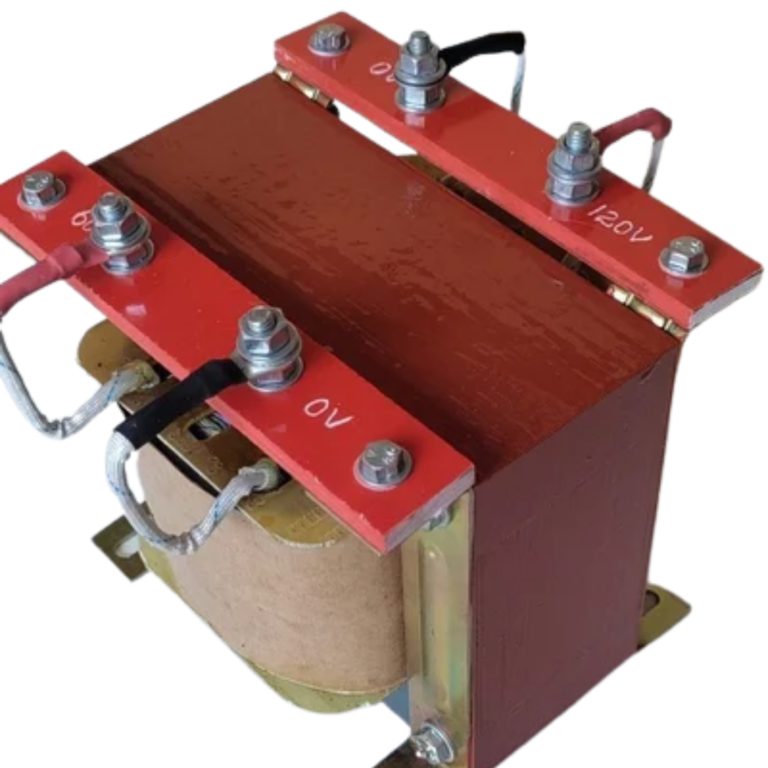

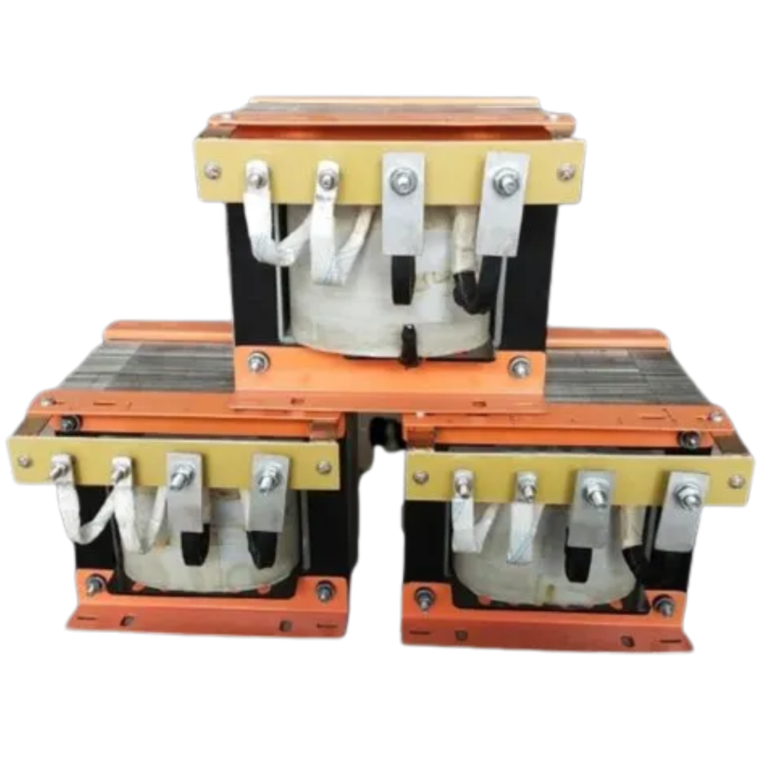

Buck-Boost Transformers

Name: Buck-Boost Transformers - Frigate Manufacturing
Price: 249.00 USD
Availability: InStock

Why settle for fixed voltage when your operations need adaptable power solutions? Our Buck-Boost Transformers adjust input voltage from 110 V to 480 V with silicon steel cores, ensuring effective voltage correction for your operations.

Core Material

Silicon steel for efficient magnetic performance and low core losses

Winding Material

Copper wire, enamel-coated for high conductivity and durability

Voltage Rating

Input: 110 V – 480 V; Output: ±5% to ±20% adjustment (e.g., 120 V to 100 V or 132 V, customizable)

Power Rating

50 VA to 25 kVA, suited for small to medium voltage correction applications

Frequency Range

50 Hz to 60 Hz, optimized for standard mains-powered systems

Product Description

Inflexible power sources can disrupt your processes and increase costs. We design these units with enamel-coated copper windings to provide consistent adjustments, supporting your need for stable and efficient power delivery.

Efficiency

90% to 95%, designed for effective voltage adjustment with minimal loss

Temperature Range

Operating: -15°C to 85°C; maximum winding temperature rise: 55°C above ambient

Insulation Class

Class F (155°C) or Class H (180°C), ensuring durability under thermal loads

Leakage Current

<0.5 mA at rated voltage, ensuring safety in low-power applications

Dimensions

Width: 80 mm to 300 mm; Height: 60 mm to 250 mm; Depth: 80 mm to 280 mm (customizable)

Weight

2 kg to 50 kg, depending on power rating and core size

Mounting Type

Chassis mount or wall mount; adaptable to compact installation needs

Noise Level

<45 dB at full load, minimized for low-power and indoor use

Protection Features

Overload protection, short-circuit resistance, and optional thermal cutoff

Environmental Resistance

Moderate resistance to humidity (up to 85% RH) and dust; vibration per IEC 60068-2-6

Standards Compliance

Meets or exceeds UL 5085-1, IEC 61558-2-13 (buck-boost transformers), EN 55032 (EMI), and RoHS

Technical Advantages

Voltage correction demands transformers that manage capacity and optimize energy use efficiently. Our Buck-Boost Transformers offer power ratings from 50 VA to 25 kVA with 90-95% efficiency, ensuring effective voltage adjustments to meet your requirements.

Thermal buildup can reduce performance and increase maintenance needs. These units include overload protection and short-circuit resistance, maintaining stable operation to support your operational requirements.

Let's Get Started

Need reliable Transformers for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Agricultural Irrigation Systems

Corrects voltage for pump controls, ensuring effective energy for water flow.

Medical Imaging Devices

Adjusts power for scanners, providing stable voltage for accurate diagnostics.

Construction Lighting Units

Balances voltage for site lamps, delivering consistent energy for visibility.

Food Packaging Machines

Fine-tunes power for sealers, maintaining stable voltage for production speed.

Battery Backup Systems

Regulates voltage for UPS units, ensuring effective energy for backup power.

Elevator Safety Controls

Adjusts power for brake systems, providing consistent voltage for safe stops.

Efficiency in Flexible Power Solutions

Operational setups improve with transformers that handle heat and minimize noise for your needs. Our Buck-Boost Transformers function from -15°C to 85°C and operate at under 45 dB, enabling effective fit and sustained functionality in your setups.

Flexible voltage adjustments enhance your ability to maintain power consistency without added complexity. High efficiency in these transformers supports your cost-management goals, ensuring dependable output in diverse conditions.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do Buck-Boost Transformers address inconsistent voltage levels?

Our Buck-Boost Transformers adjust input voltage from 110 V to 480 V by ±5% to ±20%, stabilizing power across a wide range of conditions. Consistent voltage output reduces operational disruptions, ensuring your processes remain efficient and stable.

What cost savings can we expect from using these transformers?

Buck-Boost Transformers achieve 90-95% efficiency, minimizing energy loss during voltage adjustments. Lower energy costs and a compact design reduce your overall expenses, aligning with budget-conscious procurement goals.

Can we rely on fast lead times for urgent power correction needs?

Our Buck-Boost Transformers are customizable to your specifications, with delivery in 2 to 4 weeks depending on order complexity. Swift production supports your tight timelines, keeping projects on schedule without delays.

Why are Buck-Boost Transformers a flexible choice for varying power demands?

Buck-Boost Transformers offer power ratings from 50 VA to 25 kVA, adaptable to both small and medium voltage correction tasks. This versatility simplifies your sourcing process, covering diverse operational needs with a single solution.

How do these transformers ensure safe operation under heavy loads?

Our Buck-Boost Transformers include overload protection and operate at under 45 dB, maintaining effective performance even at peak capacity. Enhanced safety features minimize downtime risks, supporting your long-term operational stability.
