Brass Cable Glands

Safe & Secure Payments

Order Quantity (Units) Discount Offered (%)
100 – 499 Base Price (0% Discount)
500 – 2,499 5% Off
2,500 – 9,999 10% Off
10,000+ Custom Pricing
Brass Cable Glands
Brass Cable Glands - Image 2

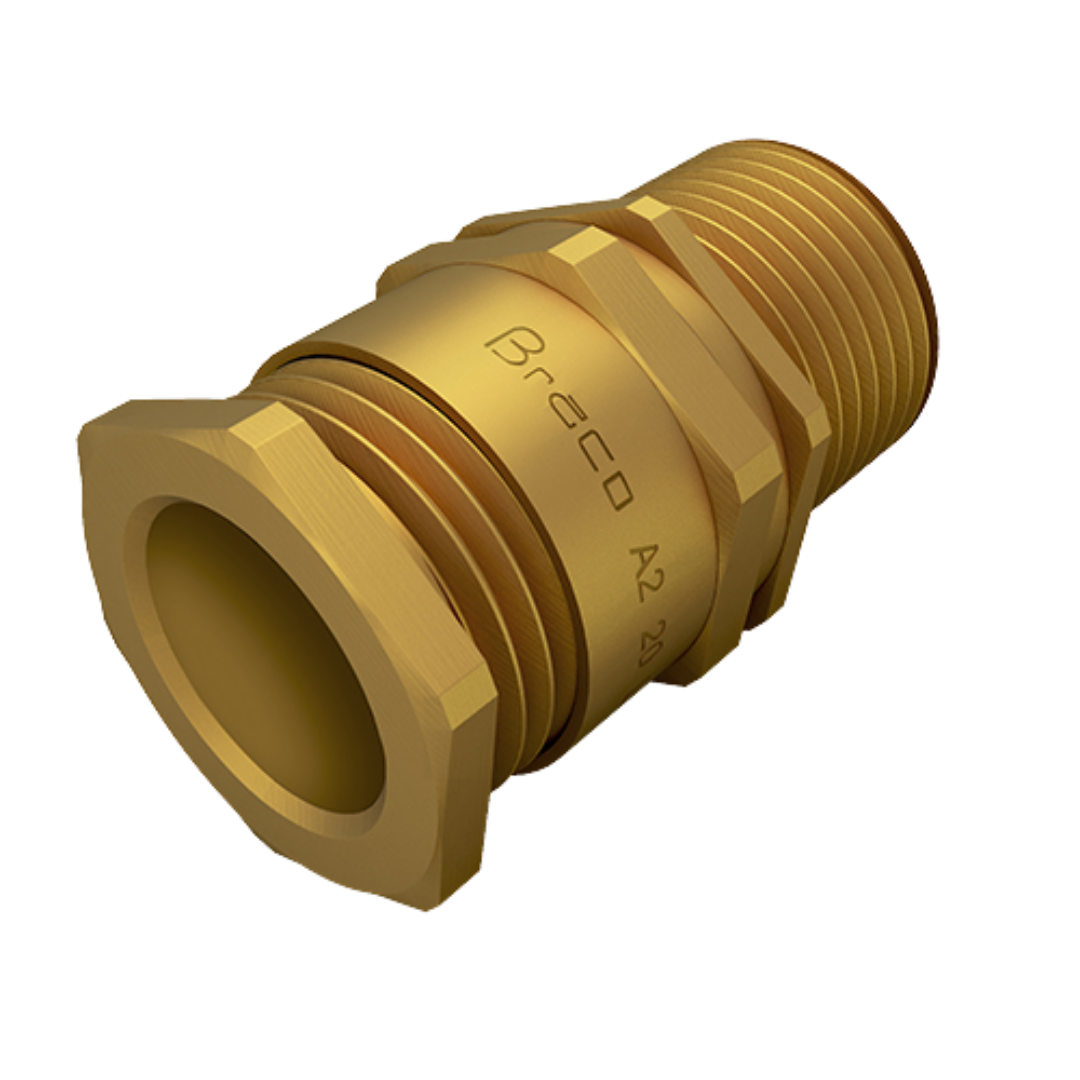

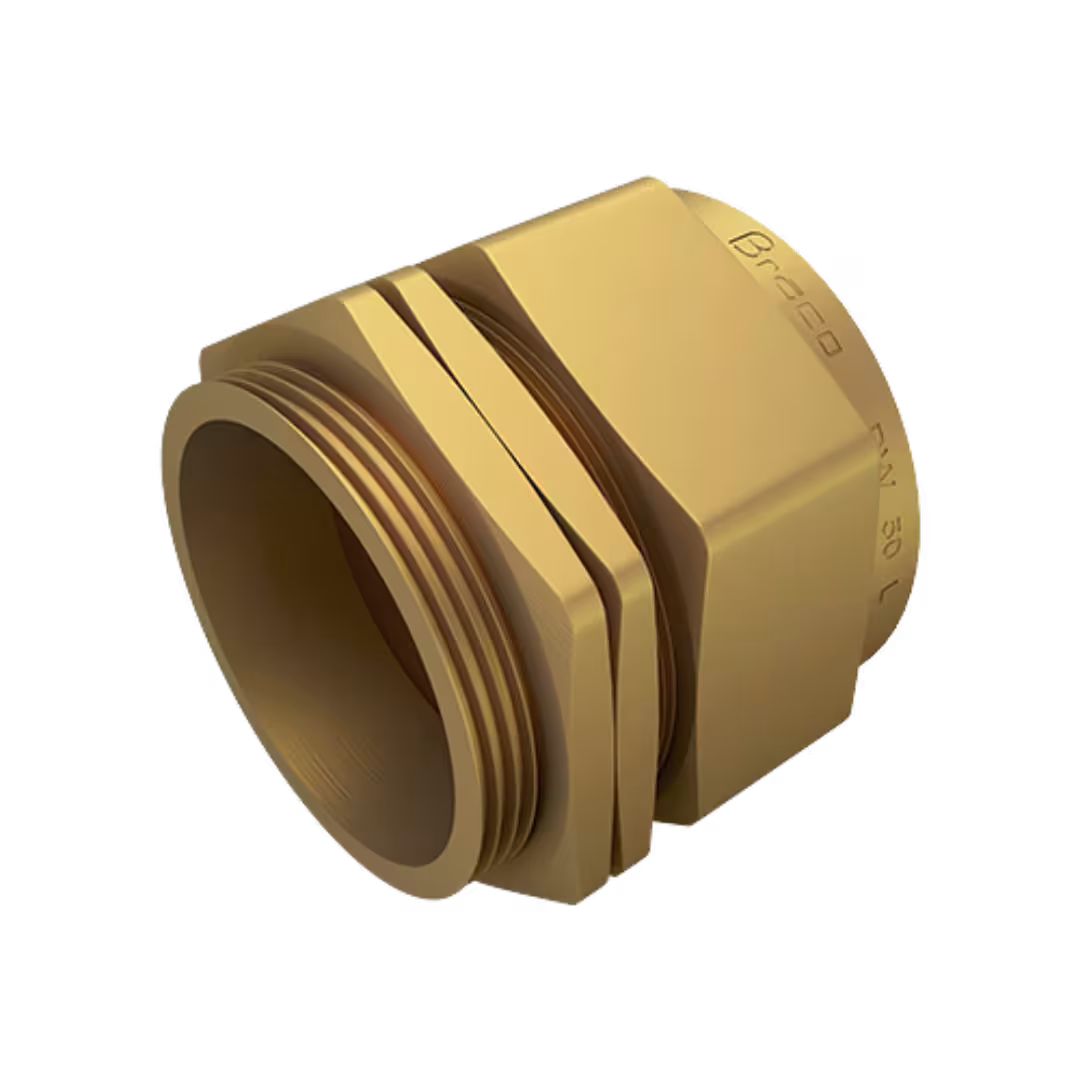

Secure your industrial electrical systems with Frigate’s high-performance Brass Cable Glands (PG & Metric Threads), meticulously engineered for unarmoured, plastic, or rubber-sheathed cables. Featuring robust nickel-plated brass construction and an IP68 protection rating, these glands deliver exceptional resistance to environmental hazards, weak acids, and salt water.

Ingress Protection

IP68 (Dust-tight & Continuous Immersion)

Thread Type

PG (Panzergewinde) / Metric (1.5 Pitch)

Operating Temperature

-20°C to +80°C

Surface Treatment

Bright Nickel Plated (Corrosion Resistant)

Applicable Standards

IS 12943 / IEC-62444 / BS 6121: PART 1

Price Range:

Price range: $282.00 through $13,490.00 /per unit

  • Competitive Pricing
  • Order Flexibility
  • Volume Discounts
Request Bulk Quote

You're Protected With Every Order

Frigate ensures reliable electrical products, proper invoice support, and post-order assistance, so you can purchase with confidence.

100% Genuine Products

Direct from brand-authorised sources.

Manufacturer Assured

Warranty as per manufacturer terms.

GST Invoice

Compliant invoice with every order.

Technical Support

Expert help for product selection.

Business Features

Exclusive benefits for bulk buyers.

  • World Wide Delivery
  • Secure Payments
  • Dedicated Account Manager
  • Post-Order Support

Price & Specification Details

WEATHER PROOF FLAME PROOF
O.D. Range (mm) Nipple Entry Cat No. Rate / Unit Cat No. Rate / Unit
8 – 12 5/8″ BPW 3/8″ 282.00 BPF 3/8″ 324.00
8 – 13 5/8″ BPW 1/2″ 282.00 BPF 1/2″ 324.00
8 – 13 3/4″ BPW 001S 294.00 BPF 001S 338.00
11 – 15 3/4″ BPW 5/8″ 345.00 BPF 5/8″ 397.00
12.5 – 16.5 3/4″ BPW 001 345.00 BPF 001 397.00
12.5 – 16.5 3/4″ BPW 01S 370.00 BPF 01S 426.00
15 – 18 3/4″ BPW 01 420.00 BPF 01 483.00
15 – 18 1″ BPW 01L 474.00 BPF 01L 545.00
18 – 20 1″ BPW 02 536.00 BPF 02 616.00
18 – 20 3/4″ BPW 02S 555.00 BPF 02S 638.00
20 – 23 1″ BPW 1″ 536.00 BPF 1″ 616.00
20 – 23 1″ BPW 03 545.00 BPF 03 627.00
23 – 26 1″ BPW 04 744.00 BPF 04 856.00
23 – 26 1-1/4″ BPW 04L 822.00 BPF 04L 945.00
26 – 30 1-1/4″ BPW 05 926.00 BPF 05 1065.00
26 – 30 1-1/2″ BPW 05L 1064.00 BPF 05L 1224.00
30 – 33 1-1/2″ BPW 06 1324.00 BPF 06 1524.00
30 – 33 1-1/4″ BPW 06S 1348.00 BPF 06S 1550.00
33 – 37 1-1/2″ BPW 07 1566.00 BPF 07 1801.00
37 – 41 2″ BPW 08 1881.00 BPF 08 2163.00
41 – 46 2″ BPW 09 2034.00 BPF 09 2339.00
46 – 52 2″ BPW 010 2476.00 BPF 010 2847.00
46 – 52 2-1/2″ BPW 010L 2721.00 BPF 010L 3129.00
52 – 60 2-1/2″ BPW 011 3705.00 BPF 011 4261.00
60 – 66 3″ BPW 012 4357.00 BPF 012 4999.00
66 – 72 3″ BPW 013S 5606.00 BPF 013S 6447.00
72 – 78 3-1/4″ BPW 013 5914.00 BPF 013 6801.00
78 – 83 3-1/2″ BPW 014 7452.00 BPF 014 8570.00
83 – 93 4″ BPW 015 8694.00 BPF 015 9998.00
93 – 104 4-1/2″ BPW 016 11730.00 BPF 016 13490.00

PG Thread Specifications (Standard Series)

Cat No. Cable OD Range (mm) Thread OD C1 (mm) Thread Length C2 (mm) Hex Dimension (mm) Base Rate/Unit (INR)
FP-BPG-7 3 – 6.5 12.5 6 14 79.00
FP-BPG-9 4 – 8 15.2 7 17 121.00
FP-BPG-11 5 – 10 18.6 7 20 137.00
FP-BPG-13.5 6 – 12 20.4 7.5 22 168.00
FP-BPG-16 10 – 14 22.5 7.5 24 196.00
FP-BPG-21 13 – 18 28.3 8 30 281.00
FP-BPG-29 18 – 25 37 9 40 509.00
FP-BPG-36 22 – 32 47 9 50 790.00
FP-BPG-42 32 – 38 54 10 57 1143.00
FP-BPG-48 37 – 44 59.3 11 64 1533.00
FP-BPG-63 42 – 50 (52 max) 72 15 80 2241.00

Metric Thread Specifications (High-Pitch Series)

Frigate Cat No. Cable OD Range (mm) Thread OD C1 (Metric) Thread Length C2 (mm) Hex Dimension (mm) Base Rate/Unit (INR)
FP-BPGM-12 x 1.5 3 – 6.5 M12 6 14 89.00
FP-BPGM-16 x 1.5 4 – 8 M16 7 17 146.00
FP-BPGM-20 x 1.5 6 – 12 M20 7.5 22 169.00
FP-BPGM-25 x 1.5 12 – 16 M25 8 27 233.00
FP-BPGM-32 x 1.5 16 – 21 M32 9 35 355.00
FP-BPGM-40 x 1.5 18 – 28 M40 9 45 626.00
FP-BPGM-50 x 1.5 26 – 36 M50 10 57 1226.00
FP-BPGM-63 x 1.5 36 – 48 M63 11 68 1749.00
FP-BPGM-75S x 1.5 48 – 54 M75 15 80 2376.00
FP-BPGM-75L x 1.5 54 – 62 M75 15 80 Contact for Quote

Product Detail

Frigate’s premium Nickel-Plated Brass Cable Glands are engineered to provide exceptionally secure entries for unarmoured cables into electrical enclosures, control panels, and heavy machinery. Incorporating advanced polyamide claws paired with flexible EPDM rubber seals, these units prevent structural cable slippage while maintaining a permanent, tight hold across highly varied cable outer diameters.

Cable Compatibility

Unarmoured, Plastic, or Rubber Sheathed Cables

Clamping & Seal Design

Polyamide Claws with EPDM Rubber Core

Max Submersion Depth

Up to 5 Bar / 50m (Application Dependent)

Chemical Resistance

Resistant to Salt Water, Weak Acids, Alcohol, Oil & Grease

Tensile Strength / Strain Relief

Class A (per IEC 62444 structural pull-out tests)

Impact Resistance

High Mechanical Impact Resistance (IK Code compatible)

Technical Advantages

By upgrading to our nickel-plated brass architecture, infrastructure managers gain structural protection certified to strict global engineering standards including IEC-62444 and BS 6121. The integrated IP68 environmental barrier delivers unmatched resilience in harsh industrial spaces, completely shielding internal circuitry from high-pressure water ingress, weak acids, salt water, and hydrocarbon solvents.

Compliances

ISO 9001:2015

QA-AC-628923

Why customers choose FRIGATE?

Built on trust, manufacturing expertise, and long-term support.

5+ years of experience

Trusted for reliable manufacturing solutions.

World Wide delivery

From factories to doorsteps across the world.

Secure payments

Multiple safe options with full transaction security.

Dedicated account manager

Single point of contact for orders and queries.

Post-order support

Reliable support that stays with you after delivery.

Having Doubts? Our FAQ

What specific cable types are compatible with Frigate Brass Cable Glands?

These glands are optimized specifically for unarmoured, plastic, or rubber-sheathed cables. The combination of polyamide claws and high-grade EPDM seals allows them to conform tightly around varying outer diameters without damaging the cable sheath.

What level of environmental protection do these cable glands offer?

Our glands achieve a certified IP68 protection rating, which means they provide total dust protection and can withstand long-term immersion in water under pressure. Additionally, the nickel-plated finish protects against salt water, weak acids, alcohol, oils, and grease.

Can these cable glands operate safely in extreme temperature conditions?

Yes, the continuous operating temperature range is rated from -20°C up to +80°C. This wide thermal threshold makes them highly dependable for both freezing outdoor environments and hot, high-load industrial enclosures.

Can Frigate accommodate custom thread lengths or alternative surface plating for specific project designs?

Yes, absolutely. Beyond our standard nickel-plated catalog, we can manufacture these cable glands with customized thread lengths (C2 dimension) and alternative finishes such as passivated natural brass or tin plating to meet your exact engineering and application blueprints.

Are Frigate cable glands certified to international standards?

Absolutely. Our manufacturing process ensures full compliance with recognized global frameworks, including IS 12943, IEC-62444, and BS 6121: Part 1, making them seamlessly ready for critical engineering tenders and international project deployments.
