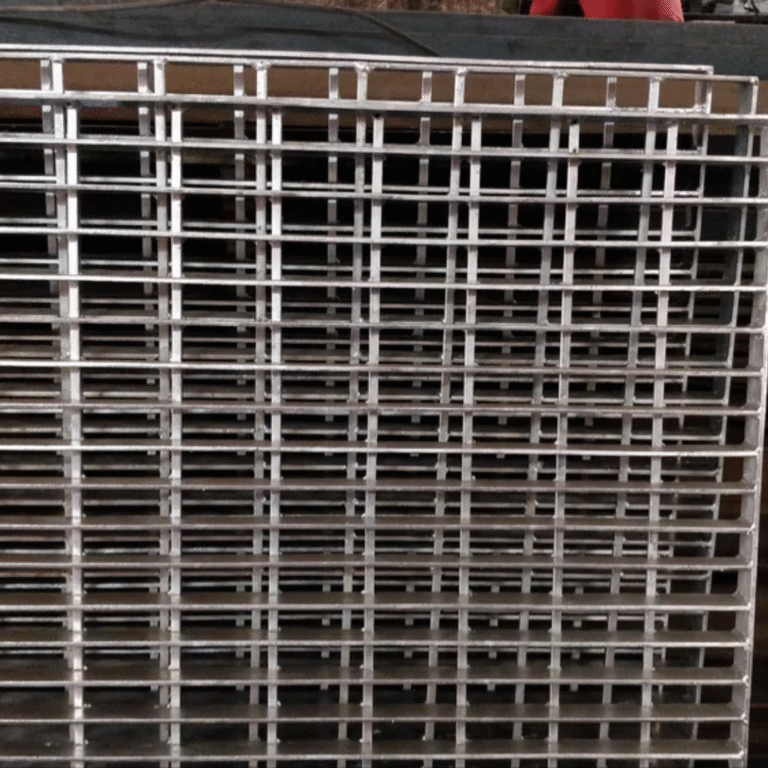

Stainless Steel Gratings

Corrosive environments or high-cleanability zones often restrict the use of standard grating materials. Our Stainless Steel Gratings offer durability, hygiene compliance, and superior load bearing without surface degradation.

Panel Size (L × W)

Up to 6000mm × 1200mm (Custom sizes available)

Bearing Bar Thickness

2mm to 8mm

Bearing Bar Depth

20mm to 100mm (Common: 25mm, 30mm, 50mm)

Bearing Bar Spacing

15mm to 50mm

Cross Bar Spacing

50mm to 150mm (Standard: 100mm)

Overall Height/Thickness

20mm to 120mm (Depends on bar depth + weld height)

Product Description

Standard grating often fails in marine, chemical, or food zones due to rust or pitting. We use AISI 304, 316, or 316L with optional 310-grade for heat-critical zones, delivering consistent strength and corrosion resistance.

Open Area Percentage

50% to 85% (30mm spacing ≈ 75%)

Material Composition

AISI 304, 316, 316L (Optional: 310 for high-temp, 430 for cost-effective)

Load-Bearing Capacity

Up to 8 Ton/m² (30mm depth: ~3 Ton/m²; 50mm: ~5 Ton/m²

Surface Treatment

Mill Finish, Electropolished, Bead Blasted, Anti-Slip Serrated

Edge Treatments

Plain, Banded (SS Flat Bar), Safety Nosing, Tooth Edges

Weight per m²

10kg to 70kg/m² (30mm depth ≈ 25kg/m²)

Compliance Standards

ASTM A967, EN 10088, ISO 9001, OSHA, NACE MR0175

Corrosion Resistance

Excellent (316/L for saltwater/chemicals; 304 for general use

Temperature Resistance

200°C to +800°C (304/316); Up to 1100°C (310 grade)

Slip Resistance

R10 to R13 (Serrated), Smooth (Standard), Diamond/Stripe Patterns

Technical Advantages

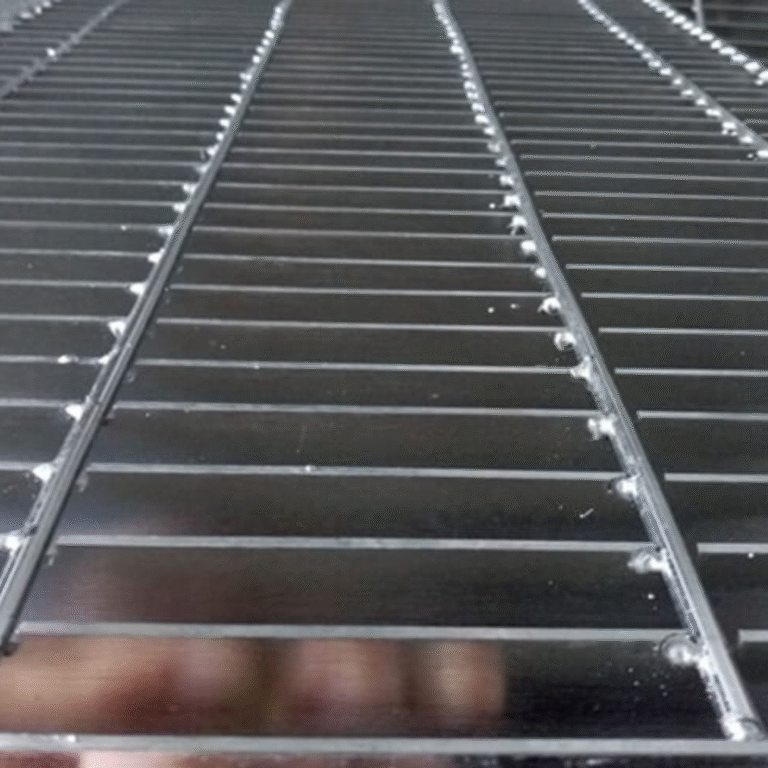

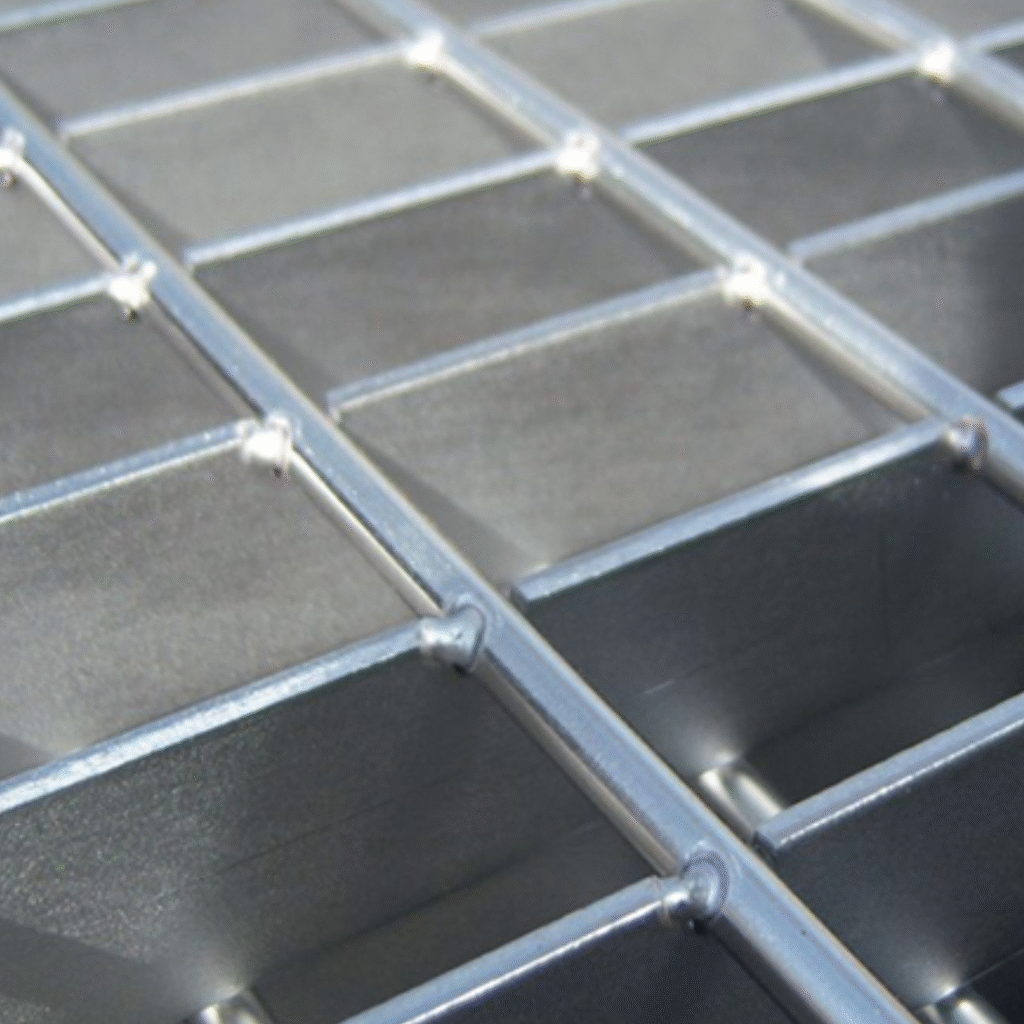

Mild steel grating often warps or corrodes under frequent chemical or thermal load. Our stainless gratings use uniform bar spacing and full weld contact, reducing deflection and improving load spread.

Mill finish and surface-treated options support both aesthetic and functional needs in high-visibility zones. You can specify bar depth, spacing, and finish to match plant layout and safety grades

Let's Get Started

Need reliable Gratings for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

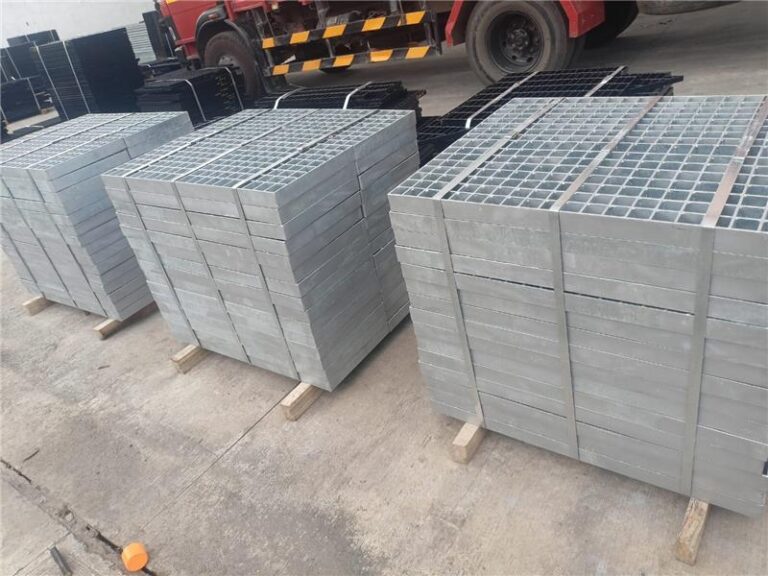

Executed Projects

Industry Applications

Food Processing Floors

Uses AISI 316L with bead-blasted finish to resist acidic washdowns and bacterial buildup in production areas.

Wastewater Treatment Plants

Open area up to 85% allows high drainage; anti-slip variants reduce hazards in wet walkways.

Pharmaceutical Cleanrooms

Electropolished grating meets hygiene and finish standards for sterile environments

Coastal and Marine Platforms

Saltwater exposure handled with 316/L grades; serrated surfaces prevent slips during deck operations.

Chemical Transfer Zones

Offers high corrosion resistance to acids and alkalis; welded bar design adds panel rigidity.

Power Generation Units

Stainless variants withstand 800°C continuous heat, suiting flue or turbine access paths.

Consistent Performance for High-Stress Installations

Our stainless steel grating panels deliver long-term value in tough process environments. They maintain structural strength across repeated washdowns, chemical exposure, or temperature swings.

We follow ASTM and EN standards, and support optional certification for critical project zones. Based on your layout, we help finalize sizes, finishes, and reinforcements that cut field errors.

Executed Projects

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can I request a non-standard panel size to match my trench or pit layout?

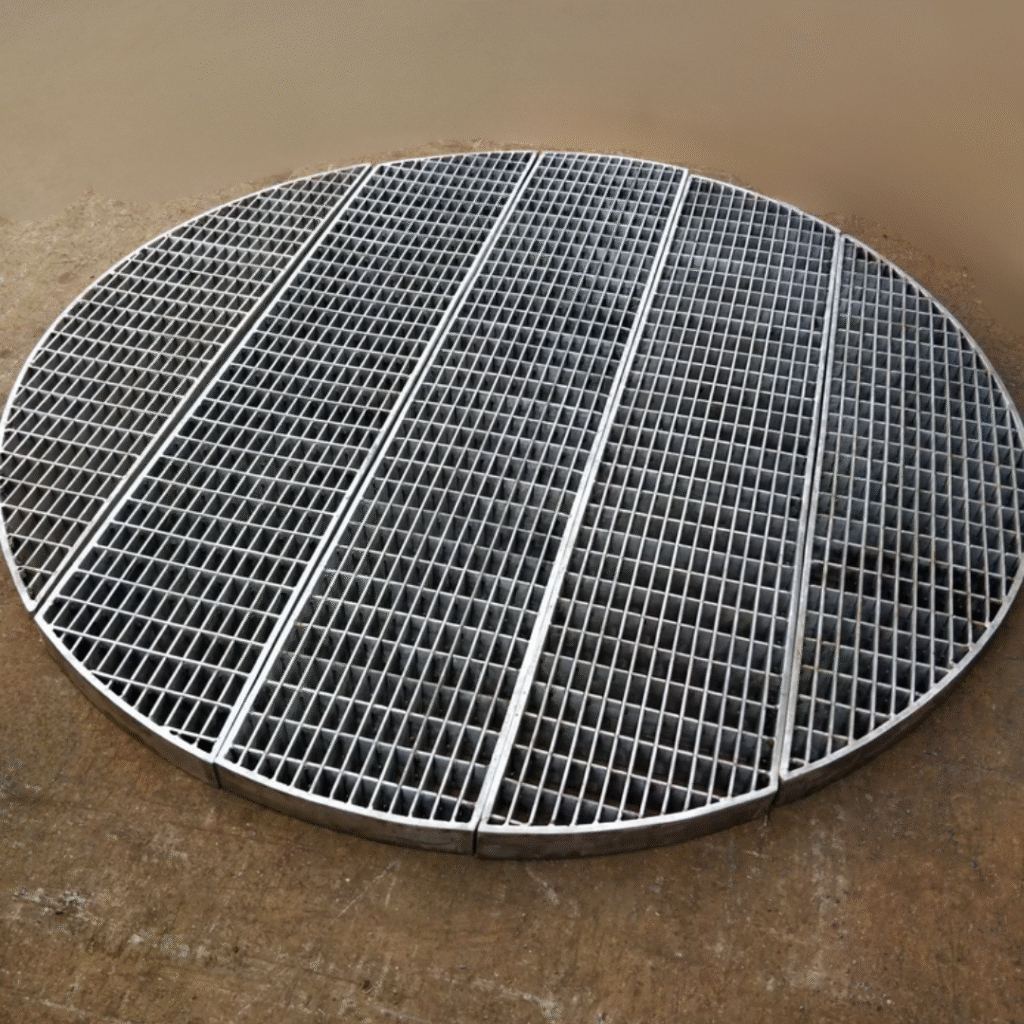

Yes, we cut stainless steel grating panels to exact lengths and widths, including notches or cut-outs. You can also get banded edges for added fit stability. We support up to 6000mm in length per panel.

How do I choose between 304, 316, and 316L for my application?

304 suits general indoor use, while 316 handles salt and chemical exposure better. For welded zones or pharmaceutical areas, we recommend 316L due to its lower carbon content. You can confirm grade selection during the technical review.

Will the grating hold forklifts or pallet jacks in our plant area?

Yes, panels with 50mm depth bearing bars can handle up to 5 Ton/m² loading. For higher impact areas, we suggest reducing bearing bar spacing or increasing cross support. Load data is always shared before confirmation.

Do you offer anti-slip surface treatment for inclined or wet zones?

Yes, we offer serrated top bars and diamond patterns that increase grip. You can also combine these with bead blasting for better visual inspection. Slip ratings range from R10 to R13 depending on finish.

Can these panels comply with industry-specific standards or audits?

Yes, we meet ASTM A967, EN 10088, and OSHA platform rules as standard. We also support material traceability and finish certificates when needed. You can request inspection documents during order confirmation.
